Product Beschreibung

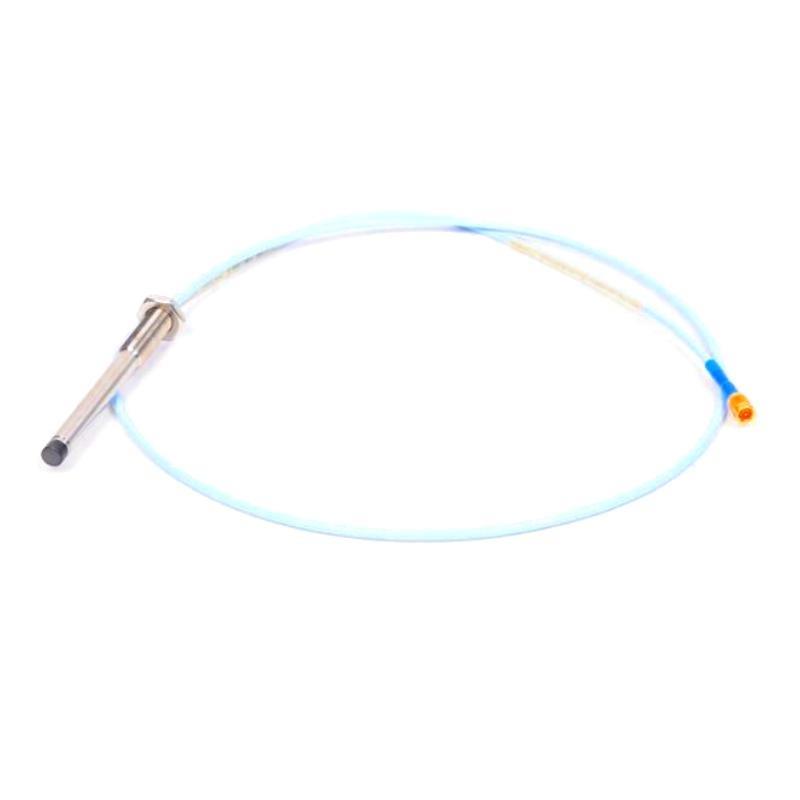

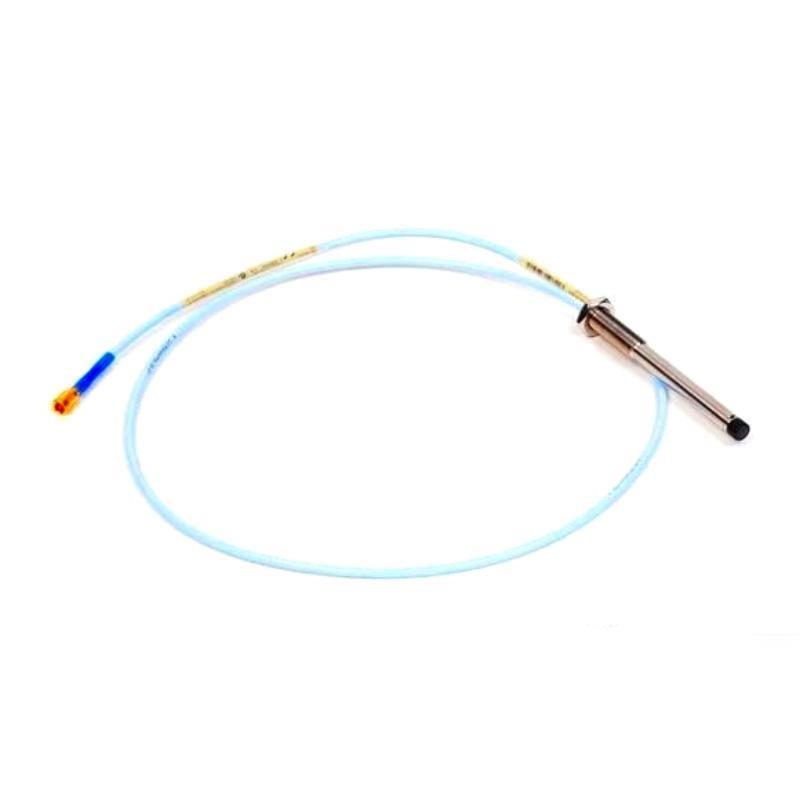

The Bently Nevada 330103-00-08-10-02-CN is a high-performance 8 mm proximity probe designed for machinery condition monitoring. It provides accurate, linear measurements von shaft vibration and position in fluid-film bearing machines. The probe outputs a voltage proportional to the distance to a conductive surface and supports both static and dynamic measurements. It is part von the 3300 XL series, ensuring full compatibility and interchangeability within the series.
Product Features and Advantages
-
Complies with API 670 standards.
-
Superior linear range and accuracy.
-
Rugged construction with enhanced environmental protection.
-

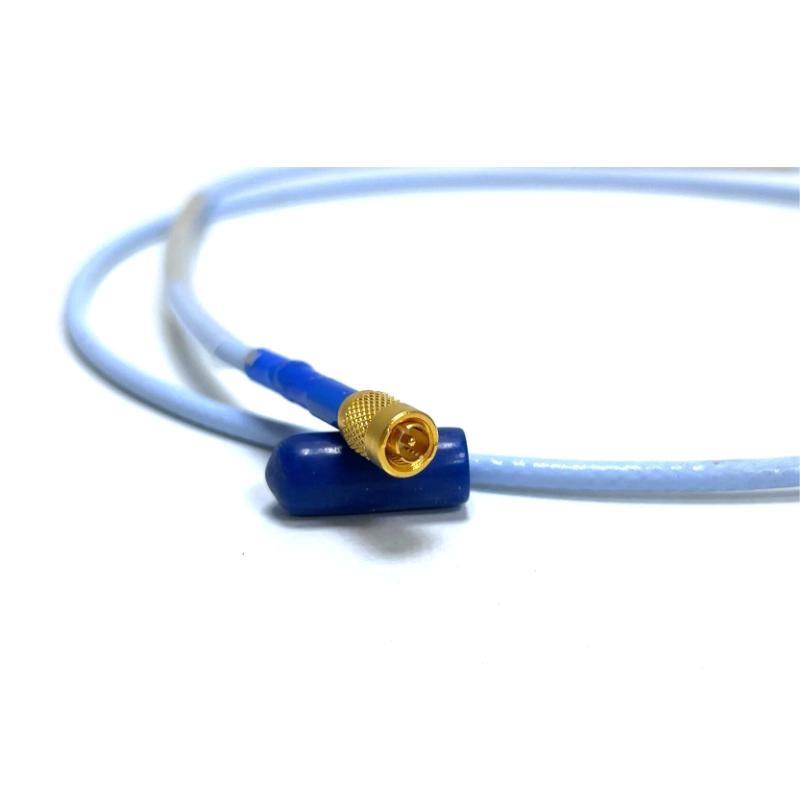

Gold-plated ClickLoc connectors for secure, tool-free connections.
-
FluidLoc and armored cable options to prevent oil leakage.
-
Backward compatible with non-XL 3300 systems.
Applications
-
Shaft vibration monitoring in turbines, compressors, pumps.
-
Radial and axial position measurements.
-
Keyphasor reference and overspeed protection systems.
-
Suitable for harsh industrial environments, including high temperature zones.
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector Type | Gold-plated ClickLoc |
| Total Length | 1.0 meter |
| Gewicht | 0.323 kg |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Frequency Response | 0–10 kHz (+0, –3 dB) |
| Operating Temperature Range | –52°C to +177°C (probe) |
| Minimum Shaft Diameter | 50.8 mm (recommended 76.2 mm) |
| Minimum Target Size | 15.2 mm diameter flat target |
| Environmental Certifications | CE, FCC, RoHS, ATEX, IECEx, SIL 2/3 |
FAQ
Q1: What is the linear measurement range von this probe?
A1: It has a linear range von 2 mm (80 mils).
Q2: Is the probe suitable for high-temperature applications?
A2: Yes, it operates up to +177°C. For higher temperatures, ETR versions are available.
Q3: Can this probe be used for both radial and axial measurements?
A3: Yes, it supports both radial vibration and axial position monitoring.
Q4: Does it comply with industry standards?
A4: Yes, it meets API 670 requirements for mechanical configuration and performance.
Q5: Is the probe backward compatible with earlier 3300 systems?
A5: Yes, it is electrically and physically compatible with non-XL 3300 5 mm and 8 mm components.
Q6: What type von connectors does it use?
A6: Gold-plated ClickLoc connectors that ensure secure, tool-free connections.
Q7: Can it operate in environments with high electromagnetic interference?
A7: Yes, the design provides excellent RFI/EMI immStücky.
Q8: Is field calibration required?
A8: No, components are fully interchangeable without the need for calibration.
Q9: Does it support armored cables?
A9: Yes, versions with armored and FluidLoc cables are available for added protection.
Q10: What is the minimum shaft diameter it can measure accurately?
A10: Minimum 50.8 mm shaft diameter is recommended.
Recommended Related Modells (Same Series/Similar)
| Modell | Beschreibung | Length | Gewicht |
|---|---|---|---|
| 330101-00-08-10-02-00 | 8 mm Probe, UNF thread, no armor | 1.0 m | 0.323 kg |
| 330102-00-08-10-02-00 | 8 mm Probe, UNF thread, with armor | 1.0 m | 0.35 kg |
| 330104-00-06-10-02-00 | 8 mm Probe, M10 thread, with armor | 1.0 m | 0.35 kg |
| 330105-02-12-10-02-00 | Reverse mount, UNF thread | 1.0 m | 0.34 kg |
| 330106-05-30-10-02-00 | Reverse mount, M10 thread | 1.0 m | 0.34 kg |
| 330140-00-08-10-02-00 | Smooth case probe without armor | 1.0 m | 0.32 kg |
Popular Bently Nevada Modells
| Modell | Beschreibung | Length | Gewicht |
|---|---|---|---|
| 330180-10-00 | Proximitor Sensor, 1 m system | 1.0 m | 0.246 kg |
| 330130-030-00-00 | Standard Extension Cable, 3 m | 3.0 m | 0.1 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | – | 0.8 kg |
| 3500/44M-01-00 | Aeroderivative GT Vibration Monitor | – | 0.85 kg |
| 3500/22M-01-00 | Transient Data Interface | – | 0.5 kg |
| 3500/15-05-01-00 | Power Supply Module | – | 1.1 kg |
