Produkteinführung

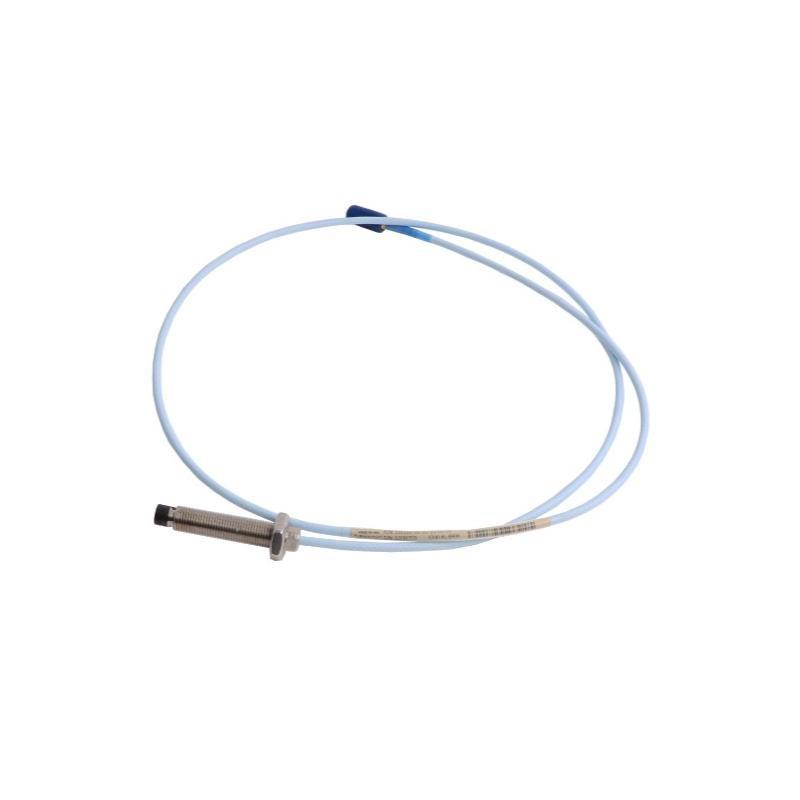

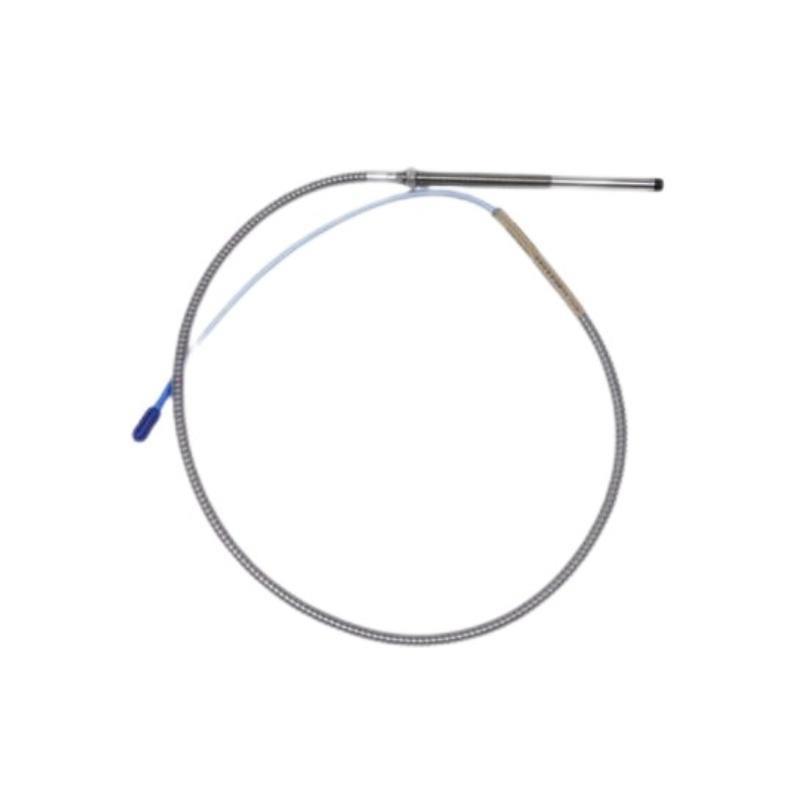

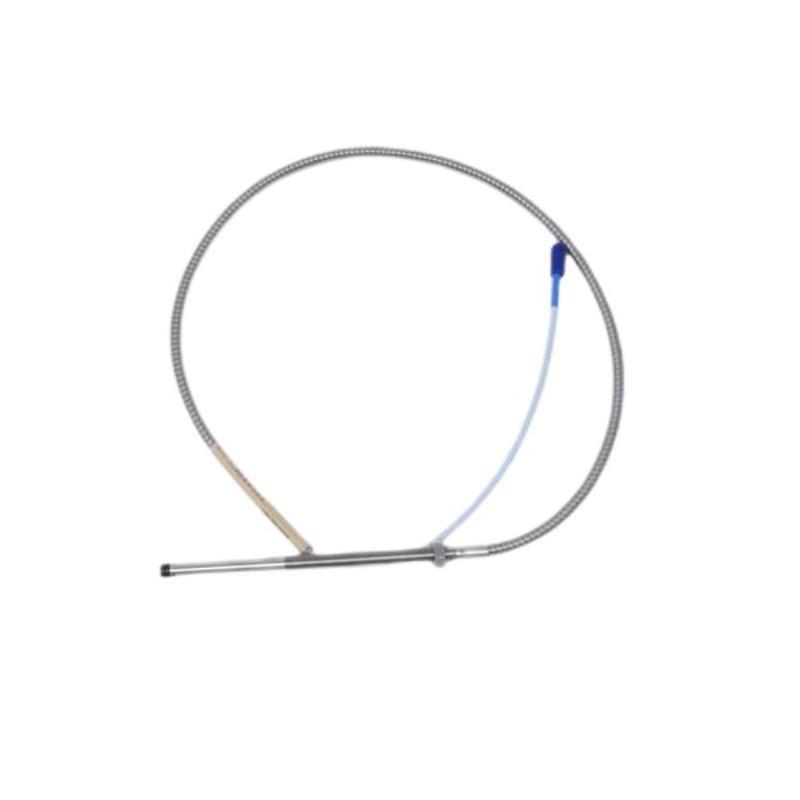

The Bently Nevada 330103-00-05-15-02-00 is a member von the 3300 XL 8mm Proximity Transducer System, a trusted and globally deployed solution for non-contact measurement von shaft vibration and position in rotating machinery. Built with industrial-grade precision, this probe is specifically engineered for use in harsh environments including high temperatures, strong vibrations, and electromagnetic interference zones.
With its 8mm tip and 1.5 meters probe cable, this model vonfers a balance von compact design and extended reach, providing accurate readings in tight installation areas without sacrificing data fidelity. When used in conjunction with matching extension cables and Proximitor sensors, the system ensures a linear voltage response that complies with API 670 and supports real-time condition monitoring and machinery protection.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Modell Number | 330103-00-05-15-02-00 |
| Series | 3300 XL 8mm Proximity Transducer System |
| Probe Tip Diameter | 8 mm |
| Sensing Range | -2 mm to +2 mm (linear) |
| Cable Length (attached) | 1.5 meters (probe cable only) |
| Mounting Thread | 1/4-28 UNF (Unified National Fine Thread) |
| Connector Type | Male coaxial connector (MIL-C-5015-style) |
| Target Material | Carbon steel (AISI 4140 or equivalent ferromagnetic material) |
| System Sensitivity | -200 mV/μm (when used with 3300 XL Proximitor Sensor) |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Shock Limit | 500 g peak (1 ms half-sine pulse) |
| Vibration Limit | 10 g peak (10–2000 Hz, sinusoidal) |
| Housing Material | Stainless steel |
| Environmental Sealing | Hermetically sealed tip and epoxy-potted internals |
| Gewicht | 0.485 kg |
| Compliance | CE marked, RoHS, API 670 compliant |
| Compatible Extension Cable | 330130-xxx-00-00 |
| Compatible Proximitor Sensor | 3300 XL Proximitor Sensor (model 330180) |
Product Applications
The Bently Nevada 330103-00-05-15-02-00 proximity probe is designed to address the rigorous demands von machinery condition monitoring in industries such as:
-
Power Generation (gas and steam turbines)
-
Oil & Gas (compressors, gearboxes, motors, and pumps)
-
Petrochemical (high-speed rotating equipment)
-
Mining and Metals (large fans, blowers, crushers)
-
Marine & Shipbuilding (propulsion systems, onboard compressors)
-
Paper and Pulp (heavy-duty rotating process machines)
Its use in these areas includes shaft vibration monitoring, thrust position detection, differential expansion monitoring, and rotor dynamics analysis.
Product Advantages
-
High Precision Performance
Delivers reliable shaft vibration and position readings critical to machinery diagnostics and safety. -
Robust Construction
Built with corrosion-resistant stainless steel and epoxy-sealed electronics to withstand industrial environments. -
Broad Temperature Capability
Supports wide ambient and process temperature ranges, ideal for use near hot process equipment. -
Long-Term Stability
Designed for minimal signal drift and long service life, reducing maintenance and recalibration needs. -
Seamless Integration
Fully compatible with other 3300 XL components, allowing modular and scalable monitoring systems. -
API 670 Compliant
Meets stringent requirements for critical rotating machinery protection in safety-sensitive industries. -
Field Proven
Trusted by engineers worldwide across thousands von installations with a strong track record. -
EMI Shielding
Designed to function reliably even in areas von high electromagnetic interference. -
Flexible Mounting Options
Compatible with a wide variety von probe holders and brackets for complex installations. -
Global Support
Backed by Bently Nevada’s worldwide technical support and field service network.
Häufig gestellte Fragen (FAQ)
-
Q: What is the sensing range von the 330103-00-05-15-02-00 probe?
A: It vonfers a linear sensing range von ±2 mm, typically around a 2 mm total gap. -
Q: Can this probe be used in high-temperature environments?
A: Yes, it operates in temperatures up to 177°C and stores safely down to -51°C. -
Q: What type von target material is optimal for this probe?
A: It is optimized for use with conductive ferromagnetic materials such as AISI 4140 steel. -
Q: Is the cable integrated or detachable?
A: The probe includes an integrated 1.5 meters cable, with extension cables added separately. -
Q: Can this probe be used with older Bently Nevada systems?
A: Yes, as long as they support the 3300 XL Proximitor sensor compatibility. -
Q: What connector type is used on the probe end?
A: It uses a MIL-C-5015-style male coaxial connector for ruggedized connections. -
Q: How is this model different from the -10 or -20 cable length variants?
A: The only difference is the cable length; the sensing and performance characteristics are identical. -
Q: How should the probe be mounted?
A: It is designed to be installed using a 1/4-28 UNF thread in a properly aligned holder or bracket. -
Q: Is this probe suitable for hazardous environments?
A: While rugged, specific hazardous certifications (ATEX/IECEx) depend on the full system configuration. -
Q: How does the probe system achieve high measurement accuracy?
A: Through factory-calibrated linear output (-200 mV/μm) and high-frequency stability from matched system components.
Related Modells in the Same Series
| Modell Number | Beschreibung | Tip Size | Cable Length |
|---|---|---|---|
| 330103-00-05-10-02-00 | 8mm XL Probe with 1.0m Cable | 8 mm | 1.0 m |
| 330103-00-05-20-02-00 | 8mm XL Probe with 2.0m Cable | 8 mm | 2.0 m |
| 330104-00-05-15-02-00 | 5mm XL Probe with 1.5m Cable | 5 mm | 1.5 m |
| 330130-040-00-00 | Extension Cable for 3300 XL Probes (4.0 m) | N/A | 4.0 m |
| 330105-02-12-10-02-00 | 3300 XL Proximitor Sensor | N/A | N/A |
| 330180-91-00 | 3300 XL Extension Cable with molded connectors | N/A | Custom lengths |
Popular Bently Nevada Modells
| Modell Number | Beschreibung | Function | Installation Type |
|---|---|---|---|
| 3500/22M | Keyphasor Module for phase reference | Shaft phase detection | Rack-mounted |
| 3500/42M | Vibration Monitor for proximity sensors | Vibration and position | Rack-mounted |
| 3500/05 | System Rack for housing 3500 Series modules | Modular chassis | Rack-mounted |
| 330104-00-10-10-02-CN | 5mm Proximity Probe, 1.0m cable (China model) | Displacement and vibration | Panel-mounted |
| 7200-50-01-01-00 | Legacy Proximity Transducer System | General vibration monitoring | Field Stück |
| 330106-05-30-10-02-00 | High-temperature Proximity Probe, 8mm, 3.0m cable | Extreme temperature use | Rugged field application |
