Product Overview

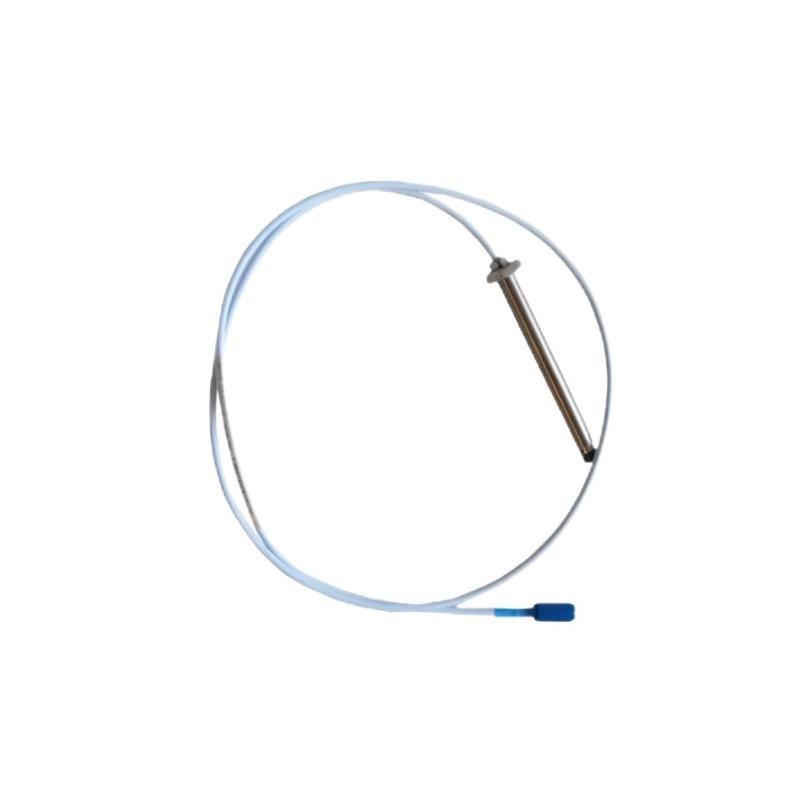

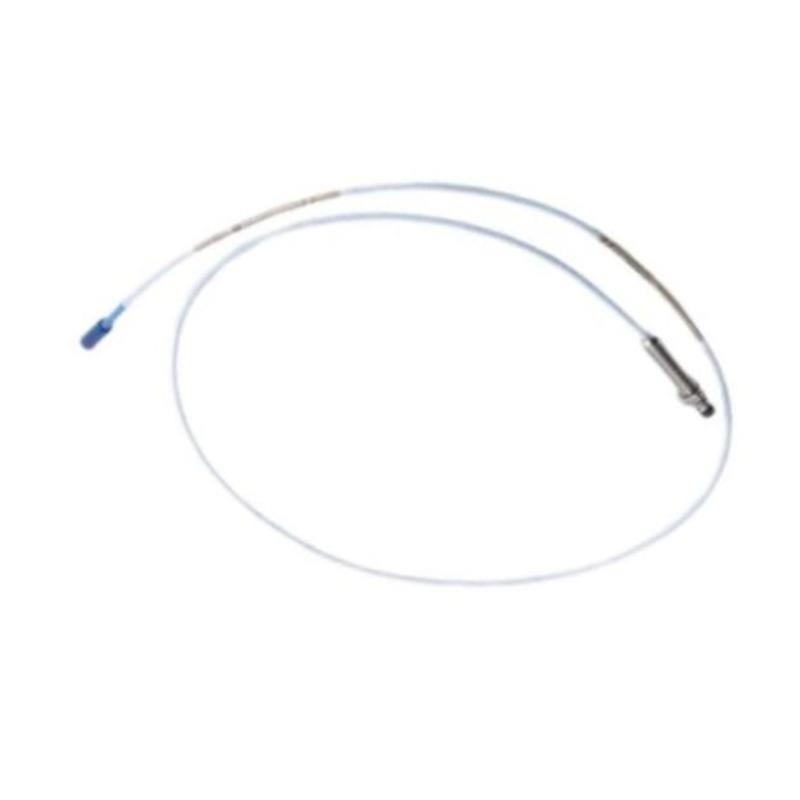

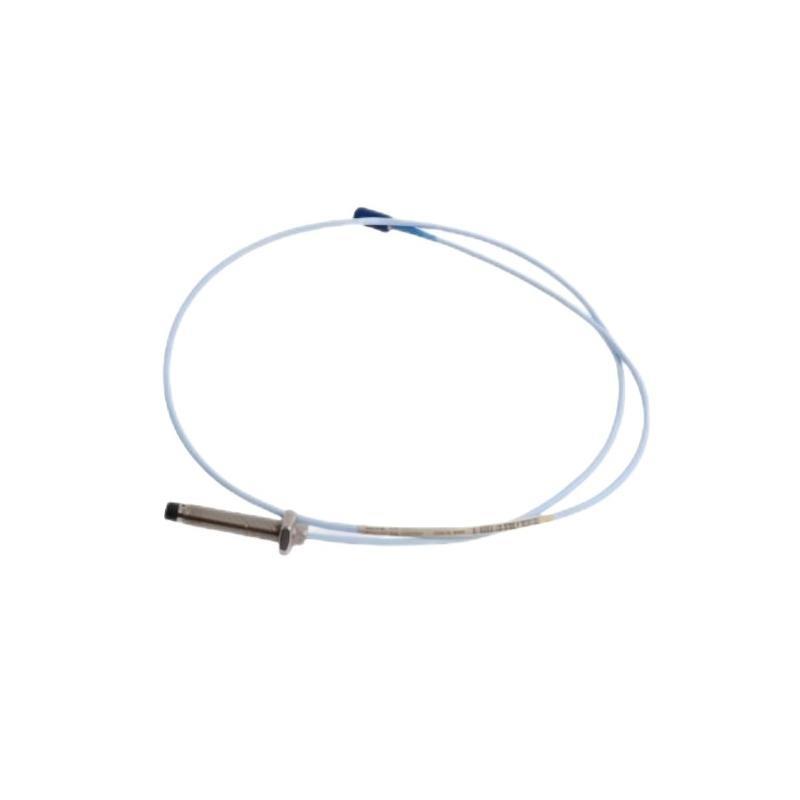

The Bently Nevada 330103-00-05-10-11-00 is a high-precision 8 mm proximity probe from the industry-leading 3300 XL series. Designed to monitor shaft vibration, position, and displacement, this model features a 10-meter integral coaxial cable, a Shell Type 11 connector, and a configuration code “00”.
This proximity probe is used in combination with Bently Nevada’s Proximitor® sensors to provide real-time condition monitoring and protection for critical rotating equipment. It is commonly deployed in industries such as power generation, oil and gas, petrochemical, and heavy machinery manufacturing.
Key Features
-
8 mm probe tip for standard proximity measurements
-
10-meter (32.8 ft) integral coaxial cable
-
Shell Type 11 connector for secure and system-compatible connection
-
Compatible with Bently Nevada 3300 XL Proximitor® systems
-
Stainless steel construction for long-term durability
-
Shielded design for resistance to EMI and environmental interference
-
IP67-rated for dust and water ingress protection
-
Factory-calibrated for plug-and-play installation
-
Reliable linearity and frequency response for dynamic monitoring
Technical Specifications
| Item | Specification |
|---|---|
| Hersteller | Bently Nevada (Baker Hughes) |
| Modell Number | 330103-00-05-10-11-00 |
| Series | 3300 XL |
| Probe Type | Eddy Current Proximity Probe |
| Tip Diameter | 8 mm (0.315 in) |
| Cable Length | 10 meters (32.8 ft) |
| Connector Type | Shell Style “11” |
| Configuration Code | “00” – Standard configuration |
| Sensing Range | 0.15 mm to 5.00 mm |
| Material | Stainless Steel |
| Frequency Response | Up to 40 kHz |
| Operating Temperature | –40°C to +120°C (–40°F to +248°F) |
| Environmental Rating | IP67 (dust- and water-resistant) |
| Mounting Thread | 1/4-28 UNF or M8 × 1.0 (varies by configuration) |
| Dimensions | Total Length : 1.0 meter |
| Diameter | 8 mm |
| Gewicht | 0.323 kg |
| Certifications | CE, RoHS compliant |
| Application | Shaft vibration and position monitoring |
Industry Applications
-
Power Generation – Monitoring gas/steam turbine shafts, generator bearing vibrations
-
Oil & Gas – Compressor and pump protection systems
-
Petrochemical – Continuous process machinery diagnostics
-
Marine Engineering – Propulsion shaft alignment and radial positioning
-
Steel & Mining – Motors, crushers, fans, and critical rotating equipment
-
Industrial Automation – Spindles, conveyor systems, and drive Stücks
Product Advantages
-
High Reliability – Delivers consistent and repeatable shaft position measurements
-
Long-Distance Installation – 10-meter cable supports flexible deployment scenarios
-
Robust Construction – Designed to withstand high temperatures and industrial contaminants
-
EMI Shielded Cable – Ensures accurate signal transmission in noisy environments
-
System Compatibility – Integrates effortlessly with Bently Nevada Proximitor® modules
-
Global Compliance – Certified for use in regulated environments
-
Low Maintenance – Pre-calibrated and sealed for extended field operation
-
Flexible Mounting Options – Verfügbar in various thread configurations
Häufig gestellte Fragen (FAQ)
-
Q: What is the total cable length for this probe?
A: 10 meters (32.8 feet) integral coaxial cable. -
Q: What does the “11” in the connector type mean?
A: It refers to Shell Type 11, a Bently Nevada standardized connector for Proximitor® systems. -
Q: Is this probe compatible with all Bently Nevada systems?
A: It is specifically designed for 3300 XL Proximitor® systems. -
Q: What is the function von the configuration code “00”?
A: It indicates a default or standard configuration as defined by the factory. -
Q: Can this probe be used in outdoor installations?
A: Yes, with its IP67 rating, it is suitable for outdoor and industrial environments. -
Q: Is the probe pre-calibrated?
A: Yes, it is factory-calibrated and does not require user calibration. -
Q: What is the probe tip size?
A: 8 mm, which is the standard tip diameter for the 3300 XL series. -
Q: What is the sensing range von the probe?
A: Typically 0.15 mm to 5.00 mm in linear operation. -
Q: What temperatures can this probe handle?
A: –40°C to +120°C (–40°F to +248°F). -
Q: Can the cable be extended or detached?
A: The cable is integral (fixed); for extension, use 3300 XL extension cables.
