Produkteinführung

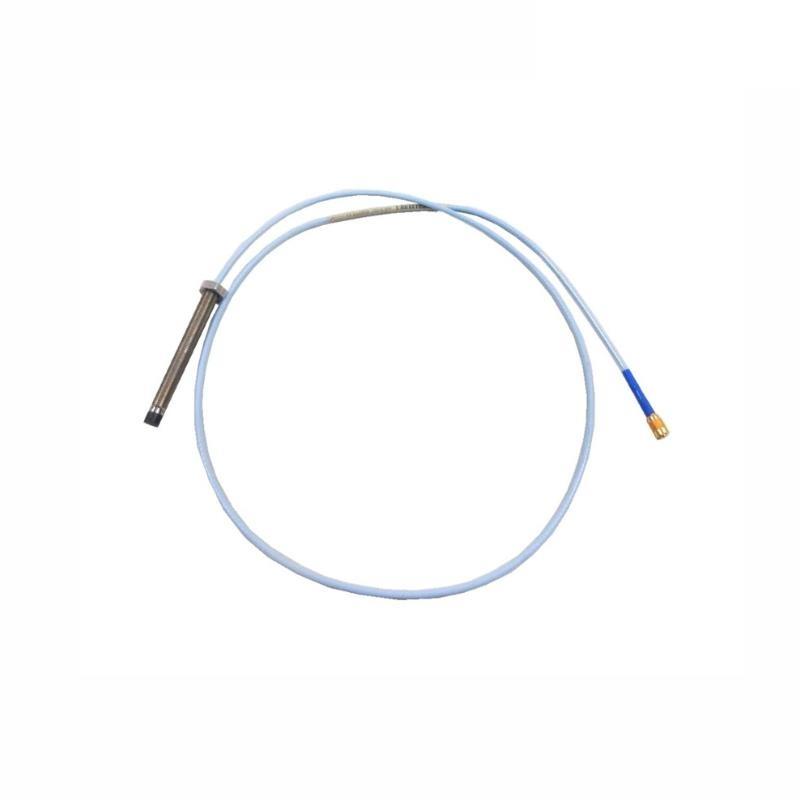

The Bently Nevada 330103-00‑05‑10‑02‑IN is an 8 mm proximity probe in the 3300 XL series, designed for high-precision, non-contact shaft vibration and displacement measurement in rotating machinery. Its 1.0-meter cable with a miniature coaxial ClickLoc™ connector ensures flexible installation. The probe features a PPS tip and stainless steel housing for reliable operation in harsh industrial environments.
For detailed information or guidance on compatibility and options, please contact our technical support team.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell | 330103-00-05-10-02-IN |
| Measurement Range | 8 mm |
| Total Length | 1.0 meter |
| Gewicht | 0.323 kg |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Housing Material | Stainless Steel (AISI 303/304) |
| Connector Type | Miniature Coaxial ClickLoc™ |
| Cable Type | Standard Industrial Cable |
| Thread Type | M10 × 1.0 |
| Operating Temperature | –40 °C to +120 °C |
| Target Material | AISI 4140 Steel |
| Compliance | API 670 4th Edition |
Applications
-
Vibration Monitoring: Early detection von radial and axial shaft vibrations to prevent machinery failures.
-
Shaft Position Measurement: Accurate displacement data for alignment and balance optimization.
-
Keyphasor® Pulse Output: Provides synchronization signals for control and protection systems.
-
Harsh Environment Use: Suitable for high-temperature, high-humidity, or contaminated industrial conditions.
For any questions regarding installation, configuration, or selecting the right model, please contact us.
Product Advantages
-
Exceptional Accuracy: Reliable, repeatable non-contact vibration measurements.
-
Robust Construction: High-grade materials ensure durability in harsh industrial settings.
-
Seamless Integration: Fully compatible with 3300 XL monitoring platforms.
-
Industry Standard Compliance: Meets API 670 machinery protection requirements.
-
Installation Flexibility: 1 m cable allows for adaptable installation.
FAQ
Q1: How do I set the correct probe-to-shaft gap?
A1: Use a standardized feeler gauge to establish the recommended clearance between the tip and shaft.
Q2: Can the probe handle rapid rotational changes?
A2: Yes, the probe maintains accuracy across the rated speed range.
Q3: Any tips for avoiding signal interference during installation?
A3: Route the cable away from electrical noise sources, ensure proper shielding and grounding, and maintain firm cable connections.
Q4: How do I test probe function after installation?
A4: Use the system’s self-test and verify Keyphasor® pulse and vibration signals.
Q5: Is the PPS tip compatible with different shaft materials?
A5: Yes, PPS is compatible with all standard target alloys.
Q6: How can I quickly confirm Keyphasor® output accuracy?
A6: Monitor signal timing under stable conditions and compare against known reference pulses.
Q7: Can the cable be extended beyond 1 m if needed?
A7: Longer cables may cause signal attenuation; please contact our support for guidance.
Q8: What error patterns suggest probe wear or failure?
A8: Irregular pulses, signal dropouts, or noise spikes typically indicate probe or cable degradation.
Q9: Does replacing the probe require system recalibration?
A9: No—3300 XL probes are plug-and-play.
Q10: How do I deal with probe signal issues once installed?
A10: Check the mounting gap, cable integrity, grounding, and avoid routing near electromagnetic interference. For expert troubleshooting support, please contact us.
Recommended Modells (Same Series / Related)
| Modell | Beschreibung |
|---|---|
| 330101-00-05-10-02-IN | 8 mm probe, M10 thread, 1 m standard cable |
| 330102-00-05-10-02-IN | 8 mm armored probe, 1 m cable |
| 330103-00-05-10-02-IN | Extended temperature 8 mm probe, 1 m cable |
| 330104-00-05-10-02-IN | Smooth case 8 mm probe, 1 m cable |
| 330191-00-05-10-02-IN | Low-temperature variant, 8 mm probe, 1 m cable |
| 330106-00-05-10-02-IN | Reverse mount 8 mm probe, 1 m armored cable |
Popular Bently Nevada Modells
| Modell | Beschreibung |
|---|---|
| 330103-00-06-10-02-R0 | Standard module for reliable industrial control systems |
| 330103-00-06-50-02-RU | High-capacity module for enhanced data handling |
| 330103-00-07-10-01-CN | Compact module optimized for low-power applications |
| 330103-00-07-50-03-EU | Multi-protocol module for flexible integration |
| 330103-00-08-10-02-US | Redundant module for critical system operations |
| 330103-00-08-50-01-JP | High-speed module for real-time monitoring and control |
