Product Overview

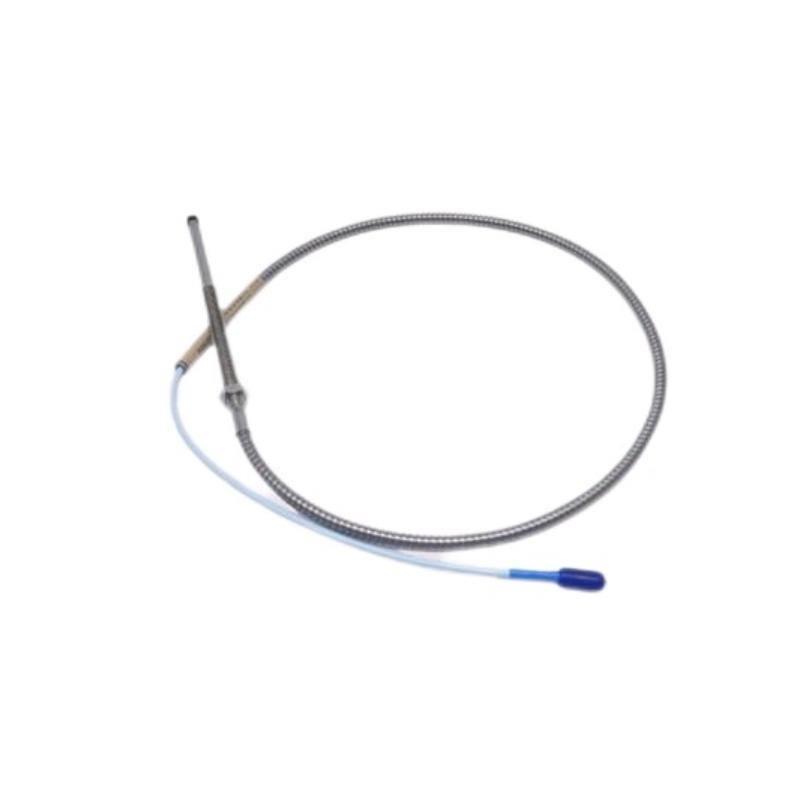

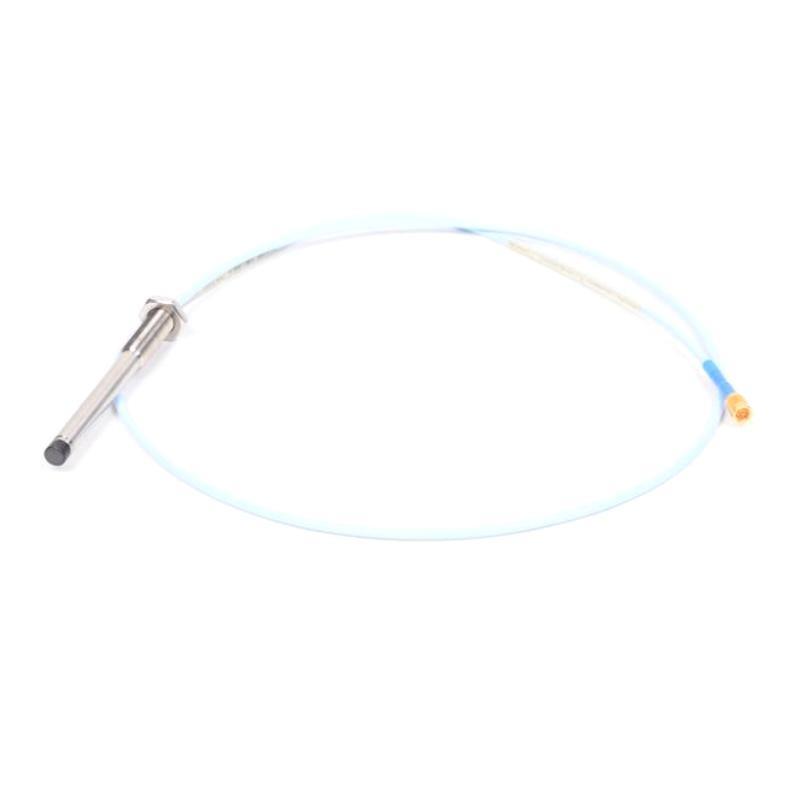

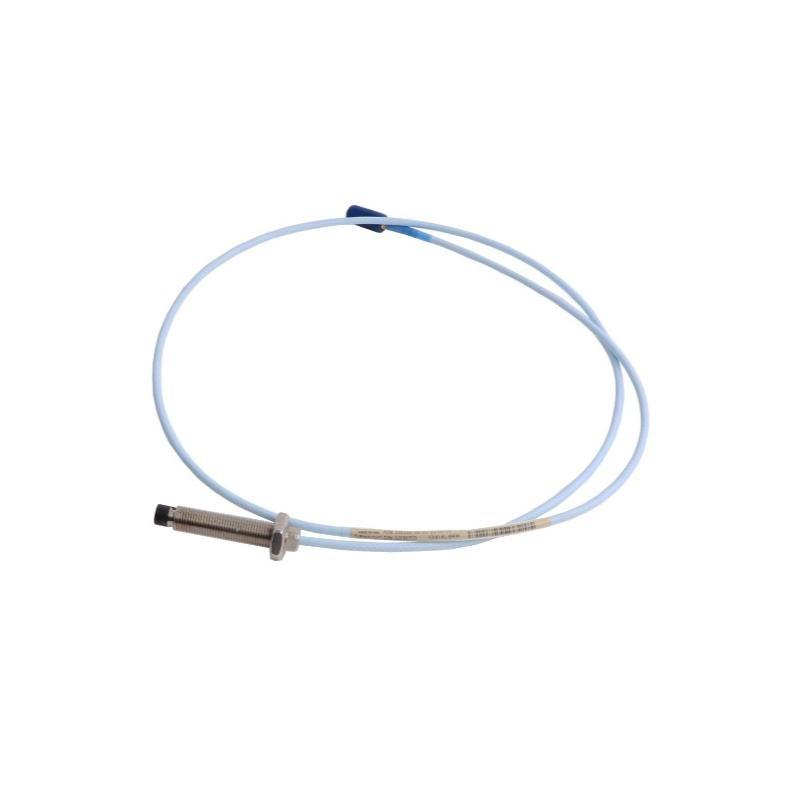

The Bently Nevada 330103-00-05-05-12-05 is a premium-quality 8 mm proximity probe in the renowned 3300 XL series, specifically designed for non-contact measurement von shaft vibration and displacement in rotating machinery. This model features a 5-meter coaxial cable, a Type 12 connector, and configuration code “05”, making it highly suitable for demanding industrial environments such as power generation, petrochemicals, and manufacturing.
With high linearity, a rugged stainless steel body, and excellent EMI immStücky, this probe integrates seamlessly with Bently Nevada’s 3300 XL Proximitor® systems to provide accurate, real-time monitoring data. It is purpose-built for continuous condition monitoring and protection von critical rotating equipment.
Key Features
-
8 mm tip diameter for standard shaft monitoring applications
-
5-meter (16.4 ft) integrated coaxial cable
-
Shell Type “12” connector ensures secure connection and signal integrity
-
Configuration “05” – standard Bently Nevada system setup
-
Compatible with 3300 XL Proximitor® Sensor systems
-
Stainless steel construction with IP67 environmental rating
-
Wide operating temperature range: –40°C to +120°C
-
Fully shielded for protection from electromagnetic interference
-
Factory calibrated and ready for installation
Technical Specifications
| Item | Specification |
|---|---|
| Hersteller | Bently Nevada (Baker Hughes) |
| Modell Number | 330103-00-05-05-12-05 |
| Product Series | 3300 XL |
| Probe Type | Eddy Current Proximity Probe |
| Tip Diameter | 8 mm (0.315 in) |
| Sensing Range | 0.15 mm to 5.00 mm (typical linear range) |
| Cable Length | 5 meters (16.4 feet) |
| Connector Type | Shell Type “12” |
| Configuration Code | 05 |
| Probe Material | Stainless Steel |
| Frequency Response | Up to 40 kHz |
| Operating Temperature | –40°C to +120°C (–40°F to +248°F) |
| Environmental Rating | IP67 |
| Mounting Thread | 1/4-28 UNF or M8 × 1.0 (model-dependent) |
| Dimensions | Total Length : 0.5 meter |
| Diameter | 8 mm |
| Gewicht | 0.161 kg |
| Compliance | CE, RoHS Compliant |
| Application | Shaft vibration and position monitoring |
Industry Applications
-
Power Generation – Monitoring von turbine and generator shafts
-
Oil & Gas – Vibration detection in compressors, pumps, and motors
-
Petrochemical Plants – Monitoring rotating machinery in critical process Stücks
-
Steel & Mining – Motor and gearbox vibration monitoring in harsh environments
-
Marine Engineering – Shaft alignment and thrust position tracking
-
Industrial Manufacturing – CNC machines, conveyor systems, fans, and blowers
Product Advantages
-
Exceptional Accuracy – Delivers high-resolution data on shaft displacement
-
Durable and Rugged – Designed for long life in high-vibration and corrosive conditions
-
Reliable EMI Shielding – Maintains signal stability in noisy industrial settings
-
Plug-and-Play Integration – Works seamlessly with Bently Nevada 3300 XL systems
-
Flexible Use – 5-meter cable length suits most machinery layout needs
-
Field Proven – Widely deployed across global industries for machinery protection
-
Low Maintenance – Factory calibrated and sealed, requiring minimal upkeep
-
Global Standardization – Fully compliant with international monitoring system specs
Häufig gestellte Fragen (FAQ)
-
Q: What is the cable length for this model?
A: It comes with a 5-meter (16.4 ft) integrated cable. -
Q: What does the “12” in the connector type mean?
A: It refers to the shell configuration, ensuring standardized and secure connections. -
Q: Is this probe compatible with all Bently Nevada monitors?
A: It is specifically designed for use with 3300 XL Proximitor® sensors. -
Q: What does the configuration code “05” represent?
A: It refers to the probe system configuration used by Bently Nevada for internal reference; commonly used across standard installations. -
Q: What is the probe’s sensing range?
A: The typical linear range is 0.15 mm to 5.00 mm. -
Q: Is the probe water-resistant?
A: Yes, it has an IP67 rating, making it dust-tight and resistant to water immersion. -
Q: What is the operating temperature range?
A: –40°C to +120°C (–40°F to +248°F). -
Q: Is the cable shielded?
A: Yes, the coaxial cable is fully shielded against EMI and RFI. -
Q: What materials are used for construction?
A: Stainless steel housing for durability and corrosion resistance. -
Q: Can this probe be mounted in tight spaces?
A: Yes, its compact design and 8 mm diameter allow for flexible installation.
Related Modells
| Modell Number | Beschreibung |
|---|---|
| 330103-00-04-10-12-00 | 8 mm Probe, 10 m cable, Type 12 connector |
| 330103-00-05-05-02-05 | 8 mm Probe, 5 m cable, Type 02 connector |
| 330103-00-04-15-02-CN | 8 mm Probe, 15 ft cable, Shell 02, CN configuration |
| 330103-00-04-20-02-00 | 8 mm Probe, 20 ft cable, Shell 02 |
| 330104-01-08-50-01-CN | 8 mm Armored Probe, 8 m cable, CN version |
| 330130-045-01-05 | 3300 XL Extension Cable, 4.5 m |
Popular Bently Nevada Modells
| Modell Number | Beschreibung |
|---|---|
| 330101-00-14-10-02-05 | 8 mm Probe, 14 m cable, Shell 02 |
| 330101-00-16-05-02-05 | 8 mm Probe, 16 m cable, Shell 02 |
| 330101-00-20-05-02-00 | 8 mm Probe, 20 m cable, Shell 02 |
| 330104-01-08-50-01-CN | Armored Probe with 8 m cable, China-specific |
| 330130-045-01-05 | Extension Cable, 4.5 m, for proximity systems |
| 330103-00-05-05-02-BR | 8 mm Probe, 5 m cable, Shell 02, Brazil configuration |
