Product Overview

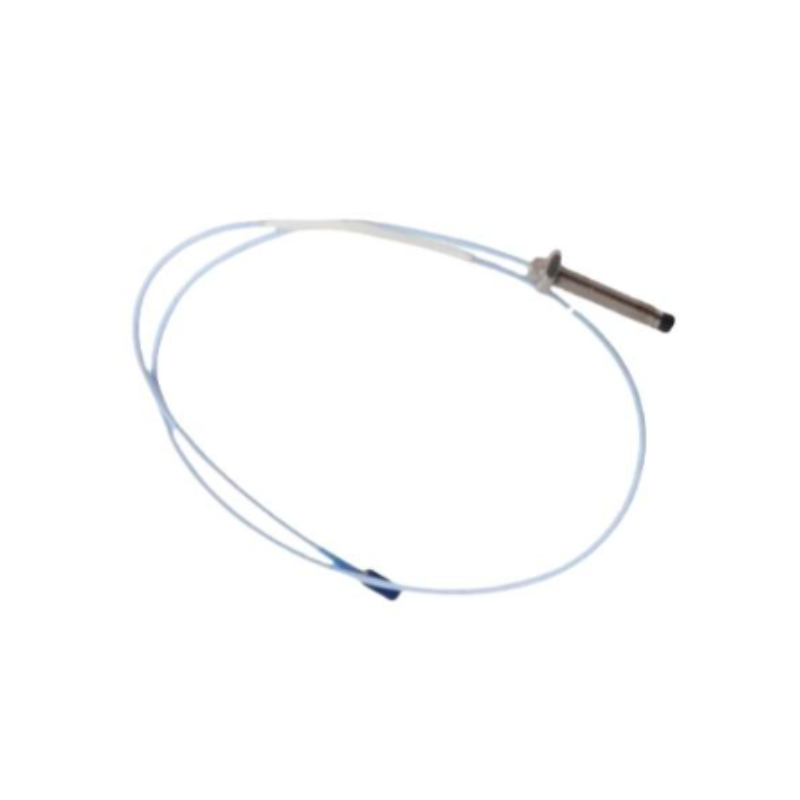

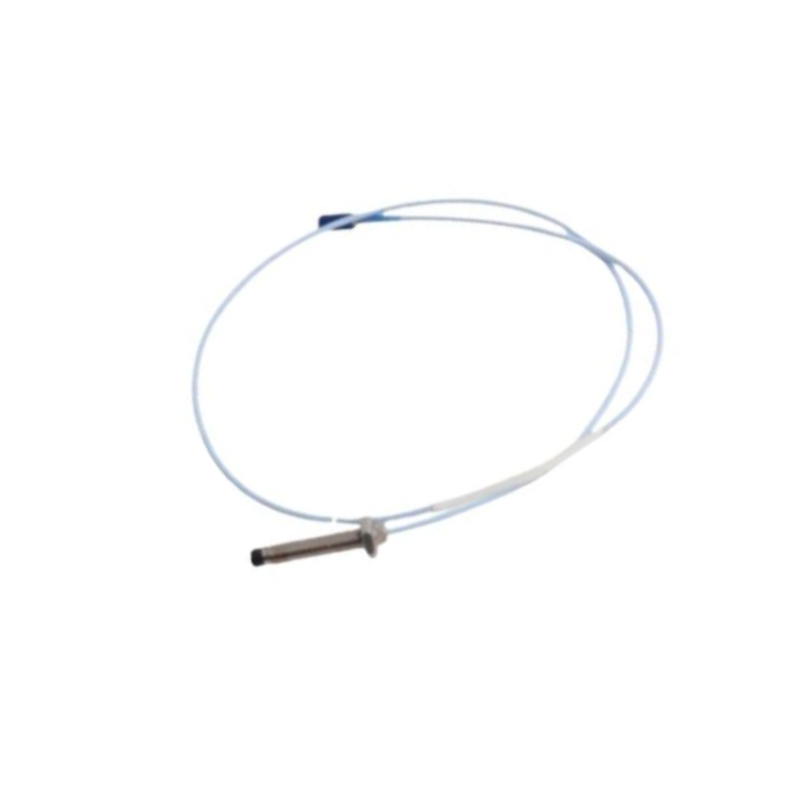

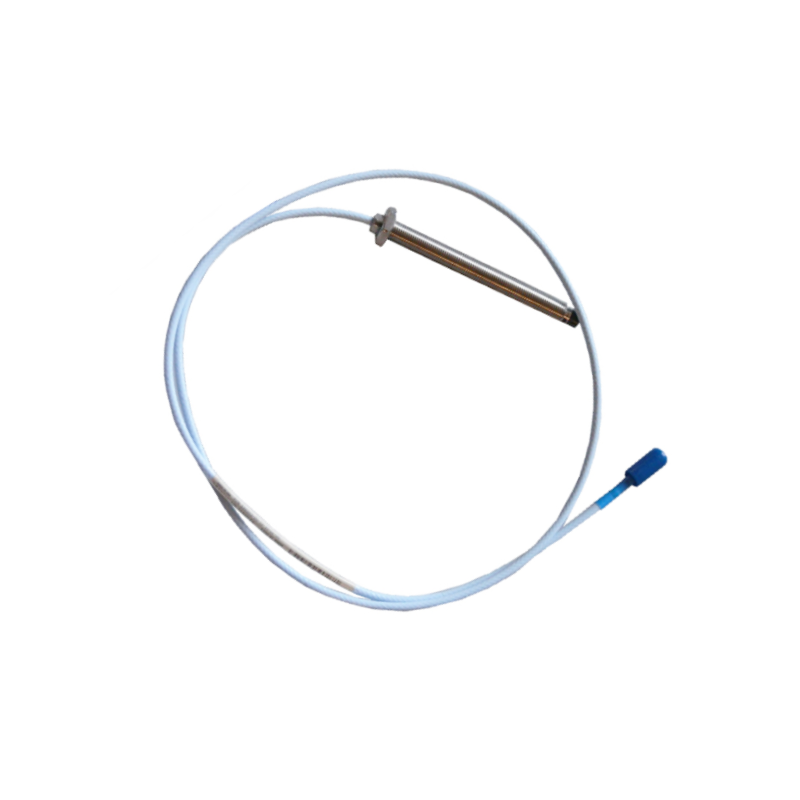

The Bently Nevada 330103-00-04-10-12-00 is a robust 8 mm proximity probe from the 3300 XL series, engineered for precision vibration and displacement measurements in industrial rotating machinery. Designed for long-term reliability, it is used in conjunction with Bently Nevada proximity transducers and monitoring systems to track shaft motion, detect misalignment, and protect high-value assets such as turbines, compressors, motors, and pumps.
The probe’s construction includes a stainless steel body, a shielded coaxial cable, and a durable connector shell (“12” type), making it suitable for harsh industrial environments with high temperatures, vibrations, and EMI.
Key Features
-
8 mm tip diameter for standard Bently Nevada proximity applications
-
Compatible with 3300 XL series transducer systems and monitors
-
Rugged stainless steel body for high durability
-
Shielded coaxial cable ensures noise-free signal transmission
-
Connector shell type 12 for secure connectivity
-
Designed for critical machinery protection and condition monitoring
-
Operates reliably in temperatures from –40°C to +120°C
-
High linearity and repeatability for precise shaft position tracking
Technical Specifications
| Item | Specification |
|---|---|
| Hersteller | Bently Nevada (Baker Hughes) |
| Product Modell | 330103-00-04-10-12-00 |
| Series | 3300 XL |
| Probe Type | Proximity Probe |
| Sensing Principle | Eddy Current |
| Tip Diameter | 8 mm (0.315 inch) |
| Sensing Range | 0.15 – 5.00 mm (typical linear range) |
| Cable Length | 10 meters (fixed, standard) |
| Connector Type | Type 12 Connector Shell |
| Frequency Response | Up to 40 kHz |
| Probe Material | Stainless Steel |
| Operating Temperature | –40°C to +120°C (–40°F to +248°F) |
| Environmental Protection | IP67 (dust and water resistant) |
| Mounting Thread | 1/4-28 UNF or M8 × 1.0 (varies by configuration) |
| Dimensions | Total Length : 1.0 meter |
| Gewicht | 0.323 kg |
| Certifications | CE, RoHS compliant |
| Application | Shaft vibration and position monitoring in rotating equipment |
Industry Applications
-
Power Generation: Monitoring steam and gas turbines, generators
-
Oil & Gas: Compressor and pump shaft vibration monitoring
-
Petrochemical: Process-critical rotating machinery protection
-
Marine Engineering: Monitoring propulsion and auxiliary machinery
-
Mining and Cement: Ensuring uptime von motors and fans
-
Manufacturing: CNC spindles, high-speed gearboxes, and motors
Product Advantages
-
High Sensitivity: Captures micro-level shaft movements accurately
-
Durable Design: Corrosion-resistant stainless steel body and sealed construction
-
Stable Signal: Shielded cable design minimizes electromagnetic interference
-
Standardized Connectivity: Type 12 connector ensures secure system integration
-
Temperature Resilience: Performs reliably in extreme temperature ranges
-
Reduced Downtime: Enables predictive maintenance and early fault detection
-
Global Standard: Recognized across industries for reliability and performance
-
Easy Integration: Compatible with existing Bently Nevada 3300 XL infrastructure
Häufig gestellte Fragen (FAQ)
-
Q: What does the ’12’ in the part number mean?
A: It specifies the connector shell type — “12” indicates the mechanical and pin layout for interfacing with extension cables or monitors. -
Q: What monitoring systems is this probe compatible with?
A: It is compatible with the Bently Nevada 3300 XL series monitoring systems and transducer systems. -
Q: Is the probe suitable for high-temperature environments?
A: Yes, it operates in a wide temperature range from –40°C to +120°C. -
Q: What is the sensing distance range?
A: Typically 0.15 mm to 5 mm, depending on target material and calibration. -
Q: Can this probe be used outdoors or in wet areas?
A: Yes, it is IP67-rated and suitable for outdoor and industrial environments. -
Q: What is the standard cable length for this model?
A: 10 meters, though other lengths may be available upon request. -
Q: Does it work with other brands von monitoring systems?
A: For full accuracy and compatibility, it is recommended to use with Bently Nevada systems. -
Q: What materials is the probe made from?
A: The probe body is made from stainless steel for corrosion resistance. -
Q: Is the probe sensitive to EMI?
A: The cable is shielded to reduce the impact von electromagnetic interference. -
Q: How is the probe mounted?
A: It typically uses 1/4-28 UNF or M8 × 1 threaded mounting, depending on the configuration.
Related Modells
| Modell Number | Beschreibung |
|---|---|
| 330103-00-04-10-01-05 | 3300 XL 8 mm Probe, standard connector, 10 m cable |
| 330103-00-04-10-02-01 | 3300 XL 8 mm Probe, alternate connector type |
| 330103-00-10-10-01-05 | 3300 XL 8 mm Probe, 10 m cable with longer housing |
| 330103-00-20-05-01-05 | 3300 XL 8 mm Probe, extended 20 m cable |
| 330104-01-08-50-01-CN | 3300 XL 8 mm Probe with armor cable, China version |
| 330130-045-01-05 | 3300 XL Standard Extension Cable |
Popular Bently Nevada Modells
| Modell Number | Beschreibung |
|---|---|
| 330101-00-14-10-02-05 | 3300 XL 8 mm Proximity Probe, 14 m cable |
| 330101-00-20-05-02-00 | 3300 XL 8 mm Probe, 20 m cable, straight connector |
| 330104-01-08-50-01-CN | 3300 XL Probe with high-temperature shielded cable |
| 330101-00-16-05-02-05 | 3300 XL 8 mm Probe with 16 m cable |
| 330130-045-01-05 | 3300 XL Extension Cable, 4.5 m |
| 330103-00-05-05-02-05 | 3300 XL 8 mm Probe, 5 m cable |
