Produkteinführung

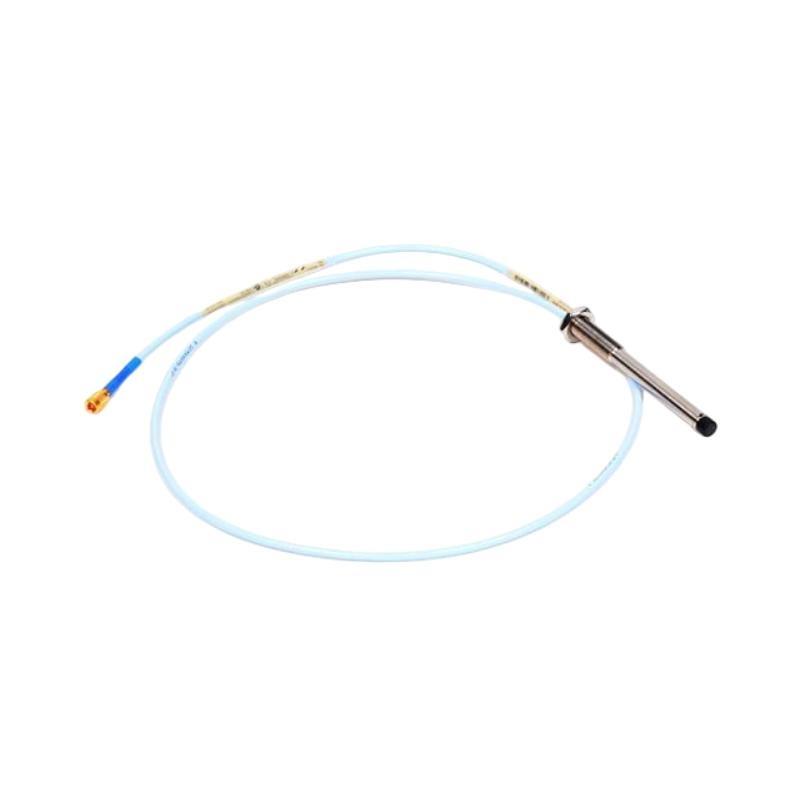

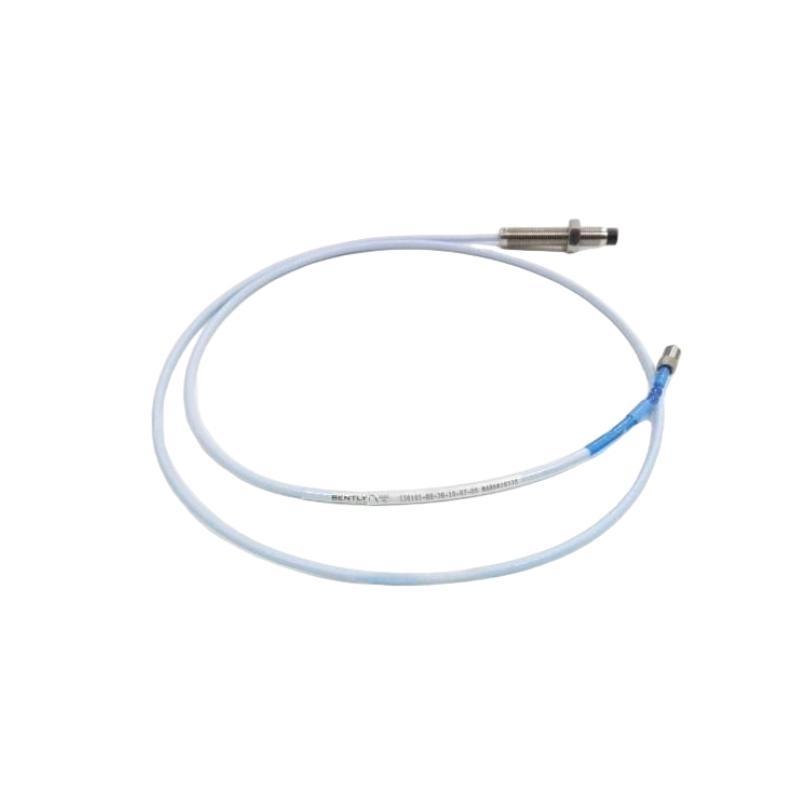

The Bently Nevada 330103-00-03-50-02-CN is a high-precision 8 mm proximity probe from the 3300 XL series, designed for non-contact monitoring von shaft vibration and displacement in industrial rotating machinery. It provides accurate and reliable measurements under demanding conditions. The probe comes with a 5-meter cable and a miniature coaxial ClickLoc™ connector, vonfering flexible installation options, especially for remote monitoring or complex layouts.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Modell | 330103-00-03-50-02-CN |
| Measurement Range | 8 mm |
| Total Length | 5.0 meters (16.4 feet) |
| Housing Length | 30 mm |
| Connector Type | Miniature coaxial ClickLoc™ connector |
| Cable Type | Standard industrial cable |
| Probe Case Material | AISI 303 / 304 stainless steel |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Gewicht | 1.615 kg |
| Applicable Standard | API 670 4th Edition |
Applications
-
Vibration Monitoring: Real-time monitoring von radial and axial vibrations to prevent early equipment failures.
-
Shaft Position Tracking: Precise measurement von rotating shaft positions to ensure stable operation.
-
Keyphasor® Pulse Output: Provides accurate timing signals for control system synchronization.
-
Harsh Environment Suitability: Designed to withstand high temperature, humidity, and general industrial contaminants.
Product Advantages
-
High Measurement Accuracy: Reliable non-contact shaft vibration data.
-
Long-Distance Capability: 5-meter cable suitable for remote installations.
-
Durable Construction: High-quality materials ensure long-term performance.
-
Standard Compliance: Fully conforms to API 670 mechanical protection standards.
-
Easy System Integration: Seamlessly integrates with Bently Nevada 3300 XL monitoring systems.
FAQ
Q1: How do I adjust the probe gap?
A1: Use standard gauges to maintain the recommended gap between the probe tip and the shaft for accurate measurement.
Q2: How does the probe perform at high temperatures?
A2: The probe maintains stable signal output under high-temperature conditions.
Q3: What should I consider when routing the cable?
A3: Avoid running the cable parallel to high-voltage lines or strong magnetic fields, and ensure proper shielding and grounding.
Q4: How can I verify probe functionality?
A4: Use system diagnostics and Keyphasor® pulse output to check signal stability.
Q5: Is the probe suitable for high-speed machinery?
A5: Yes, it supports operation within the design speed range.
Q6: Can the probe operate in humid or dusty environments?
A6: Yes, but it should not be immersed in water or exposed to corrosive chemicals.
Q7: How can I quickly identify a probe fault?
A7: Monitor Keyphasor® pulses and vibration signal fluctuations for anomalies.
Q8: Does replacing the probe require recalibration?
A8: No, the 3300 XL series probes are interchangeable without recalibration.
Q9: How do I prevent signal interference during installation?
A9: Keep the probe away from electromagnetic interference sources, use shielded cables, and secure the probe firmly.
Q10: What steps should I take if the probe signal is abnormal?
A10: Check probe alignment, cable connections, system settings, and nearby interference sources.
Recommended Modells (Same Series / Related)
| Modell | Beschreibung |
|---|---|
| 330101-00-03-50-02-00 | Standard 8 mm probe with M10 thread, 5-meter cable |
| 330102-00-03-50-02-00 | Sheathed 8 mm probe with M10 thread, 5-meter cable |
| 330104-00-03-50-02-00 | Sheathed 8 mm probe with extended temperature, 5-meter cable |
| 330140-00-03-50-02-00 | Smooth housing 8 mm probe with M10 thread, 5-meter cable |
| 330191-00-03-50-02-00 | Extended temperature 8 mm probe with M10 thread, 5-meter cable |
| 330192-00-03-50-02-00 | Extended temperature 8 mm probe with M10 thread, 5-meter cable |
Popular Modells (Bently Nevada)
| Modell | Beschreibung |
|---|---|
| 330101-00-03-05-02-00 | Standard 8 mm probe, 3/8-24 UNF thread, 1-meter cable |
| 330102-00-06-05-02-00 | Sheathed 8 mm probe, 3/8-24 UNF thread, 1-meter cable |
| 330105-02-12-05-02-00 | Reverse-mount 8 mm probe, 3/8-24 UNF thread, 0.5-meter cable |
| 330130-00-06-05-02-00 | Smooth housing 8 mm probe, 3/8-24 UNF thread, 1-meter cable |
| 330191-00-07-05-02-00 | Extended temperature 8 mm probe, 3/8-24 UNF thread, 1-meter cable |
| 330104-00-03-10-02-00 | 10 mm probe, 3/8-24 UNF thread, 1-meter cable |
