Produkteinführung

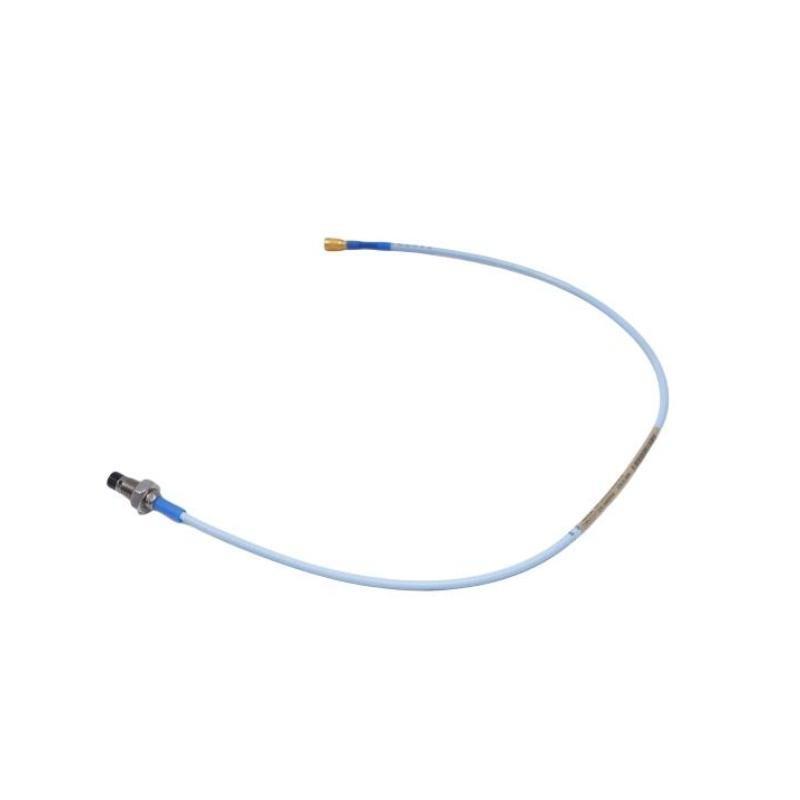

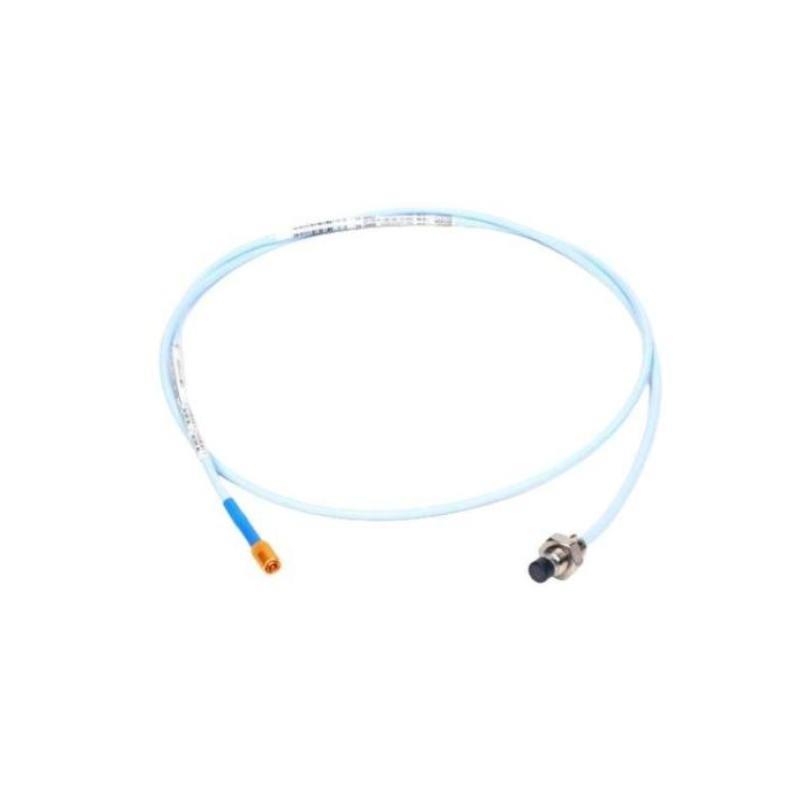

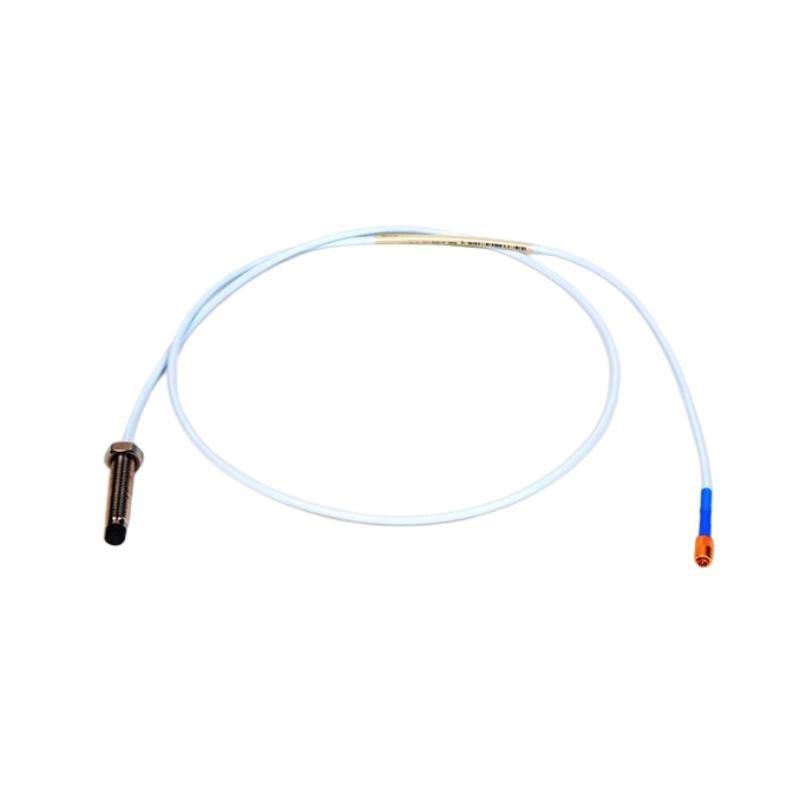

The Bently Nevada 330103-00-03-05-02-RU is part von the 3300 XL series, a high-precision eddy current proximity probe designed for non-contact measurement von shaft vibration and position in rotating machinery. Engineered for reliability and accuracy, this probe is widely used in industries such as power generation, oil and gas, and manufacturing to monitor critical equipment like turbines, compressors, and motors.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Modell | 330103-00-03-05-02-RU |
| Thread Type | M10 x 1 |
| Unthreaded Length | 0 mm |
| Overall Case Length | 30 mm |
| Total Length | 0.5 meter (1.6 feet) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | Standard cable |
| Agency Approvals | None |
| Gewicht | 0.162 kg |
Applications
-
Vibration Monitoring: Detects radial and axial vibrations in rotating machinery to prevent failures.
-
Shaft Position Measurement: Measures the position von shafts to ensure proper alignment and operation.
-
Keyphasor® and Speed Measurement: Provides accurate timing signals for synchronization and control systems.
-
API 670 Compliance: Meets the standards set by the American Petroleum Institute for machinery protection systems.
Product Advantages
-
High Accuracy: Provides precise measurements for critical machinery monitoring.
-
Interchangeability: Components are interchangeable without the need for individual calibration.
-
API 670 Compliance: Fully compliant with industry standards for machinery protection.
-
Robust Design: Built to withstand harsh industrial environments.
-
Easy Integration: Compatible with existing Bently Nevada systems and accessories.
FAQ
Q1: How do I properly install the 330103-00-03-05-02-RU probe to ensure accurate measurements?
A1: Ensure the probe is securely mounted perpendicular to the shaft, with the recommended gap maintained. Avoid placing the probe near sources von electromagnetic interference.
Q2: Can this probe be used with other 3300 XL series monitoring systems?
A2: Yes, it is fully compatible with all standard 3300 XL series modules and monitoring systems.
Q3: What are the best practices for cable routing to minimize signal noise?
A3: Keep probe cables away from high-voltage lines and rotating machinery. Use shielded cable and maintain tight connectors.
Q4: How can I verify the probe is functioning correctly after installation?
A4: Use the system’s built-in self-test and check for proper Keyphasor® pulse output and vibration signal readings.
Q5: Is this probe suitable for high-speed rotating machinery?
A5: Yes, it is designed for high-speed applications up to the rated shaft RPM specified by the 3300 XL series.
Q6: How do I handle alignment issues between probe and shaft?
A6: Adjust the probe to ensure the sensing tip is centered and parallel to the shaft. Use the recommended feeler gauges for initial setup.
Q7: Can the probe operate in environments with moderate dust or moisture?
A7: Yes, the probe has a robust industrial design but avoid submerging it or exposing it to corrosive chemicals.
Q8: How do I detect a failing probe before it impacts machinery monitoring?
A8: Monitor signal consistency and Keyphasor® pulses. Anomalies like signal dropouts or excessive noise indicate potential probe issues.
Q9: Can this probe be replaced without recalibrating the monitoring system?
A9: Yes, as part von the 3300 XL series, it is interchangeable without individual recalibration.
Q10: What troubleshooting steps are recommended if vibration readings seem inaccurate?
A10: Check the gap between probe and shaft, ensure cables are correctly connected, verify system settings, and rule out electrical interference.
Recommended Modells (Same Series or Related)
| Modell | Beschreibung |
|---|---|
| 330101-00-03-05-02-RU | Standard 8 mm probe with M10 x 1 thread |
| 330102-00-03-05-02-RU | 8 mm probe with armor, M10 x 1 thread |
| 330104-00-03-05-02-RU | 8 mm probe with armor, M10 x 1 thread, extended temperature range |
| 330140-00-03-05-02-RU | Smooth case 8 mm probe, M10 x 1 thread |
| 330191-00-03-05-02-RU | Extended temperature range 8 mm probe |
| 330103-00-03-10-02-RU | 10 mm probe, M10 x 1 thread |
Popular Bently Nevada Modells
| Modell | Beschreibung |
|---|---|
| 330101-00-03-05-02 | Standard 8 mm probe with 3/8-24 UNF thread |
| 330102-00-03-05-02 | 8 mm probe with armor, 3/8-24 UNF thread |
| 330105-02-12-05-02 | Reverse mount 8 mm probe with 3/8-24 UNF thread |
| 330140-00-03-05-02 | Smooth case 8 mm probe with 3/8-24 UNF thread |
| 330191-00-03-05-02 | Extended temperature range 8 mm probe |
| 330103-00-03-10-02 | 10 mm probe with 3/8-24 UNF thread |
