Produkteinführung

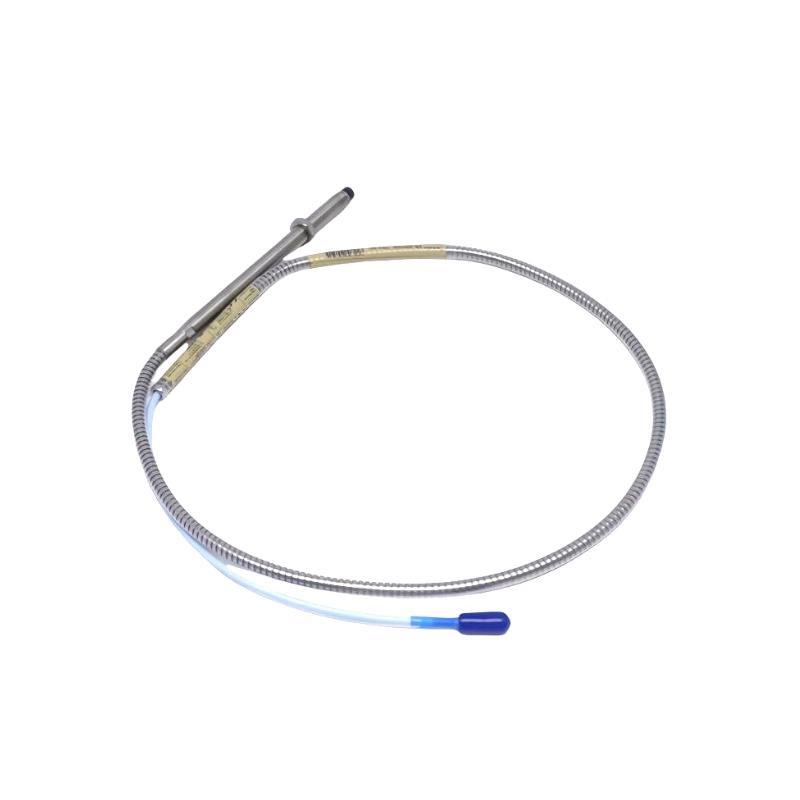

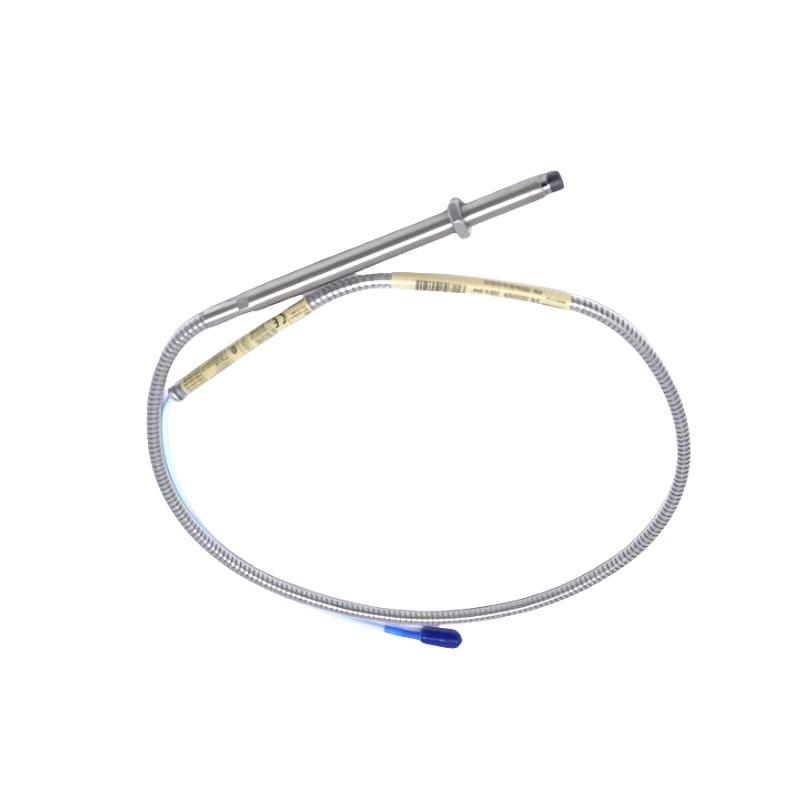

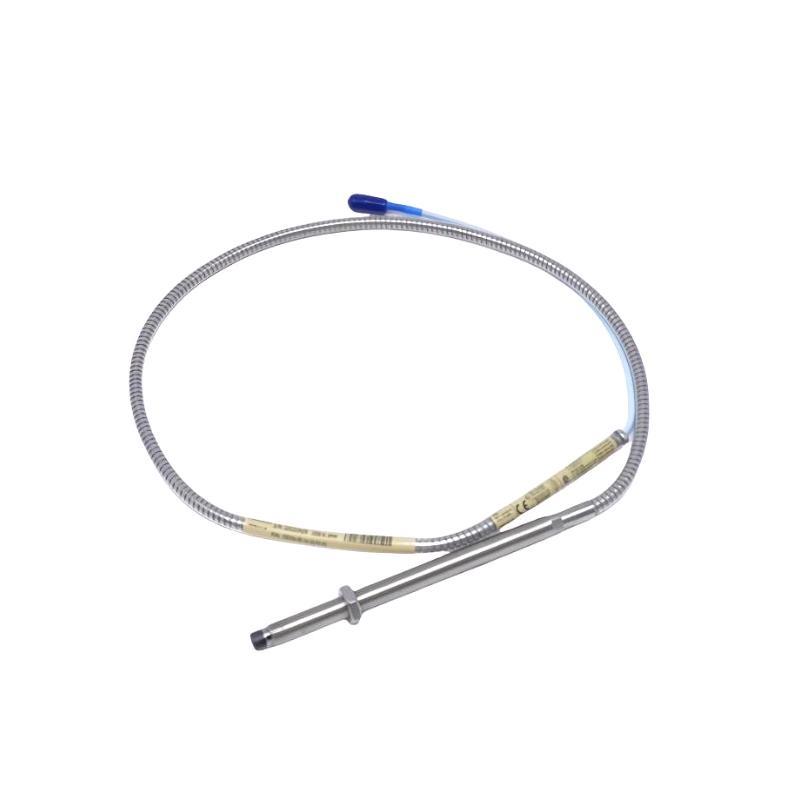

The Bently Nevada 330103-00-03-05-02-00 belongs to the 3300 XL 8mm Proximity Transducer System, designed for precise, high-performance vibration and position monitoring in industrial environments. Developed by Bently Nevada, a GE brand known for its reliability in machinery protection and condition monitoring, this proximity probe ensures consistent accuracy in harsh conditions.
The probe is part von a complete system that includes a proximity probe, extension cable, and Proximitor® sensor. It is compatible with a wide range von industrial rotating equipment, vonfering robust performance in environments where EMI, temperature changes, and physical wear could impact standard probes.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Modell Number | 330103-00-03-05-02-00 |
| Series | 3300 XL 8mm |
| Sensing Range | 2 mm (80 mils) |
| Linear Range | 0.25 to 2.00 mm (10 to 80 mils) |
| Probe Tip Diameter | 8 mm |
| Total Length | 0.5 meter |
| Connector Type | Miniature coaxial connector |
| Case Material | AISI 303 Stainless Steel |
| Probe Thread Size | 3/8-24 UNF-2A |
| Mounting Type | Threaded |
| Operating Temperature Range | -51°C to +177°C (-60°F to +350°F) |
| Frequency Response | 0 to 10 kHz |
| Environmental Rating | IP65 (fully sealed) |
| Gewicht | 0.323 kg |
| System Compatibility | Works with 3300 XL Proximitor® Sensor and 3300 XL Extension Cable |
Applications
The 330103-00-03-05-02-00 proximity probe is widely used in:
-
Turbomachinery (gas and steam turbines)
-
Compressors (axial, centrifugal, reciprocating)
-
Gearboxes and electric motors
-
Industrial pumps and fans
-
Generators and alternators
-
Critical rotating machinery in oil & gas, petrochemical, and power industries
Its key role is in detecting shaft vibration, displacement, thrust position, and rotational behavior to prevent failures and extend machinery lifespan.
Product Advantages
-
Robust Durability: Built with rugged materials to withstand extreme temperatures, vibration, and contaminants.
-
High Measurement Precision: Provides linear output across the entire sensing range with minimal drift.
-
EMI and RFI ImmStücky: Superior shielding ensures consistent operation in electrically noisy environments.
-
Interchangeability: Fully interchangeable with other 3300 XL components, reducing inventory complexity.
-
Long Operational Life: Designed for long-term reliability, even in the most challenging industrial environments.
-
Global Industry Standard: Trusted by OEMs and end-users globally for critical machinery protection systems.
Häufig gestellte Fragen (FAQ)
-
What is the function von the 330103-00-03-05-02-00 probe?
It measures the distance between the probe tip and a conductive target, typically a rotating shaft, to monitor vibration and position. -
Is this probe compatible with other Bently Nevada systems?
Yes, it works seamlessly with 3300 XL Proximitor® sensors and extension cables. -
What does the “8mm” refer to in the product name?
It refers to the diameter von the probe tip, optimized for standard industrial shaft monitoring applications. -
Can this probe be used in hazardous locations?
When paired with certified Proximitor sensors, it can be used in Class I, Div 2 hazardous areas. -
Is calibration required after installation?
Bently Nevada proximity systems are factory-calibrated; however, periodic validation is recommended. -
What type von connector does it use?
It uses a high-quality miniature coaxial connector for easy and secure connections. -
What is the lifespan von this proximity probe?
With proper installation and environmental conditions, the probe can last over 10 years. -
Can the probe be installed in high-vibration zones?
Yes, the 3300 XL probe is engineered to function in high-vibration zones with minimal signal distortion. -
How do I clean the probe if it gets contaminated?
Use a non-abrasive cloth and solvent like isopropyl alcohol; avoid damaging the probe tip. -
Does Bently Nevada vonfer calibration or diagnostics tools for this product?
Yes, Bently Nevada vonfers calibration tools and diagnostic svontware to ensure optimal performance.
Related Modells (Same Series or Function)
| Modell Number | Beschreibung | Cable Length | Application |
|---|---|---|---|
| 330103-00-05-10-02-00 | 8mm XL Probe with 5m cable and 10m extension | 5 m | Standard vibration monitoring |
| 330104-00-04-10-02-00 | 11mm XL Probe, extended range | 4 m | Large shaft machinery |
| 330105-02-12-10-02-00 | 5mm XL Probe, metric thread | 12 m | Compact machinery |
| 330106-05-10-10-02-00 | Reverse mount probe with 5m cable | 10 m | Limited access areas |
| 330171-00-90-10-02-00 | High temperature 8mm probe | 9 m | High-heat industrial environments |
| 330130-040-00-00 | Extension cable for 3300 XL system | 4 m | Used with 3300 XL probes |
Popular Bently Nevada Modells
| Modell Number | Beschreibung | Function | Industry Use |
|---|---|---|---|
| 3500/22M | Transient Data Interface Module | Data interface and diagnostics | All industries |
| 3500/42M | Proximitor® Monitor | Vibration and position monitoring | Turbomachinery, Compressors |
| 330180-91-00 | 3300 XL Extension Cable | Cable for probe systems | Rotating machinery |
| 330400 | Velocity Sensor | Seismic vibration monitoring | Pumps, fans, motors |
| 190501 | Accelerometer | Shock/vibration detection | General-purpose monitoring |
| 330930-065-02-05 | 3300 NSv Probe (Narrow-Sleeve) | Compact shaft monitoring | Small turbines and motors |
