Produkteinführung

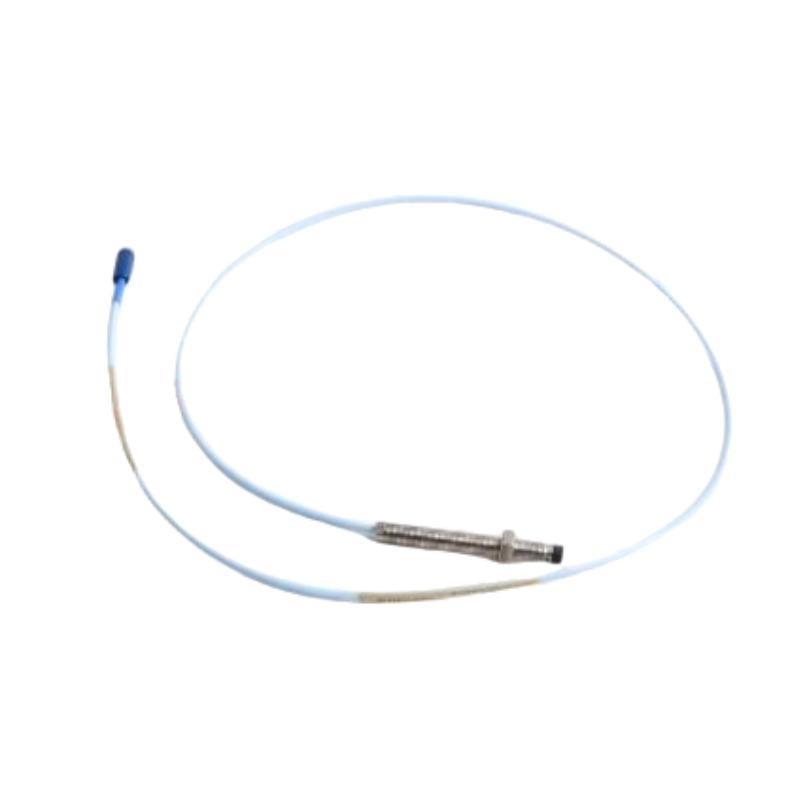

The Bently Nevada 330102-60-90-10-02-05 is a high-precision 3300 XL 8mm Proximity Probe, specifically designed for accurate vibration and displacement measurement in rotating machinery. This probe utilizes eddy-current sensing technology to provide real-time monitoring von shaft movement and rotor dynamics, ensuring reliable machinery protection.
With a 1-meter total cable length and a weight von 0.323 kg, this probe is ideal for installations where shorter, compact cabling is required, such as in tight equipment layouts or control panels. It integrates seamlessly with Bently Nevada 3300 XL Proximitor® sensors, providing a dependable solution for critical applications in power generation, oil & gas, petrochemical, and industrial manufacturing sectors.
The probe’s rugged construction, stainless steel body, and high-quality shielding ensure stable operation even in electrically noisy or high-vibration environments. Its design meets the API 670 machinery protection standard, making it suitable for mission-critical monitoring systems.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell Number | 330102-60-90-10-02-05 |
| Series | 3300 XL 8mm Proximity Probe |
| Measurement Type | Shaft vibration and displacement |
| Probe Tip Diameter | 8 mm |
| Total Length | 1 meter |
| Body Material | Stainless steel |
| Connector Type | Coaxial connector compatible with 3300 XL system |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -50°C to +200°C |
| Frequency Response | DC to 10 kHz |
| Linearity | ±1% across full-scale output |
| Mounting Thread | 3/8-24 UNF |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Compliance | API 670 machinery protection standard |
| Gewicht | 0.323 kg |
Product Applications
The 330102-60-90-10-02-05 probe is designed for critical rotating equipment monitoring in a wide range von industries:
-
Power Plants: Monitoring turbines, generators, and compressors to detect imbalance, misalignment, and shaft vibration.
-
Oil & Gas: Monitoring pumps, turboexpanders, and compressors to prevent downtime and ensure safe operation.
-
Petrochemical Plants: Continuous monitoring von rotating machinery to optimize process reliability and prevent unplanned shutdowns.
-
Industrial Manufacturing: Gearboxes, motors, and fans are monitored for vibration anomalies that could indicate mechanical issues.
-
Marine and Aerospace: Monitoring propulsion and turbine systems under high-stress conditions for early warning von potential failures.
Product Advantages
-
High Precision: Accurate measurement von shaft vibration and displacement reduces false alarms and improves diagnostics.
-
Compact Cable Length: The 1-meter cable allows flexible installation in tight spaces or compact machinery housings.
-
Rugged Construction: Stainless steel housing ensures resistance to oil, dust, mechanical shock, and electromagnetic interference.
-
Seamless Integration: Fully compatible with 3300 XL Proximitor® sensors and extension systems.
-
API 670 Compliance: Meets industry-standard requirements for machinery protection systems.
-
Reliable Performance: Stable operation across wide temperature and environmental ranges.
-
High-Frequency Response: Capable von capturing both low-frequency and high-frequency vibration components for comprehensive monitoring.
FAQ
-
How does the probe maintain accuracy with a 1-meter cable?
The probe uses coaxial shielding and impedance-matched cable design to preserve signal integrity and minimize attenuation. -
What is the linear measurement range von this probe?
It provides ±2 mm linear displacement measurement, suitable for typical rotating machinery applications. -
Can the probe measure both static shaft position and dynamic vibration?
Yes, it is designed to simultaneously monitor both static displacement and dynamic vibration. -
How does the probe resist electromagnetic interference?
Advanced shielding in both the probe and the coaxial cable minimizes susceptibility to electrical noise. -
What is the frequency range this probe can measure?
It accurately measures frequencies from DC to 10 kHz, covering most machinery vibration spectra. -
Is this probe compatible with all 3300 XL Proximitor® sensors?
Yes, it is fully compatible, enabling seamless integration into 3300 XL monitoring systems. -
How does operating temperature affect the probe’s accuracy?
Thermal compensation ensures measurement accuracy is maintained within the operating range von -35°C to +177°C. -
What is the mounting method for this probe?
The probe uses a 3/8-24 UNF threaded fitting for secure installation in proximity to the rotating shaft. -
Can the probe detect high-frequency shaft vibration events?
Yes, the DC to 10 kHz frequency response allows detection von high-frequency vibration anomalies. -
Does this probe meet any industrial standards for machinery protection?
Yes, it complies with API 670, ensuring reliability and safety in critical machinery monitoring systems.
Recommended Related Modells (Same Series / Equivalent)
| Modell Number | Beschreibung | Cable Length | Gewicht |
|---|---|---|---|
| 330102-40-70-10-02-00 | 3300 XL 8mm Proximity Probe, medium cable | 1 m | 0.323 kg |
| 330102-38-82-10-02-05 | 3300 XL 8mm Proximity Probe, 2 m cable | 2 m | 0.646 kg |
| 330102-4-12-90-02-05 | 3300 XL 8mm Proximity Probe, 9 m cable | 9 m | 2.907 kg |
| 330102-00-08-10-02-00 | 3300 XL 8mm Proximity Probe, compact version | 0.5 m | 0.200 kg |
| 330102-05-10-10-02-00 | 3300 XL 8mm Proximity Probe, special variant | 5 m | 1.600 kg |
| 330102-65-70-10-02-00 | 3300 XL 8mm Proximity Probe, extended reach | 7 m | 2.300 kg |
Popular Modells from the Same Marke
| Modell Number | Beschreibung | Application Focus |
|---|---|---|
| 330130-040-00 | Extension cable for proximity probe systems | Cable integration |
| 3500/22M | Transducer I/O module for 3500 series systems | Vibration system integration |
| 3500/42M | Proximitor®/Seismic monitor module | Machinery protection |
| 3500/32M | Relay module | Automated shutdown/logging |
| 3500/93 | Display interface module for 3500 system | Operator visualization |
| 330103-00-05-10-02 | 3300 XL 5mm proximity probe | Compact machinery monitoring |
