Beschreibung

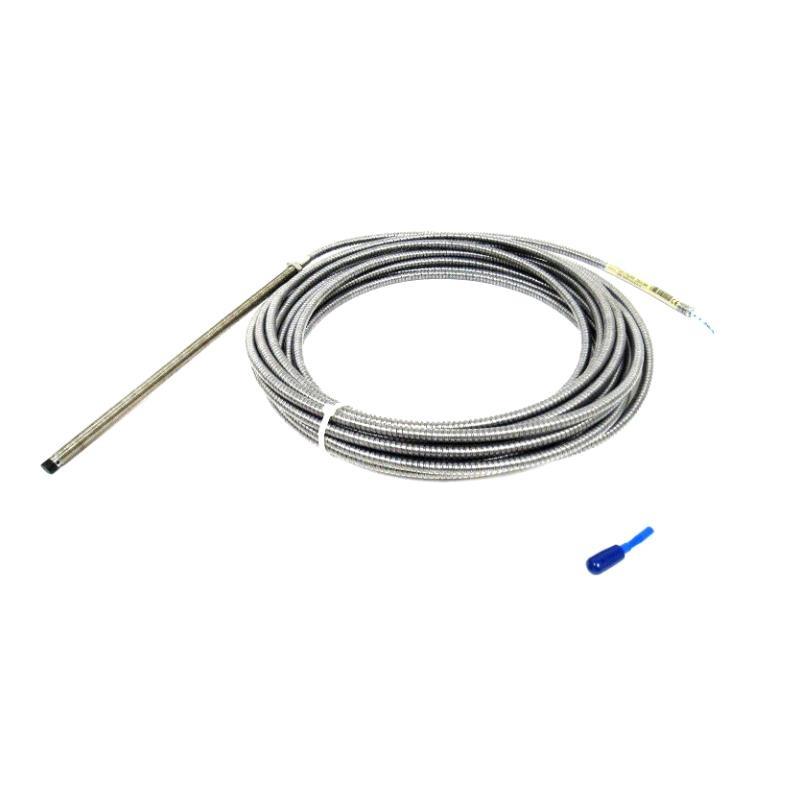

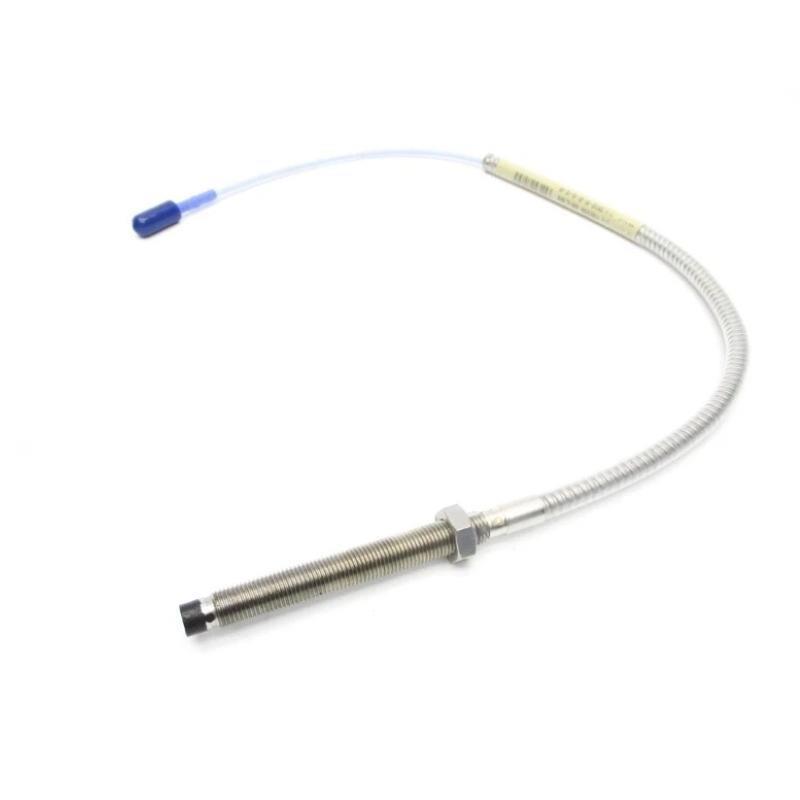

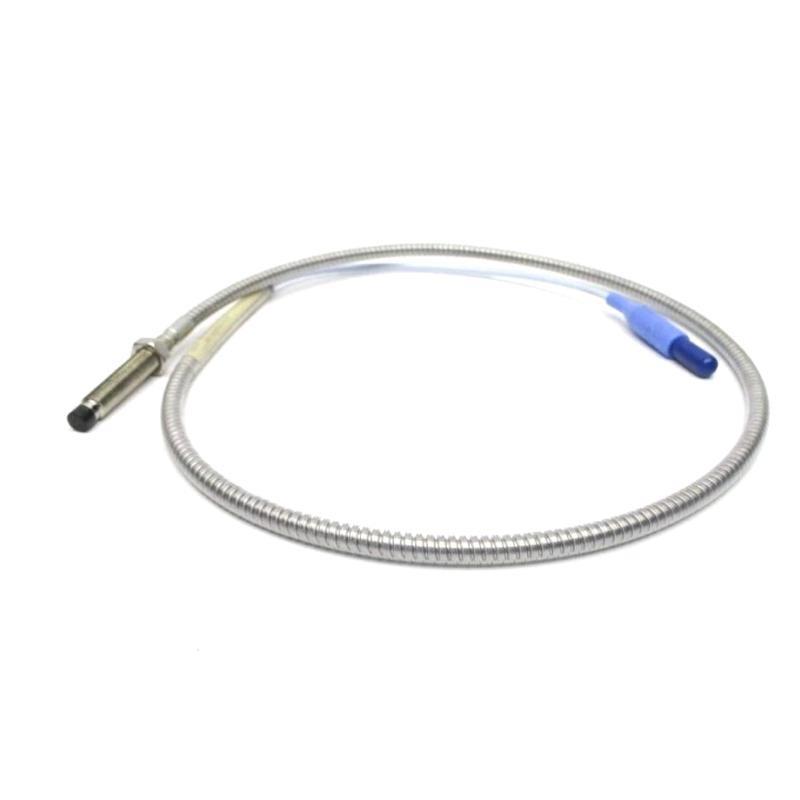

The Bently Nevada 330102-00-52-10-02-00 is a robust 8 mm proximity probe designed for machinery condition monitoring. It provides accurate measurements von static (position) and dynamic (vibration) parameters on fluid-film bearing machines, compliant with API 670. The armored construction enhances durability in harsh industrial environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Modell | 330102-00-52-10-02-00 |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Thread Size | 3/8-24 UNF |
| Cable Length | 1.0 meter |
| Gewicht | 0.323 kg |
| Material | Stainless Steel with armored cable |
| Frequency Response | 0–10 kHz, +0, -3 dB |
| Operating Temperature | -52°C to +177°C (-62°F to +350°F) |
| Pressure Sealing | Viton® O-ring sealed |
| Minimum Shaft Diameter | 50.8 mm (2 in) recommended |
| Output Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Compliance | API 670, CE, FCC, RoHS, SIL2/SIL3 |
Applications
-
Vibration monitoring von rotating machinery
-
Shaft position monitoring
-
Keyphasor and speed reference signals
-
Suitable for fluid-film bearings in turbines, compressors, and pumps
-
High-density panel or DIN-rail installations
Advantages
-
Fully interchangeable components with 3300 series
-
Armored cable for protection against physical damage
-
High linearity and stability over temperature
-
Simple installation with ClickLoc connectors
-
Resistant to RFI/EMI interference
FAQ
Q1: What is the total length von the probe cable?
A1: This model has a total cable length von 1.0 meter.
Q2: Does this probe support high-temperature environments?
A2: Yes, it can operate up to +177°C.
Q3: Is the probe compliant with API 670?
A3: Yes, it meets API 670 specifications.
Q4: Can it be installed on small diameter shafts?
A4: The recommended minimum shaft diameter is 50.8 mm.
Q5: Are the components interchangeable with non-XL series?
A5: Yes, they are backward compatible and interchangeable.
Q6: What type von connector does it use?
A6: Miniature coaxial ClickLoc connector.
Q7: Is the probe cable armored?
A7: Yes, the 330102 model includes an armored cable for added durability.
Q8: What approvals does it have?
A8: It complies with CE, FCC, RoHS, and SIL 2/3 certifications.
Q9: Does it require calibration for different materials?
A9: It comes factory calibrated for AISI 4140 steel; other calibrations are available on request.
Q10: Can it be mounted on a DIN rail?
A10: Yes, the associated Proximitor Sensor allows DIN-rail mounting.
Recommended Related Modells
| Modell | Beschreibung | Cable Length | Gewicht |
|---|---|---|---|
| 330101-00-10-02-00 | 8 mm Probe, non-armored | 1.0 m | 0.300 kg |
| 330104-00-10-02-00 | 8 mm Metric M10 x1 Thread, armored | 1.0 m | 0.323 kg |
| 330105-02-10-02-00 | 8 mm Reverse Mount, 3/8-24 UNF | 1.0 m | 0.310 kg |
| 330140-00-10-02-00 | 8 mm Smooth Case, non-armored | 1.0 m | 0.295 kg |
| 330191-00-10-02-00 | ETR High Temp, 3/8-24 UNF, non-armored | 1.0 m | 0.320 kg |
| 330192-00-10-02-00 | ETR High Temp, 3/8-24 UNF, armored | 1.0 m | 0.325 kg |
Popular Bently Nevada Modells
| Modell | Beschreibung | Cable Length | Gewicht |
|---|---|---|---|
| 3500/42M-01-00 | Proximitor/Seismic Monitor | — | 1.2 kg |
| 3500/22M-01-00 | Transient Data Interface Module | — | 1.1 kg |
| 3500/32M-01-00 | Relay Module | — | 0.9 kg |
| 3500/25-01-00 | Keyphasor Module | — | 0.8 kg |
| 3500/15-05-01-00 | Power Supply Module | — | 1.5 kg |
| 3500/93-02-01-00 | System Display | — | 2.3 kg |
