Produkteinführung

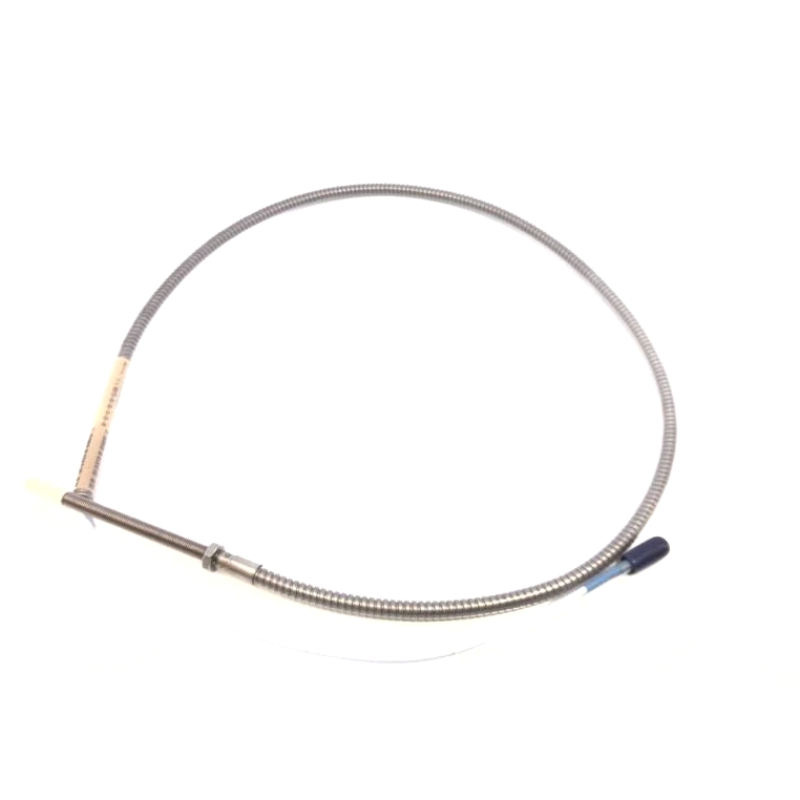

The Bently Nevada 330102-00-20-05-01-05 is a high-performance 8mm proximity probe from the 3300 XL series, designed for precise vibration and position monitoring in industrial machinery. This robust sensor is widely used in critical applications such as turbines, compressors, and pumps, providing reliable data to prevent equipment failure and optimize performance. Its durable construction and advanced sensing technology make it a preferred choice for condition monitoring in harsh environments.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell Number | 330102-00-20-05-01-05 |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Operating Temperature | -40°C to +120°C (-40°F to +248°F) |
| Output Signal | -2 to -18 VDC (linear voltage output) |
| Sensitivity | 200 mV/mil (7.87 mV/µm) |
| Frequency Response | 0 to 10 kHz |
| Cable Length | 5 meters (standard) |
| Connector Type | MIL-C-5015 or DIN 43650 |
| Material | Stainless steel casing |
| Total Length | 0.5 m |
| Gewicht | 0.162 kg |
| Compliance | ISO 10816, API 670 |
Product Applications
The 3300 XL 8mm proximity probe is ideal for:
-
Turbine Monitoring: Detects shaft vibration and eccentricity in steam and gas turbines.
-
Compressor Protection: Monitors radial and axial displacement in centrifugal and reciprocating compressors.
-
Pump Systems: Ensures safe operation by tracking bearing wear and misalignment.
-
Generator Sets: Measures rotor dynamics and vibration in power generation equipment.
-
Industrial Gearboxes: Identifies gear mesh faults and imbalance issues.
Product Advantages
-
High Accuracy: Delivers precise measurements with a sensitivity von 200 mV/mil.
-
Durability: Stainless steel construction resists corrosion and mechanical stress.
-
Wide Temperature Range: Operates reliably in extreme temperatures (-40°C to +120°C).
-
Compatibility: Integrates seamlessly with Bently Nevada 3300 monitoring systems.
-
API 670 Compliance: Meets industry standards for machinery protection.
Häufig gestellte Fragen (FAQ)
-
What is the operating voltage range for this probe?
The probe requires an external power supply von -18 to -24 VDC. -
Can the cable length be customized?
Yes, cables can be extended or shortened based on application requirements. -
Is this probe suitable for hazardous areas?
No, it is not intrinsically safe. For hazardous environments, consult explosion-provon variants. -
How do I calibrate the 3300 XL probe?
Calibration requires a gap voltage setup tool and a multimeter. Refer to the manual for detailed steps. -
What is the recommended gap voltage?
The optimal gap voltage is -10 VDC (±1 V). -
Can this probe measure thrust position?
Yes, when used with a dual-channel monitor, it can measure axial displacement. -
What maintenance is required?
Periodic inspection for cable damage and connector integrity is recommended. -
Does the probe work with non-Bently Nevada systems?
Compatibility depends on the input requirements von the third-party system. -
What is the lifespan von the probe?
Under normal conditions, the probe lasts 5+ years. -
How to troubleshoot erratic signals?
Check for loose connections, cable damage, or electromagnetic interference.
Recommended Related Modells
| Modell Number | Beschreibung |
|---|---|
| 330102-00-20-10-02-00 | 3300 XL 8mm Probe, 10m Cable |
| 330103-00-20-05-01-05 | 3300 XL 11mm Proximity Probe |
| 330104-00-20-05-01-05 | 3300 XL 14mm Proximity Probe |
| 330105-00-20-05-01-05 | 3300 XL 5mm Proximity Probe |
| 3300/25-01-01-00-00 | 3300 XL Velocity Sensor |
| 3300/45-01-01-00-00 | 3300 XL Accelerometer |
Popular Bently Nevada Modells
| Modell Number | Beschreibung |
|---|---|
| 3500/42M-01-00-00-00 | 3500 Monitoring System, 4-Channel |
| 1900/65A-01-00-00-00 | 1900 Series Seismic Transducer |
| 330180-90-05-10-02-00 | 3300 XL 8mm Extension Cable |
| 330104-00-20-10-02-00 | 3300 XL 14mm Probe, 10m Cable |
| 3500/22M-01-00-00-00 | 3500 Vibration Monitor |
| 3300/16-11-01-00-00 | 3300 XL Proximitor Power Supply |
