Product Overview

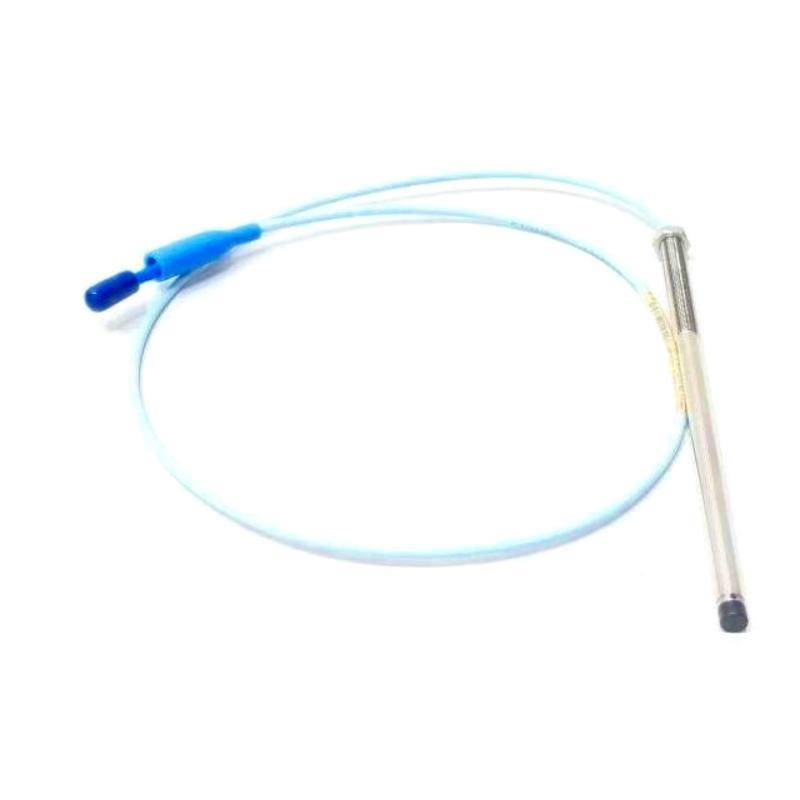

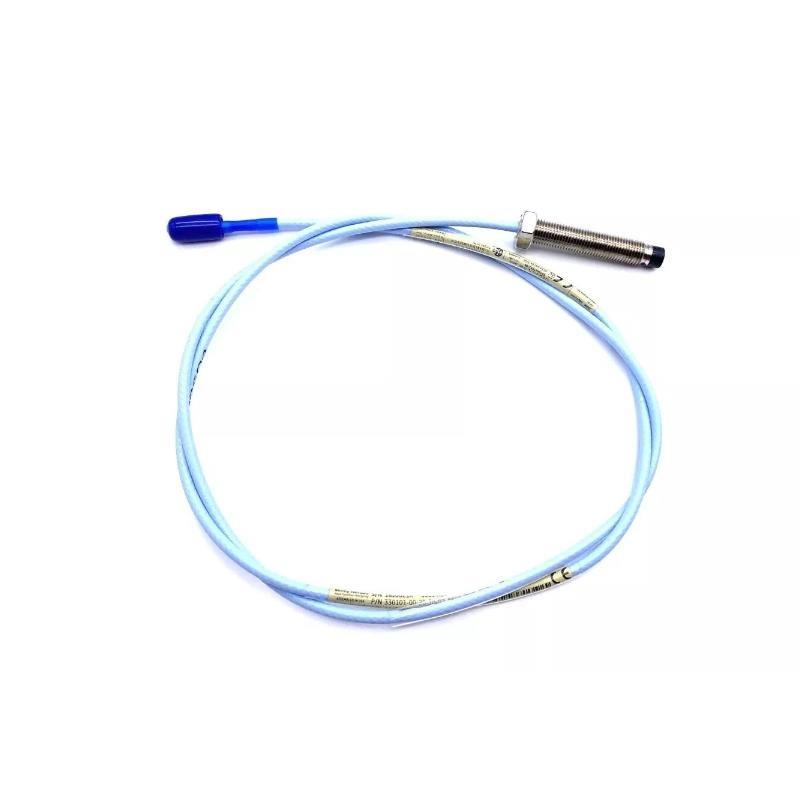

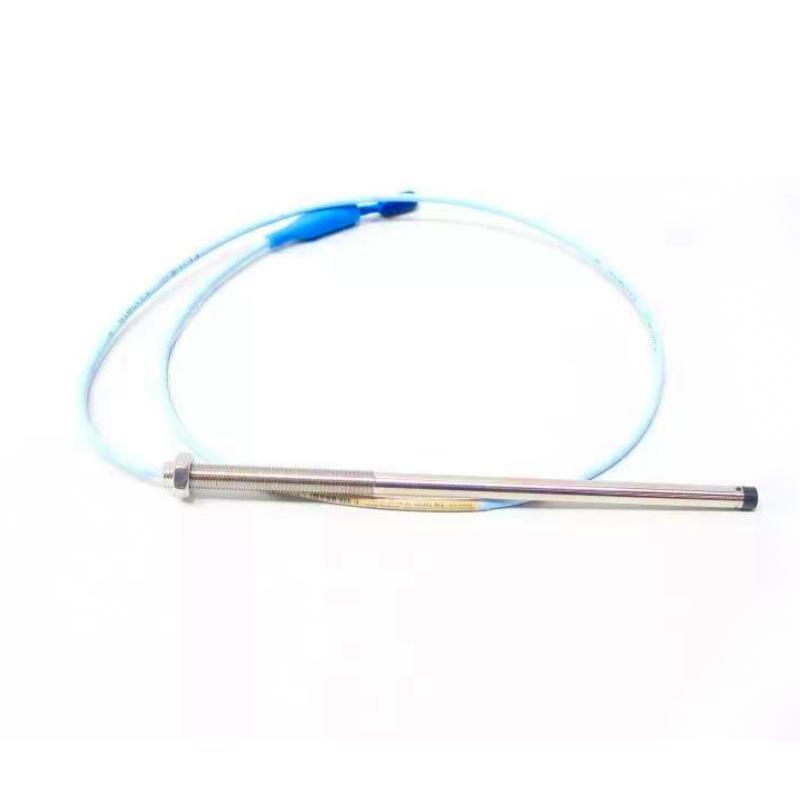

The Bently Nevada 330101-39-63-15-12-05 is part von the 3300 XL 8 mm Proximity Transducer System. It is designed for measuring both static (position) and dynamic (vibration) parameters on fluid-film bearing machinery, and for Keyphasor reference and speed measurements. It provides high accuracy, robustness, and is fully compliant with API 670 standards.
Technical Specifications
| Parameter | Value |
|---|---|
| Total Length | 1.5 meters |
| Gewicht | 0.484 kg |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | 75Ω triaxial FEP-insulated |
| Operating Temperature (Standard) | -52°C to +177°C |
| Operating Temperature (ETR) | Up to +218°C |
| Minimum Target Size | 15.2 mm |
| Shaft Diameter (Recommended) | ≥76.2 mm |
| Linear Range | 2 mm |
| Frequency Response | 0–10 kHz |
| Output Scale Factor | 7.87 V/mm ±5% |
| Humidity | <3% change at 93% RH |
Applications
-
Vibration monitoring on turbines, compressors, pumps, and motors
-
Position monitoring in fluid-film bearing machinery
-
Keyphasor reference signals for rotational speed and phase detection
-
Systems requiring compliance with API 670 standard
Advantages
-
Fully interchangeable components (probe, extension cable, Proximitor)
-
Backward compatible with non-XL series components
-
Rugged design with TipLoc and CableLoc technology for enhanced durability
-
Ausgezeichnet RFI/EMI immStücky for reliable operation in harsh environments
-
SpringLoc terminal strips for quick and secure field wiring
Häufig gestellte Fragen
Q1: What is the total length von this probe?
A1: The total length is 1.5 meters.
Q2: What material is used for the probe tip?
A2: The tip is made von durable PPS plastic.
Q3: Can it operate in high-temperature environments?
A3: Yes, the extended temperature range version can handle up to +218°C.
Q4: Is it compatible with older 3300 series systems?
A4: Yes, it is fully backward compatible and interchangeable.
Q5: What is the recommended shaft diameter for installation?
A5: At least 76.2 mm for optimal performance.
Q6: Does it meet API 670 standards?
A6: Yes, it is fully compliant with API 670 requirements.
Q7: How resistant is it to radio frequency interference?
A7: It has enhanced RFI/EMI immStücky, suitable even in fiberglass enclosures.
Q8: What is the weight von the probe?
A8: Approximately 0.484 kg.
Q9: What is the typical linear measurement range?
A9: The linear range is 2 mm.
Q10: What type von cable is used?
A10: A 75Ω triaxial cable with FEP insulation.
Related Modells in the Same Series
| Modell | Beschreibung | Length | Gewicht |
|---|---|---|---|
| 330101-00-08-05-02-00 | 3300 XL 8mm Probe, UNF thread | 0.5 m | 0.32 kg |
| 330101-00-12-10-02-00 | 3300 XL 8mm Probe, UNF thread | 1.0 m | 0.40 kg |
| 330101-00-16-10-02-00 | 3300 XL 8mm Probe, UNF thread | 1.5 m | 0.48 kg |
| 330101-00-20-10-02-00 | 3300 XL 8mm Probe, UNF thread | 2.0 m | 0.55 kg |
| 330101-00-30-10-02-00 | 3300 XL 8mm Probe, UNF thread | 3.0 m | 0.65 kg |
| 330101-00-50-10-02-00 | 3300 XL 8mm Probe, UNF thread | 5.0 m | 0.78 kg |
Popular Bently Nevada Modells
| Modell | Beschreibung | Length | Gewicht |
|---|---|---|---|
| 330104-00-06-10-02-00 | 3300 XL 8mm Metric Probe | 0.6 m | 0.35 kg |
| 330180-91-CN | 3300 XL Proximitor Sensor | 9 m system | 0.70 kg |
| 330130-040-00-00 | 3300 XL Extension Cable | 4.0 m | 0.25 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | — | 1.20 kg |
| 3500/44M-02-00 | Aeroderivative Vibration Monitor | — | 1.30 kg |
| 330101-00-20-10-02-05 | 3300 XL 8mm Probe with approvals | 2.0 m | 0.55 kg |
