Product Overview

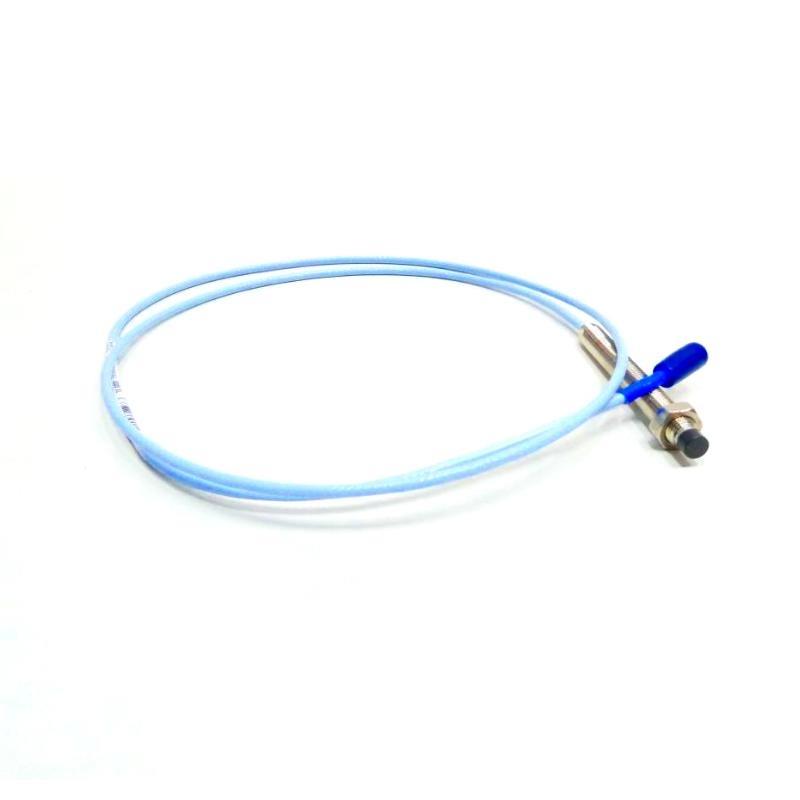

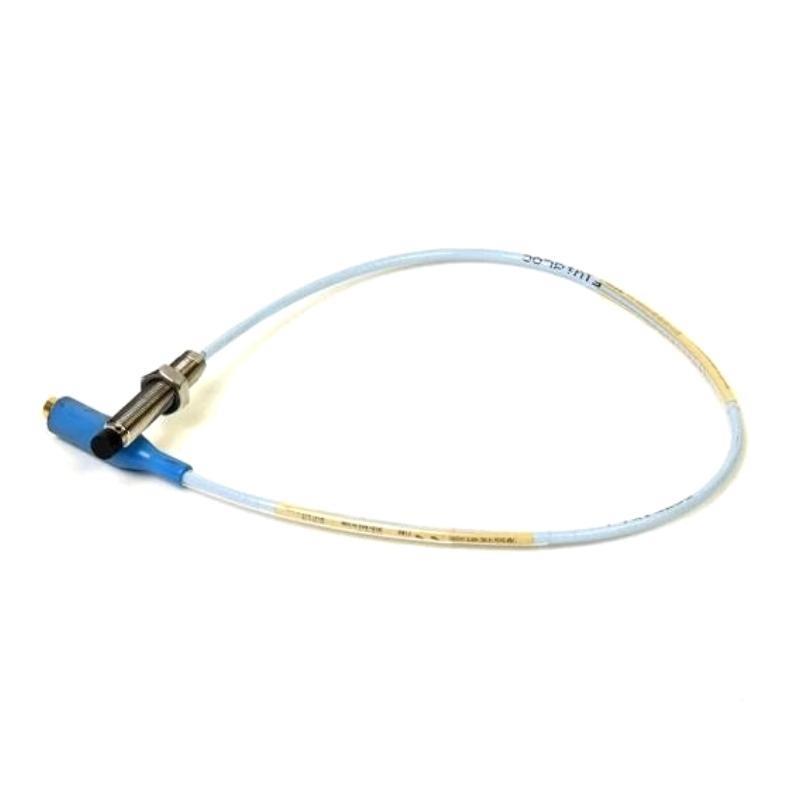

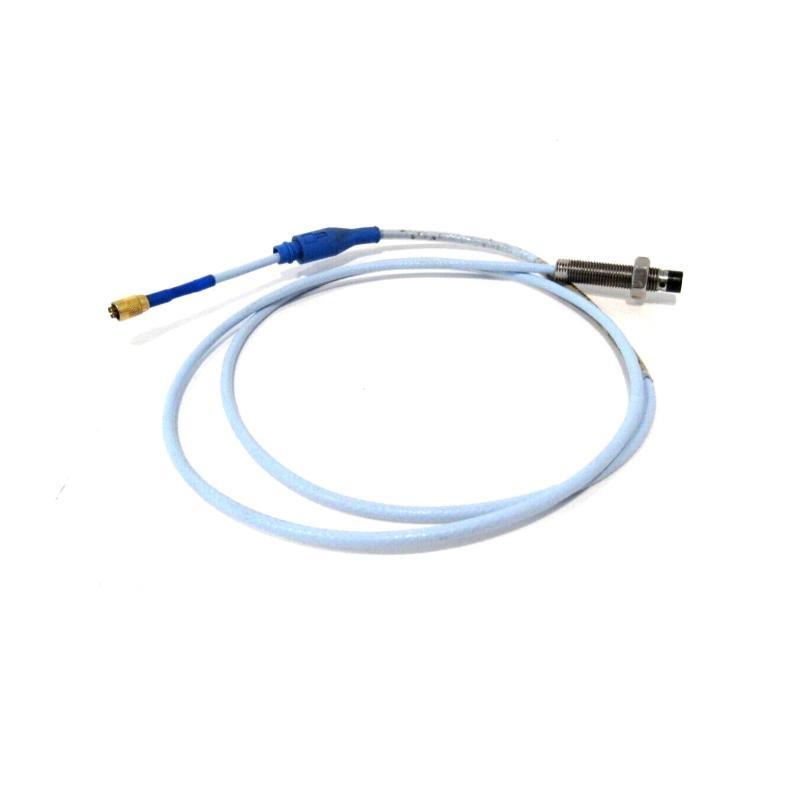

The Bently Nevada 330101-39-63-15-02-RU is part von the 3300 XL 8 mm Proximity Transducer System, designed for precise vibration and position measurement in rotating machinery. It vonfers superior robustness, linearity, and interchangeability, and is widely used in fluid-film bearing machines, turbines, compressors, and other critical applications.
Applications
-
Vibration monitoring on rotating shafts
-
Shaft position measurement in turbines and compressors
-
Keyphasor reference signals
-
Overspeed protection systems
-
High-density installations in panels or DIN-rails
Advantages
-
Fully compliant with API 670 mechanical and performance standards
-
High immStücky to EMI/RFI for reliable operation
-
Interchangeable probes, cables, and sensors without recalibration
-
Rugged design with patented TipLoc and CableLoc technology
-
Optional FluidLoc to prevent oil ingress
Technical Specifications
| Parameter | Specification |
|---|---|
| System Type | Proximity Transducer System |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless Steel (AISI 303/304) |
| Probe Diameter | 8 mm |
| Thread | 3/8-24 UNF |
| Total Length | 1.5 meters |
| Gewicht | 0.484 kg |
| Cable Type | 75Ω triaxial with ClickLoc connector |
| Operating Temperature (Probe) | -52°C to +177°C |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | ~1.27 mm (50 mils) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Minimum Shaft Diameter | 50.8 mm (2 in) |
| Environmental Protection | Optional connector protectors for harsh areas |
| Compliance | API 670, CE Mark, RoHS, FCC Part 15 |
FAQ
Q1: What is the primary use von this proximity probe?
A1: It measures shaft vibration and position in rotating machinery.
Q2: Is it compatible with other Bently Nevada components?
A2: Yes, it is backward and forward compatible with 3300-series components.
Q3: Does it comply with API 670?
A3: Yes, the system meets API 670 standards for mechanical and performance specifications.
Q4: Can it operate in high-temperature environments?
A4: Yes, up to +177°C for the probe tip, with extended options available.
Q5: Does it require calibration after replacement?
A5: No, probes, cables, and sensors are fully interchangeable without recalibration.
Q6: What is the recommended gap setting?
A6: Approximately 1.27 mm (50 mils) is recommended for radial vibration.
Q7: Can it be installed in areas with high EMI/RFI?
A7: Yes, it has enhanced immStücky to electromagnetic and radio frequency interference.
Q8: Is there an option to prevent oil ingress?
A8: Yes, the FluidLoc cable option prevents leakage von oil or fluids through the cable.
Q9: Does it support both panel and DIN-rail mounting?
A9: Yes, the Proximitor sensor can be mounted in both configurations.
Q10: What is the minimum shaft size it can monitor effectively?
A10: It is recommended for shafts von at least 50.8 mm (2 inches) diameter.
Recommended Related Modells
| Modell Number | Beschreibung | Length | Gewicht |
|---|---|---|---|
| 330101-00-20-10-02-05 | XL 8mm Probe, 2m, armored | 2.0 m | 0.52 kg |
| 330101-00-30-10-02-00 | XL 8mm Probe, 3m, standard | 3.0 m | 0.56 kg |
| 330102-00-20-10-02-00 | XL 8mm Probe, armored, reverse mount | 2.0 m | 0.53 kg |
| 330103-00-02-10-02-05 | XL 8mm Probe, metric thread, armored | 2.0 m | 0.52 kg |
| 330104-00-06-10-02-00 | XL 8mm Probe, metric thread, standard | 2.0 m | 0.50 kg |
| 330191-00-20-10-02-00 | XL 8mm ETR Probe, high-temperature | 2.0 m | 0.54 kg |
Popular Bently Nevada Modells
| Modell Number | Beschreibung | Length | Gewicht |
|---|---|---|---|
| 3500/42M | Proximitor/Seismic Monitor | N/A | 1.2 kg |
| 3500/44M | Aeroderivative GT Vibration Monitor | N/A | 1.1 kg |
| 3500/22M | Transient Data Interface | N/A | 1.3 kg |
| 3300 XL 5mm | 5mm Proximity Probe | 1.5 m | 0.38 kg |
| 330180 | Proximitor Sensor | 1m–9m | 0.25 kg |
| 3500/50 | Tachometer Module | N/A | 1.0 kg |
