Product Beschreibung

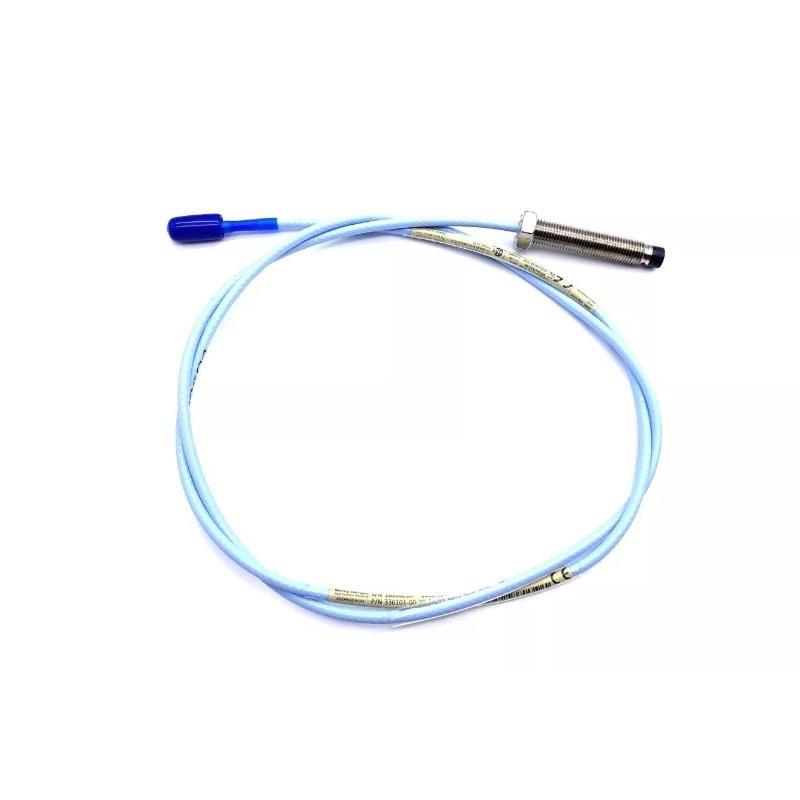

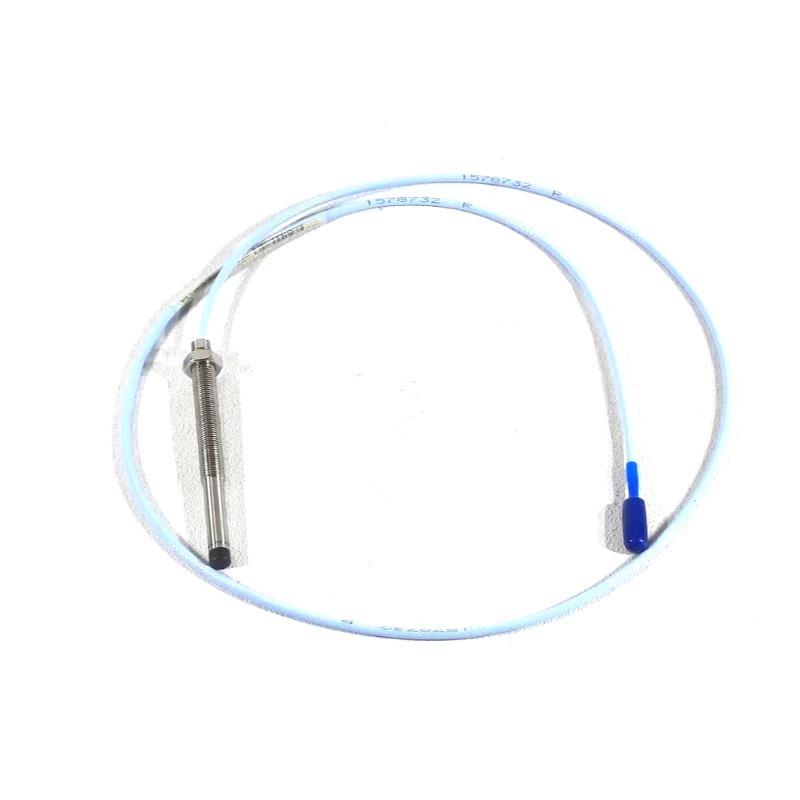

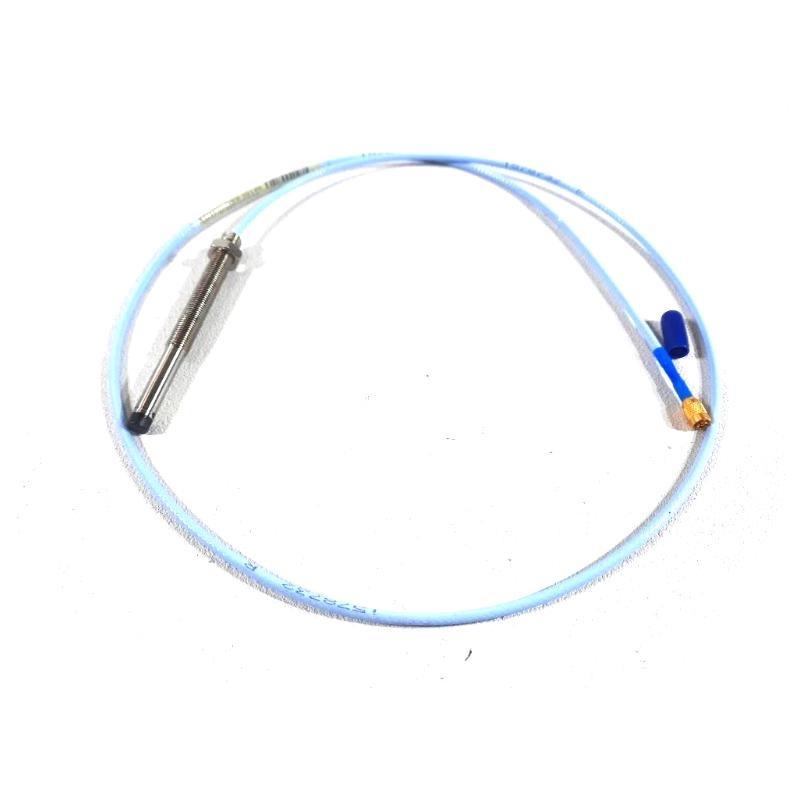

The Bently Nevada 330101-33-53-10-12-05 is part von the 3300 XL 8 mm Proximity Transducer System, vonfering reliable static and dynamic measurements von position and vibration. It delivers industry-leading linearity, interchangeability, and rugged construction, compliant with API 670 standards. Designed for fluid-film bearing machinery, it also supports Keyphasor and speed measurements.
Technical Specifications
| Parameter | Value |
|---|---|
| Modell | 330101-33-53-10-12-05 |
| Probe Type | Forward-mount, 8 mm diameter |
| Total Length | 1.0 meter |
| Gewicht | 0.323 kg |
| Cable Type | ClickLoc connector, FluidLoc cable |
| Temperature Range | -52°C to +177°C (standard), up to 218°C (ETR) |
| Linear Range | 2.0 mm (80 mils) |
| Frequency Response | 0 to 10 kHz |
| Minimum Target Size | 15.2 mm (0.6 in) |
| Recommended Shaft Dia | ≥ 76.2 mm (3 in) |
| Material | PPS tip, Stainless Steel case |
| Approvals | CSA, ATEX, IECEx |
Applications
-
Vibration monitoring von turbines, compressors, pumps
-
Shaft position and displacement measurement
-
Overspeed and Keyphasor reference
-
Use in high-density and hazardous area installations
Advantages
-
Fully API 670 compliant
-
Backward compatible with non-XL systems
-
Advanced RFI/EMI immStücky
-
Ruggedized with TipLoc and CableLoc technology
-
Quick and secure ClickLoc connectors
-
Optional FluidLoc cable prevents oil ingress
FAQ
Q1: What is the standard length von this probe?
A1: The standard length is 1.0 meter.
Q2: Is it compliant with API 670?
A2: Yes, it meets API 670 requirements.
Q3: Can it be used in hazardous areas?
A3: Yes, it has CSA, ATEX, and IECEx certifications.
Q4: What is the typical weight von the probe?
A4: Approximately 0.323 kg.
Q5: What is the recommended shaft diameter for installation?
A5: At least 76.2 mm (3 inches) is recommended.
Q6: Can it operate at high temperatures?
A6: Yes, up to 177°C standard, and 218°C with ETR version.
Q7: Are connectors included?
A7: Yes, it uses gold-plated ClickLoc connectors.
Q8: Is it interchangeable with older 3300 series?
A8: Yes, it is backward compatible.
Q9: What is the minimum target size it can detect?
A9: At least 15.2 mm diameter.
Q10: What is the linear measurement range?
A10: 2.0 mm (80 mils) linear range.
Related Modells in the Same Series
| Modell | Beschreibung | Length | Gewicht |
|---|---|---|---|
| 330101-33-53-10-12-05 | Standard 8 mm Probe | 1.0 m | 0.323 kg |
| 330102-XX-XX-XX-XX-XX | 8 mm Probe with armor | Varies | ~0.7 kg |
| 330103-XX-XX-XX-XX-XX | Metric thread version | Varies | ~0.3 kg |
| 330105-XX-XX-XX-XX-XX | Reverse mount probe | Varies | ~0.3 kg |
| 330140-XX-XX-XX-XX | Smooth case, no armor | Varies | ~0.3 kg |
| 330191-XX-XX-XX-XX | Extended Temp Range (ETR) | Varies | ~0.3 kg |
Popular Modells from Bently Nevada
| Modell | Beschreibung | Length | Gewicht |
|---|---|---|---|
| 330104-XX-XX-XX-XX-XX | Metric thread, with armor | Varies | ~0.7 kg |
| 330180-AA-BB | 3300 XL Proximitor Sensor | 1/5/9 m | 246 g |
| 330130-XXX-XX-XX | 3300 XL Standard Extension Cable | Varies | ~0.1 kg/m |
| 3500/42M | Proximitor Seismic Monitor | — | — |
| 3500/44M | Aeroderivative GT Vibration Monitor | — | — |
| 3500/25 | Keyphasor Module | — | — |
