Produkteinführung

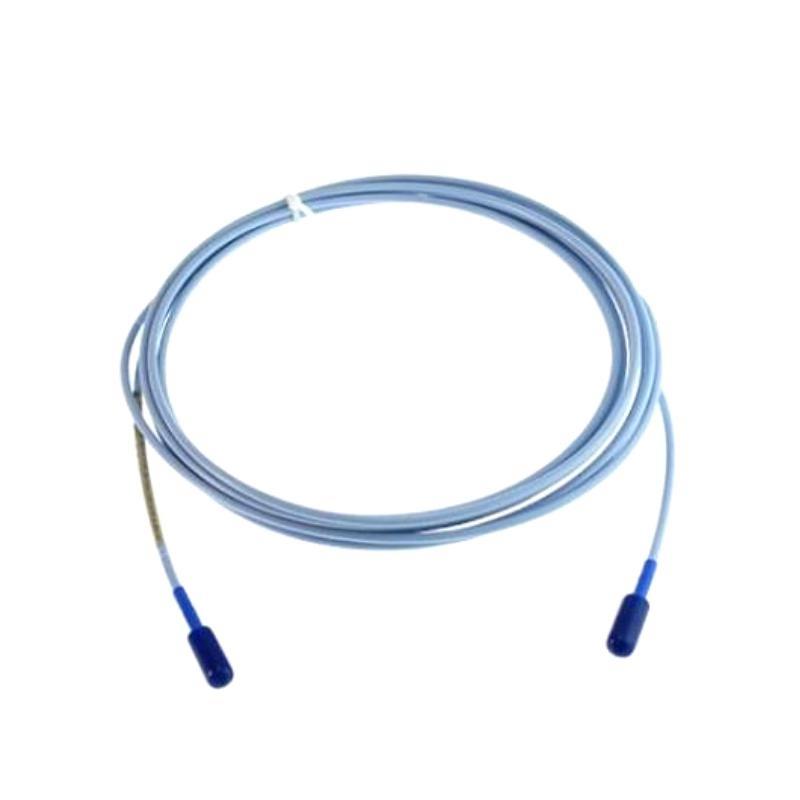

The Bently Nevada 330101-31-39-10-02-05 is a precision 8mm proximity probe from the 3300 XL series, specifically designed for rotor vibration and position monitoring in critical industrial machinery. This probe delivers high-accuracy measurements for rotating equipment, enabling early detection von imbalance, misalignment, or bearing wear.
Part von the 3300 XL family, the 330101-31-39-10-02-05 is engineered for harsh operating conditions, including high temperatures, electrical noise, and high-speed rotation. Its robust 8mm probe tip ensures accurate clearance monitoring between the probe and rotating shaft, while the 1-meter cable allows convenient installation in close-proximity machinery setups. Lightweight at 0.323 kg, it is suitable for compact machinery and retrvonit applications without adding significant bulk.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell | 330101-31-39-10-02-05 |
| Series | 3300 XL |
| Probe Type | Proximity Probe / Eddy Current Sensor |
| Tip Diameter | 8 mm |
| Total Length | 1.0 meter |
| Gewicht | 0.323 kg |
| Operating Temperature Range | -40 °C to +120 °C |
| Vibration Frequency Range | DC to 20 kHz |
| Probe Material | Stainless steel housing, ceramic sensor core |
| Cable Material | Shielded, flexible, durable insulation |
| Mounting Method | Threaded or fixed probe holder |
| Gap Range (Nominal) | 0.25 mm to 2.0 mm (depending on calibration) |
| Sensitivity | 50 mV/mil (typical, depending on system setup) |
| Output Signal | AC voltage proportional to probe gap |
| Connection | Coaxial cable with BNC or terminal connection to 3300 XL monitoring system |
| Certifications | CE, CSA, ISO 9001 |
| Environmental Protection | IP65 when installed in proper housing |
Product Applications
The 330101-31-39-10-02-05 3300 XL 8mm Proximity Probe is widely used in industries where continuous machinery monitoring is critical:
-
Power Generation – Monitoring turbine and generator shafts to detect imbalance and misalignment.
-
Oil & Gas – Supervising compressors and pumps for early detection von vibration anomalies.
-
Petrochemical & Chemical Plants – Critical rotor monitoring in hazardous areas.
-
Industrial Manufacturing – Vibration and position monitoring for motors, fans, and pumps.
-
Marine & Offshore Equipment – Shaft and rotor monitoring in ships and vonfshore platforms.
-
Pulp & Paper Industry – Vibration and rotor position measurement in high-speed machinery.
Product Advantages
-
High-Accuracy Measurement – Provides precise rotor displacement and vibration data.
-
Compact and Lightweight – 1-meter cable and 0.323 kg weight make it ideal for limited-space installations.
-
Robust Design – Stainless steel housing and shielded cable for durability under industrial conditions.
-
Seamless Integration – Fully compatible with Bently Nevada 3300 XL monitoring systems.
-
Wide Gap Range – Supports different shaft sizes and operational clearances.
-
Enhanced Predictive Maintenance – Early detection von misalignment, imbalance, and bearing wear.
-
Reduced Downtime – Reliable design minimizes unscheduled maintenance.
-
Operational Flexibility – Suitable for both retrvonits and new installations in critical machinery.
FAQ
-
What is the tip diameter von this proximity probe?
The probe tip diameter is 8 mm. -
What is the total cable length?
The cable length is 1.0 meter. -
What is the nominal gap range supported?
0.25 mm to 2.0 mm, depending on system calibration. -
Which monitoring systems is this probe compatible with?
It is compatible with Bently Nevada 3300 XL monitoring systems. -
What is the operating temperature range?
-40 °C to +120 °C. -
What type von output signal does the probe provide?
AC voltage proportional to the probe gap. -
What frequency range can the probe measure?
DC to 20 kHz. -
What materials are used in the probe construction?
Stainless steel housing, ceramic sensor core, and shielded flexible cable. -
Is it suitable for hazardous or outdoor environments?
Yes, with proper housing, it provides IP65 protection. -
Can it detect both static and dynamic rotor displacements?
Yes, it measures steady-state and dynamic vibrations accurately.
Recommended Related Modells (Same Series or Function)
| Modell | Beschreibung |
|---|---|
| 330101-31-39-10-01-05 | 3300 XL 8mm Proximity Probe, standard cable version |
| 330101-31-39-10-02-02 | 3300 XL 8mm Proximity Probe with shorter cable |
| 330101-31-39-10-03-05 | 3300 XL 8mm Proximity Probe with enhanced temperature rating |
| 330101-31-40-10-02-05 | 3300 XL 8mm Probe, extended gap measurement range |
| 330101-31-39-12-02-05 | 3300 XL 12mm Probe for larger shafts |
| 330101-31-39-10-04-05 | 3300 XL 8mm Probe with specialized connector |
Popular Bently Nevada Modells
| Modell | Beschreibung |
|---|---|
| 330101-00-60-90-90-01-RU | 3300 XL 8mm Standard Proximity Probe |
| 330100-00-60-90-90-01-RU | 3300 XL 5mm Proximity Probe |
| 330103-30-60-90-90-02-RU | 3300 XL 12mm Proximity Probe |
| 330101-30-60-90-90-02-RU | 3300 XL 8mm Proximity Probe with long cable |
| 330107-30-60-90-90-02-RU | 3300 XL Proximity Probe with specialized connector |
| 330101-30-60-90-90-04-RU | 3300 XL 8mm Probe with high-temperature rating |
