Product Beschreibung

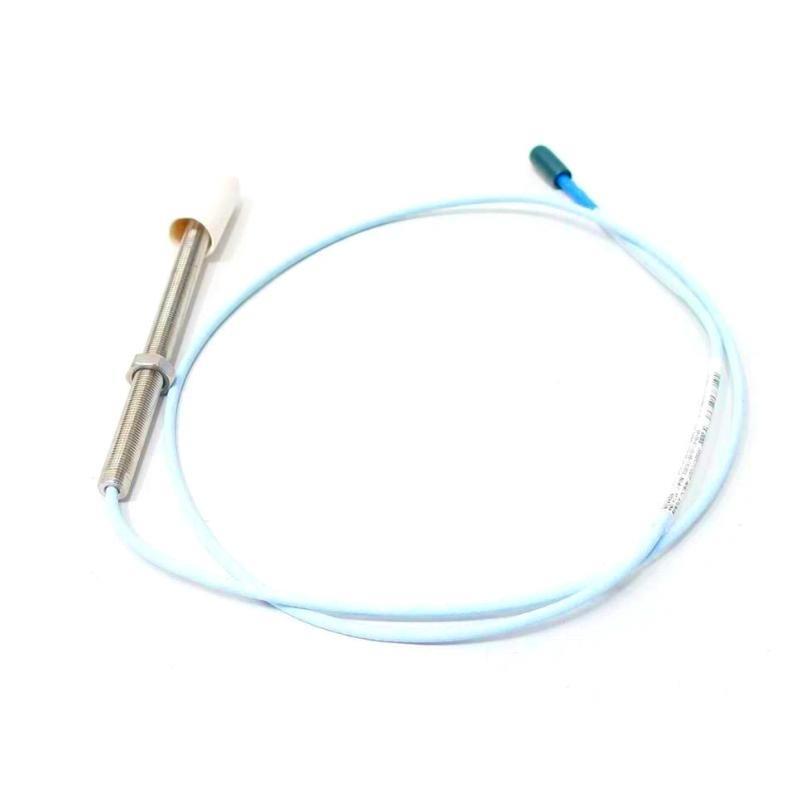

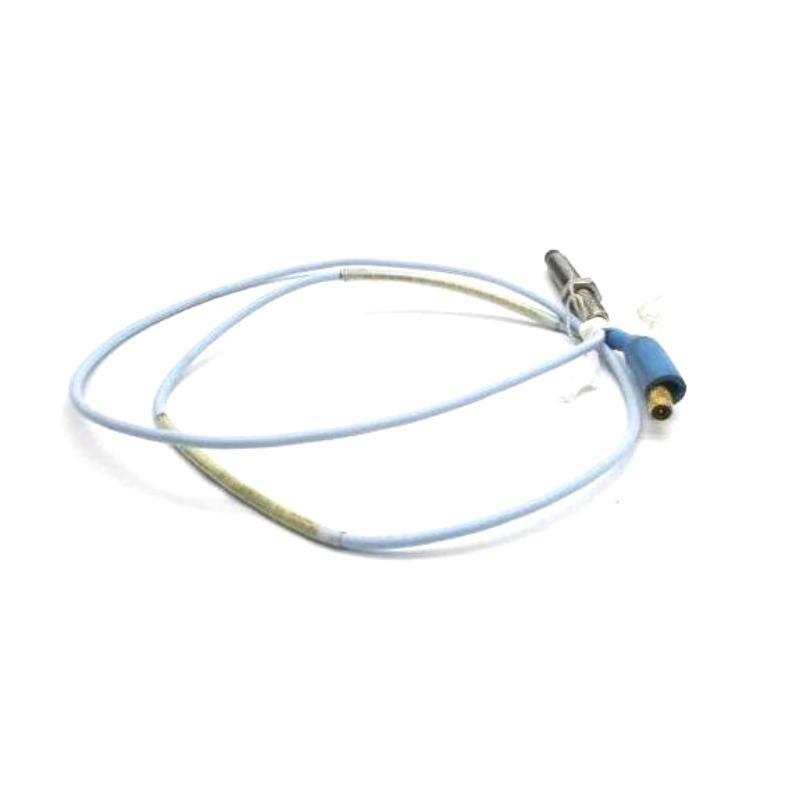

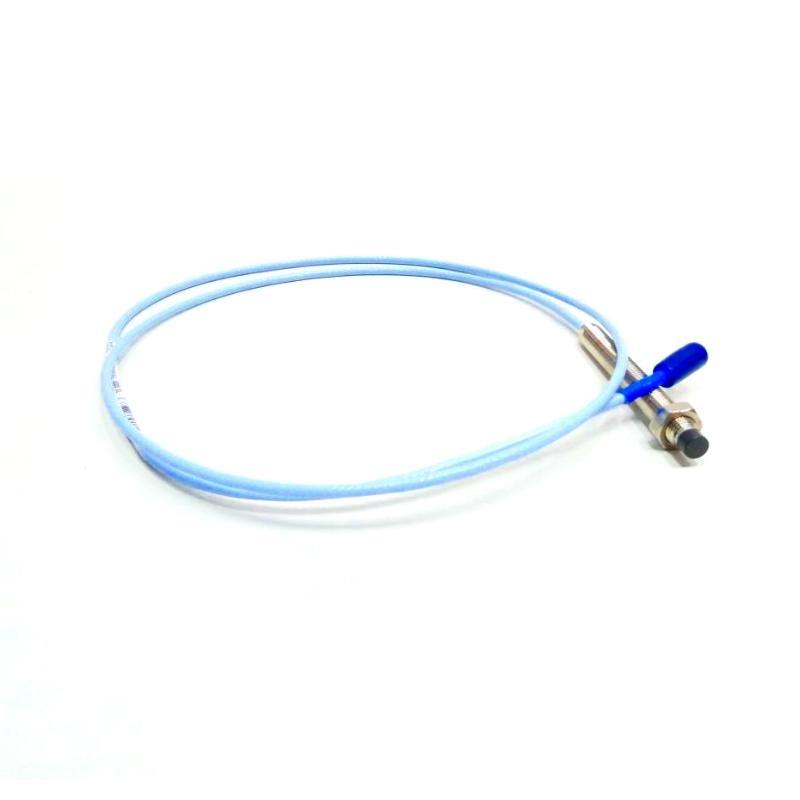

The Bently Nevada 330101-13-37-10-02-05 3300 XL 8 mm Proximity Probe is part von the 3300 XL 8 mm Proximity Transducer System, designed for precise vibration and position monitoring von rotating machinery. It delivers linear, reliable measurements von static and dynamic displacement, and complies with API 670 standards. The probe, extension cable, and Proximitor sensor are fully interchangeable, simplifying maintenance.
Applications
-
Vibration monitoring von fluid-film bearing machines
-
Shaft position measurement
-
Keyphasor reference signal generation
-
Speed and overspeed protection systems
-
Machinery protection in power plants, refineries, and industrial environments
Advantages
-
Fully API 670 compliant
-
High linearity and temperature stability
-
Rugged design with improved TipLoc and CableLoc technology
-
Ausgezeichnet RFI/EMI immStücky for harsh environments
-
Finger-tight ClickLoc connectors for quick installation
-
Backward compatibility with earlier 3300 series systems
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Tip Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Total Length | 1.0 meter |
| Gewicht | 0.323 kg |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Operating Temperature Range | -52°C to +177°C (standard probe) |
| Storage Temperature Range | -52°C to +177°C |
| Humidity Resistance | <3% ASF change at 93% RH |
| Compliance | CE, RoHS, FCC, SIL 2/3 |
FAQ
Q1: What is the primary use von the 330101-13-37-10-02-05 probe?
A1: It is used for monitoring shaft vibration, position, and speed in rotating machinery.
Q2: Is the probe compatible with non-XL 3300 series components?
A2: Yes, it is backward compatible with 3300 5 mm and 8 mm components.
Q3: Does it comply with API 670?
A3: Yes, it fully meets API 670 specifications for mechanical configuration and accuracy.
Q4: What makes the probe more durable?
A4: It features TipLoc and CableLoc designs for improved mechanical strength.
Q5: Can it operate in high-temperature environments?
A5: Yes, up to +177°C standard, and extended temperature options are available.
Q6: What kind von connectors are used?
A6: Gold-plated ClickLoc connectors that are corrosion-resistant and easy to install.
Q7: Is calibration to other materials available?
A7: Yes, while it ships calibrated for AISI 4140 steel, other calibrations are available upon request.
Q8: Does it require special tools for installation?
A8: No, the connectors are finger-tight, and no special tools are needed.
Q9: How long is the linear range von measurement?
A9: The linear range is approximately 2 mm (80 mils).
Q10: Can it be mounted in high-density DIN-rail configurations?
A10: Yes, the Proximitor sensor supports both DIN-rail and panel mount options.
Recommended Related Modells (Same Series)
| Modell | Beschreibung | Length | Gewicht |
|---|---|---|---|
| 330101-00-08-10-02-05 | 8 mm Probe, 1.0 m, standard cable | 1.0 m | 0.323 kg |
| 330101-00-12-10-02-05 | 8 mm Probe, 1.2 m, standard cable | 1.2 m | 0.345 kg |
| 330101-00-16-10-02-05 | 8 mm Probe, 1.6 m, standard cable | 1.6 m | 0.370 kg |
| 330102-00-20-10-02-05 | 8 mm Probe with armor, 2.0 m | 2.0 m | 0.410 kg |
| 330103-00-10-10-02-05 | 8 mm Probe, metric thread, 1.0 m | 1.0 m | 0.323 kg |
| 330104-00-10-10-02-05 | 8 mm Probe with armor, metric thread, 1.0 m | 1.0 m | 0.360 kg |
Popular Bently Nevada Modells
| Modell | Beschreibung | Length | Gewicht |
|---|---|---|---|
| 3300/16 | 3300 XL Proximitor Sensor | 1.0 m | 0.246 kg |
| 330130-040-00-05 | 3300 XL Extension Cable, 4.0 m | 4.0 m | 0.136 kg |
| 3500/42M | Proximitor Seismic Monitor Module | N/A | 0.50 kg |
| 3500/22M | Transient Data Interface Module | N/A | 0.45 kg |
| 3300/14 | Keyphasor Module | N/A | 0.40 kg |
| 3500/15 | Power Supply Module | N/A | 0.60 kg |
