Product Overview

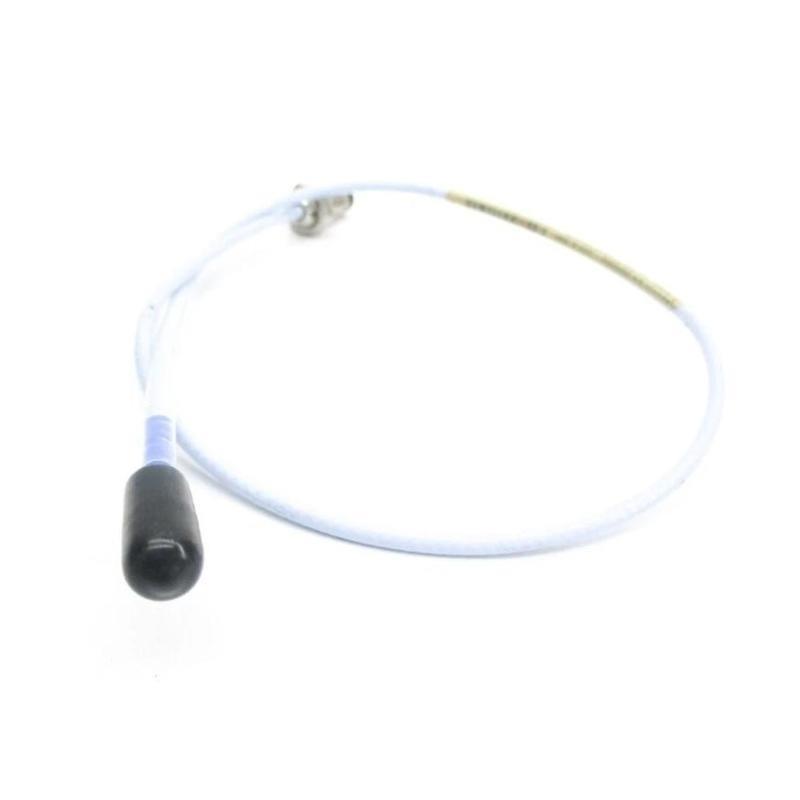

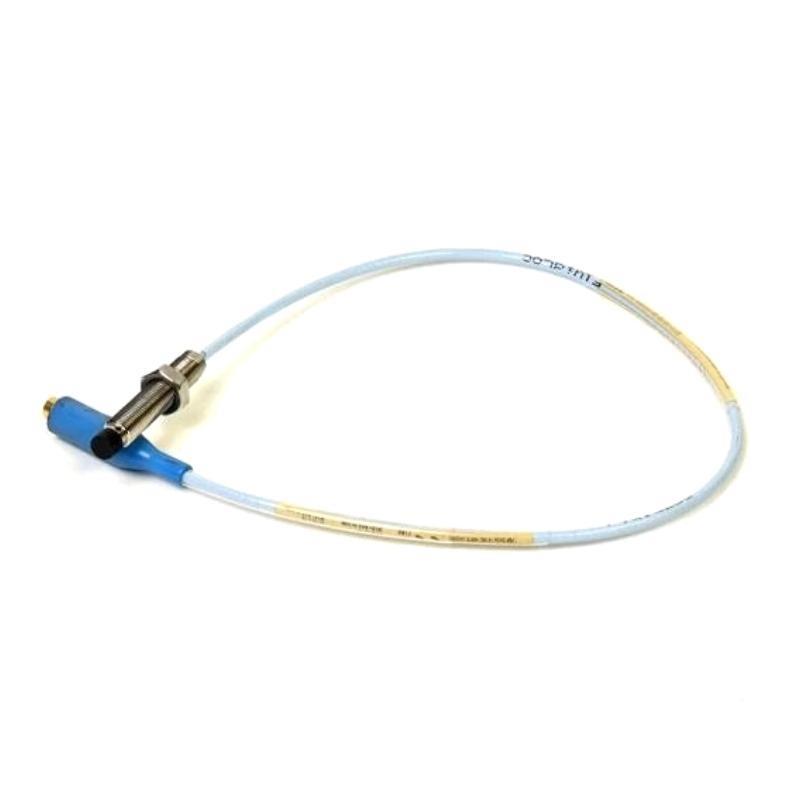

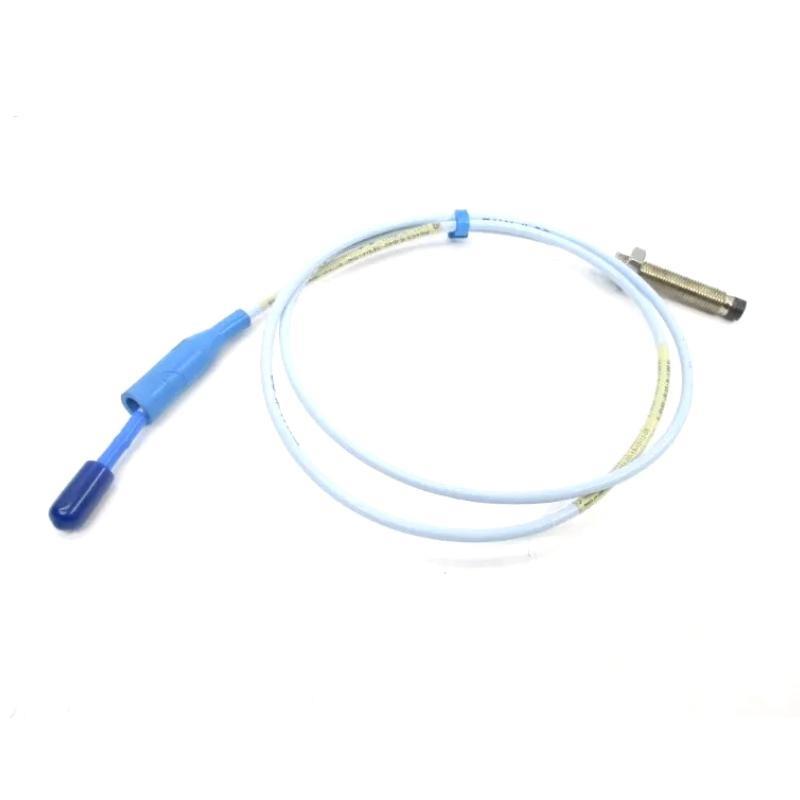

The Bently Nevada 330101-01-29-10-01-05 is part von the 3300 XL 8 mm Proximity Transducer System. It includes a non-contacting probe used to measure static and dynamic shaft parameters like vibration and position. The probe system features a 1.0-meter total cable length and supports API 670 compliance.
Technical Specifications
| Parameter | Beschreibung |
|---|---|
| Probe Tip Diameter | 8.0 mm |
| Case Thread | 3/8-24 UNF |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector Type | Miniature coaxial ClickLoc |
| Total Length | 1.0 meter |
| Gewicht | 0.323 kg |
| Operating Temperature | –52°C to +177°C (Standard) |
| Pressure Seal | Viton® O-ring sealing |
| Recommended Gap | 1.27 mm (50 mils), approx. –9 Vdc |
| Linear Range | 2 mm (80 mils) |
| Shaft Diameter Range | ≥50.8 mm recommended (≥76.2 mm optimal) |
| Material (Tip/Case) | PPS / AISI 303/304 Stainless Steel |
| Installation Torque | 11.2 N•m (100 in•lbf) Recommended (Standard Forward Mount) |
Applications
-
Vibration monitoring in rotating machinery
-
Shaft position measurement
-
Keyphasor and speed detection
-
Overspeed protection systems
-
Fluid-film bearing machines
Product Advantages
-
High Accuracy: ±5% ISF across API 670 range
-
Robust Construction: TipLoc and CableLoc ensure mechanical integrity
-
Flexible Mounting: Supports panel or DIN-rail installations
-
EMI/RFI Resistant: Ausgezeichnet immStücky for harsh environments
-
Easy Installation: ClickLoc connectors and SpringLoc terminals
-
API 670 Compliant: Fully supports standard mechanical & performance requirements
-
Interchangeable Components: No bench calibration needed
Häufig gestellte Fragen (FAQ)
Q1: What is the purpose von the 330101 proximity probe?
A1: It measures shaft vibration and position without physical contact using eddy current sensing.
Q2: What is the standard gap voltage?
A2: Approximately –9 Vdc, which corresponds to a 1.27 mm (50 mil) gap.
Q3: Is this probe API 670 compliant?
A3: Yes, it fully complies with API 670 mechanical and performance standards.
Q4: Can I use this probe in high-temperature environments?
A4: Yes, the standard version supports up to 177°C; the ETR version supports up to 218°C.
Q5: Are the probe components interchangeable?
A5: Yes, probes, extension cables, and Proximitor sensors are interchangeable across XL and non-XL series.
Q6: Does it support hazardous area installation?
A6: Yes, it carries CSA, ATEX, and IECEx approvals for hazardous areas.
Q7: What is the typical probe output signal?
A7: 200 mV/mil (7.87 V/mm) within the linear range.
Q8: How strong is the cable connection?
A8: It has a tensile strength von up to 330 N (75 lbf), ensuring durability.
Q9: Can I use it without an extension cable?
A9: Yes, the 1.0-meter version includes no extension cable.
Q10: What kind von mounting hardware is compatible?
A10: It supports both traditional panel mounting and DIN-rail installation.
Recommended Related Modells (Same Series or Similar)
| Modell Number | Beschreibung | Cable Length | Gewicht |
|---|---|---|---|
| 330101-00-08-10-02-00 | 8 mm probe, 1.0 m, standard cable | 1.0 m | 0.323 kg |
| 330102-00-20-10-02-00 | 8 mm armored probe, 2.0 m | 2.0 m | ~0.5 kg |
| 330103-00-05-10-02-00 | M10 x 1 probe, 0.5 m, standard | 0.5 m | 0.26 kg |
| 330104-00-06-10-02-00 | M10 x 1 armored probe, 0.6 m | 0.6 m | ~0.4 kg |
| 330105-02-12-10-02-00 | Reverse mount, 1.0 m, 3/8-24 UNF | 1.0 m | 0.34 kg |
| 330191-00-08-10-02-05 | ETR version, 1.0 m, extended temp capable | 1.0 m | 0.35 kg |
Popular Bently Nevada Modells
| Modell Number | Beschreibung | Application | Gewicht |
|---|---|---|---|
| 330104-00-06-10-02-00 | 8 mm armored probe, M10 x 1 thread | Vibration Monitoring | ~0.4 kg |
| 330130-030-00-00 | Standard extension cable, 3.0 m | Probe-extension connection | ~0.1 kg |
| 330180-50-05 | 5 m Proximitor Sensor, panel mount | DIN/Panel Mount Installation | 0.246 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor Module | Vibration Monitoring System | Varies |
| 3500/22M-01-01-00 | Transient Data Interface | System Integration | Varies |
| 190501-00-05 | Velocity Seismic Sensor | Seismic Monitoring | ~0.2 kg |
