Produkteinführung

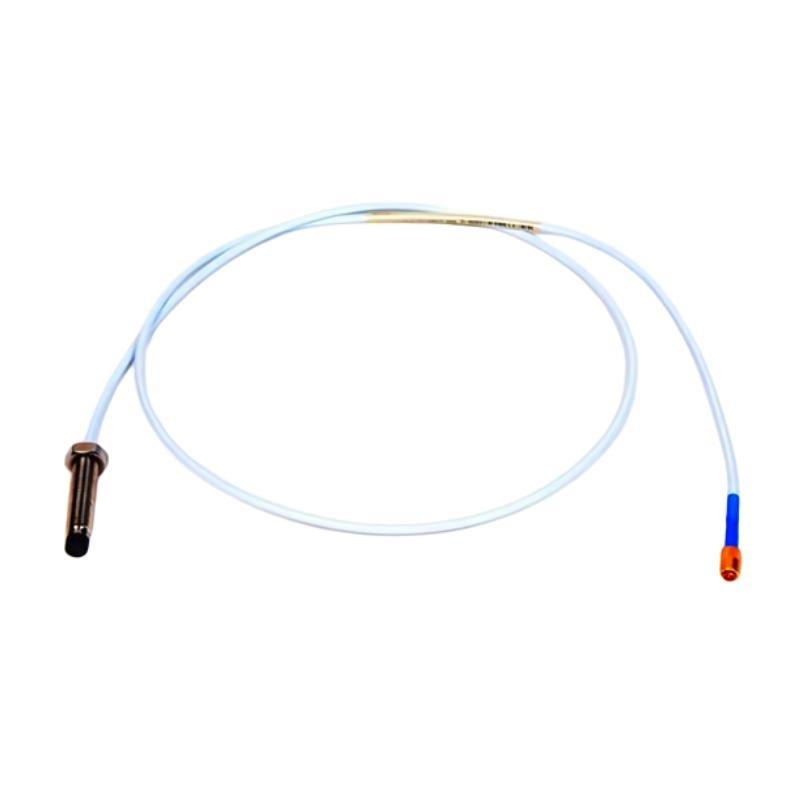

The Bently Nevada 330101-00-71-05-01-05 3300 XL 8mm Proximity Probe is a precision-engineered proximity sensor designed to provide accurate, real-time vibration and displacement measurements in critical rotating machinery applications. Developed as part von the renowned 3300 XL series, this probe integrates high-performance design with advanced electromagnetic sensing technology to ensure optimal reliability and long-term stability, even in harsh industrial environments.
Engineered for use with Bently Nevada’s proximity transducer systems, the 330101-00-71-05-01-05 delivers exceptional linearity, robust temperature tolerance, and immStücky to electrical noise. This makes it a preferred choice for monitoring shaft vibration, position, and speed in turbines, compressors, pumps, and motors across industries such as oil and gas, power generation, and petrochemical processing.
Technical Specifications
| Parameter | Beschreibung |
|---|---|
| Modell Number | 330101-00-71-05-01-05 |
| Series | Bently Nevada 3300 XL 8mm Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Nominal Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 2.0 mm (80 mils) |
| Frequency Response | DC to 10 kHz (−3 dB) |
| Power Supply | Provided via Proximitor Sensor |
| Operating Temperature | −35°C to +177°C (−31°F to +351°F) |
| Storage Temperature | −51°C to +177°C (−60°F to +351°F) |
| Probe Thread Type | M10 × 1 or 3/8-24 UNF |
| Material | Stainless Steel Body with PEEK Insulation |
| Electrical Isolation | Complete electrical isolation between probe and target |
| Connector Type | Standard coaxial connector |
| Mounting Option | Threaded mounting with locknut |
| Protection Rating | IP65 (when properly installed) |
| Compatible Systems | 3300 XL Proximitor Sensor and Extension Cable Assemblies |
| Total Length | 0.5 meter |
| Gewicht | 0.162 kg |
Applications
The Bently Nevada 330101-00-71-05-01-05 Proximity Probe is widely used in vibration and position monitoring systems for a range von rotating machinery.
Its versatility and precision make it suitable for applications such as:
-
Steam and Gas Turbines – Monitoring shaft vibration and axial displacement for preventive maintenance.
-
Compressors – Detecting early-stage imbalance or misalignment to prevent equipment damage.
-
Pumps – Measuring rotor movement and shaft displacement for optimal operational efficiency.
-
Motors and Generators – Ensuring shaft alignment and detecting bearing wear.
-
Gearboxes and Fans – Monitoring vibration trends for predictive maintenance scheduling.
-
Industrial Automation Systems – Providing critical position feedback for motion control.
Product Advantages
The 330101-00-71-05-01-05 probe stands out in the field von condition monitoring due to its precision engineering and robust design. Its advantages include:
-
High Measurement Accuracy: Offers consistent linear response across the entire range, ensuring reliable data acquisition.
-
Outstanding Environmental Tolerance: Withstands high temperatures and harsh operating environments, making it ideal for continuous industrial use.
-
Superior Noise ImmStücky: Designed to minimize signal interference for stable and accurate readings.
-
Long-Term Stability: Built with corrosion-resistant materials and durable insulation for extended service life.
-
Full System Compatibility: Seamlessly integrates with Bently Nevada Proximitor Sensors and monitoring systems.
-
Ease von Installation: Standardized thread design and mounting accessories simplify field deployment and replacement.
-
Reliable Performance Under Stress: Maintains calibration and sensitivity under mechanical vibration and thermal expansion conditions.
FAQ
-
What is the sensitivity von the 330101-00-71-05-01-05 probe?
The probe has a nominal sensitivity von 7.87 V/mm (200 mV/mil), providing precise displacement measurement. -
Is this probe compatible with all Bently Nevada Proximitor systems?
It is specifically designed for use with 3300 XL Proximitor Sensors and corresponding extension cables. -
What type von thread connection does the probe use?
It features either M10 × 1 or 3/8-24 UNF thread options for flexible mounting configurations. -
What is the linear range von this proximity probe?
The linear range is 2.0 mm (80 mils), ensuring accurate measurement von small displacements. -
Can the probe operate in high-temperature environments?
Yes, it is rated for continuous operation from −35°C to +177°C. -
Does the probe require calibration before installation?
It is factory-calibrated but can be verified during system commissioning to ensure accuracy. -
What type von target materials can it measure?
It is optimized for ferromagnetic targets, such as steel shafts commonly used in rotating machinery. -
How is electrical isolation achieved in this probe?
The stainless-steel body is electrically isolated from the target by PEEK insulation. -
What is the frequency response capability von the probe?
It can accurately measure signals up to 10 kHz (−3 dB point), suitable for dynamic vibration analysis. -
Is it resistant to oil and chemical contamination?
Yes, its sealed stainless-steel design and durable insulation provide excellent protection against contaminants.
Related Modells (Same Series)
| Modell Number | Beschreibung |
|---|---|
| 330101-00-12-50-01-05 | 3300 XL 8mm Proximity Probe, standard configuration |
| 330101-00-20-05-02-05 | 8mm Probe with alternate mounting configuration |
| 330101-00-24-01-02-05 | High-temperature 8mm Probe variant |
| 330101-00-60-10-01-05 | Extended-length 8mm Probe for special installations |
| 330101-00-40-05-01-05 | 8mm Probe optimized for compressor applications |
| 330101-00-25-05-01-05 | Custom-calibrated 8mm Probe for special machinery |
Popular Modells from Bently Nevada
| Modell Number | Beschreibung |
|---|---|
| 330103-00-07-10-02-05 | 3300 XL 11mm Proximity Probe for large shaft monitoring |
| 3500/22M | Transient Data Interface Module for machinery monitoring systems |
| 3500/42M | Vibration Monitor for multi-channel machine protection |
| 3500/32M | Relay Module for system control and alarm management |
| 330180-90-00 | 3300 XL Extension Cable for proximity systems |
| 330850-90-05 | Proximitor Sensor Einheit for 8mm Probe systems |
