Produkteinführung

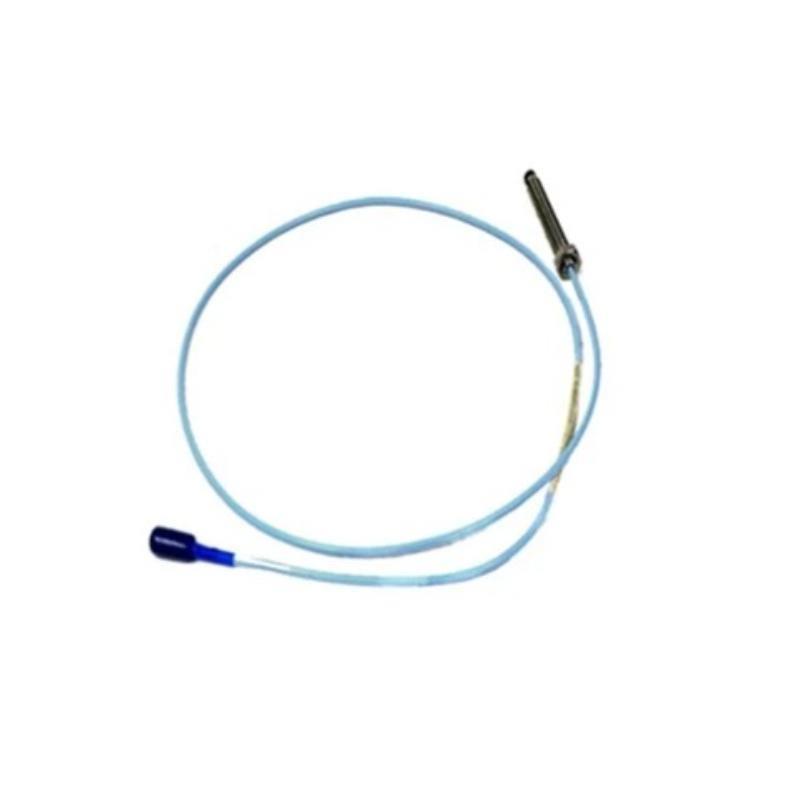

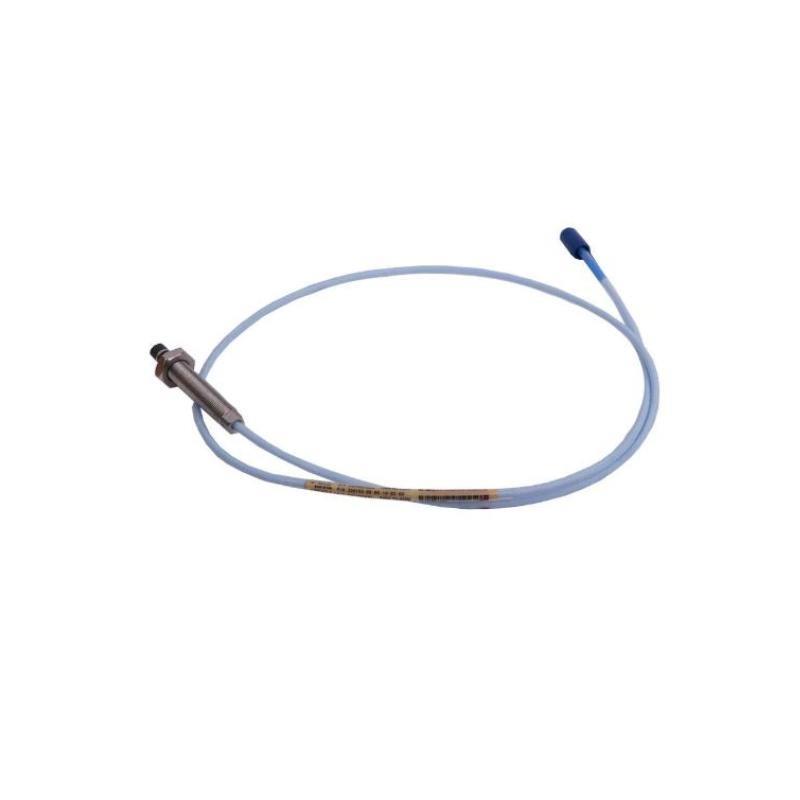

The Bently Nevada 330101-00-58-10-02-CN is a robust 8 mm 3300 XL series proximity probe designed for precise shaft vibration measurement in rotating machinery. This probe is widely recognized in the condition monitoring and machinery protection industry for its reliability, durability, and high accuracy in demanding industrial environments. The 3300 XL proximity probes are engineered to measure the displacement von rotating shafts relative to the probe tip, enabling early detection von imbalance, misalignment, or bearing wear.
With a rugged stainless steel housing and sealed design, this probe is suitable for harsh conditions including high temperature, pressure, and corrosive atmospheres commonly found in power generation, oil & gas, and manufacturing industries. Its total length von 1.0 meter allows flexibility in installation, and its lightweight design (0.323 kg) reduces stress on mounting points, ensuring long-term operational stability.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell Number | 330101-00-58-10-02-CN |
| Product Series | 3300 XL |
| Probe Diameter | 8 mm |
| Total Length | 1.0 meter |
| Gewicht | 0.323 kg |
| Sensor Type | Proximity probe (eddy current) |
| Housing Material | Stainless steel |
| Cable Type | Shielded, twisted pair |
| Operating Temperature | -40°C to +120°C |
| Vibration Resistance | Meets API 670 and IEC standards |
| Connector Type | Connector or cable end options |
| Measurement Range | Typically up to 0.25 mm displacement |
| Sensitivity | Approximately 20 mV/mil |
Product Applications
The 3300 XL 8 mm proximity probe is used extensively in machinery protection and condition monitoring systems in the following applications:
-
Turbines: Monitoring shaft vibration to detect misalignment, imbalance, or bearing faults in steam, gas, and hydro turbines.
-
Compressors: Used in centrifugal and axial compressors for vibration surveillance to prevent catastrophic failures.
-
Generators: Measuring shaft position and vibration to ensure safe and efficient operation in power generation plants.
-
Pumps: Detecting early signs von mechanical degradation or hydraulic instabilities in centrifugal pumps.
-
Motors: Monitoring motor shaft displacement for predictive maintenance and operational efficiency.
-
Industrial Machinery: Applied in a wide range von rotating equipment including fans, blowers, and gearboxes.
Product Advantages
-
High Accuracy: Provides precise, repeatable measurements critical for early fault detection and machinery diagnostics.
-
Durable Construction: Stainless steel housing and sealed cable connections protect against moisture, dust, and corrosive environments.
-
Standard Compatibility: Fully compatible with Bently Nevada 3300 XL series monitoring systems and other third-party systems using similar eddy current sensors.
-
Extended Operating Temperature Range: Suitable for use in environments ranging from -40°C to +120°C without performance degradation.
-
Long Cable Length: One-meter cable provides installation flexibility, reducing the need for additional extensions.
-
Lightweight Design: At 0.323 kg, the probe reduces mechanical strain on mounting fixtures, increasing longevity.
-
Industry Standard Compliance: Meets or exceeds API 670 and IEC vibration monitoring standards for rotating machinery protection.
-
Ease von Installation: Verfügbar with various connector options and mounting accessories, simplifying field deployment.
-
Reliable Signal Transmission: Shielded twisted pair cable minimizes electromagnetic interference, ensuring signal integrity.
-
Proven Track Record: Bently Nevada is a trusted brand with decades von experience in machinery protection solutions.
Häufig gestellte Fragen (FAQ)
Q1: What is the primary function von the 3300 XL proximity probe?
A1: It measures shaft displacement and vibration in rotating machinery to detect early signs von mechanical issues.
Q2: What is the total length and weight von this probe?
A2: The total length is 1.0 meter and it weighs 0.323 kg.
Q3: Is this probe compatible with all 3300 series monitoring systems?
A3: Yes, it is fully compatible with the 3300 XL series and most legacy 3300 systems.
Q4: What environments can the probe operate in?
A4: It operates reliably from -40°C to +120°C and is resistant to harsh industrial conditions.
Q5: What type von cable does the probe use?
A5: The probe uses a shielded twisted pair cable to ensure signal integrity.
Q6: Can this probe detect both vibration and shaft position?
A6: Yes, it measures shaft displacement, which is used to infer vibration and shaft position.
Q7: How durable is the probe housing?
A7: The stainless steel housing is designed for high durability against corrosion and mechanical impact.
Q8: Does the probe comply with industry standards?
A8: Yes, it meets API 670 and IEC vibration monitoring standards.
Q9: Are mounting accessories included?
A9: Mounting accessories are typically sold separately but are readily available for the 8 mm probe series.
Q10: Can this probe be used in explosive environments?
A10: With appropriate certification and installation practices, it can be used in hazardous areas.
Recommended Modells – Same Series / Related
| Modell | Beschreibung | Key Feature |
|---|---|---|
| 330101-00-58-10-01 | 3300 XL 8 mm proximity probe | Standard length and connector |
| 330101-00-58-12-00 | 3300 XL 12 mm proximity probe | Larger diameter for specific shafts |
| 330101-00-58-08-00 | 3300 XL 5 mm proximity probe | Smaller diameter for tight spaces |
| 330101-00-58-14-00 | 3300 XL 14 mm proximity probe | Extra-large diameter for rugged use |
| 330101-00-58-10-03 | 3300 XL 8 mm probe with integral cable | Pre-attached cable version |
| 330101-00-58-06-00 | 3300 XL 6 mm proximity probe | Mid-size diameter |
Recommended Modells – Same Marke (Bently Nevada Hot Sellers)
| Modell | Beschreibung | Dimensions (mm) |
|---|---|---|
| 330101-00-65-10-11-00 | Proximity probe, 8 mm tip, standard cable, non-armored | 91 x 13 x 13 |
| 330101-00-65-10-11-05 | Same as above with 5-meter extension cable | 91 x 13 x 13 |
| 330101-00-66-10-02-CN | Metric system probe with 2-meter cable, Chinese version | 91 x 13 x 13 |
| 330101-00-66-10-00-05 | Metric proximity probe, 5-meter armored cable | 91 x 13 x 13 |
| 330101-00-68-10-11-00 | High-temperature probe, 8 mm tip, 3-pin connector | 91 x 13 x 13 |
| 330101-00-70-10-01-00 | Extended range probe, 8 mm, with rugged enclosure | 91 x 13 x 13 |
