Product Beschreibung

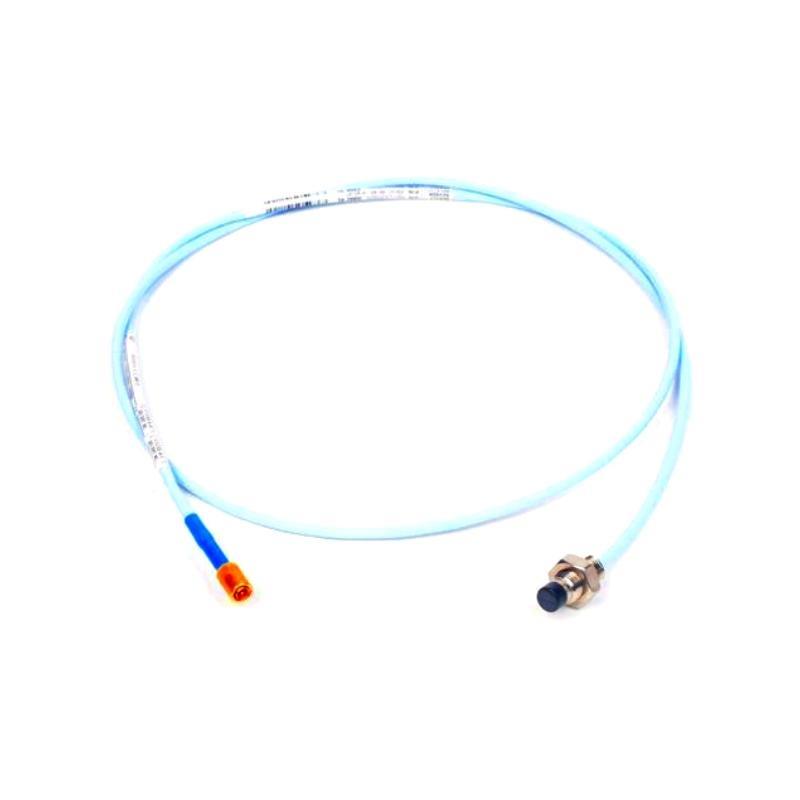

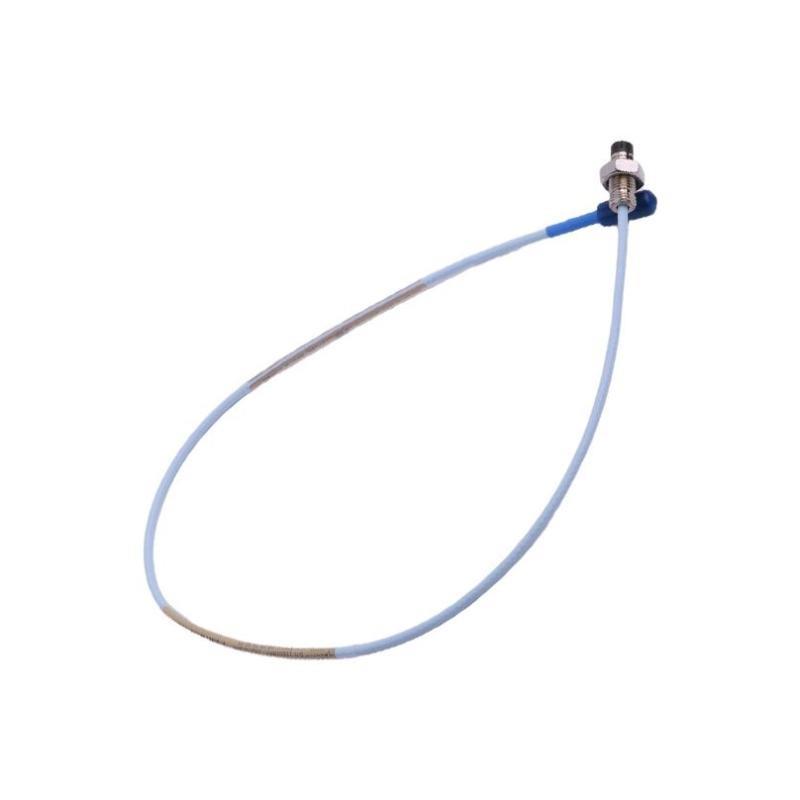

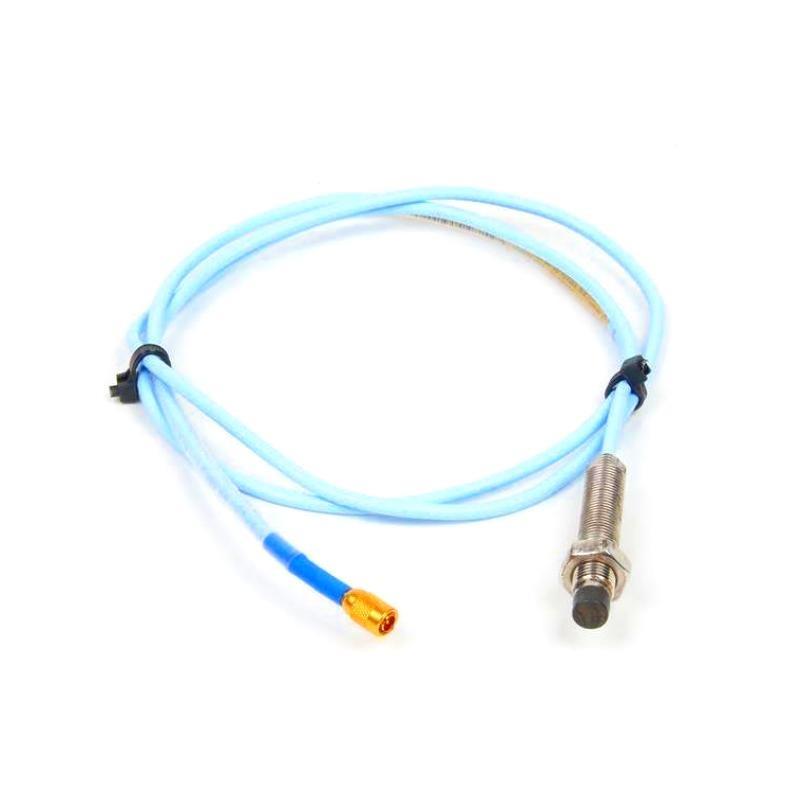

The Bently Nevada 330101-00-52-10-12-05 is a component von the 3300 XL 8 mm Proximity Transducer System, designed for precise measurement von shaft vibration, position, and speed. It includes a non-contacting 8 mm proximity probe that interfaces with an extension cable and a Proximitor® sensor to deliver reliable static and dynamic measurements. The system complies with API 670 and supports full interchangeability without the need for individual calibration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 303/304 stainless steel |
| Probe Length | 1.0 meter |
| Cable Type | Standard coaxial with ClickLoc connector |
| Cable Protection | Optional FluidLoc, Armored |
| Power Supply | -17.5 Vdc to -26 Vdc |
| Output Voltage Scale | 200 mV/mil ±5% |
| Linear Range | 2.0 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Frequency Response | 0–10 kHz |
| Operating Temperature (Probe) | -52°C to +177°C |
| Operating Temperature (Cable) | -52°C to +177°C (standard) |
| Operating Temperature (Sensor) | -52°C to +100°C |
| Total Length | 1.0 meter |
| Gewicht | 0.323 kg |
Applications
-
Vibration and position monitoring in rotating machinery
-
Shaft displacement measurement
-
Turbine and compressor condition monitoring
-
Overspeed and Keyphasor® reference systems
-
Suitable for fluid-film bearing machines
Product Advantages
-
API 670 compliance ensures suitability for critical machinery monitoring
-
Modular interchangeability eliminates need for matched components
-
ClickLoc connectors vonfer secure, tool-free installation
-
High immStücky to RFI/EMI for robust operation in industrial environments
-
Durable design with high-temperature and pressure resistance
-
Backward compatibility with legacy 3300 systems
-
Optional FluidLoc cable prevents fluid migration
-
SpringLoc terminals for quick and reliable wiring
Häufig gestellte Fragen (FAQ)
Q1: What is the function von this proximity probe?
A1: It measures the distance between the probe tip and a conductive target, providing data on shaft position and vibration.
Q2: Does this model comply with API 670?
A2: Yes, it meets the API 670 standard for linear range, mechanical design, and accuracy.
Q3: Can I mix this probe with non-XL series components?
A3: Yes, but system performance will default to the lowest-rated component.
Q4: What is the recommended gap voltage setting?
A4: The optimal gap setting is approximately -9 Vdc, equating to 1.27 mm (50 mils).
Q5: Is it necessary to calibrate each component?
A5: Nr. All components are factory-calibrated and fully interchangeable.
Q6: What material is the probe casing made from?
A6: Stainless steel AISI 303 or 304.
Q7: Can this probe be used in hazardous environments?
A7: Yes, it holds CSA, ATEX, and IECEx certifications for intrinsic safety.
Q8: What is the linear measurement range?
A8: From 0.25 mm to 2.3 mm (10–90 mils).
Q9: How does it handle high humidity?
A9: It has <3% change in scale factor when exposed to 93% RH for 56 days.
Q10: Can the cable be armored?
A10: Yes, optional stainless steel armor with FEP jacket is available.
Related Modells (Same Series)
| Modell Number | Beschreibung | Length | Gewicht |
|---|---|---|---|
| 330101-00-10-10-12-05 | Standard probe, 1.0 m, standard cable | 1.0 m | 0.323 kg |
| 330101-00-20-10-12-05 | Standard probe, 2.0 m, standard cable | 2.0 m | 0.475 kg |
| 330101-00-30-10-12-05 | Standard probe, 3.0 m, standard cable | 3.0 m | 0.627 kg |
| 330101-00-50-10-12-05 | Standard probe, 5.0 m, standard cable | 5.0 m | 0.931 kg |
| 330102-00-10-10-12-05 | Armored version, 1.0 m, standard cable | 1.0 m | 0.402 kg |
| 330103-00-10-10-12-05 | Metric thread (M10x1), 1.0 m, standard cable | 1.0 m | 0.323 kg |
Popular Bently Nevada Modells
| Modell Number | Beschreibung | Application | Gewicht |
|---|---|---|---|
| 3500/42M | Proximitor Seismic Monitor | Vibration monitoring | 0.45 kg |
| 3300 XL NSv | Narrow Side View Proximity Transducer | Tight-space monitoring | 0.30 kg |
| 330180-91-00 | Proximitor Sensor, 1.0 m System | Signal processing for probes | 0.246 kg |
| 330104-00-10-10-12 | M10 thread probe, armored | Industrial vibration applications | 0.402 kg |
| 330130-040-02-00 | 4.0 m Extension Cable with connector protector | Probe-extension connection | 0.136 kg |
| 3500/22M | Transient Data Interface Module | High-speed data capture | 0.52 kg |
