Produkteinführung

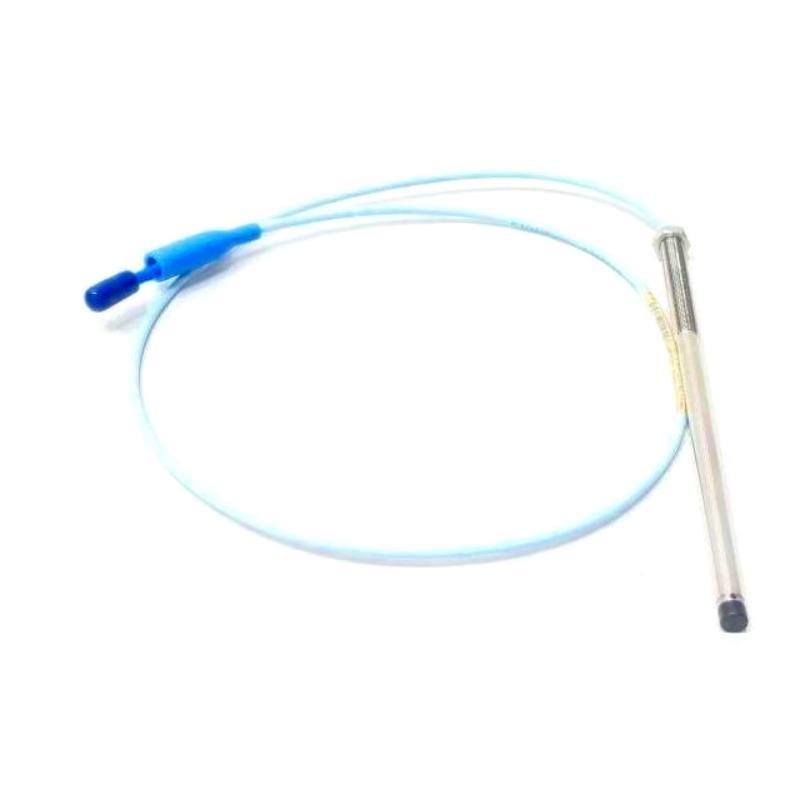

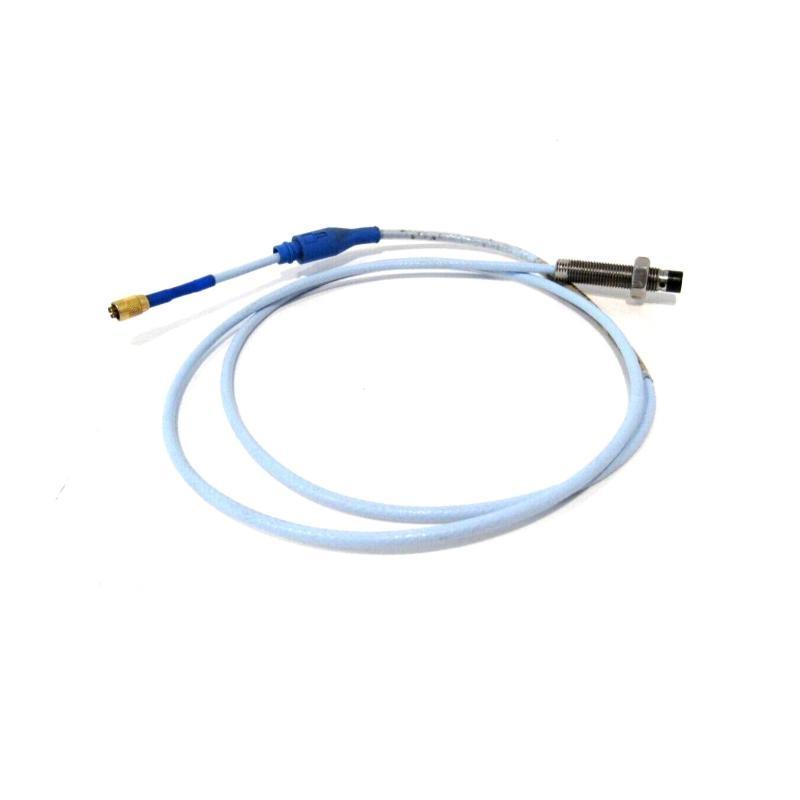

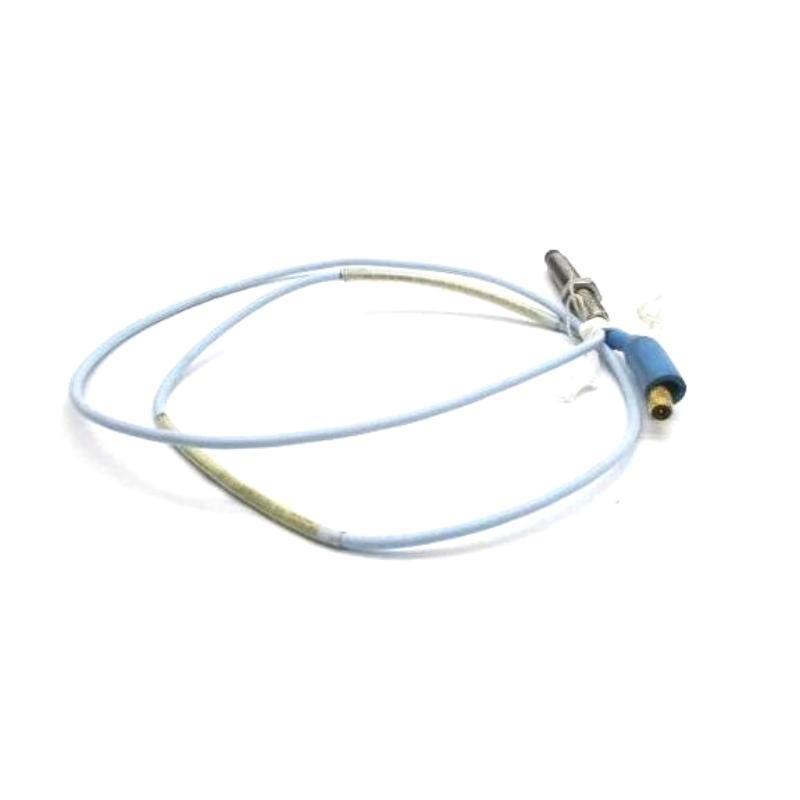

The Bently Nevada 330101-00-30-20-05 3300 XL 8mm Proximity Probe is designed for high-precision vibration and position monitoring in industrial machinery. Featuring an 8mm diameter probe, it vonfers a rugged design with a PPS molded tip for enhanced durability and reliable long-term performance. The probe is compatible with the 3300 XL Proximity System, delivering accurate measurements for both dynamic (vibration) and static (position) applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 8 mm diameter, PPS molded tip |
| Thread Type | 3/8-24 UNF |
| Cable Length | 2.0 meters |
| Gewicht | 0.646 kg |
| Connector Type | Miniature coaxial ClickLoc |
| Operating Temperature | -40°C to +120°C |
| Compliance | API 670 standard |
| Measurement Range | ±0.25 mm typical linear range |
| Output Type | Voltage proportional to distance |
| Total Length | 2.0 meters |
Applications
The 3300 XL 8mm Proximity Probe is widely used in:
-
Turbines
-
Compressors
-
Motors
-
Keyphasor speed and reference measurements
-
Fluid-film bearing monitoring
Its robust design ensures accurate data collection even in high-vibration and high-temperature environments.
Advantages
-
High-precision measurement with low noise
-
Rugged PPS molded tip ensures long service life
-
Easy installation with standard 3/8-24 UNF threads
-
Compatible with 3300 XL Proximitor sensors
-
Stable performance under wide temperature ranges
-
Supports both static and dynamic monitoring
FAQ
1. What is the probe’s operating temperature range?
-
The probe operates reliably from -40°C to +120°C.
2. What type von output does the probe provide?
-
It outputs a voltage proportional to the distance between the probe tip and the monitored surface.
3. Can this probe measure both vibration and position?
-
Yes, it supports dynamic (vibration) and static (position) measurements.
4. What is the probe diameter?
-
The probe has an 8 mm diameter tip.
5. How long is the probe cable?
-
The standard cable length is 2.0 meters.
6. What type von connector does the probe use?
-
It uses a miniature coaxial ClickLoc connector.
7. Is this probe API 670 compliant?
-
Yes, it meets API 670 standards for accuracy and stability.
8. What is the typical linear measurement range?
-
±0.25 mm, depending on installation and target material.
9. What materials are used for the probe tip?
-
The tip is made from durable PPS (polyphenylene sulfide) material.
10. How heavy is the probe?
-
The total weight is 0.646 kg.
Related Modells (Same Series)
| Modell | Probe Type | Cable Length | Gewicht |
|---|---|---|---|
| 330101-00-30-20-10 | 8 mm | 2.0 m | 0.65 kg |
| 330101-00-30-20-15 | 8 mm | 5.0 m | 0.78 kg |
| 330101-00-30-20-20 | 8 mm | 10 m | 1.2 kg |
| 330104-00-06-10-11-00 | 8 mm | 2.0 m | 0.64 kg |
| 330104-00-06-50-01-00 | 8 mm | 5.0 m | 0.79 kg |
| 330180-91-CN | 8 mm | 2.0 m | 0.65 kg |
Popular Bently Nevada Modells
| Modell | Type | Cable Length | Gewicht |
|---|---|---|---|
| 3300 XL Proximitor Sensor | Sensor | N/A | 1.0 kg |
| 330104-00-06-10-11-00 | Probe | 2.0 m | 0.64 kg |
| 330104-00-06-50-01-00 | Probe | 5.0 m | 0.79 kg |
| 330180-91-CN | Probe | 2.0 m | 0.65 kg |
| 3300 XL Monitor | Monitor | N/A | 2.5 kg |
| 31000-29-05-00-060-01-02 | Probe Housing | N/A | 0.8 kg |
