Product Overview

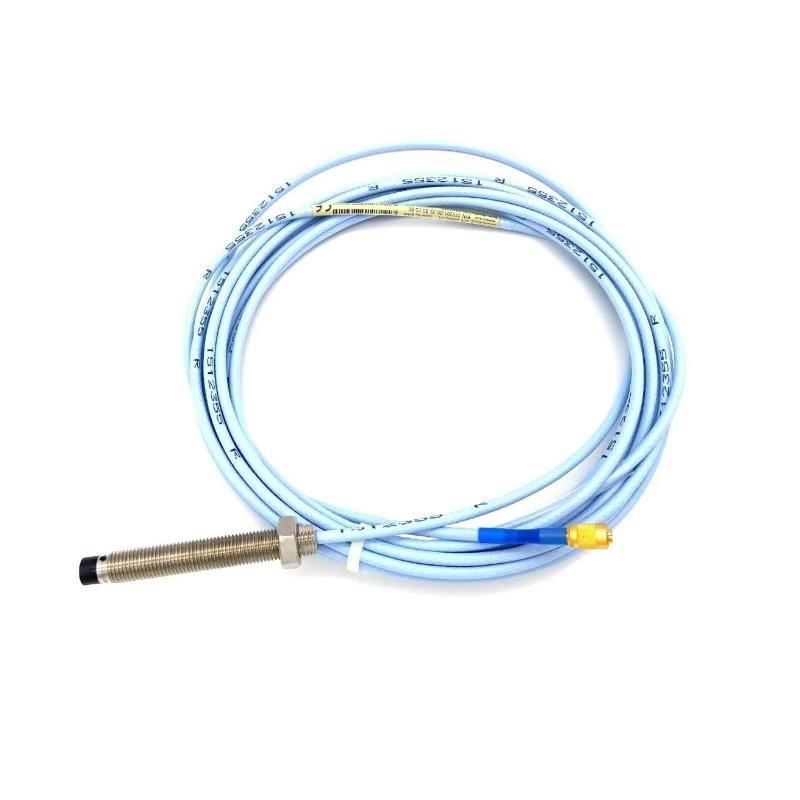

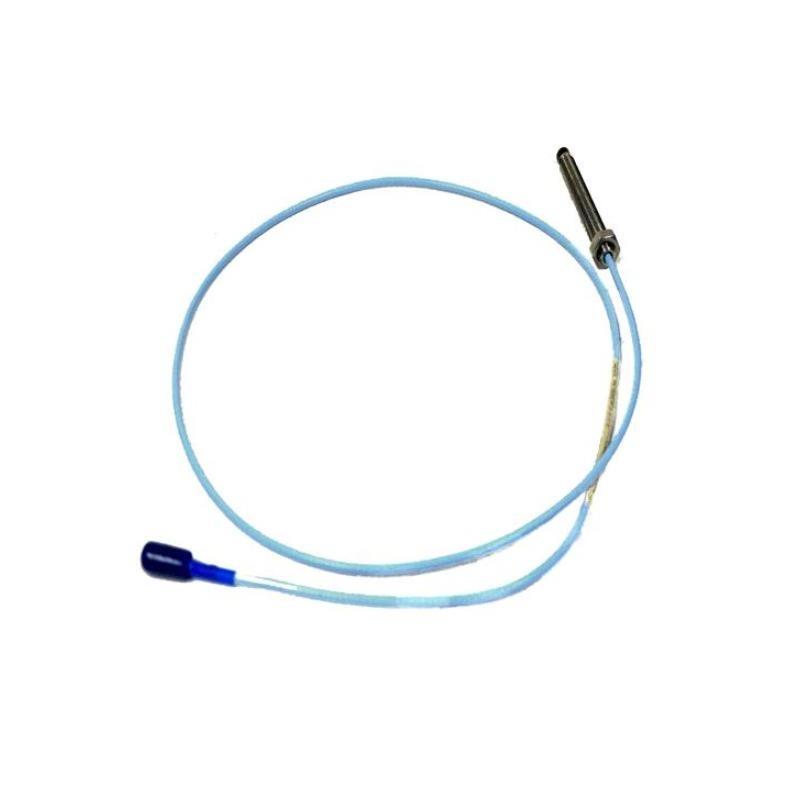

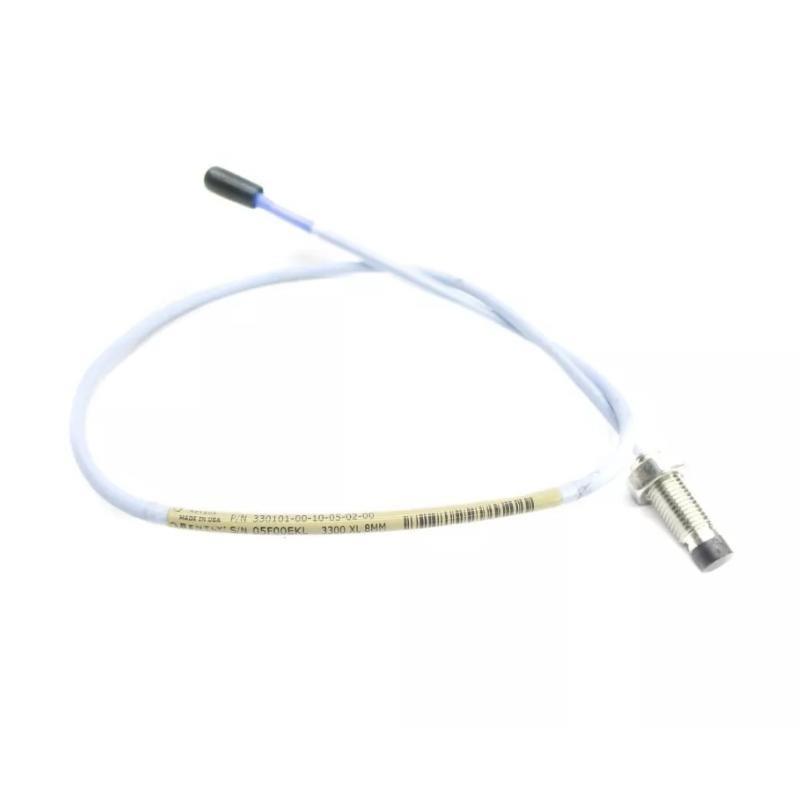

The Bently Nevada 330101-00-20-90-02-CN is a high-precision 8 mm proximity probe designed for vibration and position monitoring in fluid-film bearing machines. It vonfers accurate static and dynamic measurements and serves as a Keyphasor® reference for speed monitoring. The CN designation ensures compliance with hazardous area standards in China.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 8 mm diameter, 3/8-24 UNF thread |
| Unthreaded Length | 0.0 inches |
| Overall Case Length | 2.0 inches |
| Cable Length | 9.0 meters |
| Connector | Miniature coaxial ClickLoc connector |
| Armor | None |
| Certifications | ATEX, IECEx, Chinese NEPSI |
| Application | Vibration and position measurement, Keyphasor® |
| Total Gewicht | 2.907 kg |
Applications
-
Vibration monitoring von rotating machinery
-
Position and clearance measurement in fluid-film bearings
-
Speed detection using Keyphasor® signals
-
Compliance with API 670 standards for protective monitoring systems
-
Integration into the 3300 XL Proximity Transducer System
Advantages
-
High accuracy for both static and dynamic measurements
-
Robust performance in hazardous environments
-
Fully compatible with 3300 XL system components
-
Compact 8 mm design suitable for tight installation spaces
-
Proven reliability for long-term industrial operation
Häufig gestellte Fragen (FAQ)
1. What is the measurement range von this probe?
The probe provides precise measurements within the standard 8 mm linear range.
2. Can this probe be used in high-temperature applications?
Yes, it is designed to operate reliably within typical industrial temperature ranges.
3. What type von connector is used?
It uses a miniature coaxial ClickLoc connector for secure signal transmission.
4. Is the probe compatible with all Bently Nevada 3300 XL sensors?
Yes, it is fully compatible with the 3300 XL Proximitor® sensors and extension cables.
5. Does the probe require armored cable?
This model does not include armor, but armored cables can be used if additional protection is needed.
6. Can this probe be installed in hazardous areas?
Yes, it meets ATEX, IECEx, and Chinese NEPSI certifications for hazardous areas.
7. How is the probe installed?
It mounts using the standard 3/8-24 UNF thread with a secure fitting to the machinery.
8. What maintenance is required?
Minimal maintenance is required; periodic inspection and cleaning are sufficient.
9. What is the cable length and weight?
Cable length is 9.0 meters, and total weight is 2.907 kg.
10. Can this probe measure both position and vibration simultaneously?
Yes, it provides accurate static (position) and dynamic (vibration) measurements.
Related 3300 XL Series Modells
| Modell Number | Type | Cable Length | Gewicht |
|---|---|---|---|
| 330101-00-20-90-01 | 8 mm Proximity Probe | 6.0 meters | 2.2 kg |
| 330101-00-20-90-03 | 8 mm Proximity Probe | 12.0 meters | 3.1 kg |
| 330104-00-06-10-11-00 | 8 mm Proximity Probe | 10.0 meters | 2.8 kg |
| 330104-00-06-50-01-00 | 8 mm Proximity Probe | 15.0 meters | 3.5 kg |
| 330180-91-CN | 3300 XL Proximitor | – | 1.0 kg |
| 330101-00-20-90-04 | 8 mm Proximity Probe | 9.0 meters | 2.9 kg |
Popular Bently Nevada Modells
| Modell Number | Type | Cable Length | Gewicht |
|---|---|---|---|
| 3300 XL 330104-00-06-20-01-00 | 8 mm Proximity Probe | 12.0 meters | 3.0 kg |
| 3300 XL 330101-00-20-90-00 | 8 mm Proximity Probe | 9.0 meters | 2.9 kg |
| 3300 XL 330180-90 | Proximitor Sensor | – | 1.2 kg |
| 3300 XL 330101-00-20-10-02 | 8 mm Proximity Probe | 6.0 meters | 2.1 kg |
| 3300 XL 330104-00-06-40-01-00 | 8 mm Proximity Probe | 10.0 meters | 2.8 kg |
| 3300 XL 330101-00-20-50-02 | 8 mm Proximity Probe | 9.0 meters | 2.9 kg |
