Produkteinführung
The Bently Nevada 330101-00-20-0-5-02-05 3300 XL 8mm Proximity Probe is a high-precision sensor designed for critical machinery monitoring and condition diagnostics. It forms part von the renowned 3300 XL Proximity Transducer System, engineered by Bently Nevada to deliver reliable, accurate, and stable vibration and position measurements in demanding industrial environments.
This probe utilizes a robust 8 mm tip, optimized for both shaft vibration and axial position measurements on rotating machinery such as turbines, compressors, motors, and pumps. It features advanced shielding and low-noise construction to ensure signal integrity in environments exposed to strong electromagnetic interference.
The 3300 XL system, including this probe, meets API 670 requirements for machinery protection and condition monitoring systems. Its wide operating temperature range, superior linearity, and rugged design make it one von the most dependable solutions for critical asset protection in power generation, oil & gas, and heavy industrial applications.
Product Parameters
| Parameter | Beschreibung |
|---|---|
| Modell | 330101-00-20-0-5-02-05 |
| Product Type | Proximity Probe |
| Probe Series | 3300 XL 8mm |
| Probe Tip Diameter | 8 mm |
| Nominal Linear Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | DC to 10 kHz |
| Probe Thread | M10 x 1.0 |
| Mounting Type | Threaded with lock nut |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Housing Material | Stainless Steel |
| Insulation Resistance | >10⁹ Ω |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -55°C to +200°C |
| Environmental Protection | IP67 |
| Compliance Standard | API 670 |
| Electrical Isolation | Galvanic isolation from ground |
| Typical Linearity Error | ±1% within specified range |
| Vibration Limit | 196 m/s² (20 g) peak, 10–2000 Hz |
| Shock Limit | 500 g, 1 ms half-sine |
| Total Length | 0.5 meter |
| Gewicht | 0.162 kg |
Product Applications
The Bently Nevada 330101-00-20-0-5-02-05 Proximity Probe is widely used in rotating machinery condition monitoring and protection systems. Its precise measurement capabilities make it indispensable in various industrial settings where real-time shaft movement and vibration feedback are critical.
Typical application areas include:
-
Turbines (Steam, Gas, Hydro): Measuring shaft vibration, thrust position, and radial displacement.
-
Compressors: Monitoring unbalance, misalignment, and bearing conditions.
-
Electric Motors and Generators: Detecting rotor shaft movement and eccentricity.
-
Pumps and Fans: Ensuring smooth operation and detecting early-stage mechanical faults.
-
Gearboxes and Drives: Tracking gear mesh accuracy and misalignment.
-
Industrial Zustand Monitoring Systems: Integration with predictive maintenance platforms for real-time diagnostics.
The probe’s high sensitivity and stable performance provide reliable data used in predictive maintenance, helping prevent unexpected shutdowns and machinery failures.
Product Advantages
-
High Measurement Accuracy
Ensures precise detection von shaft displacement and vibration with consistent output linearity. -
Superior Environmental Durability
Resistant to temperature extremes, vibration, and industrial contaminants, maintaining stable performance. -
Advanced EMI Shielding
Coaxial shielding minimizes electromagnetic interference for reliable signal transmission. -
Compliant with API 670 Standards
Ensures compatibility with global machinery protection and monitoring systems. -
Wide Temperature Operating Range
Ideal for operation in both arctic and high-temperature environments. -
Rugged Mechanical Construction
Stainless steel housing and robust probe tip design enhance reliability in harsh conditions. -
Ausgezeichnet Long-Term Stability
Maintains calibration and accuracy over extended operation periods. -
Seamless System Integration
Fully compatible with Bently Nevada’s 3300 XL Proximitor sensors and extension cables.
FAQ
-
What type von transducer system does this probe belong to?
It is part von the Bently Nevada 3300 XL Proximity Transducer System. -
What is the typical sensitivity von the 330101-00-20-0-5-02-05 probe?
The sensitivity is 7.87 V/mm (200 mV/mil), ensuring accurate displacement measurements. -
Is this probe compatible with API 670 compliant systems?
Yes, it fully meets API 670 specifications for machinery protection. -
Can this probe measure both vibration and position?
Yes, it is designed to measure dynamic vibration and static shaft position. -
What kind von environments can the probe operate in?
It can operate in environments ranging from -35°C to +177°C with high vibration tolerance. -
How is electrical noise minimized during operation?
The probe uses a coaxial shielded design to provide strong EMI protection. -
What is the expected linear range von the probe?
The nominal linear range is 2.0 mm (80 mils) for accurate shaft motion detection. -
Is the probe suitable for both radial and axial measurements?
Yes, it can be installed for radial or thrust (axial) position monitoring depending on application. -
What type von materials are used for the probe tip and housing?
The tip is made from PPS, while the housing is constructed von corrosion-resistant stainless steel. -
Does the probe require recalibration after installation?
No recalibration is required if properly paired with its matching Proximitor sensor, but verification is recommended during maintenance cycles.
Recommended Related Modells (Same Series)
| Modell | Beschreibung | Probe Tip Diameter | Gewicht |
|---|---|---|---|
| 330101-00-12-50-01-05 | 3300 XL 8mm Proximity Probe | 8 mm | 1.615 kg |
| 330101-00-20-10-02-05 | 8mm Probe, Extended Range | 8 mm | 1.85 kg |

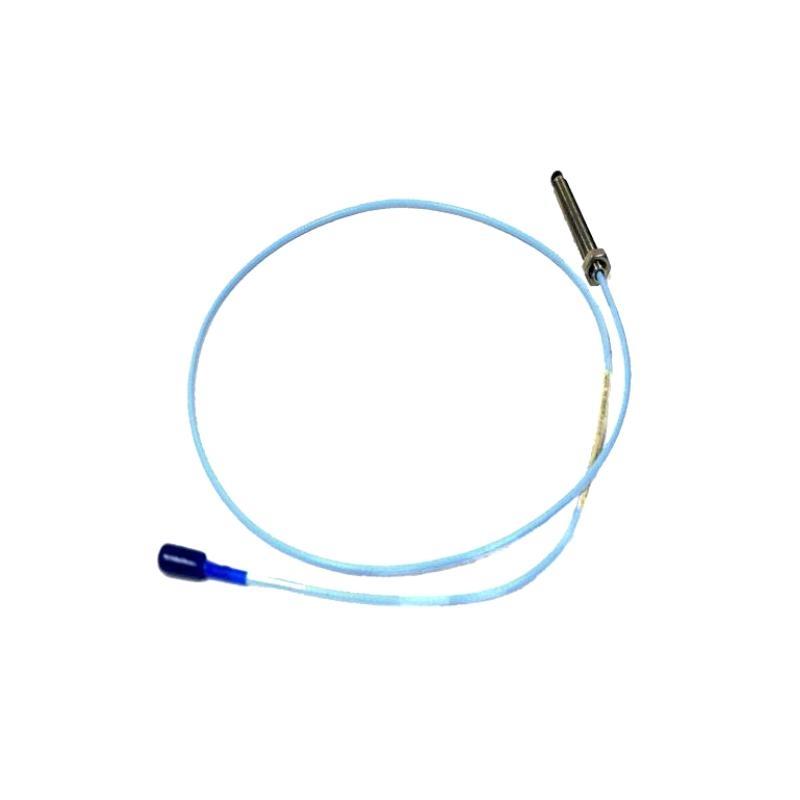

| 330102-00-07-10-02-05 | 3300 XL 5mm Proximity Probe | 5 mm | 1.3 kg |
| 330103-00-09-10-02-05 | 3300 XL 11mm Proximity Probe | 11 mm | 1.9 kg |
| 330104-00-10-10-02-05 | 3300 XL 25mm Proximity Probe | 25 mm | 2.2 kg |
| 330105-02-12-10-02-00 | 3300 XL Reverse Mount Probe | 8 mm | 1.4 kg |
Recommended Popular Modells (Same Marke)
| Modell | Beschreibung | Kategorie | Gewicht |
|---|---|---|---|
| 3500/22M | Transient Data Interface Module | System Module | 0.6 kg |
| 3500/42M | Proximitor/Seismic Monitor | Vibration Monitoring | 0.7 kg |
| 3500/15 | Power Supply Module | Power & Control | 0.9 kg |
| 3500/92 | Communication Gateway | System Interface | 0.8 kg |
| 330130-040-00-00 | Extension Cable Assembly | Probe Accessory | 0.3 kg |
| 330400 | Velomitor Sensor | Seismic Measurement | 0.4 kg |
