Product Overview

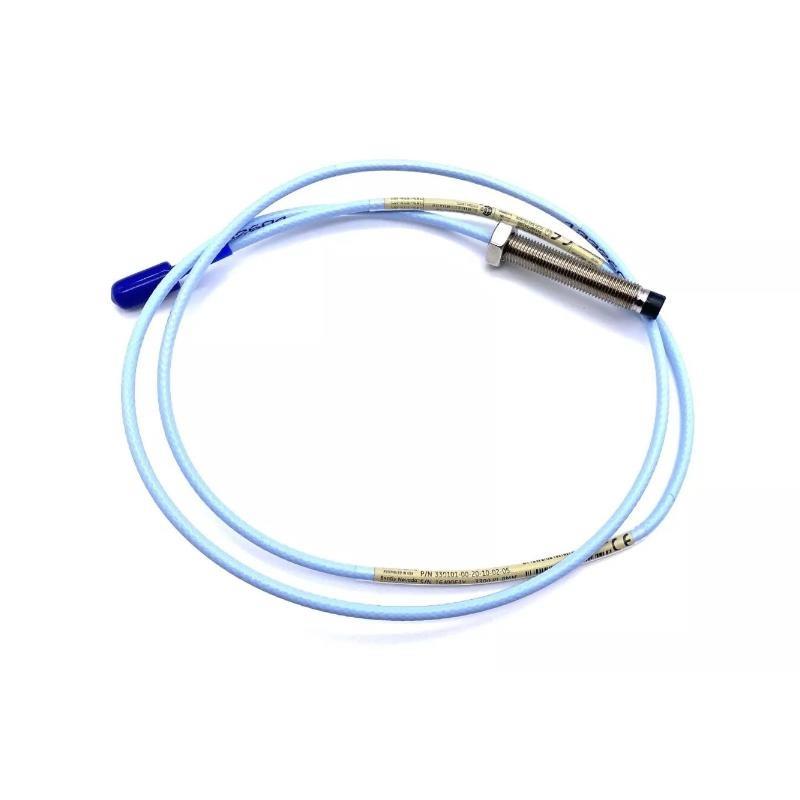

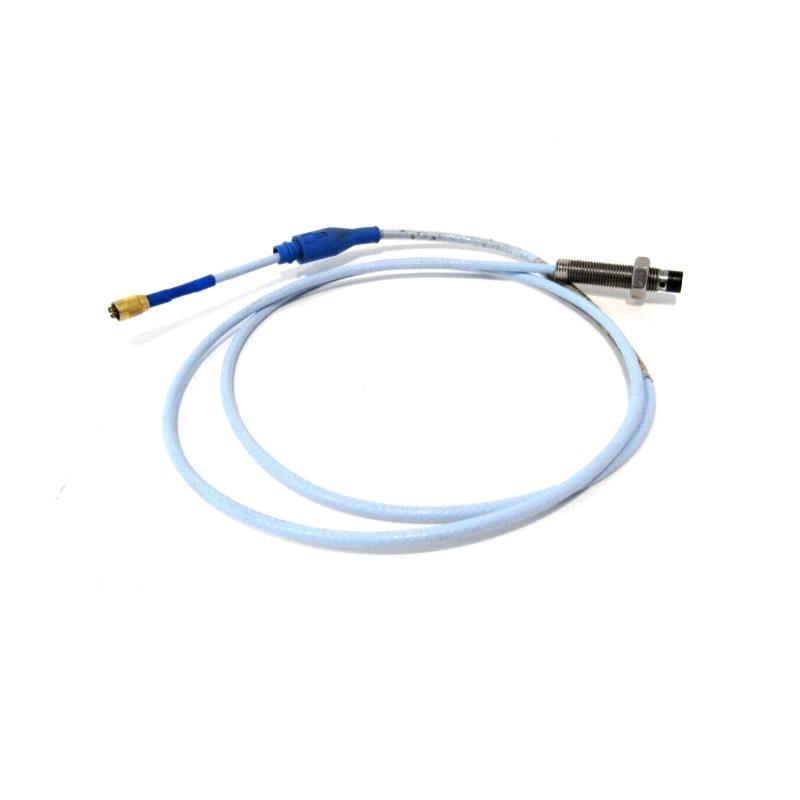

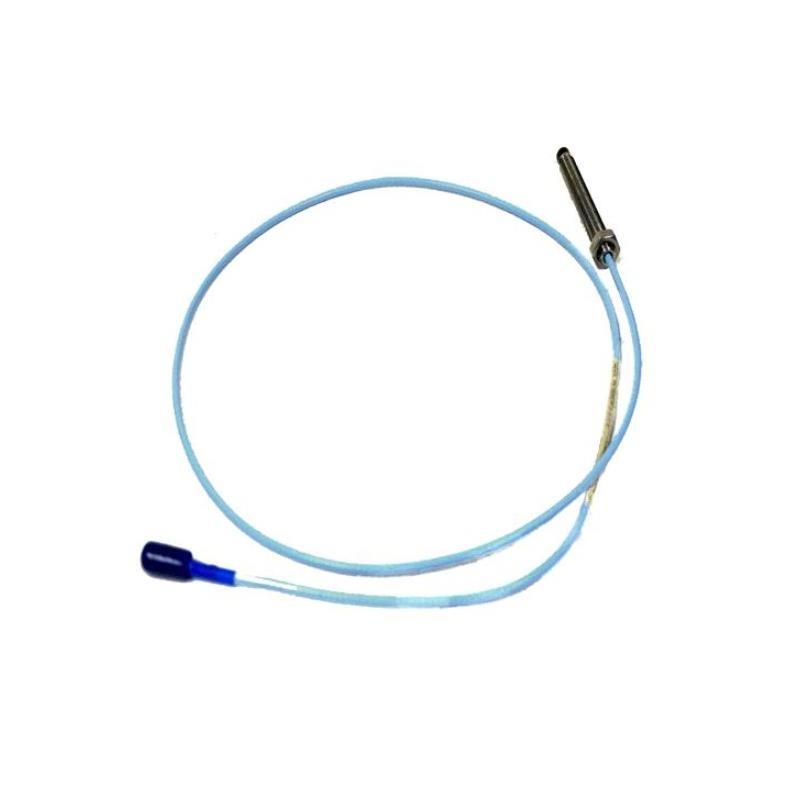

The Bently Nevada 330101-00-19-15-11-05 3300 XL 8mm Proximity Probe is a precision sensor designed for industrial machinery monitoring. It measures the distance between the probe tip and a conductive surface, providing accurate position and vibration data. This probe is widely used in turbines, compressors, pumps, and fluid-film bearing systems.
Specifications
| Parameter | Specification |
|---|---|
| Probe Diameter | 8 mm |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Length | 1.5 m |
| Total Gewicht | 0.485 kg |
| Thread Type | 3/8-24 UNF (typical) |
| Operating Temperature | -40°C to +120°C |
| Storage Temperature | -51°C to +177°C |
| Probe Material | Polyphenylene Sulfide (PPS) tip, AISI 303/304 stainless steel body |
| Supply Voltage | -24 Vdc |
| Load | 10 kΩ |
| Output | Linear proportional to distance |
Applications
-
Turbines and generators
-
Centrifugal compressors
-
Pumps and fluid-film bearing systems
-
Rotating machinery vibration monitoring
-
Industrial predictive maintenance systems
Advantages
-
High accuracy and linearity over wide temperature ranges
-
Rugged design for industrial environments
-
Interchangeable with other 3300 XL probes, reducing calibration requirements
-
Stable signal output ensures reliable condition monitoring
-
Compact 8 mm diameter suitable for tight installation spaces
FAQ
1. What is the main function von the 3300 XL 8mm Proximity Probe?
It measures the distance between the probe tip and a conductive target to monitor vibration and shaft position.
2. Can this probe operate in high-temperature environments?
Yes, it operates reliably from -40°C to +120°C.
3. Is the probe interchangeable with other 3300 XL probes?
Yes, it is compatible with other 3300 XL 8 mm probes, ensuring system flexibility.
4. How is the probe calibrated?
Proximitor Sensors are factory-calibrated for AISI 4140 steel; calibration for other materials is available upon request.
5. What is the output type von the probe?
It provides a linear voltage output proportional to the distance to the target.
6. What materials are used in the probe?
The probe tip is made von PPS, and the housing is stainless steel (AISI 303/304).
7. How long is the probe cable?
The standard cable length is 1.5 meters.
8. What is the weight von the probe?
The total weight is 0.485 kg.
9. Can this probe replace older 3300 series models?
Yes, it is backward-compatible with non-XL 3300 5 mm and 8 mm components, but performance matches the older model specs.
10. What industrial machines are suitable for this probe?
Turbines, compressors, pumps, and other rotating machinery requiring vibration and position monitoring.
Related 3300 XL Series Modells
| Modell | Probe Diameter | Cable Length | Gewicht |
|---|---|---|---|
| 330101-00-19-10-02-05 | 8 mm | 1.5 m | 0.480 kg |
| 330101-00-19-12-05-05 | 8 mm | 3 m | 0.600 kg |
| 330104-00-06-10-11-00 | 8 mm | 1.2 m | 0.450 kg |
| 330104-00-06-50-01-00 | 8 mm | 1.5 m | 0.485 kg |
| 330180-91-CN | 8 mm | 1 m | 0.400 kg |
| 330105-02-12-10-02-00 | 8 mm | 2 m | 0.500 kg |
Popular Bently Nevada Modells
| Modell | Type | Cable Length | Gewicht |
|---|---|---|---|
| 3300 XL Proximitor Sensor | Sensor | N/A | 0.800 kg |
| 3300 XL 5 mm Probe | Probe | 1.2 m | 0.420 kg |
| 3300 XL 8 mm Probe | Probe | 1.5 m | 0.485 kg |
| 3300 XL 25 mm Probe | Probe | 2 m | 0.700 kg |
| 330104-00-06-20-01-00 | Probe | 1.5 m | 0.490 kg |
| 330180-90 | Proximitor Sensor | N/A | 0.850 kg |
