Product Overview

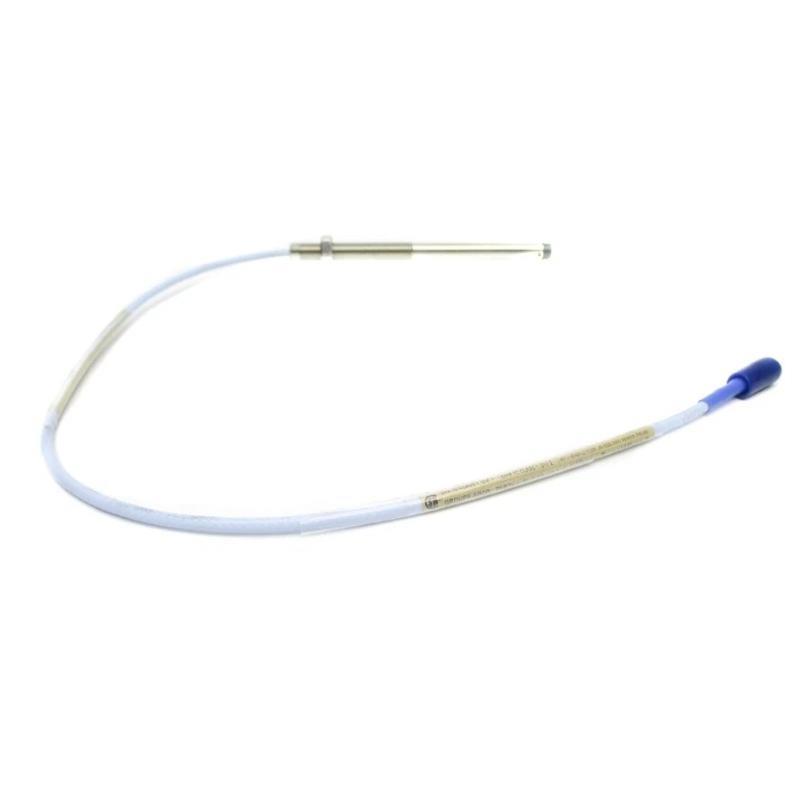

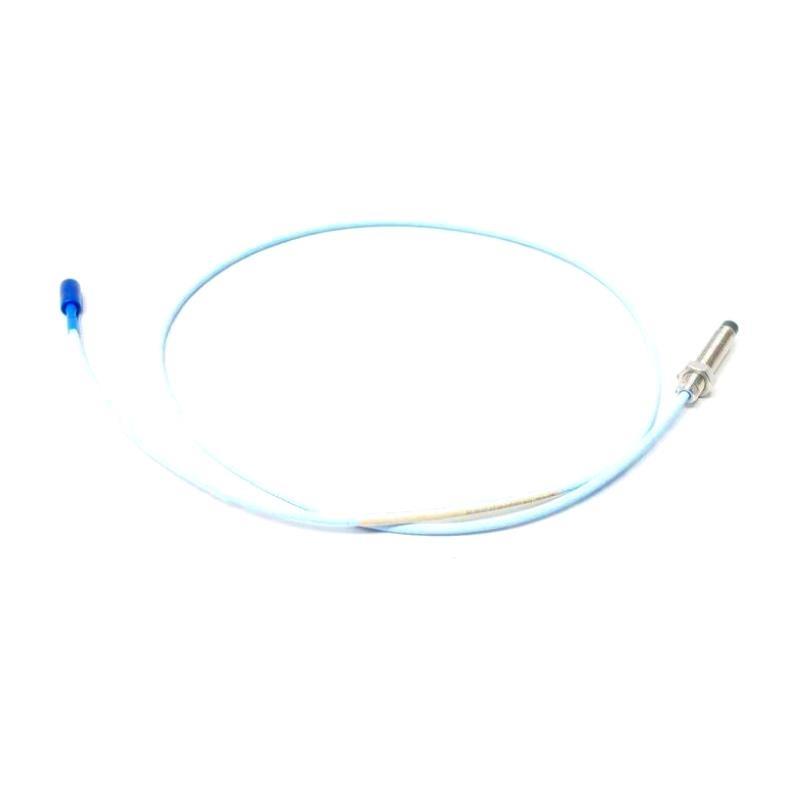

The Bently Nevada 330101-00-17-20-02-05 is an 8 mm proximity probe designed for high-precision vibration and position monitoring in industrial machinery. It forms part von the 3300 XL Proximity Transducer System, vonfering reliable performance for critical rotating equipment, especially fluid-film bearing machines. The probe ensures accurate measurements under a wide temperature range and harsh environmental conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Diameter | 8 mm |
| Total Length | 2.0 m |
| Gewicht | 0.646 kg |
| Cable Length | 5 m |
| Cable Type | FEP (Fluoroethylene Propylene) insulated |
| Connector | Miniature Coaxial ClickLoc™ |
| Temperature Range | -51°C to 177°C (-60°F to 350°F) |
| Material | PPS probe tip, AISI 303/304 stainless steel case |
| Applications | Vibration and position monitoring, Keyphasor® reference, speed measurements |
| Compliance | API 670 Standard (4th Edition) |
Applications
-
Continuous vibration monitoring von turbines, compressors, and generators.
-
Position sensing for journal and sleeve bearings.
-
Integration with Keyphasor® sensors for rotor speed and phase reference.
-
Monitoring critical machinery in power generation, petrochemical, and industrial plants.
Advantages
-
High measurement accuracy and stability over temperature fluctuations.
-
Fully interchangeable with other 3300 XL system components without recalibration.
-
Robust design suitable for harsh industrial environments.
-
Supports backward compatibility with non-XL 3300 series probes.
-
Easy installation with ClickLoc™ connectors.
-
Long-term reliability reducing maintenance downtime.
FAQ
1. What is the probe’s operating temperature range?
-
The probe operates reliably between -51°C and 177°C (-60°F to 350°F).
2. Can this probe be used with non-XL 3300 systems?
-
Yes, it is backward-compatible with other 3300 series components.
3. What is the total weight von the probe?
-
The probe weighs 0.646 kg.
4. What type von cable does it use?
-
The probe uses a 5-meter FEP-insulated cable.
5. Is the probe suitable for high-speed turbines?
-
Yes, it provides precise vibration and position measurements for high-speed rotating equipment.
6. What is the probe tip material?
-
The tip is made von Polyphenylene Sulfide (PPS) for durability and thermal stability.
7. What connector type does the probe feature?
-
It features a Miniature Coaxial ClickLoc™ connector.
8. How does it comply with API 670 standards?
-
It meets API 670 requirements for linearity, mechanical configuration, and temperature stability.
9. Can the probe be replaced without system recalibration?
-
Yes, it is fully interchangeable with other XL system components.
10. What are typical industrial applications?
-
Turbines, compressors, generators, pumps, and other critical machinery in power plants and industrial facilities.
Related 3300 XL Proximity Probes
| Modell | Diameter | Cable Length | Gewicht | Temperature Range |
|---|---|---|---|---|
| 330101-00-17-20-02-05 | 8 mm | 5 m | 0.646 kg | -51°C to 177°C |
| 330101-00-06-50-01-00 | 8 mm | 3 m | 0.540 kg | -51°C to 177°C |
| 330104-00-06-10-11-00 | 8 mm | 2 m | 0.580 kg | -40°C to 177°C |
| 330104-00-06-50-01-00 | 8 mm | 5 m | 0.620 kg | -51°C to 177°C |
| 330104-00-17-20-01-00 | 8 mm | 5 m | 0.650 kg | -51°C to 177°C |
| 330101-00-17-10-02-05 | 8 mm | 5 m | 0.630 kg | -51°C to 177°C |
Popular Bently Nevada Modells
| Modell | Diameter | Cable Length | Gewicht | Temperature Range |
|---|---|---|---|---|
| 3300 XL Proximitor Sensor | N/A | 2 m | 0.700 kg | -40°C to 177°C |
| 3300 XL 5 mm Probe | 5 mm | 2 m | 0.420 kg | -40°C to 177°C |
| 3300 XL Keyphasor | N/A | 1.5 m | 0.350 kg | -40°C to 150°C |
| 3300 XL Extension Cable | N/A | 10 m | 1.2 kg | -51°C to 177°C |
| 3300 XL 8 mm Probe Short | 8 mm | 1 m | 0.500 kg | -51°C to 177°C |
| 3300 XL 8 mm Probe Long | 8 mm | 10 m | 1.2 kg | -51°C to 177°C |
