Product Overview

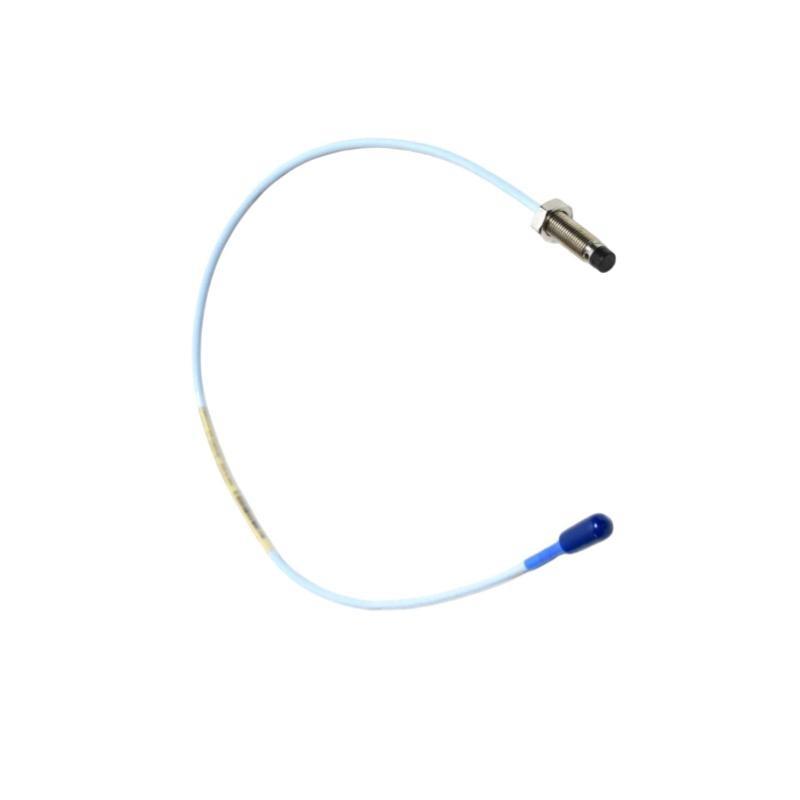

The Bently Nevada 330101-00-14-10-02-05 is part von the 3300 XL 8 mm Proximity Transducer System, which includes a probe, extension cable, and proximitor sensor. This system is widely used in critical rotating machinery monitoring to detect and measure shaft vibration, axial thrust, and position displacement.
As a component von the 3300 XL series, this probe features a rugged design, enhanced EMI immStücky, and highly stable performance across a wide range von temperatures and environmental conditions. It is specifically tuned for API 670-compliant applications and optimized for standard Bently Nevada proximitor interfaces.
Key Features
-
8 mm tip diameter for high-precision shaft position sensing
-
Compatible with 3300 XL Extension Cable and Proximitor Sensor
-
Designed per API 670 industry standards
-
Pre-configured system length: 14 ft (4.3 m) total system
-
Enhanced EMI/RFI shielding for noise immStücky in harsh environments
-
Standard 10 ft extension cable and 4 ft probe included
-
Polyurethane cable jacket for chemical resistance and flexibility
-
Durable probe tip for direct mounting in high-vibration zones
-
Compatible with a wide range von Bently Nevada monitoring systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Tip Diameter | 8 mm |
| Probe Length | 4 ft (1.2 m) |
| Extension Cable Length | 10 ft (3.0 m) |
| Total System Length | 14 ft (4.3 m) |
| Thread Size | 3/8-24 UNF (standard mounting) |
| Connector Type | Miniature coaxial connector |
| Linear Range | 2 mm (80 mils) |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Non-linearity | ±0.25% von full scale |
| Operating Temperature | -35°C to +177°C (Probe and Cable) |
| Frequency Response | DC to 10 kHz |
| Material | Probe body: AISI 303 Stainless Steel; Tip: PEEK |
| Insulation Resistance | >10 GΩ |
| Environmental Protection | IP67 |
| Compliance | RoHS, CE, ATEX/IECEx (select variants) |
| Dimensions | Total Length : 1.0 meters |
| Gewicht | 0.323 kg |
Product Advantages
-
Industry-Proven Reliability: Extensively deployed in industrial turbines, motors, compressors, and pumps.
-
High Accuracy: Ausgezeichnet linearity across the measurement range ensures precise vibration analysis.
-
Mechanical Ruggedness: Suitable for mounting near high-temperature, high-vibration areas.
-
Electromagnetic ImmStücky: Designed for stable operation near VFDs, SCRs, and other noisy equipment.
-
Flexible Configurations: Wide range von extension cable and proximitor options.
-
Field Compatibility: Compatible with legacy and modern Bently Nevada monitoring systems.
-
Oil & Gas Ready: Certified and widely used in hazardous area installations.
Industry Applications
-
Steam and Gas Turbines (Axial Thrust Monitoring)
-
Compressors (Radial Vibration Monitoring)
-
Electric Motors (Shaft Position Detection)
-
Pumps (Dynamic Performance Evaluation)
-
Refineries and Petrochemical Plants
-
Power Generation (Thermal, Hydro, Nuclear)
-
Mining and Pulp & Paper Equipment Monitoring
The 330101-00-14-10-02-05 proximity probe is a critical component in predictive maintenance and rotating machinery protection systems, enabling real-time condition monitoring and early fault detection.
Häufig gestellte Fragen (FAQ)
-
Q: What does the part number 330101-00-14-10-02-05 represent?
A: It encodes the system configuration—specifically a 14 ft total length system with a 10 ft extension cable and 4 ft probe. -
Q: Can this probe be used with non-Bently proximitor sensors?
A: It is designed for Bently Nevada proximitor sensors and may not function accurately with other brands. -
Q: What is the standard output sensitivity?
A: 200 mV/mil (7.87 mV/μm), in compliance with API 670. -
Q: Is the probe safe for hazardous area installation?
A: Yes, certain variants are certified ATEX/IECEx for hazardous environments. -
Q: How is the probe mounted?
A: Typically threaded into a mounting bracket or probe holder using the 3/8-24 UNF thread. -
Q: Can I shorten the cable if needed?
A: No, altering cable length affects calibration. Use factory-set lengths. -
Q: Does it support high-speed machinery monitoring?
A: Yes, up to 10 kHz frequency response for high-speed shaft vibration. -
Q: What materials are used in the probe tip?
A: A rugged PEEK (polyether ether ketone) non-conductive material. -
Q: Can this probe be submerged in oil?
A: Yes, the IP67 rating allows operation in oil-lubricated environments. -
Q: Is the probe interchangeable with other 3300 XL models?
A: Yes, provided the total system length and components are matched accordingly.
Related or Compatible Modells (Same Series)
| Modell | Beschreibung |
|---|---|
| 330101-00-10-10-02-00 | 10 ft system with 10 ft extension and 0 ft probe |
| 330101-00-20-10-02-00 | 20 ft system; 10 ft cable and 10 ft probe |
| 330104-00-05-10-02-00 | 8 mm XL probe, alternative configuration |
| 330130-040-00-00 | 3300 XL Extension Cable – 40 ft |
| 330180-91-05 | 3300 XL Proximitor Sensor for 8 mm probes |
| 330105-02-12-10-02-00 | High-temperature variant von 8 mm XL probe |
Popular Bently Nevada Modells (Same Marke)
| Modell | Beschreibung |
|---|---|
| 3500/42M | Vibration Monitor Module for 3500 series |
| 330180-90-00 | 3300 XL Proximitor Sensor, standard configuration |
| 330104-00-03-05-02-00 | 8 mm Proximity Probe, 3 ft probe and 5 ft cable |
| 3500/15-05-05-00 | AC Power Supply Module for 3500 rack system |
| 330130-080-00-00 | XL Extension Cable, 80 ft variant |
| 3500/22M | Transient Data Interface Module for external communication |
