Produkteinführung

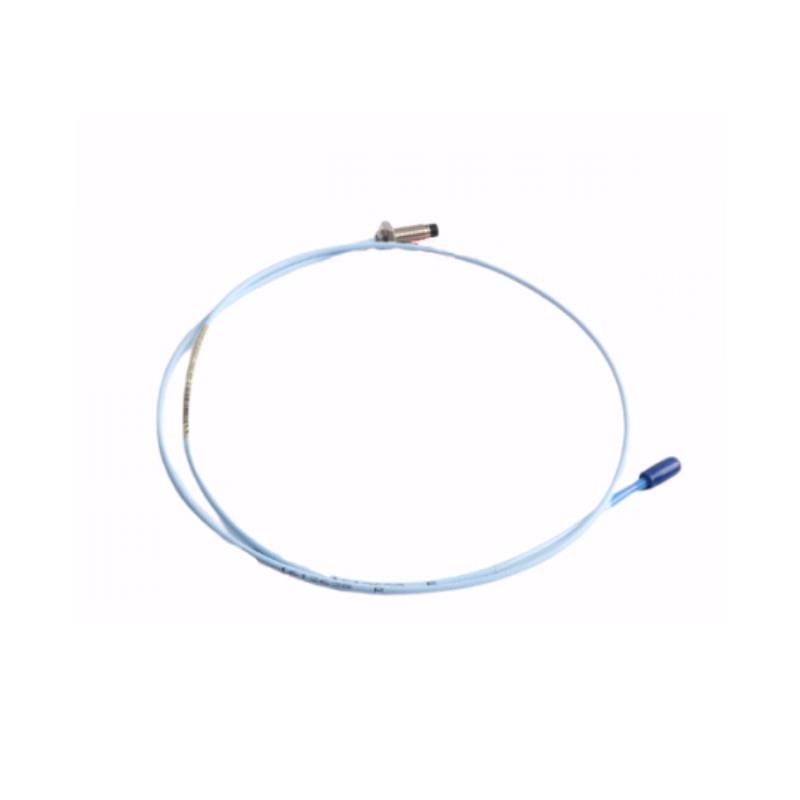

The Bently Nevada 330101-00-13-10-02-00 is part von the 3300 XL 8mm Proximity Transducer System developed by Bently Nevada, a recognized leader in machinery protection and condition monitoring solutions. This specific proximity probe is engineered to provide highly accurate, stable, and durable measurements von shaft vibration and position in rotating machinery.
As a key component in critical machinery health monitoring, the 3300 XL 8mm proximity probe ensures optimal performance in harsh industrial environments. It is designed to be used in combination with matching extension cables and proximity sensor drivers, delivering a complete transducer system.
The 330101 probe uses non-contact eddy current technology to detect the position and movement von a rotating shaft relative to the probe tip. The 8mm probe tip and housing are constructed to meet the rigorous standards von API 670 and are fully compatible with standard configurations used in turbines, compressors, pumps, and more.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | 330101-00-13-10-02-00 |
| Product Series | 3300 XL 8mm Proximity Probe |
| Sensing Principle | Non-contact Eddy Current |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Probe Tip Material | Polyphenylene sulfide (PPS), molded |
| Body Thread Type | 3/8-24 UNF-2A, 50.8 mm (2.0 in) case length |
| Connector Type | Male connector, Miniature coaxial |
| Total Length | 1 meter |
| Compatible Extension Cable | 330130-080-00-00 |
| Operating Temperature | –35°C to +177°C (–31°F to +350°F) |
| Frequency Response | Up to 10 kHz (depending on shaft speed) |
| Linear Range | 2 mm (80 mils), typical |
| Sensitivity | 7.87 mV/μm (200 mV/mil) nominal |
| Interchangeability | Fully interchangeable with 3300 XL 8mm components |
| Compliance Standard | API 670, CE, CSA, ATEX, and IECEx compliant |
| Gewicht | 0.323 kg |
| Vibration Limit | 50 g pk, 0–2000 Hz |
| Pressure Rating | Up to 700 kPa (100 psi) with optional seal hardware |
Product Applications
The 330101-00-13-10-02-00 proximity probe is widely utilized in various industrial applications requiring reliable shaft vibration and position monitoring:
-
Steam and gas turbines
-
Centrifugal compressors
-
Axial compressors
-
Gearboxes
-
Industrial pumps and fans
-
Synchronous and induction motors
-
Generators
-
Paper machines and rolling mills
Its robust design and adherence to API 670 standards make it especially suited for use in high-vibration, high-temperature environments where precise monitoring is critical for machine protection.
Product Advantages
-
High Accuracy and Sensitivity: Provides reliable and repeatable vibration and position measurements with excellent linearity and sensitivity.
-
API 670 Compliance: Meets stringent industry standards for proximity measurement systems, ideal for critical rotating equipment.
-
Robust Construction: Withstands harsh environments, including high temperatures, vibration, and pressure conditions.
-
Interchangeable Components: Designed to work seamlessly with other 3300 XL series extension cables and drivers, simplifying inventory and maintenance.
-
Extended Operating Temperature Range: Suited for both standard and high-temperature installations.
-
Proven Reliability: Field-proven in thousands von critical machinery installations globally, ensuring long-term performance.
-
Low Maintenance Requirements: Reduces the need for frequent recalibration or replacement, ensuring operational efficiency.
-
Modular Design: Allows system customization according to machine layout and monitoring strategy.
Häufig gestellte Fragen (FAQ)
-
What is the primary function von the Bently Nevada 330101-00-13-10-02-00 probe?
The probe measures shaft vibration and axial position using non-contact eddy current technology. -
Is the 330101-00-13-10-02-00 compliant with API 670?
Yes, it is fully compliant with API 670 standards for machinery protection systems. -
What cable and driver should I use with this probe?
Use it with 330130-080-00-00 extension cable and 3300 XL Proximitor sensor (e.g., 330180 series). -
Can this probe be used in high-temperature environments?
Yes, it operates reliably in temperatures up to +177°C (350°F). -
Is this model compatible with older 7200 or 3300 systems?
The 3300 XL series is backward-compatible with many older systems; check system requirements. -
What is the linear measuring range von this probe?
Typically 2 mm (80 mils) von linear range. -
How durable is the probe under vibration conditions?
It can withstand up to 50 g pk over 0–2000 Hz without signal degradation. -
What is the significance von the ‘00-13-10-02-00’ suffix?
It specifies probe thread, cable length, connector type, and case length variations. -
Does this probe require periodic calibration?
Calibration is factory-set; routine field recalibration is not usually required unless damaged. -
Can I install this probe in a hazardous location?
Yes, it is available in configurations suitable for hazardous locations, certified to ATEX and IECEx standards.
Recommended Related Modells (Same Series)
| Modell Number | Beschreibung | Probe Tip Size | Cable Length | Application |
|---|---|---|---|---|
| 330101-00-10-10-02-00 | 3300 XL 8mm probe, 1.0 m cable | 8 mm | 1.0 m | Standard machinery monitoring |
| 330101-00-20-10-02-00 | 3300 XL 8mm probe, 2.0 m cable | 8 mm | 2.0 m | General-purpose proximity monitoring |
| 330130-080-00-00 | 3300 XL extension cable, 8.0 m | N/A | 8.0 m | Extension for probe-driver system |
| 330180-91-05 | 3300 XL Proximitor sensor, 5.0 m system | N/A | 5.0 m | Driver for XL probes |
| 330103-00-05-10-02-00 | 3300 XL 11 mm probe, 0.5 m cable | 11 mm | 0.5 m | Oversized shaft proximity monitoring |
| 330104-00-12-10-02-00 | 3300 XL 25 mm long-range probe, 1.2 m cable | 25 mm | 1.2 m | Axial position / thrust measurement |
Popular Modells from Bently Nevada (Same Marke)
| Modell Number | Beschreibung | Application | Key Feature |
|---|---|---|---|
| 3500/22M | Transient Data Interface Module | 3500 System | Captures transient data |
| 3500/42M | Vibration Monitor Module | Multi-channel monitoring | Buffered outputs and alarms |
| 3500/05 | System Rack for 3500 Series | Modular configuration | Houses system modules |
| 330104-00-12-10-02-00 | Long-range proximity probe (25 mm) | Thrust position monitoring | Large sensing range |
| 330130-040-00-00 | Extension cable, 4.0 m | Probe-to-driver systems | XL Series compatibility |
| 330180-50-05 | 3300 XL Proximitor sensor, 5.0 m system | General machine monitoring | Standard probe driver |
