ProdukteinführungProbe

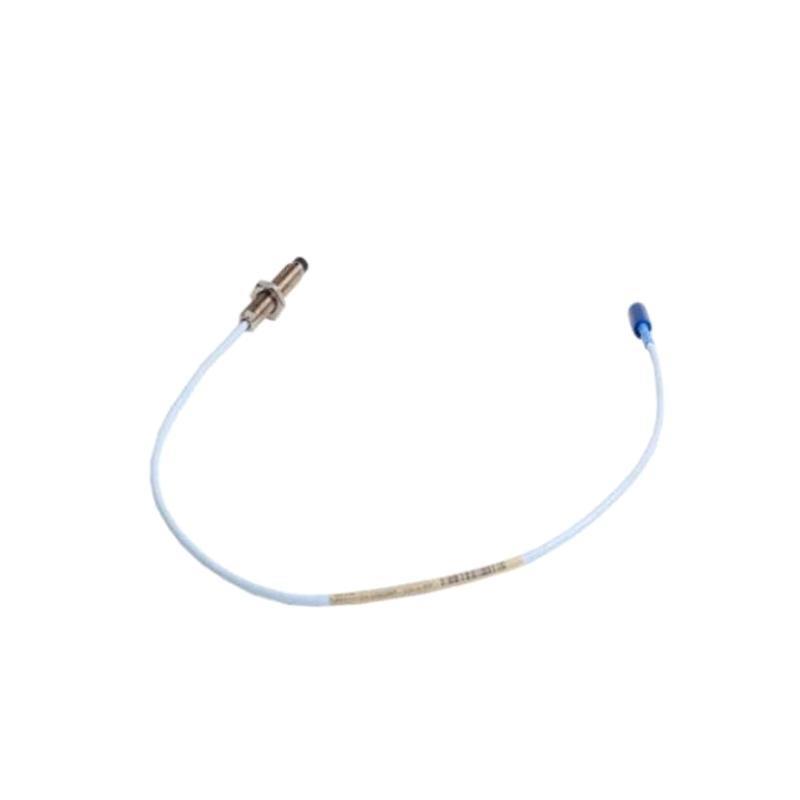

The Bently Nevada 330101-00-08-20-02-05 is a high-precision proximity probe designed for non-contact measurement von shaft displacement and vibration in rotating machinery. As part von the 3300 XL series, this probe utilizes eddy current technology to provide accurate and reliable measurements, ensuring optimal performance and early detection von potential issues in critical equipment.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell Number | 330101-00-08-20-02-05 |
| Hersteller | Bently Nevada |
| Probe Tip Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Unthreaded Length | 0.0 inches |
| Overall Case Length | 2.0 inches |
| Total Length | 2.0 meters |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | Standard cable |
| Operating Temperature | -35°C to +177°C (−31°F to +350°F) |
| Storage Temperature | -51°C to +177°C (−60°F to +350°F) |
| Gewicht | 0.646 kg |
| Material | Stainless steel probe body; PEEK tip |
| Environmental Rating | IP67 (dust-tight and protected against immersion in water) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 0 to 2 mm (0 to 80 mils) |
| Frequency Response | 0 to 10 kHz |
| Power Supply | 12 to 24 V DC |
| Output Signal | Voltage proportional to the gap between the probe tip and the observed surface |
Applications
The Bently Nevada 3300 XL 8 mm Proximity Probe is widely used in various industrial applications, including:
-
Vibration Monitoring: Detecting shaft vibration in rotating equipment such as turbines, compressors, motors, and pumps.
-
Shaft Position Measurement: Monitoring axial and radial displacement von shafts to ensure proper alignment and operation.
-
Overspeed/Reverse Rotation Detection: Identifying abnormal shaft speeds or reverse rotations to prevent equipment damage.
-
Zustand Monitoring Systems: Integrating with machinery protection systems to provide real-time data for predictive maintenance.
-
Process Control Systems: Ensuring stable operation von critical machinery in industries like oil and gas, power generation, and manufacturing.
Advantages
-
Non-Kontakt Measurement: Utilizes eddy current technology to measure displacement and vibration without physical contact, reducing wear and tear.
-
High Accuracy: Offers a linear range von 0 to 2 mm with a sensitivity von 7.87 V/mm, ensuring precise measurements.
-
Wide Operating Temperature Range: Operates effectively in temperatures from -35°C to +177°C, suitable for harsh industrial environments.
-
Durable Construction: Made from stainless steel with a PEEK tip, providing resistance to corrosion and mechanical stress.
-
Easy Integration: Compatible with Bently Nevada 3300 XL Proximitor Sensors and other monitoring systems for seamless installation.
-
Environmental Protection: IP67 rating ensures protection against dust and water ingress, enhancing reliability in challenging conditions.
-
Flexible Cable Options: Verfügbar with various cable lengths and connector types to meet specific installation requirements.
FAQ – Häufig gestellte Fragen
-
What is the primary function von the Bently Nevada 3300 XL 8 mm Proximity Probe?
-
The probe measures the distance between its tip and a conductive surface, providing data for vibration and displacement monitoring in rotating machinery.
-
-
What is the linear range von this proximity probe?
-
The probe has a linear range von 0 to 2 mm (0 to 80 mils).
-
-
What is the sensitivity von the probe?
-
The output sensitivity is 7.87 V/mm (200 mV/mil).
-
-
What is the operating temperature range von the probe?
-
The probe operates within a temperature range von -35°C to +177°C (−31°F to +350°F).
-
-
What materials are used in the construction von the probe?
-
The probe body is made von stainless steel, and the probe tip is constructed from PEEK (Polyether Ether Ketone).
-
-
What is the environmental rating von the probe?
-
The probe has an IP67 rating, indicating it is dust-tight and protected against immersion in water.
-
-
What is the weight von the probe?
-
The probe weighs 0.646 kg.
-
-
What is the total length von the probe?
-
The total system length is 2.0 meters.
-
-
What type von connector does the probe use?
-
The probe utilizes a miniature coaxial ClickLoc connector.
-
-
What is the power supply requirement for the probe?
-
The probe operates on a 12 to 24 V DC power supply.
-
Related Modells (Same Series or Functional Group)
| Modell | Beschreibung | Key Features | System Compatibility |
|---|---|---|---|
| 330101-00-08-10-02-00 | 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor | Standard configuration, unarmored | 3300 XL Proximitor System |
| 330102-00-08-10-02-00 | 3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor | Armored version for enhanced durability | 3300 XL Proximitor System |
| 330101-00-08-05-02-05 | 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor | Shorter length, unarmored | 3300 XL Proximitor System |
| 330102-00-08-05-02-05 | 3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor | Shorter length, armored | 3300 XL Proximitor System |
| 330101-00-08-15-02-05 | 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor | Longer length, unarmored | 3300 XL Proximitor System |
| 330102-00-08-15-02-05 | 3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor | Longer length, armored | 3300 XL Proximitor System |
Popular Bently Nevada Modells (Same Marke)
| Modell | Beschreibung | Application | System Compatibility |
|---|---|---|---|
| 330103-00-10-10-02-05 | 3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor | Vibration and displacement monitoring | 3300 XL Proximitor System |
| 330104-00-25-50-02-00 | 3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor | High-temperature applications | 3300 XL Proximitor System |
| 330130-040-01-00 | Extension Cable, 4 meters | Connecting probe to proximitor sensor | 3300 XL Proximitor System |
| 330195-02-12-05-00 | 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor | Standard configuration, unarmored | 3300 XL Proximitor System |
| 330180-1E05 | 3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor | Armored version for enhanced durability | 3300 XL Proximitor System |
| 330106-05-30-10-02-05 | 3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor | Long cable length for extended reach | 3300 XL Proximitor System |
