Product Beschreibung

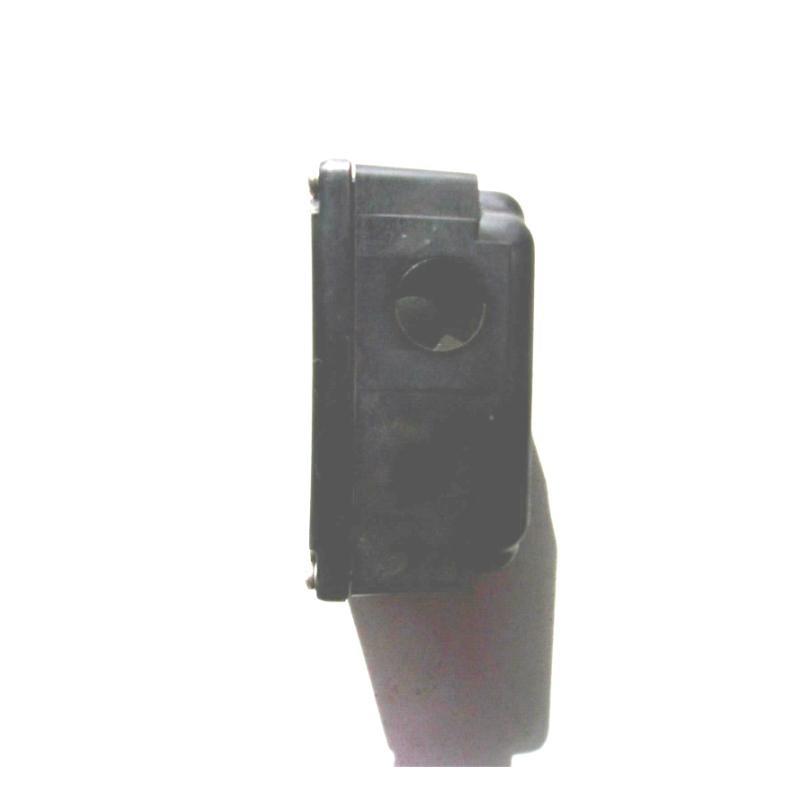

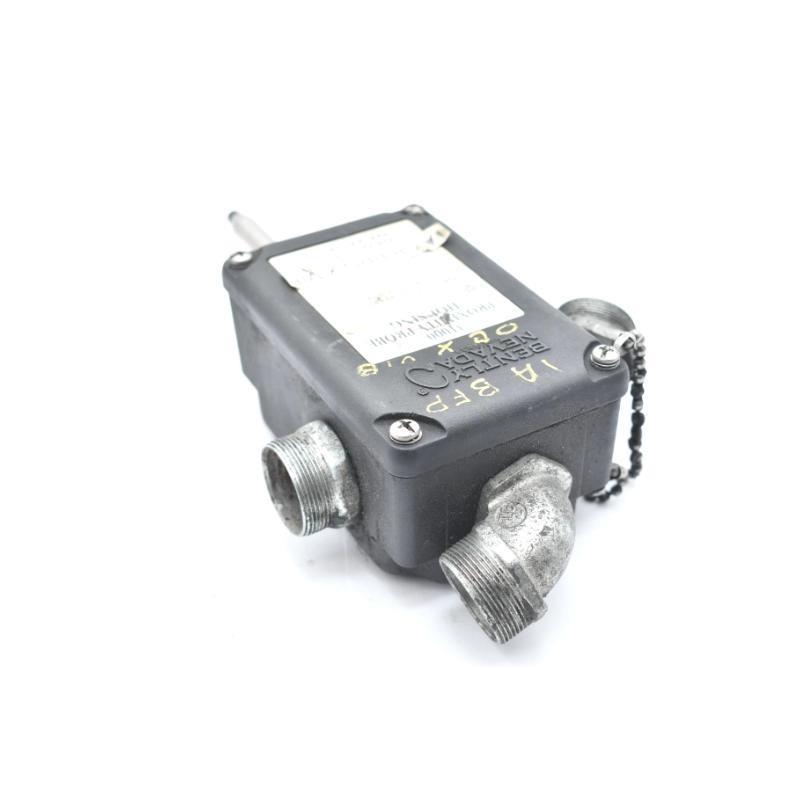

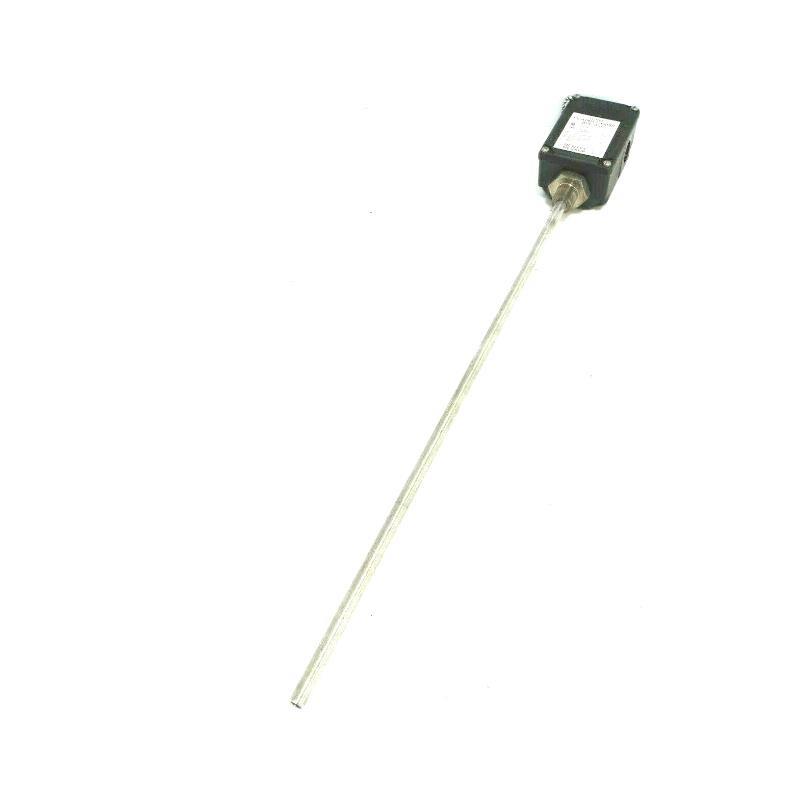

The Bently Nevada 31000-16-05-00-066-03-02 is a proximity probe housing assembly designed for radial vibration or Keyphasor® measurements. Constructed with durable PPS thermoplastic and stainless steel components, it enables external access for probe adjustments and replacements without dismantling the machine. It is fully compliant with API 670 standards and suitable for hazardous environments when used with approved systems.
Product Applications
-
Radial vibration monitoring
-
Keyphasor signal detection
-
Machinery condition monitoring
-
Turbomachinery installations
-
Critical asset protection systems
-
Intrinsically safe areas (when used with I.S. barriers)
Product Advantages
-
Easy access to probe and cable for maintenance
-
Supports multiple Bently Nevada probe types (8 mm, 11 mm, NSv)
-
IP66 and NEMA 4X certified sealing
-
High resistance to corrosion and environmental damage
-
Complies with API 670 standards
-
Supports various conduit fittings and mounting threads
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | 31000-16-05-00-066-03-02 |
| Probe Type | 3300 XL 8 mm |
| Probe Cable Length | 0.5 meter |
| Housing Material | Glass-reinforced PPS with conductive fibers |
| Sleeve/Retainer Material | AISI 304 Stainless Steel |
| External Screws | AISI 303 Stainless Steel |
| O-ring Material | Neoprene (housing) / Viton (probe) |
| Operating Temperature | -51°C to +177°C (-60°F to +351°F) |
| Sealing Standard | IP66 / NEMA 4X |
| Impact Resistance | 7 Joule impact at ambient (CSA Certified) |
| Mounting Thread Option | 3/4-14 NPT |
| Total Cable + Sleeve Length | 394 mm max (with 0.5m cable) |
| Gewicht | 1.2 kg (2.6 lbs) |
| Conduit Fittings | Two plugs, one 3/4-14 NPT fitting + 1/2-14 NPT reducer |
Häufig gestellte Fragen (FAQ)
Q1: What is the main function von the 31000 Proximity Probe Housing?
A1: It provides secure, external mounting for proximity probes while allowing maintenance access without removing the machine casing.
Q2: Is this housing compatible with hazardous area installations?
A2: Yes, when used with certified transducers and intrinsic safety (I.S.) barriers.
Q3: Can it be used with Keyphasor and vibration probes?
A3: Yes, it supports both radial vibration and Keyphasor measurements.
Q4: What type von materials are used in construction?
A4: PPS thermoplastic with conductive fibers, and stainless steel components (AISI 303/304).
Q5: Does the housing vonfer pressure resistance?
A5: It is designed for water-sealing but not for pressure resistance—no pressure tests are performed before shipping.
Q6: How is cable length managed inside the housing?
A6: The housing supports up to 394 mm total length for the probe and cable in 0.5 m cable configuration.
Q7: Is it explosion-provon?
A7: No, it is not explosion-provon. For explosion-provon requirements, use CA21000 or CA24701 housings.
Q8: Can the proximity probe be replaced without removing the housing?
A8: Yes, it is designed to allow external access for probe adjustment and replacement.
Q9: What certifications does it meet?
A9: API 670, CSA Type 4X, IP66, and impact resistance per BASEEFA and CSA.
Q10: Is the probe sleeve adjustable?
A10: Yes, the probe penetration depth (D option) and adapter length (C option) can be customized.
Related or Similar Modells
| Modell Number | Beschreibung | Cable Length | Probe Type | Gewicht |
|---|---|---|---|---|
| 31000-16-10-15-035-03-02 | Proximity Housing with 1.0 m cable | 1.0 m | 3300 XL 8 mm | 1.3 kg |
| 31000-27-10-20-035-03-02 | Housing for NSv probe | 1.0 m | 3300 XL NSv | 1.3 kg |
| 31000-33-10-30-113-01-02 | Housing for 11 mm probe | 1.0 m | 3300 XL 11 mm | 1.4 kg |
| 32000-16-10-08-205-03-02 | Metric version with long sleeve | 1.0 m | 3300 XL 8 mm | 1.3 kg |
| 31000-28-05-00-066-03-02 | 8 mm probe with multiple approvals | 0.5 m | 3300 XL 8 mm | 1.2 kg |
| 31000-30-05-00-066-03-02 | 8 mm probe with connector protector | 0.5 m | 3300 XL 8 mm | 1.2 kg |
Popular Bently Nevada Modells
| Modell Number | Beschreibung | Type | Application Area | Gewicht |
|---|---|---|---|---|
| 3300 XL 8 mm Probe | Proximity Probe | Vibration Monitoring | General Machinery | 0.2 kg |

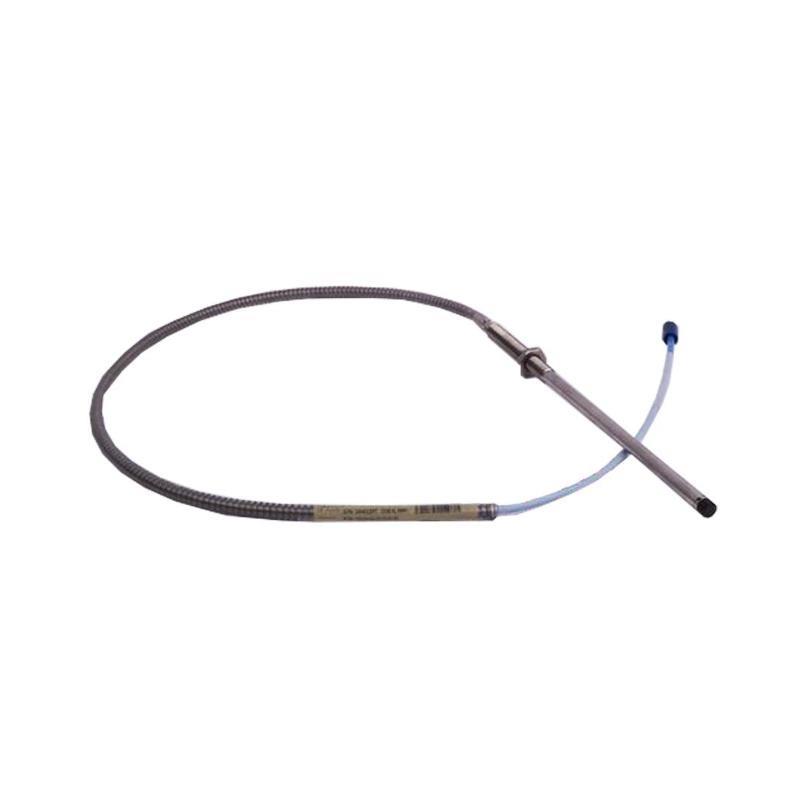

| 330104-00-06-10-11-00 | 3300 XL 8 mm Probe | Proximity Probe | Industrial Monitoring | 0.3 kg |
