Beschreibung

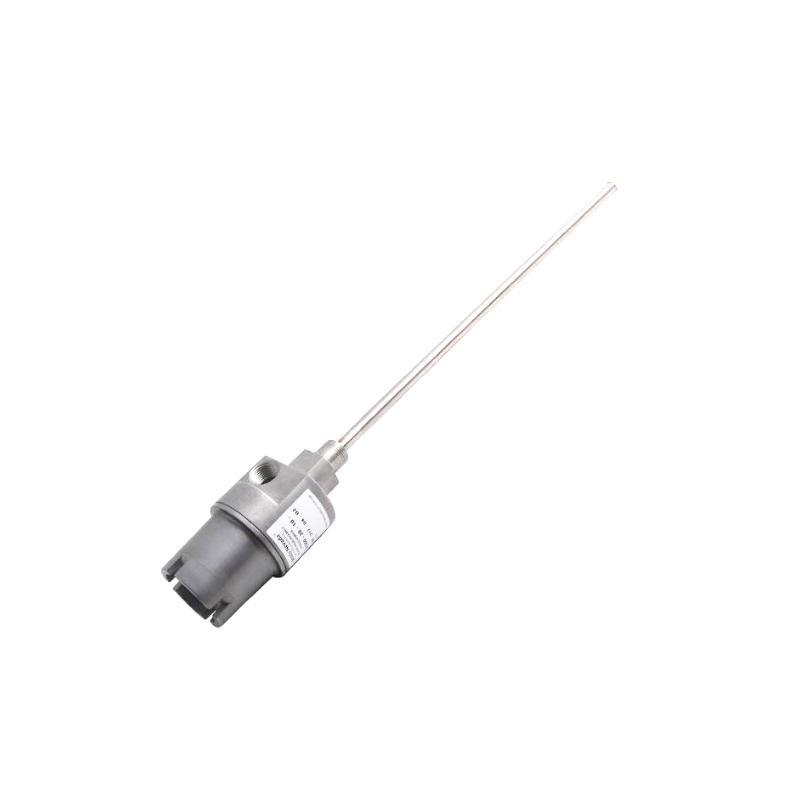

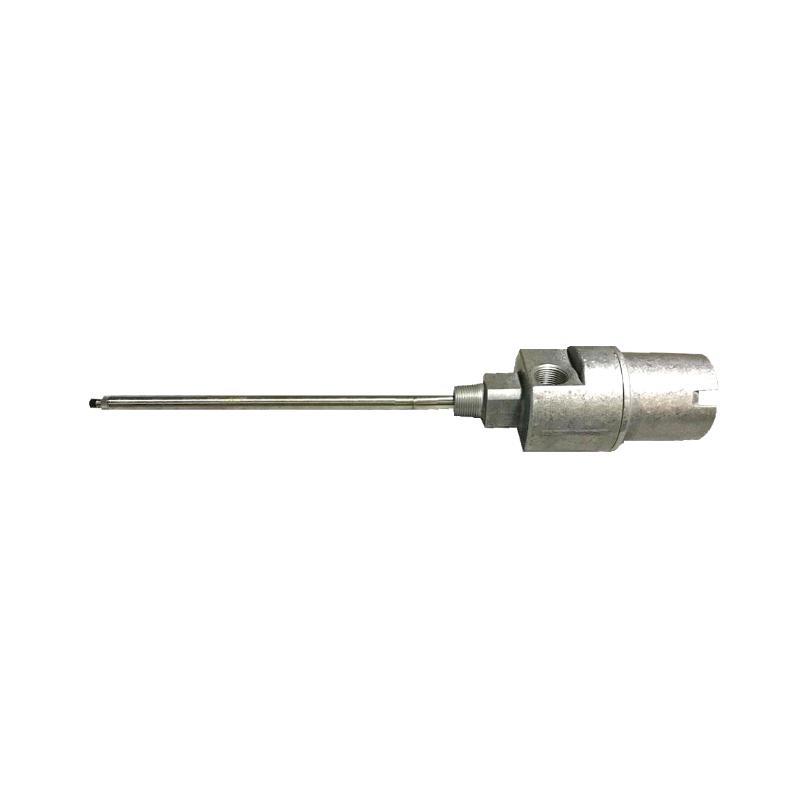

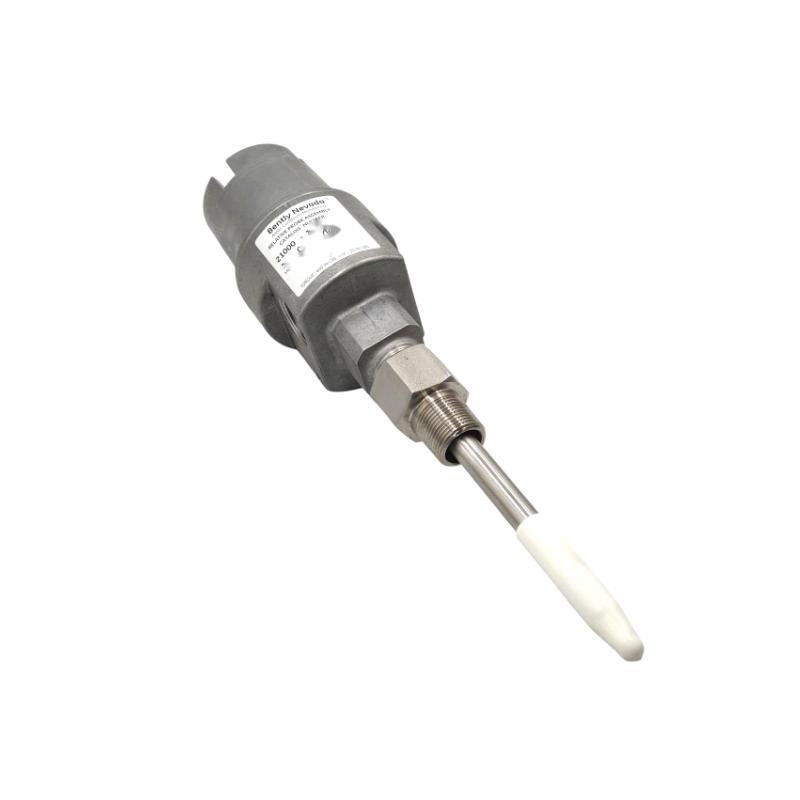

The Bently Nevada 21000 Proximity Probe Housing Assembly is an aluminum-based enclosure designed for external mounting von proximity probes in industrial applications. It ensures environmental protection, mechanical stability, and is CSA-approved for explosion-provon use in hazardous areas. It complies with API 670 standards.
Applications
-
Turbomachinery monitoring
-
Rotating equipment condition monitoring
-
Hazardous area sensor installations
-
Oil and gas, petrochemical, and power generation sectors
-
Environments requiring API 670-compliant probe housings
Advantages
-
Explosion-provon CSA-certified housing
-
Complies with API 670 standard
-
Aluminum body with stainless steel sleeve for strength and corrosion resistance
-
Supports a variety von probe types including 3300 XL and NSv
-
Customizable probe cable length and standvonf adapter
-
Compatible with long sleeve support configurations
-
Conduit and thread options for flexible installation
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | 21000-28-05-00-067-03-02 |
| Housing Material | Aluminum body with 304 stainless steel sleeve |
| Probe Compatibility | 3300 XL 8mm, 11mm, NSv (reverse mount) |
| Temperature Range | -51°C to +177°C (-60°F to +351°F) |
| Environmental Rating | CSA Type 4, Explosion-provon (CA21000 variants) |
| Certification | CSA, RoHS, API 670 |
| Mounting Thread | 3/4-14 NPT |
| Probe Cable Length | 0.5 m (20 in) |
| Sleeve Length | Based on configuration (customizable) |
| Standvonf Adapter | 1.5 in to 7.5 in (custom) |
| Housing Body Diameter | 83.3 mm |
| Gewicht | 1.1 kg (2.4 lbs) |
FAQ (Häufig gestellte Fragen)
Q1: What type von probes can be installed in the 21000 housing?
A1: It supports 3300 XL 8mm, 3300 XL NSv, and 3300 XL 11mm reverse mount probes.
Q2: Is the 21000 housing explosion-provon?
A2: Yes, the CA21000 version is CSA-certified for explosion-provon applications.
Q3: Can the probe cable length be customized?
A3: Yes, options range from 0.5 m up to 1.0 m based on application needs.
Q4: What certifications does this housing meet?
A4: It complies with CSA, RoHS Directive 2011/65/EU, and API 670.
Q5: Can this housing be used in outdoor environments?
A5: Yes, it is rated as CSA Type 4 and suitable for outdoor and hazardous environments.
Q6: What materials are used in the construction?
A6: The housing is made from aluminum with a 304 stainless steel probe sleeve.
Q7: Is additional sleeve support required for long probes?
A7: Yes, for sleeve lengths over 304 mm (12 in), support is necessary to reduce vibration.
Q8: Are there options for mounting thread types?
A8: Yes, NPT and BSP thread types are available, including special threads for CA models.
Q9: Is the 21000 suitable for nuclear applications?
A9: Yes, with special probe configurations, it can support nuclear monitoring applications.
Q10: Is there a compact version available for limited space?
A10: Yes, the 164818 housing is available for space-constrained installations.
Related Modells (Same Series)
| Modell Number | Beschreibung | Material | Gewicht |
|---|---|---|---|
| 21000 | Standard aluminum housing | Aluminum + SS | 1.1 kg |
| 24701 | Stainless steel housing | 303 + 304 SS | 1.8 kg |
| CA21000 | CSA explosion-provon aluminum housing | Aluminum + SS | 1.1 kg |
| CA24701 | CSA explosion-provon stainless housing | 303 + 304 SS | 1.8 kg |
| 164818 | Compact housing for tight spaces | Stainless steel | 1.0 kg |
| 31000 | Newer generation housing with better sealing | Aluminum alloy | ~1.2 kg |
