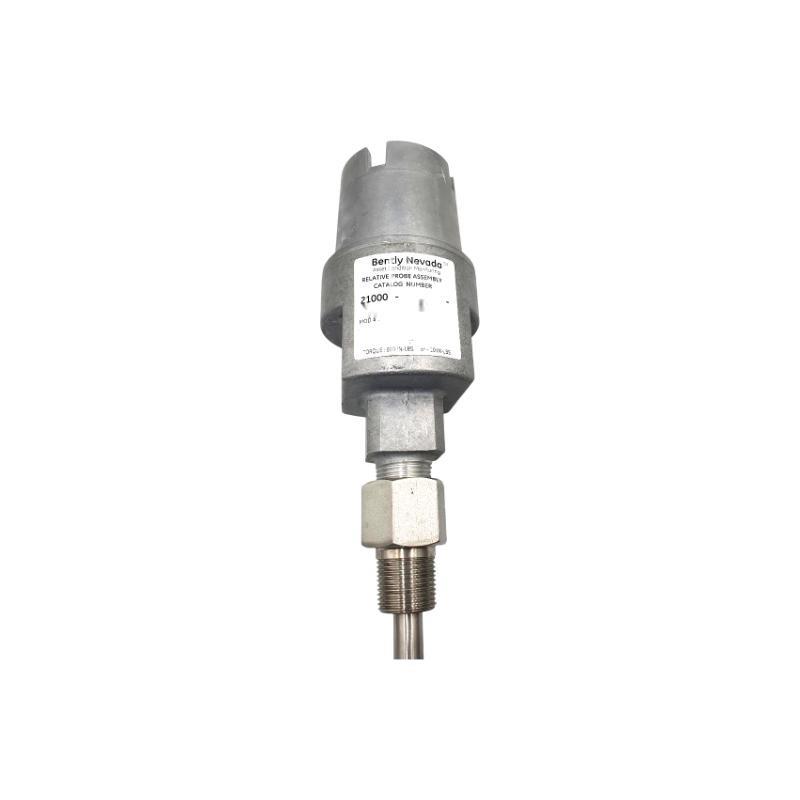

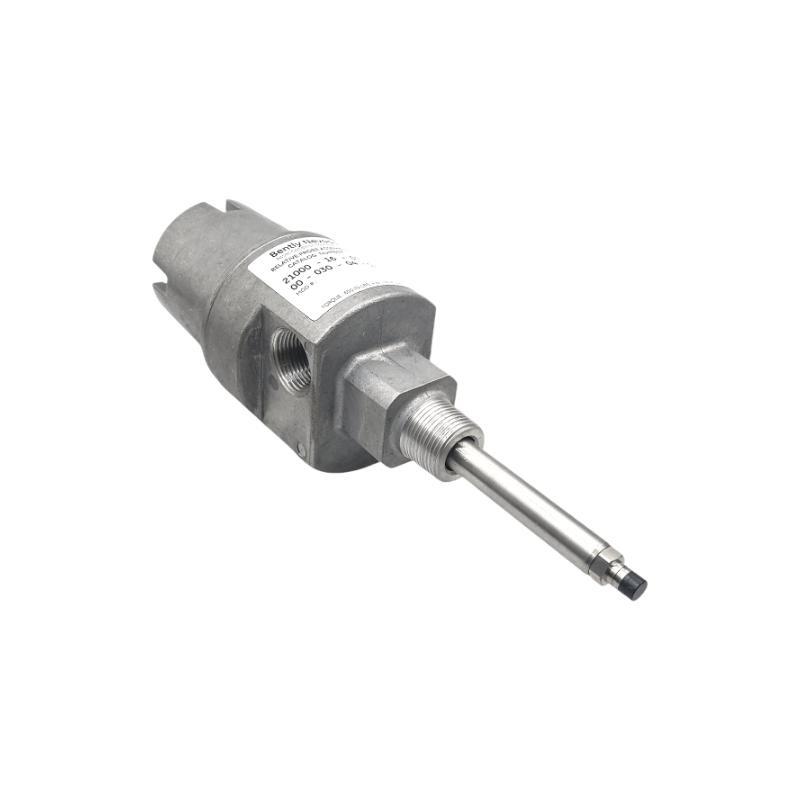

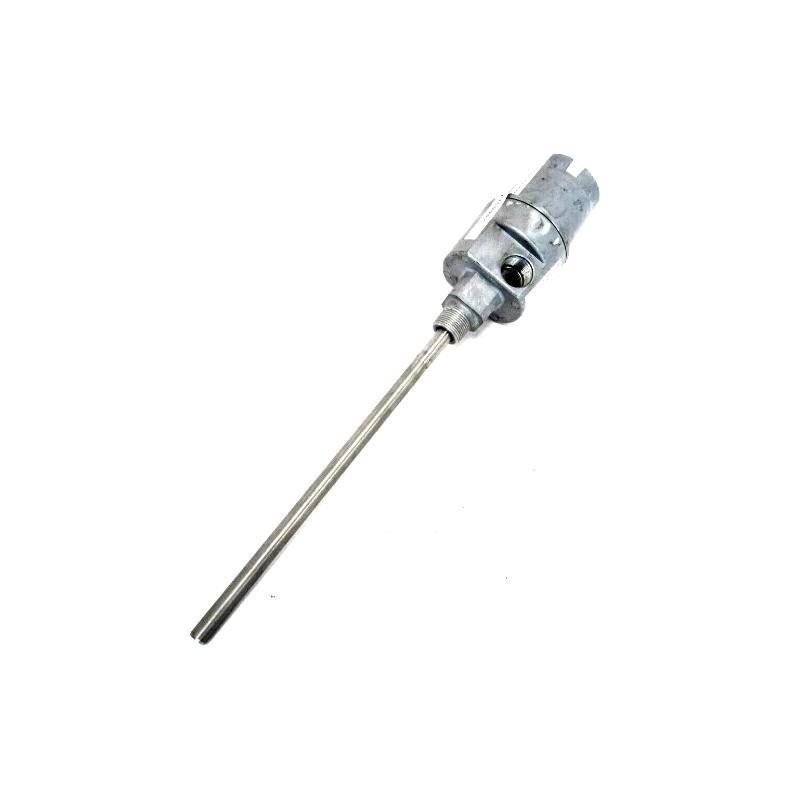

The Bently Nevada 21000-00-00-150-00-02 is an externally mounted proximity probe housing assembly, built with an aluminum body and a stainless steel sleeve. Designed to protect and mount proximity probes in industrial applications, it provides a sealed and rugged enclosure suitable for hazardous environments.
This model supports reverse mount proximity probes and comes with threaded ports for conduit connections, O-rings, probe sleeves, and optional fittings. It is certified for explosion-provon use and is compliant with API 670 standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Housing Modell | 21000-00-00-150-00-02 |
| Housing Body Material | Aluminum with 304 Stainless Steel Sleeve |
| Housing Body Diameter | 83.3 mm (3.28 in) |
| Gewicht | 1.1 kg (2.4 lb) |
| Operating Temperature | -51°C to +177°C (-60°F to +351°F) |
| Storage Temperature | -51°C to +177°C (-60°F to +351°F) |
| Probe Compatibility | 3300 XL 8mm, 3300 XL NSv, 3300 XL 11mm |
| Conduit Port Threads | 3/4-14 NPT (optional fittings) |
| Environmental Rating | CSA Type 4 (Explosion-provon housing available) |
| Compliance | API 670, RoHS 2011/65/EU compliant |
Applications
-
Turbomachinery monitoring systems
-
Externally mounted vibration and position sensors
-
Petrochemical, power generation, and industrial plants
-
CSA-approved hazardous areas (Class I, II, III)
-
Installations requiring API 670 compliance
Advantages
-
Rugged aluminum body for industrial durability
-
Stainless steel sleeve for corrosion resistance
-
CSA explosion-provon certified (optional)
-
API 670 compliance ensures industry standard performance
-
Modular design allows flexible probe lengths and fittings
-
Temperature tolerance up to +177°C for demanding environments
-
Easy installation with threaded mounting and conduit options
Häufig gestellte Fragen (FAQ)
Q1: What is the housing made von?
A1: The 21000 housing is made von aluminum with a 304 stainless steel sleeve for enhanced durability and corrosion resistance.
Q2: Is this housing explosion-provon?
A2: Yes, when ordered with CA options and certified fittings, the 21000 housing is CSA-certified as explosion-provon for hazardous areas.
Q3: What probes are compatible with this housing?
A3: It supports 3300 XL 8mm, 3300 XL NSv, and 3300 XL 11mm reverse mount proximity probes.
Q4: What is the typical weight von this housing?
A4: The housing weighs approximately 1.1 kg (2.4 lbs) without fittings.
Q5: What are the environmental temperature limits?
A5: The housing supports operating and storage temperatures from -51°C to +177°C.
Q6: Is it compliant with API 670 standards?
A6: Yes, it fully complies with the American Petroleum Institute’s 670 standard for proximity probe housings.
Q7: Can the sleeve length be customized?
A7: Yes, the probe sleeve length is customizable and determined by installation requirements.
Q8: Does the housing come with conduit fittings?
A8: Fittings are optional and can be selected during ordering, including explosion-provon variants.
Q9: Are there mounting thread options?
A9: Yes, mounting thread options include 3/4-14 NPT, 1/2-14 BSP, and others based on application.
Q10: What certifications does this product carry?
A10: It is CSA Type 4 rated, RoHS compliant, and has hazardous area approvals per North American standards.
Related Modells in the Same Series
| Modell Number | Material | Compatible Probes | Explosion Provon | Gewicht |
|---|---|---|---|---|
| 24701-XX-XX-XXX | Stainless Steel | 3300 XL, NSv, 11mm | Yes | 1.8 kg |
| CA21000-XX-XX-XXX | Aluminum (CA-certified) | 3300 XL, NSv, 11mm | Yes (CSA) | 1.1 kg |
| 164818-XX-XX-XXX | Compact Design | XL NSv, XL 8mm, Ceramic | Limited | ~0.9 kg |
| 31000-XX-XX-XXX | Aluminum/Steel Hybrid | Multiple XL Series | No | ~1.2 kg |
| 32000-XX-XX-XXX | Stainless Steel | XL NSv, 8mm | No | ~1.3 kg |
| 44382-AAA | Individual Probe Sleeve | Custom (sleeve only) | N/A | ~0.2 kg |
Popular Bently Nevada Modells
| Modell Number | Beschreibung | Application | Gewicht |
|---|---|---|---|
| 3500/42M-01-00 | Proximitor Seismic Monitor | Vibration Monitoring | 0.45 kg |
| 3500/22M | Transient Data Interface Module | Dynamic Data Collection | 0.35 kg |
| 330104-00-06-10-11-00 | 3300 XL 8mm Proximity Probe | Shaft Vibration Monitoring | 0.18 kg |
| 330130-045-00-05 | Extension Cable 5 m | Proximity Transducer Cable | 0.25 kg |
| 330180-91-CN | 3300 XL Proximitor Sensor | Vibration/Position Detection | 0.40 kg |
| 3500/15-05-01-00 | Power Supply Module | System Power Supply for 3500 Series | 1.2 kg |
