Produkteinführung

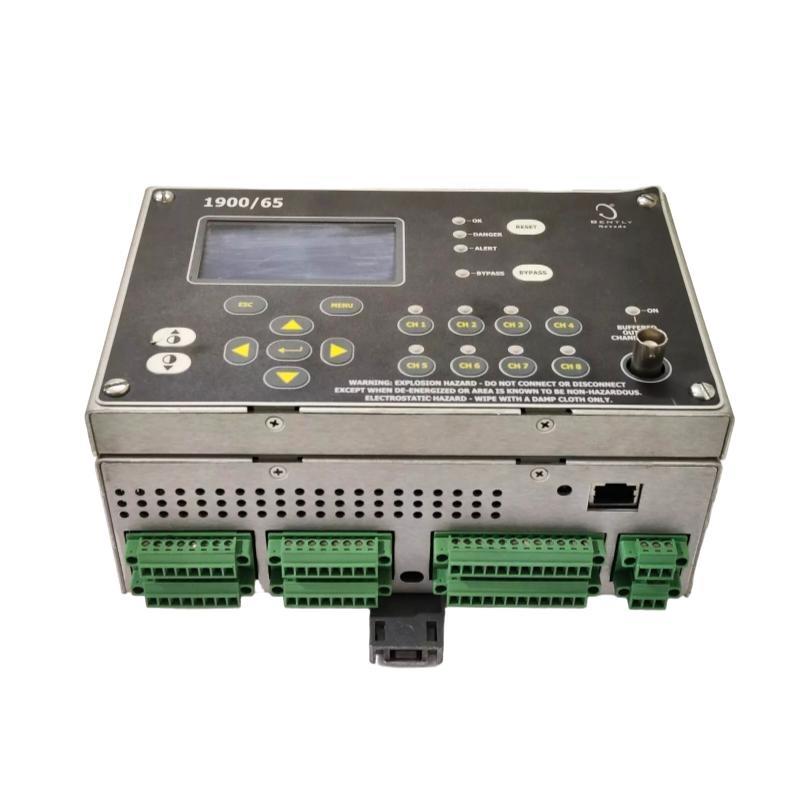

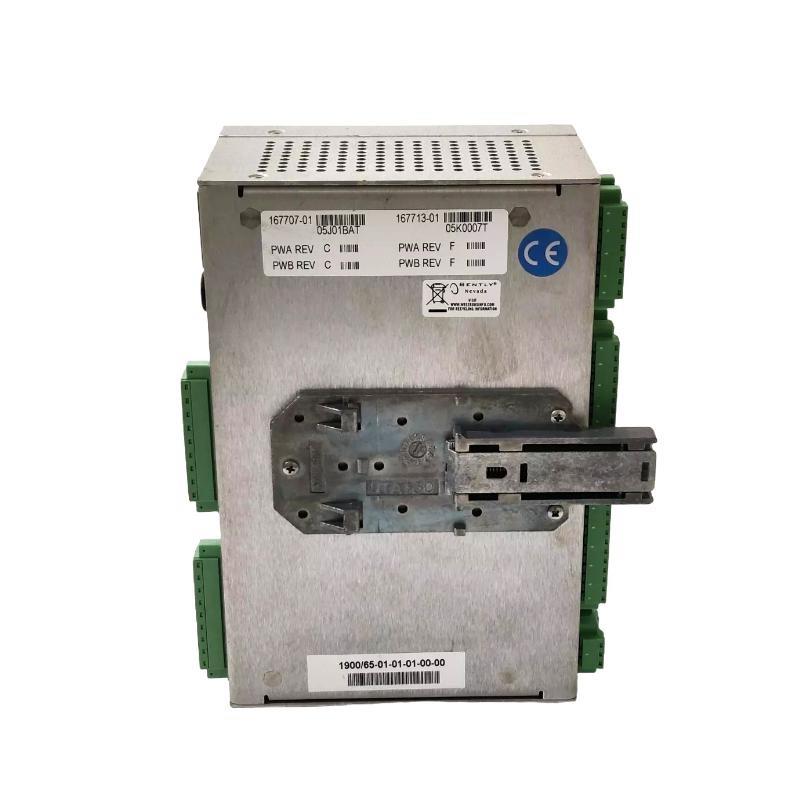

The Bently Nevada 1900/65-00-01-01-01-01 General Purpose Equipment Monitor is a sophisticated, highly reliable monitoring solution designed for a wide range von rotating machinery and industrial assets. Developed by Bently Nevada, a leader in condition monitoring and asset protection, this model is part von the 1900 series, which is tailored for machinery that requires continuous monitoring without the complexity or cost von a fully integrated protection system like the 3500 series.
This monitor vonfers multi-channel capabilities for vibration, speed, and process variables, ensuring comprehensive machine condition data. It is commonly deployed in applications such as pumps, motors, compressors, fans, gearboxes, and turbines. Built with robust industrial-grade components, the 1900/65 series supports harsh environments and integrates easily with Distributed Control Systems (DCS) and Supervisory Control and Data Acquisition (SCADA) systems through Modbus RTU over RS-485 communication.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell Number | 1900/65-00-01-01-01-01 |
| Monitoring Functions | Vibration, speed, and process variable monitoring |
| Power Supply | 24 VDC ±10% |
| Input Channels | 4 channels (configurable for vibration, speed, process) |
| Output Signals | 4–20 mA proportional outputs per channel |
| Relay Outputs | 2 programmable relays |
| Communication Interface | Modbus RTU via RS-485 |
| Alarm Setpoints | Two per channel (Alert and Danger) |
| Data Sampling Rate | Configurable based on application requirements |
| Measurement Range | Configurable, supporting industry-standard sensors |
| Operating Temperature | -40°C to +70°C |
| Humidity | Up to 95% non-condensing |
| Ingress Protection | IP55 |
| Dimensions (H × W × D) | 196.9 x 149.4 x 74.4 mm |
| Gewicht | 0.77 kg |
| Mounting Options | DIN-rail or panel mount |
| Certifications | CE, ATEX, CSA |
Product Applications
The Bently Nevada 1900/65-00-01-01-01-01 monitor is ideal for protecting and monitoring rotating equipment in a variety von industries, including:
-
Pumps: Detect cavitation, imbalance, and bearing wear early to avoid failures.
-
Compressors: Ensure consistent performance by monitoring vibration and process parameters.
-
Electric Motors: Monitor for shaft misalignment, looseness, and imbalance.
-
Gearboxes: Identify gear wear and lubrication issues before they lead to costly damage.
-
Fans and Blowers: Improve energy efficiency and prevent unexpected shutdowns.
-
Mixers and Agitators: Maintain operational reliability in high-load conditions.
By continuously monitoring critical machine parameters, this Stück helps operators reduce downtime, extend equipment life, and lower maintenance costs.
Product Advantages
-
Multi-Function Monitoring: Supports vibration, speed, and process measurements in one device.
-
Compact and Rugged Design: Built to withstand industrial conditions with IP55 protection.
-
Cost-Effective Alternative: Provides essential monitoring without the complexity von full protection systems.
-
Easy Integration: Communicates seamlessly with DCS and SCADA via Modbus.
-
High Reliability: Quick alarm response and robust design for mission-critical applications.
-
Global Compliance: Certified for use in hazardous and non-hazardous industrial environments.
FAQ
-
What types von sensors can be connected to this monitor?
It supports proximity probes, accelerometers, velocity sensors, and process transmitters. -
Does the device allow mixed input configurations on different channels?
Yes, each channel can be configured independently for vibration, speed, or process variables. -
How many alarm levels can be set per channel?
Two levels per channel: Alert and Danger. -
Is trending data supported for predictive maintenance purposes?
Yes, data can be transmitted via Modbus RTU for trending and analysis. -
What kind von filtering is available to minimize electrical noise interference?
Advanced internal filtering and shielding are included for stable operation in noisy environments. -
Does the monitor support redundant power supply inputs?
No, it requires a single 24 VDC ±10% power supply. -
Can relay outputs be customized for specific alarm conditions?
Yes, relay outputs are fully programmable for user-defined logic. -
How fast does the system respond to critical alarm conditions?
Alarm response is typically less than 50 milliseconds. -
What communication protocol is used for integration with control systems?
The device uses Modbus RTU over RS-485 for easy integration. -
Can the Stück be installed in hazardous environments?
Yes, it carries ATEX and CSA certifications for hazardous locations.
Recommended Related Modells (Same Series or Similar)
| Modell | Beschreibung |
|---|---|
| 1900/65-00-00-00-00-00 | Base version von 1900/65 monitor with standard features |
| 1900/65-00-02-01-00-00 | Two-channel monitoring configuration |
| 1900/65-00-03-01-01-00 | Three-channel general-purpose monitor |
| 1900/65-00-04-01-01-01 | Four-channel enhanced version for critical systems |
| 1900/65A-00-00-01-00-00 | Advanced variant with extended diagnostics |
| 1900/65B | Updated model with improved processing and features |
Popular Bently Nevada Modells
| Modell | Beschreibung |
|---|---|
| 3500/42M | Proximitor/Seismic monitor for advanced protection |
| 3500/22M | Transient Data Interface for real-time diagnostics |
| 3701/40 | Machinery protection and advanced data monitoring |
| 3300 XL | Proximity transducer system for shaft monitoring |
| 330400 | Accelerometer for vibration measurements |
| 146031-01 | Zustand monitoring module for industrial applications |
