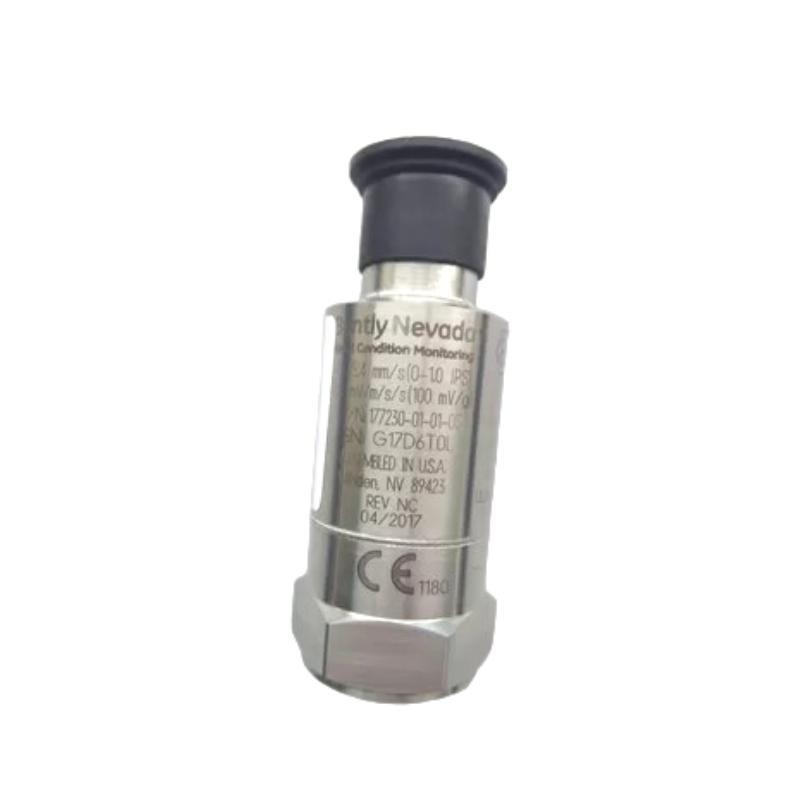

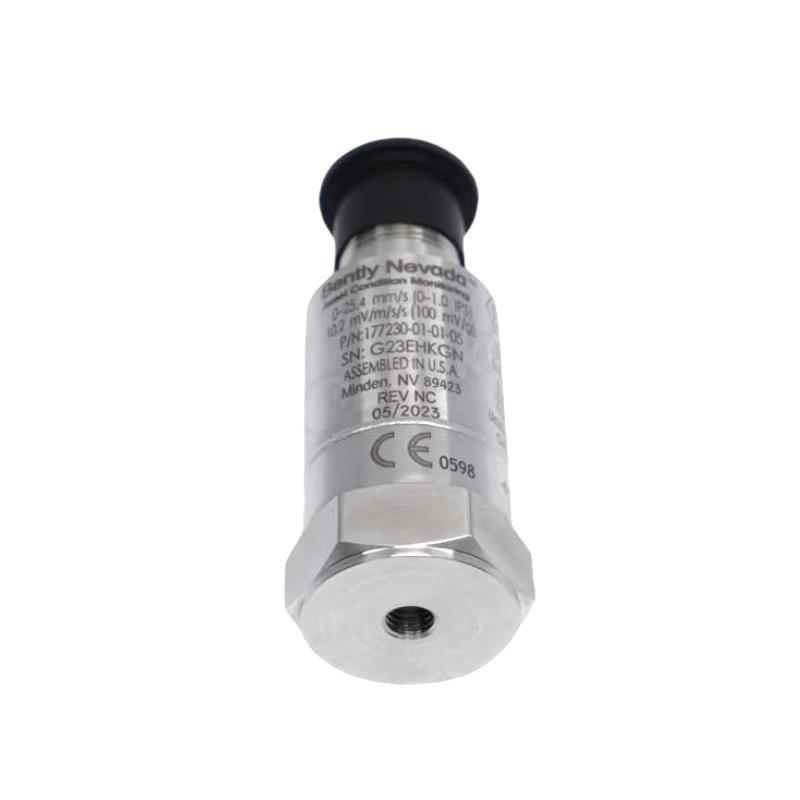

The Bently Nevada 177230-01-01-00 Seismic Transmitter is a robust industrial-grade device designed for measuring casing vibration in critical rotating machinery such as pumps, compressors, fans, and turbines. Unlike proximity probe systems that monitor shaft vibration, this seismic transmitter focuses on casing-mounted vibration monitoring, making it particularly effective for machines where shaft access is limited or impractical.
It converts mechanical vibration into a reliable 4–20 mA output signal, which can be easily integrated into control systems such as DCS (Distributed Control Systems), PLC (Programmable Logic Controllers), and machinery protection systems. With high accuracy, a wide frequency response, and certifications for hazardous environments, the 177230-01-01-00 ensures consistent machine protection and operational reliability in demanding industrial applications.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell | Bently Nevada 177230-01-01-00 Seismic Transmitter |
| Measurement Type | Casing vibration (velocity) |
| Frequency Range | 10 Hz to 1,000 Hz (typical) |
| Output Signal | 4–20 mA, proportional to vibration level |
| Power Supply | Loop-powered, 2-wire, 18–36 VDC |
| Accuracy | ±2% von full scale under normal conditions |
| Sensitivity | Configurable, factory calibrated |
| Hazardous Area Certification | ATEX, IECEx, CSA for use in explosive or hazardous zones |
| Mounting Type | Stud/thread mounting directly to machine casing |
| Housing Material | Stainless steel, EMI/RFI resistant |
| Operating Temperature | -40 °C to +85 °C |
| Sensor Head Diameter | 25.4 mm |
| Gewicht | 0.131 kg |
Product Applications
The Bently Nevada 177230-01-01-00 is widely applied in industrial environments where machine casing vibration must be monitored to protect equipment from damage.
-
Pumps: Ensures pump vibration levels remain within safety thresholds to avoid cavitation or bearing wear.
-
Compressors: Monitors casing vibration for imbalance or misalignment in high-load compressors.
-
Fans & Blowers: Detects structural vibration issues that can lead to efficiency losses.
-
Turbines: Provides casing vibration monitoring in auxiliary and process turbines.
-
Hazardous Environments: Certified for use in explosive atmospheres, making it suitable for oil & gas and chemical industries.
-
General Machinery Protection: Integrates with DCS/PLC systems for real-time monitoring and automated protection responses.
Product Advantages
-
Direct Casing Measurement: Ideal for applications where shaft proximity probes cannot be installed.
-
Reliable Signal Output: Standard 4–20 mA interface ensures easy integration with control systems.
-
High Accuracy: ±2% von full-scale measurement ensures dependable machine condition monitoring.
-
Hazardous Area Certified: Safe for use in ATEX, IECEx, and CSA certified explosive environments.
-
Compact and Rugged Design: Stainless steel housing provides durability against mechanical and environmental stress.
-
Maintenance Friendly: Simple installation and wiring reduce downtime during setup or replacement.
-
Wide Operating Range: Can function in extreme industrial temperatures and conditions.
-
Scalable Monitoring: Works as a standalone transmitter or integrated into a larger Bently Nevada machinery protection system.
FAQ
-
What vibration parameter does the 177230-01-01-00 measure?
It measures casing vibration, typically expressed as velocity, providing accurate monitoring von machine housing dynamics. -
What type von output signal does the transmitter generate?
It delivers a standard 4–20 mA output proportional to vibration levels, which is compatible with most industrial monitoring systems. -
Is this a loop-powered transmitter?
Yes, it is a 2-wire loop-powered transmitter requiring a DC supply von 18–36 VDC. -
What is the frequency range capability?
It effectively measures vibration in the frequency range von 10 Hz to 1,000 Hz, covering most machinery vibration signatures. -
How does the Stück achieve electrical noise immStücky?
Its stainless steel housing and internal shielding provide strong resistance against EMI and RFI interference. -
Can the sensitivity von the transmitter be customized?
Yes, the transmitter is factory calibrated, and sensitivity can be configured to match the desired measurement range. -
What are the typical integration systems for this transmitter?
It integrates seamlessly with DCS, PLC, SCADA, and Bently Nevada machinery protection systems. -
Does the transmitter support hazardous area use?
Yes, it is certified for ATEX, IECEx, and CSA, allowing safe deployment in explosive environments. -
How does it differ from proximity probe systems?
Unlike proximity probes that monitor shaft vibration, this Stück monitors casing vibration, making it suitable where shaft access is limited. -
What installation method is recommended?
The transmitter is mounted directly onto the machine casing using threaded or stud mounting to ensure accurate signal transfer.
Related Modells (Same Series or Kategorie)
| Modell Number | Beschreibung |
|---|---|

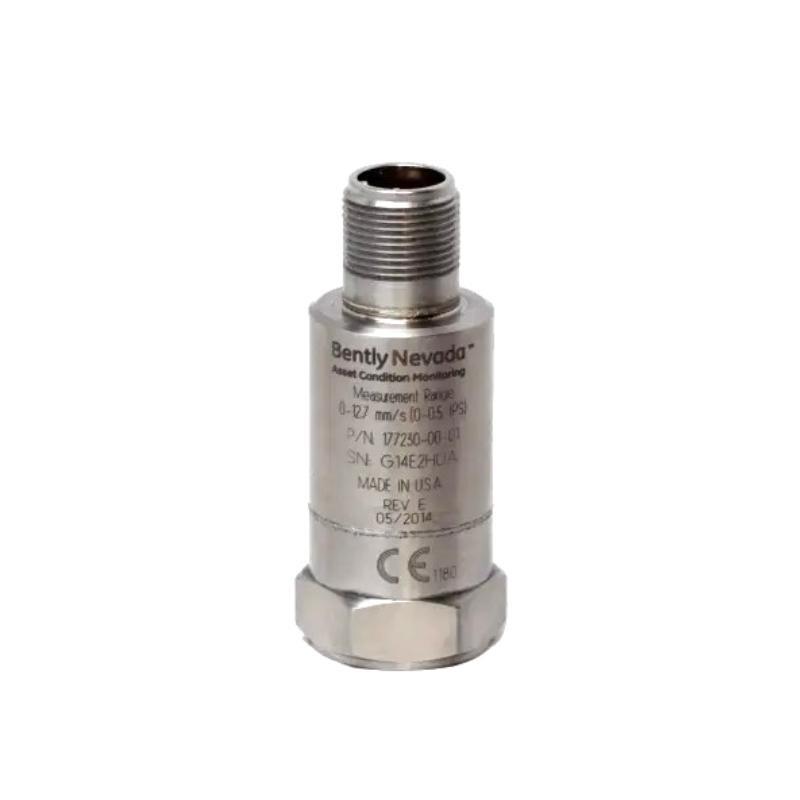

| 177230-00-01-CN | Seismic Transmitter, Chinese market version |
| 177230-01-02-00 | Seismic Transmitter with alternate calibration |
| 177230-01-03-00 | Seismic Transmitter with extended frequency response |
| 177230-02-01-00 | Seismic Transmitter with hazardous area focus |
| 177230-03-01-00 | Seismic Transmitter with custom sensitivity option |
| 177230-04-01-00 | Advanced Seismic Transmitter for high-vibration machines |
Popular Modells from Bently Nevada (Same Marke)
| Modell Number | Beschreibung |
|---|---|
| 330103-00-05-10-02-00 | 3300 XL Proximity Probe |
| 330130-040-00 | 3300 XL Standard Extension Cable |
| 330180-51-00 | 3300 XL NSv Proximity Probe |
| 3500/22M | Transient Data Interface Module |
| 3500/42M | Proximitor/Seismic Monitor Module |
| 3500/94M | VGA Display Module for 3500 Series Rack |
