Product Overview

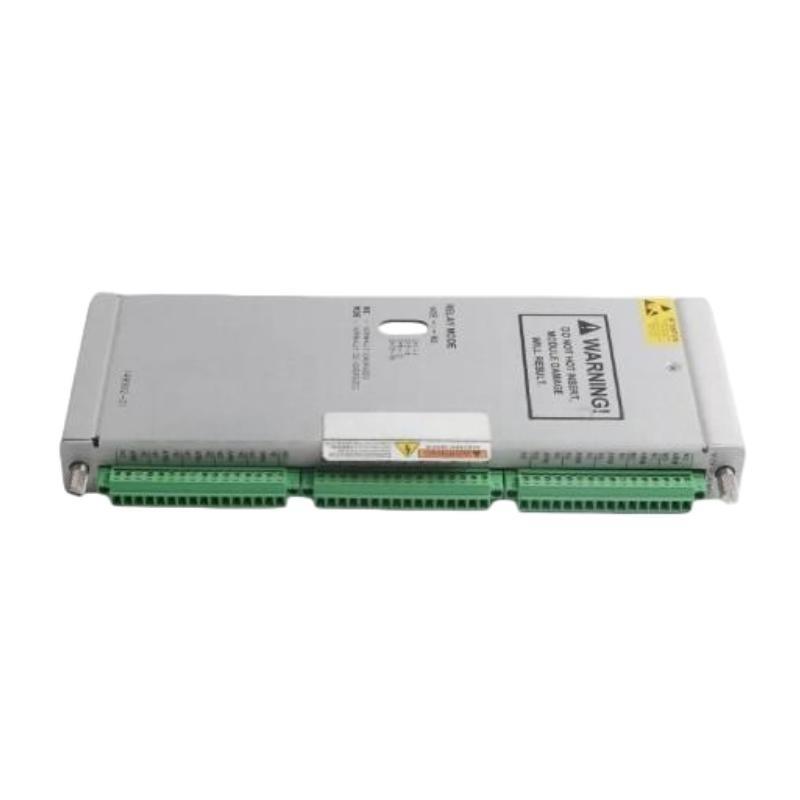

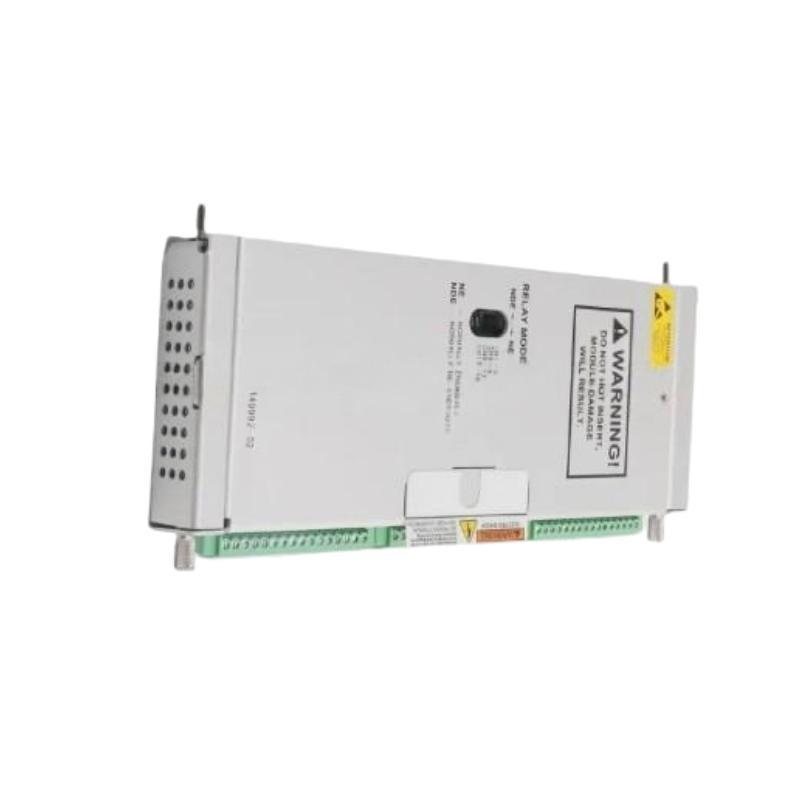

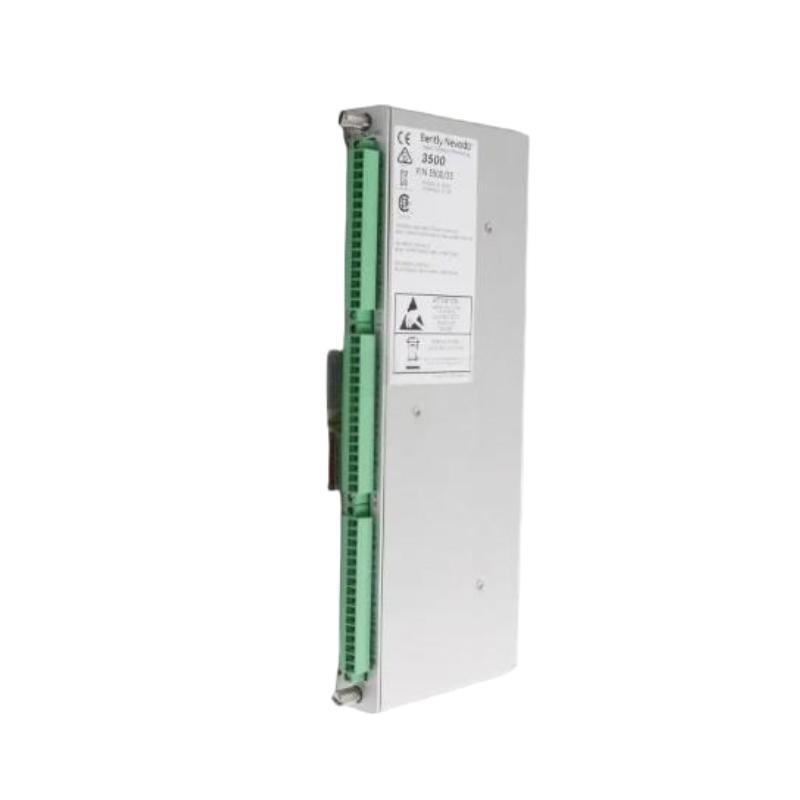

The Bently Nevada 149992-04 16-Channel Relay Module is a high-performance module designed for machine monitoring and protection systems. It provides 16 independent relay outputs for alarm, shutdown, and control functions, allowing seamless integration with Bently Nevada 3300 XL and 3300 NSv series sensors. Engineered for industrial reliability, this module ensures accurate and timely signal processing in critical applications.
Key Features
-
16 independent relay outputs for alarms and control actions
-
Compatible with Bently Nevada 3300 XL and 3300 NSv systems
-
Designed for reliable operation in harsh industrial environments
-
Easy integration into machine monitoring and protection systems
Technical Specifications
| Item | Specification |
|---|---|
| Hersteller | Bently Nevada |
| Artikelnummer | 149992-04 |
| Product Type | 16-Channel Relay Module |
| Supported Devices | 3300 XL and 3300 NSv series sensors |
| Number von Relays | 16 channels |
| Relay Type | SPDT (Form C) |
| Relay Rating | 2 A @ 30 VDC / 0.5 A @ 125 VDC |
| Operating Voltage | 24 VDC nominal |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions | 241 x 24.4 x 242 mm |
| Gewicht | 0.7 kg |
| Applications | Alarm outputs, machine protection, control actions, and automation |
Industry Applications
-
Rotating machinery monitoring and protection
-
Turbines, compressors, and pumps
-
Motors and generators
-
Gearboxes and industrial equipment
-
Oil, gas, and power generation industries
-
Zustand-based monitoring systems
Häufig gestellte Fragen (FAQ)
Q1: What is the main function von the 149992-04 Relay Module?
It provides 16 independent relay outputs for alarms, shutdowns, and control actions.
Q2: Which monitoring systems is it compatible with?
Bently Nevada 3300 XL and 3300 NSv series sensors.
Q3: What type and rating are the relays?
SPDT (Form C), 2 A @ 30 VDC or 0.5 A @ 125 VDC.
Q4: What is the operating voltage?
24 VDC nominal.
Q5: Can it operate in harsh industrial conditions?
Yes, it is designed for reliable operation in industrial environments.
Q6: What is the operating temperature range?
0 °C to +60 °C.
Q7: How many relay channels does it provide?
16 independent channels.
Q8: What are the module dimensions?
241 x 24.4 x 242 mm.
