Produkteinführung

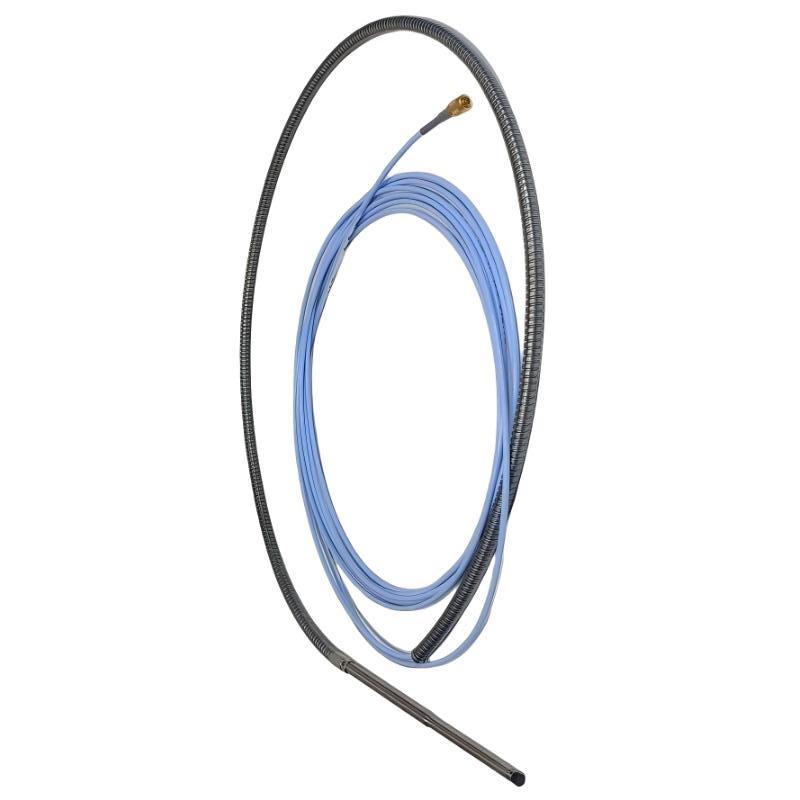

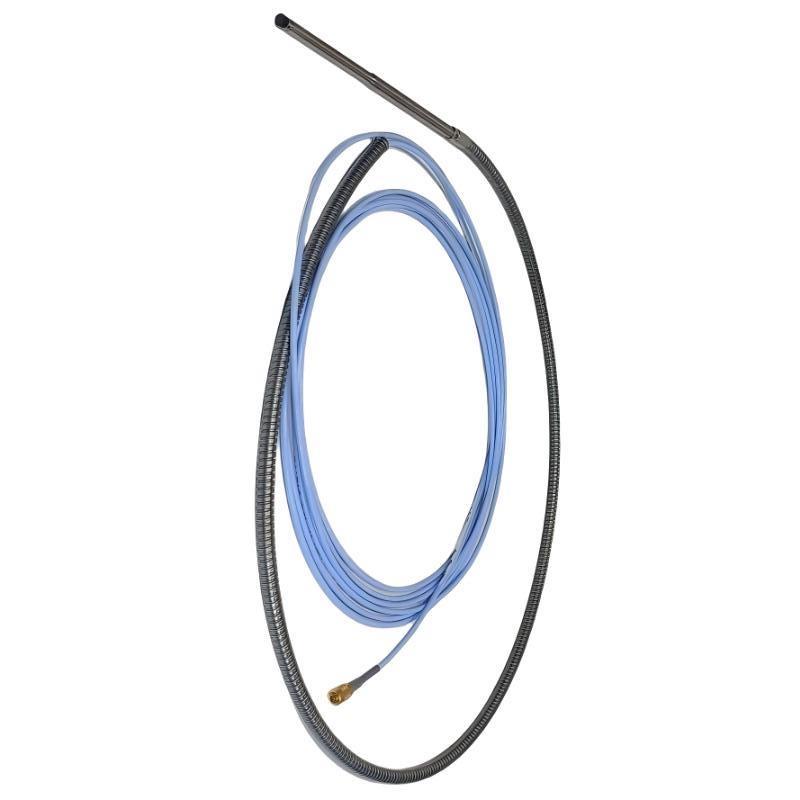

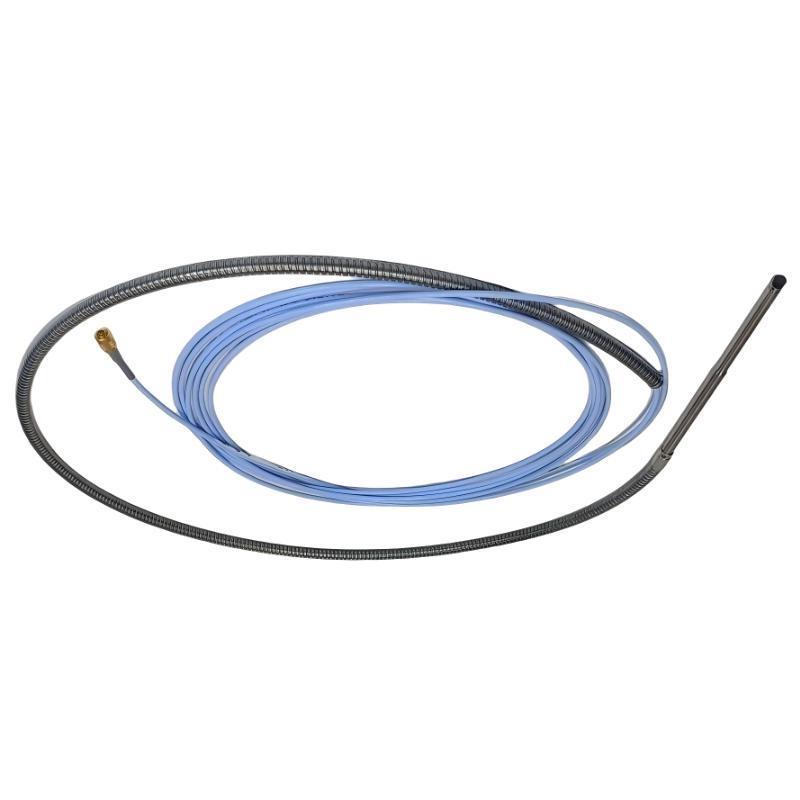

The Bently Nevada 3300 XL NSv Vibration Probe (Modell: 143493-00-080-080-70-00) is a compact eddy current proximity probe designed for precise vibration and displacement measurement in confined installation environments. It belongs to the 3300 XL NSv series, which is specifically engineered for applications where conventional probe sizes cannot be accommodated.
This probe adopts advanced eddy current sensing technology to provide stable, repeatable, and high-resolution measurements von shaft vibration and position. The NSv (Narrow Side View) structure allows installation in tight radial or axial clearances without compromising signal integrity, making it particularly suitable for critical monitoring points in compact machinery.
It is typically used in combination with matched extension cables and NSv Proximitor sensors to form a complete monitoring system. The overall design emphasizes durability and long-term stability, ensuring reliable operation under harsh industrial conditions such as oil contamination, vibration, and temperature variation.
Produktspezifikationen
| Parameter | Value |
|---|---|
| Product Type | Eddy Current Proximity Probe |
| Series | 3300 XL NSv |
| Modell Number | 143493-00-080-080-70-00 |
| Probe Tip Diameter | Approx. 5 mm |
| Measurement Range | Up to 2 mm (80 mils) |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature Range | -35°C to +177°C |
| Cable Configuration | Integrated probe cable + extension |
| Connector Type | ClickLoc miniature connector |
| Probe Material | PPS (Polyphenylene Sulfide) |
| Mounting Thread | M8 or 3/8-24 UNF |
| Output Signal | Analog voltage proportional to displacement |
| System Compatibility | 3300 XL NSv Proximitor |
| Versand Gewicht | 3 kg |
Applications
• Compact machinery vibration monitoring
Used in installations where space is limited, enabling accurate measurement without structural modification.
• High-speed rotating equipment
Applied in turbines and compressors requiring stable dynamic response and precise vibration tracking.
• Axial displacement measurement
Suitable for shaft position monitoring in tight installation conditions.
• Pump and gearbox condition monitoring
Helps detect imbalance, misalignment, and early mechanical faults.
• Retrvonit and upgrade projects
Ideal for replacing legacy probes in systems with restricted mounting space.
Advantages
• Miniature probe structure
Designed for restricted installation environments, improving adaptability in compact machinery.
• High measurement precision
Provides excellent linearity and repeatability, ensuring reliable data acquisition.
• Strong environmental adaptability
Resistant to oil, vibration, and temperature fluctuations, suitable for harsh industrial conditions.
• Flexible configuration
Supports different cable lengths and system combinations for customized installations.
• Proven technology platform
Based on widely applied solutions in critical rotating equipment monitoring systems.
• Stable long-term operation
Ensures consistent signal output with minimal drift over extended periods.
