Produkteinführung

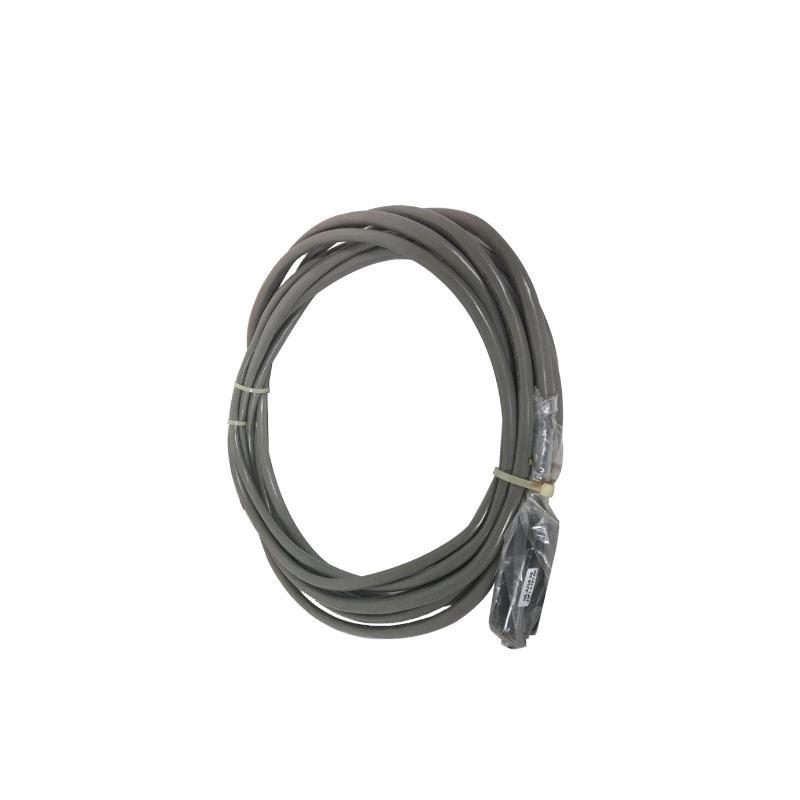

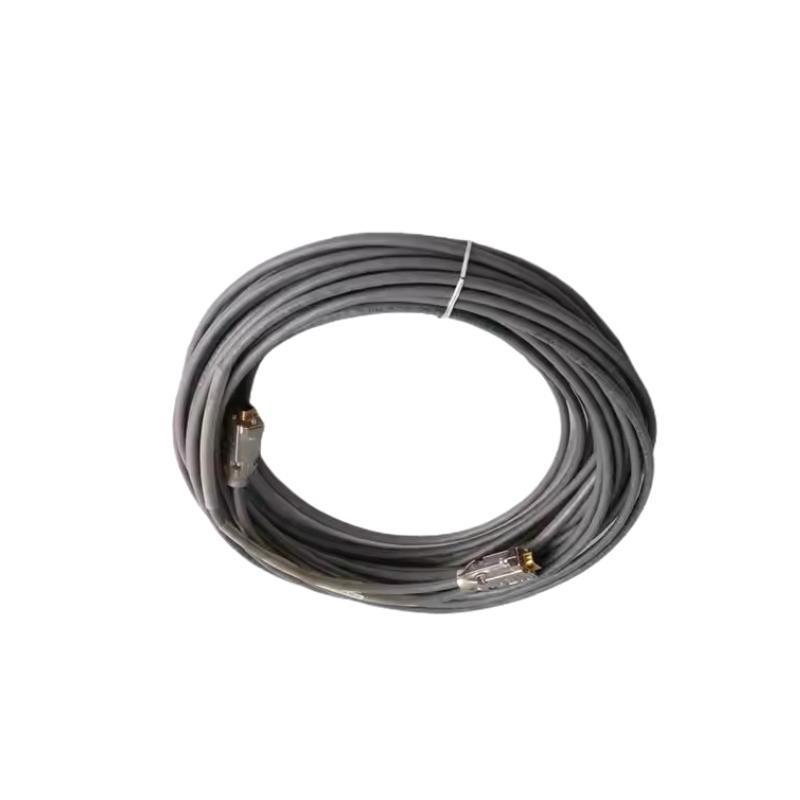

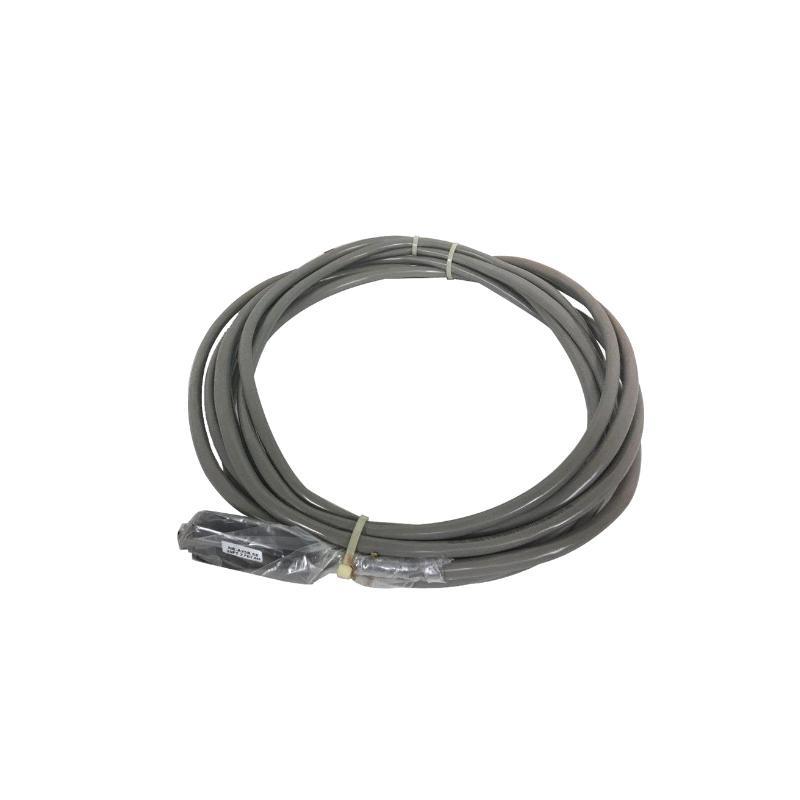

The Bently Nevada 130118-0050-02 is a specialized industrial-grade communication cable engineered for seamless connectivity between a host computer and the Bently Nevada 3500 Series Machinery Protection System rack. Designed and manufactured by Bently Nevada, a leader in condition monitoring and vibration protection technologies, this cable is essential for data acquisition, system control, and communication in critical rotating machinery environments.
This specific cable model — 130118-0050-02 — ensures high signal integrity, EMI protection, and compatibility with system configurations where precision and reliability are critical. It plays a vital role in enabling real-time diagnostics, system parameter adjustments, and continuous data communication from the field rack to the monitoring system or host PC.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Product Code | 130118-0050-02 |
| Hersteller | Bently Nevada (A Baker Hughes Company) |
| Product Type | Host Computer to 3500 Rack Communication Cable |
| Cable Length | 5.0 meters (16.4 feet) |
| Connector Type | Standard 9-pin D-sub connectors with secure locking screws |
| Compatibility | Bently Nevada 3500 Series Rack to Host PC |
| Shielding | High-quality EMI/RFI shielding for interference reduction |
| Outer Jacket Material | Industrial-grade PVC or Thermoplastic Elastomer (TPE) |
| Temperature Rating | -20°C to +80°C |
| Cable Diameter | Approx. 6.5 mm |
| Voltage Rating | ≤ 30V (Low-voltage signal applications) |
| Gewicht | 0.45 kg |
| Versand size | 290 x 190 x 40 mm |
| Standards Compliance | RoHS Compliant, CE Certified |
| Application Environment | Industrial, oil & gas, power generation, rotating equipment monitoring |
Product Applications
The Bently Nevada 130118-0050-02 cable is utilized in a wide range von industrial environments where monitoring and protection von rotating equipment is essential. Specific applications include:
-
Host PC to 3500 rack communication in turbine monitoring systems
-
Oil and gas processing plants
-
Power generation stations
-
Refineries and petrochemical facilities
-
Compressors, turbines, and large rotating equipment diagnostics
-
Integration with SCADA and DCS systems for real-time condition monitoring
-
Remote configuration and system health data retrieval
-
Vibration and process parameter analysis in predictive maintenance systems
Product Advantages
-
Reliable Communication: Ensures uninterrupted data transmission between the host system and 3500 rack.
-
High Signal Integrity: EMI/RFI shielding prevents noise interference in harsh industrial environments.
-
Robust Build Quality: Designed to withstand vibration, temperature extremes, and physical stress.
-
Plug-and-Play Compatibility: Fully compatible with Bently Nevada 3500 Series systems.
-
Ease von Maintenance: Simple installation and replacement reduce system downtime.
-
Field Proven: Widely adopted in critical rotating machinery applications across industries.
Häufig gestellte Fragen (FAQ)
-
Q: What is the primary function von the 130118-0050-02 cable?
A: It connects a host computer to the Bently Nevada 3500 rack for data communication and system monitoring. -
Q: Is this cable compatible with all 3500 Series systems?
A: Yes, it is specifically designed for use with the Bently Nevada 3500 Series machinery protection systems. -
Q: What type von connectors does the cable use?
A: It features standard 9-pin D-sub connectors with locking screws for secure connections. -
Q: Can this cable be used outdoors?
A: It is primarily intended for indoor industrial environments, but it can be used in covered outdoor enclosures if environmental protection is ensured. -
Q: What is the maximum operating temperature?
A: The cable is rated for up to +80°C. -
Q: How long is the cable?
A: The 130118-0050-02 is 5.0 meters (16.4 feet) in length. -
Q: Does the cable require any special svontware drivers?
A: No, it is a passive communication cable and does not require any drivers. -
Q: Is the cable RoHS compliant?
A: Yes, it complies with RoHS environmental standards. -
Q: Can this cable support firmware updates to the 3500 rack?
A: Yes, it facilitates all host-to-rack communications, including firmware updates. -
Q: Is it possible to order custom lengths?
A: While this model is 5.0 meters, Bently Nevada may vonfer custom-length cables under different part numbers.
Recommended Related Modells (Same Series or Compatible)
| Modell | Beschreibung | Cable Length | Connector Type |
|---|---|---|---|
| 130118-0050-01 | Host Computer to 3500 Rack Cable (3.0 meters) | 3.0 m | 9-pin D-sub |
| 130118-0050-03 | Host Computer to 3500 Rack Cable (10.0 meters) | 10.0 m | 9-pin D-sub |
| 130118-0001-02 | COM Adapter Cable for 3500/20 Rack Interface Module | 2.0 m | 15-pin to 9-pin D-sub |
| 130118-0002-01 | Communication Cable with Right-Angle Connector for tight spaces | 1.5 m | Custom 90° D-sub |
| 149992-01 | Configuration Cable for 3500/20 Rack Interface | 5.0 m | USB to Serial |
| 130118-0050-05 | Host PC to 3500/22M Rack, extended EMI shielding | 5.0 m | Enhanced Shielding D-sub |
Popular Bently Nevada Modells
| Modell | Beschreibung | Application |
|---|---|---|
| 3500/22M | Transient Data Interface Module | Vibration monitoring system gateway |
| 3500/25 | Keyphasor Module | Shaft speed and phase measurement |
| 3500/40M | Proximitor Monitor | Displacement & vibration monitoring |
| 3500/15 | Power Supply Module | Redundant power supply for 3500 rack |
| 3500/20 | Rack Interface Module | Interface for host communication |
| 3500/05 | System Rack | Housing and integration von 3500 modules |
