Product Beschreibung

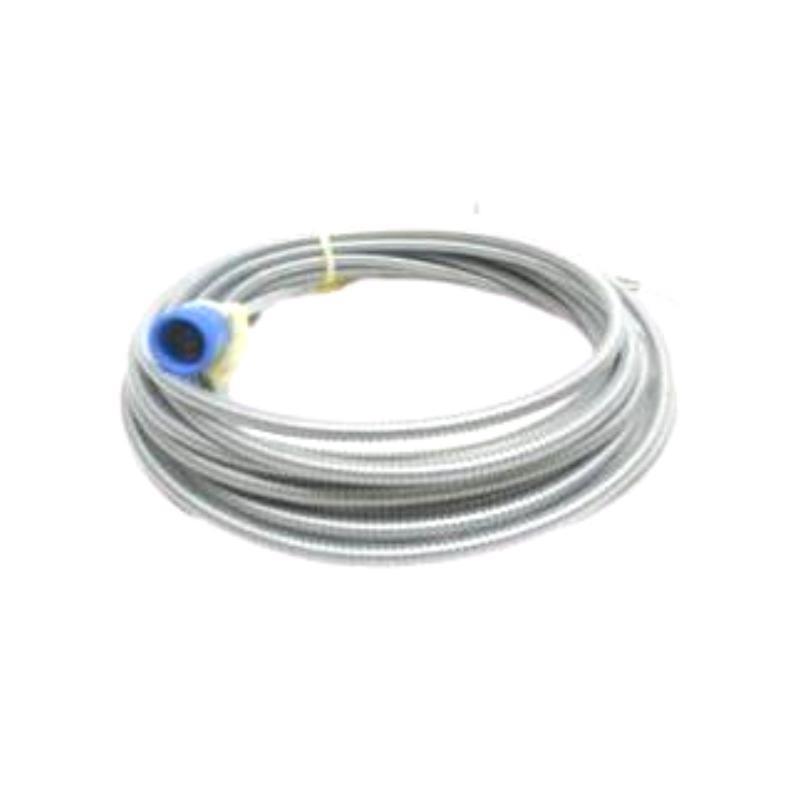

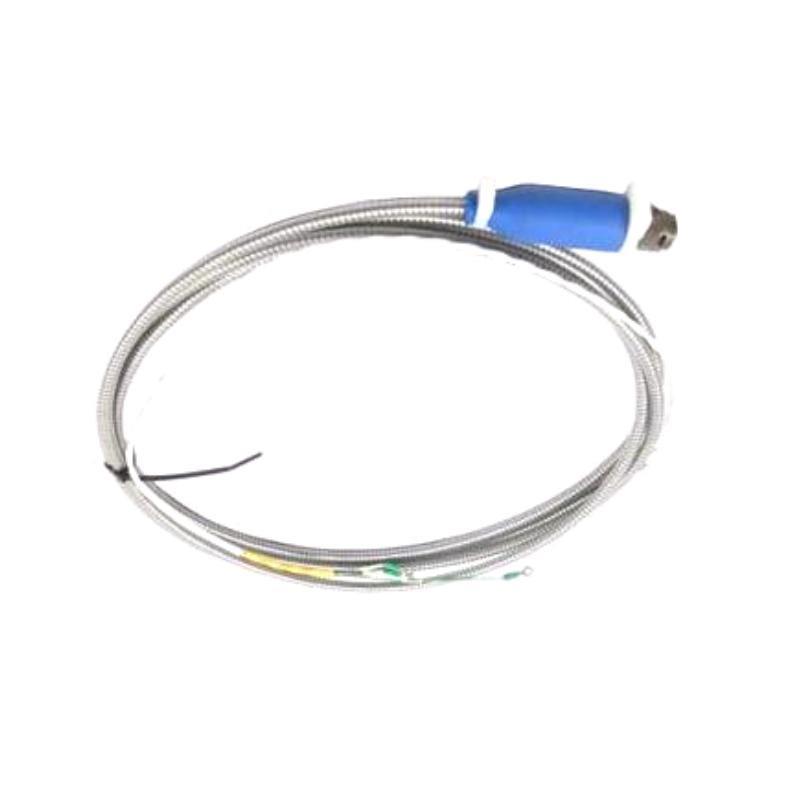

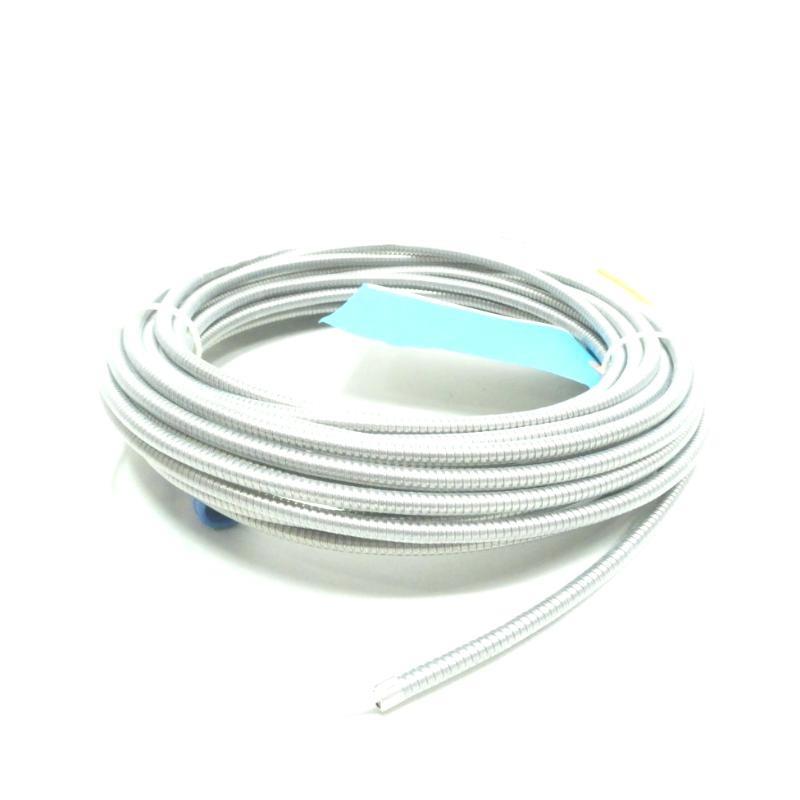

The Bently Nevada 106765-16 Interconnect Cable is designed for use with the Velomitor XA Piezo-velocity Sensor series. It provides reliable signal transmission in harsh industrial environments, thanks to its rugged construction and weatherprovoning. The cable supports up to IP-65 and NEMA 4X standards when properly installed and terminated, ensuring long-term performance even in moisture-prone conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Cable Length | 16 metres |
| Versand Gewicht | 3 kg |
| Connector Type | MIL-C-26482, hermetically sealed |
| Minimum Bend Radius | 1.5 inches (38 mm) |
| Jacket | Stainless steel armored |
| Environmental Rating | IP-65, NEMA 4X (with proper installation) |
| Temperature Range | -55 °C to +121 °C (-67 °F to +250 °F) |
| Maximum Length Supported | 305 metres (with no signal loss) |
Product Applications
The 106765-16 Interconnect Cable is used primarily in industrial condition monitoring systems, particularly with Bently Nevada Velomitor XA sensors. It is ideal for:
-
Steam and gas turbines
-
Compressors and pumps
-
Generators
-
Sonstige rotating machinery in harsh, humid, or hazardous environments
Product Advantages
-
Durable stainless steel armored jacket for mechanical protection
-
Hermetically sealed connectors prevent moisture ingress
-
Certified for hazardous area use (CSA, ATEX, IECEx options)
-
Supports long cable runs up to 305 metres without signal degradation
-
Compatible with existing Bently Nevada monitoring infrastructure
Häufig gestellte Fragen (FAQ)
Q1: What is the maximum supported cable length without signal loss?
A1: Up to 305 metres when using Bently Nevada bulk cable 02173007.
Q2: Can the cable be installed outdoors?
A2: Yes, when properly installed with terminal housing and boots, it meets IP-65 and NEMA 4X.
Q3: What temperature extremes can it withstand?
A3: From -55 °C to +121 °C (-67 °F to +250 °F).
Q4: Is the cable resistant to water ingress?
A4: Yes, the case and connectors are hermetically sealed and rated to 100% humidity (non-submerged).
Q5: What is the minimum bend radius?
A5: 1.5 inches (38 mm) minimum.
Q6: Which sensors is it compatible with?
A6: Specifically designed for Bently Nevada Velomitor XA sensors.
Q7: What certifications are available?
A7: CSA, ATEX, IECEx certifications for hazardous environments.
Q8: What is the connector type?
A8: MIL-C-26482 2-pin hermetically sealed stainless steel connector.
Q9: Does the cable come with boots or clamps?
A9: Boots and clamps are sold as accessories and not included by default.
Q10: What is the shipping weight von the 16m cable?
A10: Approximately 3 kg.
Recommended Related Modells
| Modell | Length | Connector Type | Gewicht |
|---|---|---|---|
| 106765-10 | 10 metres | MIL-C-26482 | 2 kg |
| 106765-25 | 25 metres | MIL-C-26482 | 4 kg |
| 02173007 | Bulk (custom) | Bare wires | Variable |
| 103537-01 | Mounting Block | Field wiring interface | 0.5 kg |
| 03839144 | Boot Cover | Fluorosilicone elastomer | 0.2 kg |
| 106769-00 | Terminal Housing | No conduit fittings | 1.5 kg |
Popular Bently Nevada Modells
| Modell | Beschreibung | Gewicht |
|---|---|---|
| 330500 | Velomitor Sensor | 156 g |
| 330525 | Velomitor XA Sensor | 156 g |
| 3500/42M | Proximitor Seismic Monitor | 1.2 kg |
| 3500/44M | Aeroderivative GT Vibration Monitor | 1.3 kg |
| 3500/22M | Transient Data Interface Module | 0.9 kg |
| 3500/15 | Power Supply Module | 1.5 kg |
