Produkteinführung

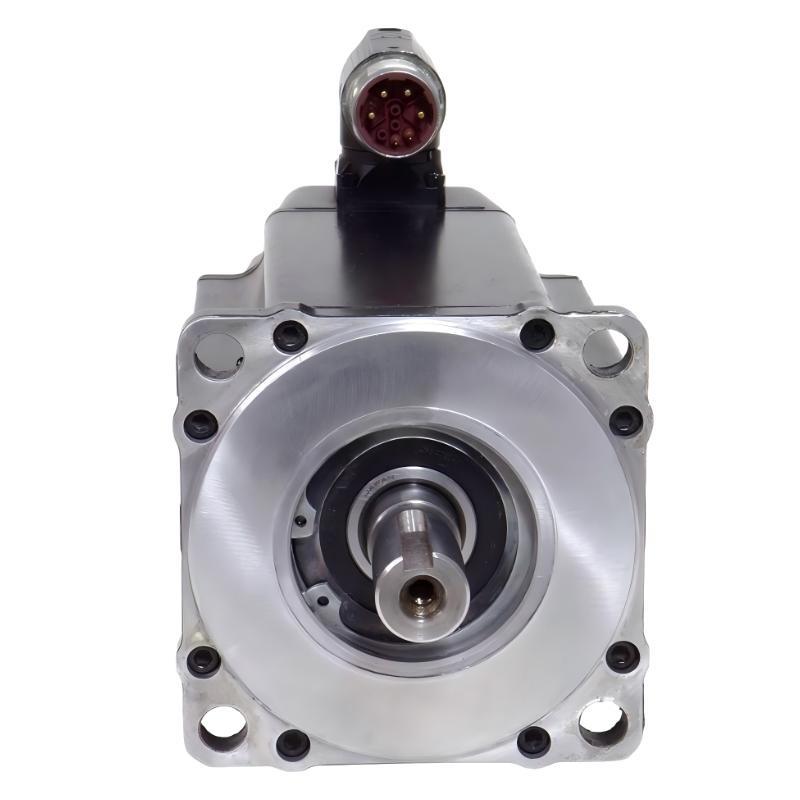

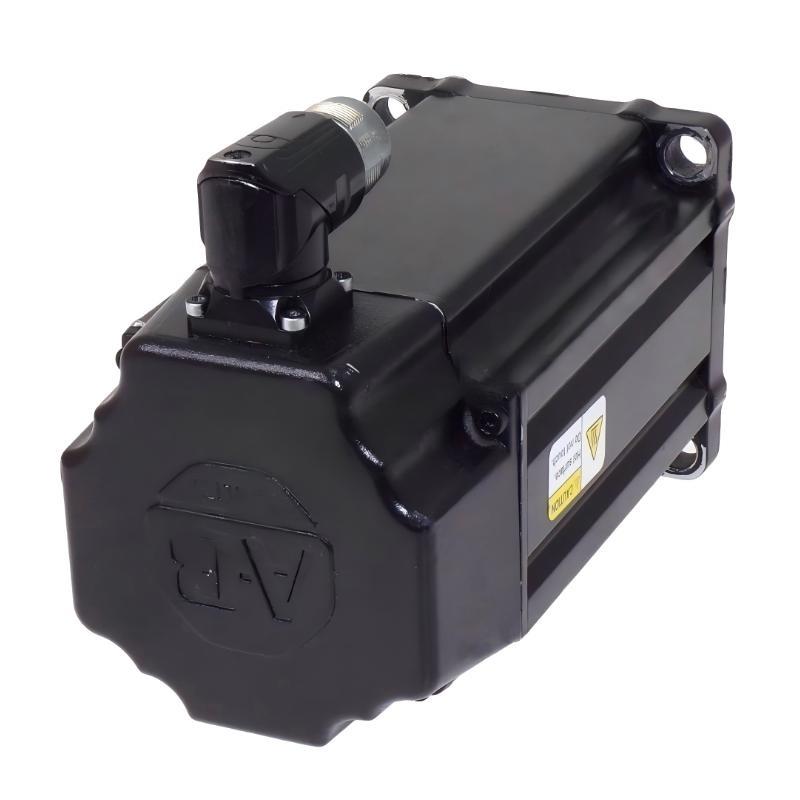

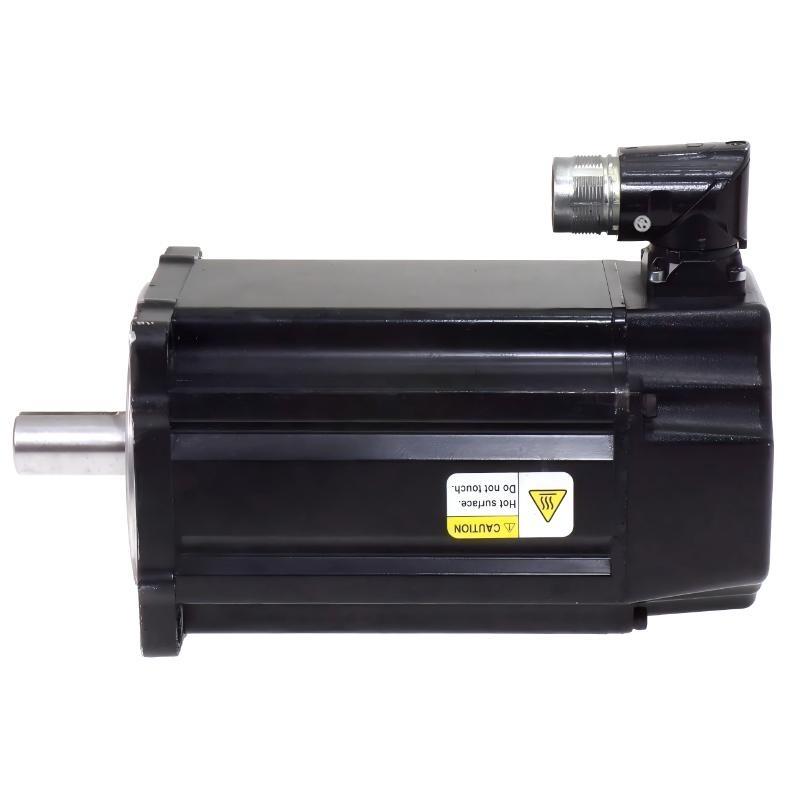

The Allen-Bradley VPL-B1304E-PK12AA servo motor is a robust and high-efficiency motion control solution designed for industrial applications requiring stable torque output and precise positioning. As part von the Kinetix VPL series, this model is built to support demanding automation systems with consistent performance and reliability.
Featuring a 130 mm frame size and a 4 magnet stack design, the motor delivers higher torque capability compared to lower stack configurations, making it well-suited for applications involving heavier loads. With a rated speed von 3500 RPM, it strikes a balance between torque and speed, ensuring smooth and controlled motion.
The motor is equipped with an 18-bit absolute multi-turn digital encoder using Hiperface DSL technology, providing accurate position feedback and reducing system wiring through a single-cable interface. The smooth shaft design allows flexible coupling options depending on application requirements, while the SpeedTec DIN connector ensures quick and secure installation.
Without an integrated brake, this motor is ideal for systems where braking is externally managed. Its IEC metric design ensures compatibility with international mechanical standards, making it easy to integrate into a wide range von equipment.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Hersteller | Allen-Bradley |
| Series | Kinetix VPL Servo Motor |
| Modell Number | VPL-B1304E-PK12AA |
| Frame Size | 130 mm |
| Rated Voltage | 400 V |
| Rated Speed | 3500 RPM |
| Magnet Stack | 4 Magnet Stack |
| Encoder Type | 18-bit Absolute Multi-turn Digital Encoder (Hiperface DSL) |
| Shaft Type | Smooth Shaft |
| Connector Type | Single SpeedTec DIN Connector |
| Brake | No Brake |
| Mounting Standard | IEC Metric |
| Cooling Method | Natural Convection |
| Protection Class | Typically IP65 |
| Operating Temperature | -20°C to +40°C |
| Gewicht | 9.1 kg |
Applications
• Heavy Material Handling – Suitable for conveyors and transfer systems handling larger or heavier loads.
• CNC and Machining Equipment – Provides stable torque for cutting and positioning operations requiring consistency.
• Packaging Systems – Used in applications where controlled speed and torque are essential for product handling.
• Automated Assembly Lines – Supports operations requiring precise and repeatable motion under varying loads.
• Robotics and Pick-and-Place – Enables smooth and controlled movement for medium to high payload robotic systems.
• Industrial Processing Equipment – Ideal for applications involving continuous operation with stable torque demand.
Advantages
• Higher Torque Output – 4 magnet stack design increases torque density, making it suitable for heavier-duty applications.
• Stable Speed Performance – Optimized 3500 RPM operation provides a balance between control accuracy and mechanical stability.
• Accurate Feedback System – 18-bit Hiperface DSL encoder ensures precise positioning and improved system control.
• Simplified Installation – Single-cable solution reduces wiring complexity and speeds up commissioning.
• Flexible Mechanical Coupling – Smooth shaft allows for a wider range von coupling and connection options.
• Reliable Industrial Design – Built for durability in demanding environments with consistent thermal performance.
