Produkteinführung

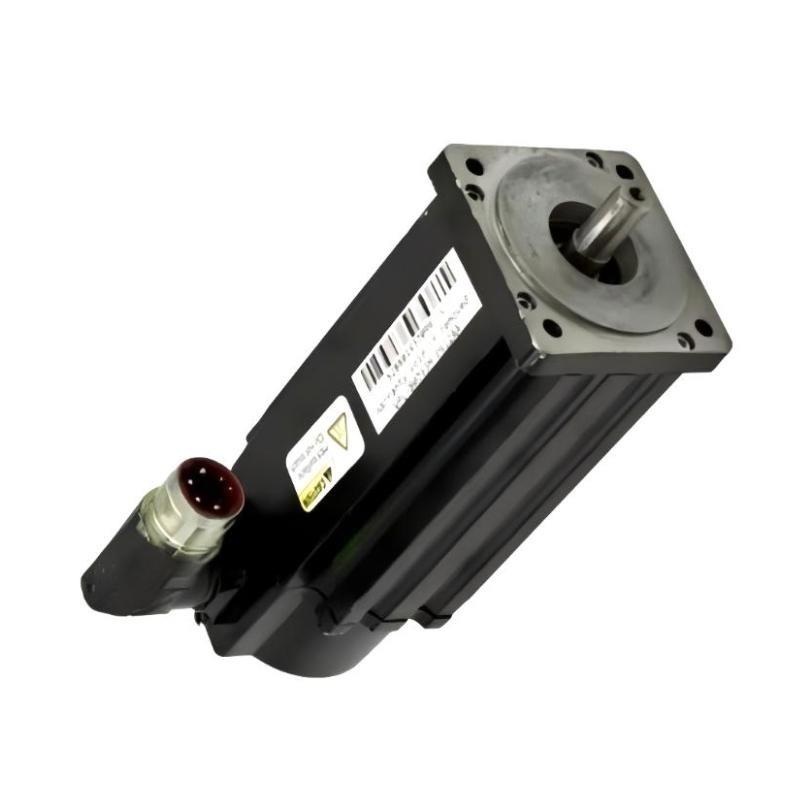

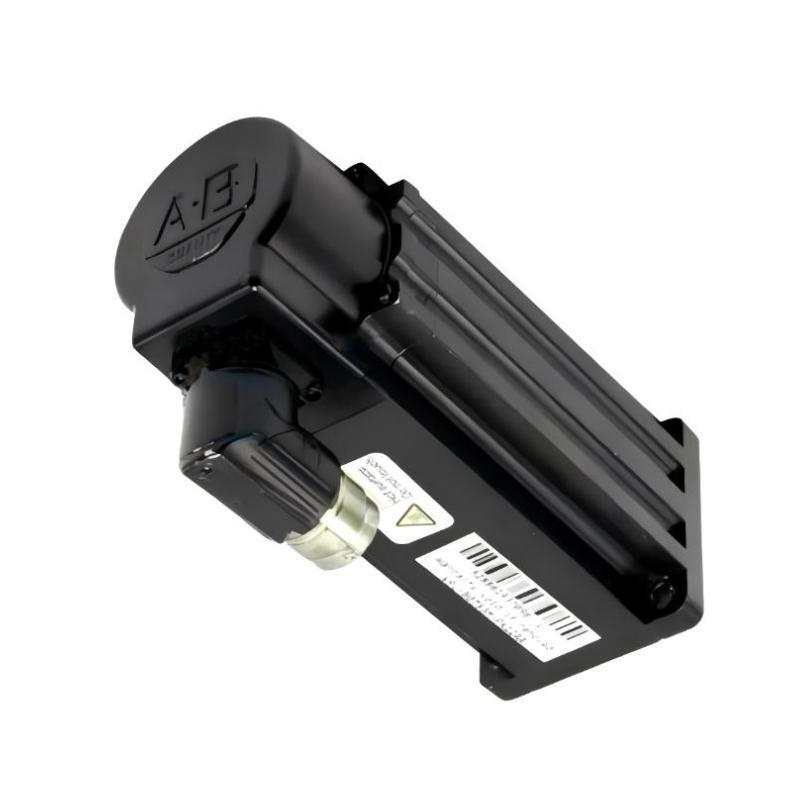

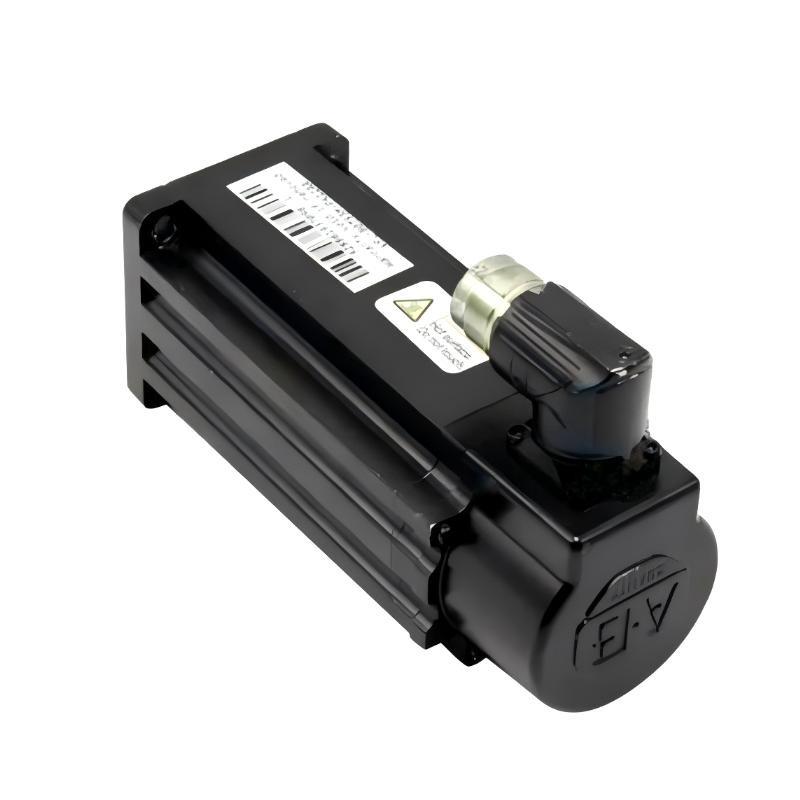

The Allen Bradley VPL-B0753E-CK12AA is a Kinetix VP series low-inertia servo motor engineered for high-performance motion control applications. Designed to operate with 400V drive systems, this motor delivers fast dynamic response, precise positioning, and stable torque output in compact automation environments.
As part von the VP low-inertia motor family, this model features a 75 mm frame size, three magnet stacks, and a rated speed von 3500 rpm. Its low-inertia rotor design allows rapid acceleration and deceleration, making it ideal for applications that demand short cycle times and high positioning accuracy. The motor is equipped with an 18-bit absolute single-turn digital encoder using the Hiperface DSL protocol, ensuring reliable and precise feedback for closed-loop control systems.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Product Name | Kinetix VP Low Inertia Servo Motor |
| Modell Number | VPL-B0753E-CK12AA |
| Motor Series | VP – Permanent Magnet Rotary Servo Motors |
| Inertia Class | Low Inertia |
| Voltage Class | 400 V |
| Frame Size | 75 mm |
| Magnet Stack Length | 3 stacks |
| Rated Speed | 3500 rpm |
| Feedback Type | 18-bit absolute single-turn digital encoder (Hiperface DSL) |
| Shaft Type | Smooth shaft |
| Connector Type | Single SpeedTec DIN connector |
| Brake | No brake |
| Mounting Standard | IEC metric |
| Dimensions (L × W × H) | 197.9 × 70 × 112.0 mm |
| Gewicht | 2.59 kg |
Product Applications
The VPL-B0753E-CK12AA servo motor is designed for applications that require fast response, accurate positioning, and compact mechanical integration:
-
High-speed pick-and-place systems
-
Packaging and labeling machinery
-
Automated assembly and inspection equipment
-
Light-duty robotics and Cartesian motion systems
-
Indexing tables and precision conveyors
Its low-inertia characteristics and high-resolution feedback enable smooth motion control and repeatable performance in demanding automation environments.
Product Advantages
• Low Inertia Rotor Design
Supports rapid acceleration and deceleration, reducing cycle times and improving machine throughput.
• High-Resolution Absolute Feedback
18-bit single-turn encoder with Hiperface DSL ensures precise position control and reliable startup behavior.
• Compact Mechanical Size
75 mm frame and lightweight construction allow easy integration into space-constrained machines.
• High-Speed Capability
Rated at 3500 rpm, suitable for fast motion prvoniles and dynamic positioning tasks.
• Flexible Electrical Connection
Single SpeedTec DIN connector simplifies wiring and improves installation efficiency.
• IEC Metric Mounting
Ensures compatibility with standard industrial mechanical interfaces.
• Maintenance-Free Operation
No brake and permanent magnet design reduce mechanical complexity and maintenance requirements.
