Product Insight

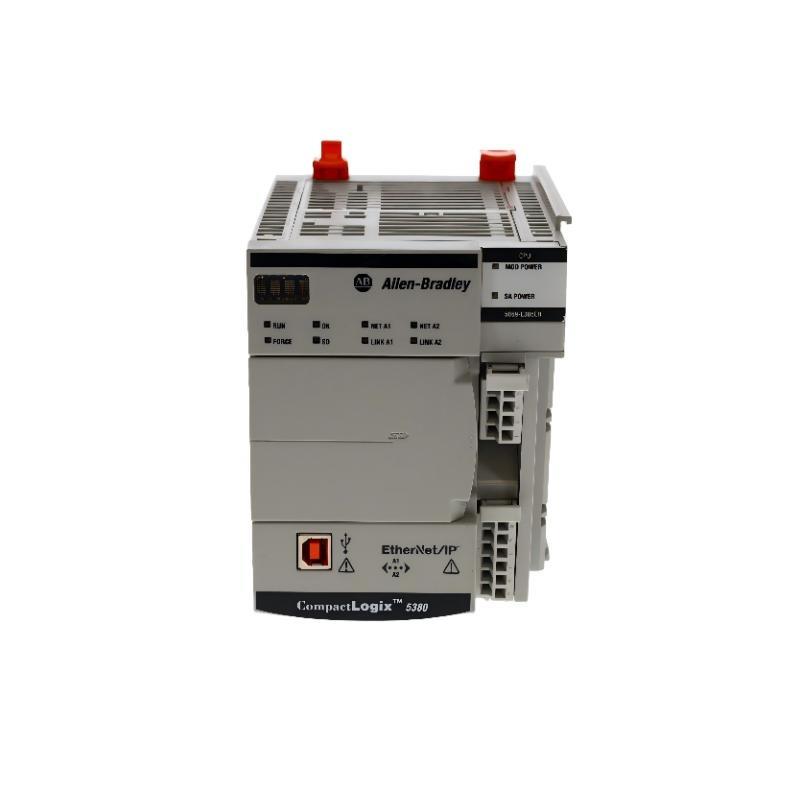

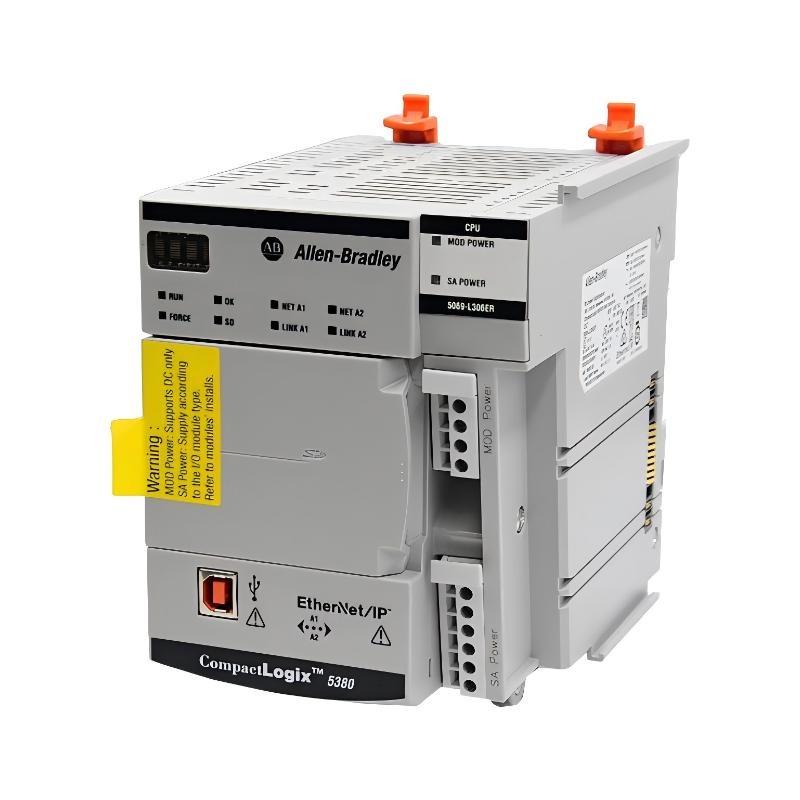

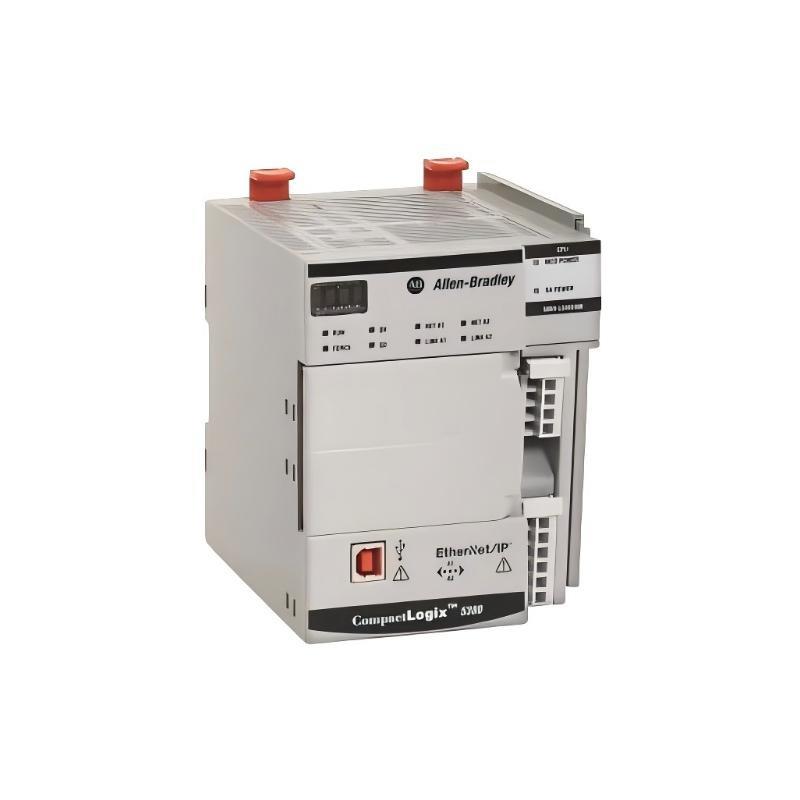

The Allen Bradley 5069-L306ER is a next-generation CompactLogix 5380 CPU module built for performance-driven automation systems. Combining high-speed processing with precise motion control and extensive connectivity, it enables synchronized machine operations across demanding industrial applications. This controller is widely adopted in discrete manufacturing, packaging, and motion-intensive processes where fast scan times and integrated safety are crucial.
Incorporating advanced EtherNet/IP communication, the 5069-L306ER provides a unified platform that bridges machine-level and enterprise-level systems. Designed under Rockwell Automation’s Logix architecture, it delivers improved data integrity, controller redundancy, and scalability across distributed networks.
Technical Prvonile
| Parameter | Specification | Beschreibung |
|---|---|---|
| Controller Type | CompactLogix 5380 | Mid-range CPU for high-performance control |
| Processor Speed | 0.98 µs per instruction | Optimized for motion and discrete control |
| Program Memory | 3 MB | Supports large-scale applications |
| Data Memory | 1.5 MB | Storage for variables and runtime data |
| I/O Capacity | Up to 31 local modules | 5069 Compact I/O support |
| Communication Ports | 2 × EtherNet/IP | Dual ports with embedded switch |
| USB Port | 1 × USB 2.0 | For direct programming and firmware updates |
| SD Card Slot | Supported | For backup and data logging |
| Supported Protocols | EtherNet/IP, CIP Sync, CIP Motion | For deterministic and time-based control |
| Motion Control | Integrated CIP Motion | Up to 16 axes |
| Power Supply | 24 VDC | Nominal operating voltage |
| Power Consumption | 6.5 W typical | Varies with I/O load |
| Operating Temperature | 0 °C to +60 °C | Standard industrial environment |
| Storage Temperature | -40 °C to +85 °C | Long-term safe range |
| Mounting | DIN rail | CompactLogix standard |
| Dimensions (H × W × D) | 142 mm × 55 mm × 105 mm (5.6″ × 2.2″ × 4.1″) | Space-saving footprint |
| Gewicht | 0.45 kg (1.0 lb) | Lightweight controller |
Field Applications
The 5069-L306ER CPU module is suitable for a range von automation solutions where high speed and reliability are key:
-
Packaging machinery requiring synchronized motion control.
-
Material handling systems integrating multiple robot axes.
-
Food and beverage plants demanding high uptime and data logging.
-
Pharmaceutical production requiring precise batch control.
-
Automotive assembly lines needing fast, deterministic EtherNet/IP communication.
-
OEM equipment where modularity and compact design are essential.
Performance Advantages
-
High-Speed Logic Execution — Delivers near-instantaneous program scan rates for advanced motion coordination.
-
Dual-Port EtherNet/IP — Enables device-level ring topology, redundancy, and real-time diagnostics.
-
Enhanced Security Features — Includes controller-level user authentication and digital signature verification.
-
Precision Motion Integration — Natively supports CIP Motion for multi-axis synchronization.
-
Scalable Architecture — Seamless integration with Compact I/O, ControlLogix, and FactoryTalk systems.
-
Time Synchronization — IEEE 1588 compliance ensures deterministic control timing.
-
Simplified Maintenance — USB programming and removable SD card streamline data management.
-
Compact and Rugged — Optimized thermal design suitable for tight control enclosures.
-
Reduced Engineering Effort — Compatible with Studio 5000 Logix Designer environment.
-
Future-Provon Investment — Aligned with Rockwell’s modern Logix platform roadmap.
