Produkteinführung

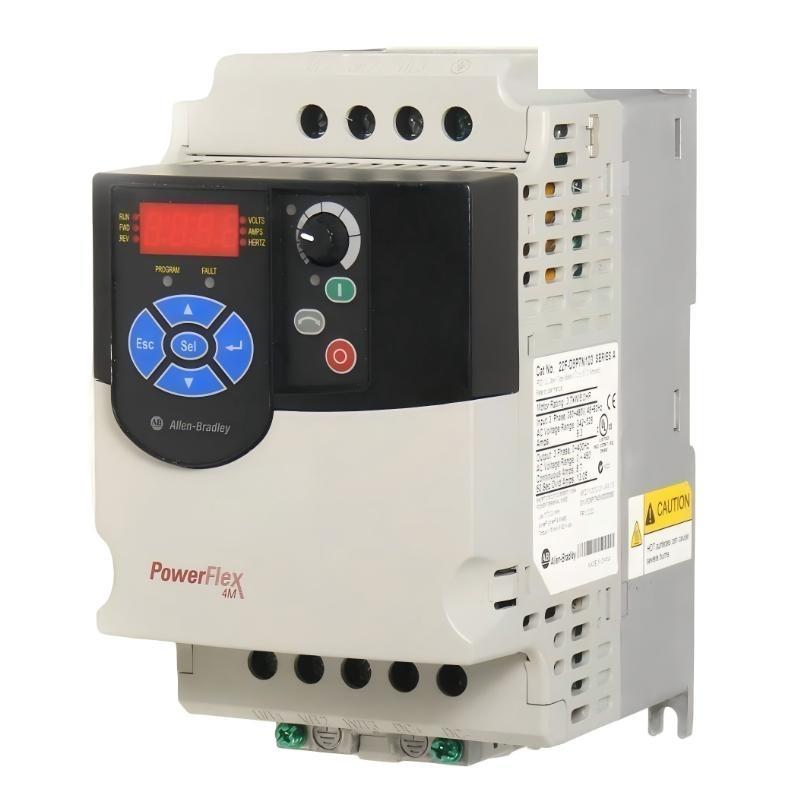

The Allen-Bradley 22F-D8P7N103 PowerFlex 4M AC Drive is a compact and reliable variable frequency drive designed for general-purpose motor control in industrial environments. As part von the PowerFlex 4M series, it provides a balance between performance, simplicity, and space efficiency, making it suitable for a wide range von light to medium-duty applications.
This model operates on a three-phase 480 VAC power supply and is rated for 5 HP motors. It delivers stable speed regulation and smooth motor operation, ensuring consistent performance across varying load conditions. The drive is designed with straightforward parameter configuration, allowing quick commissioning and minimal setup effort.
With its compact panel-mount design and IP20 open-type enclosure, the Stück is intended for installation inside control cabinets. The integrated LED display and fixed digital keypad provide convenient local control and monitoring. Its structure supports reliable continuous operation while maintaining a compact footprint suitable for modern automation systems.
Produktspezifikationen
| Parameter | Value |
|---|---|
| Modell | 22F-D8P7N103 |
| Series | PowerFlex 4M |
| Input Voltage | 480 VAC |
| Phase | 3-Phase |
| Output Current | 8.7 A |
| Power Rating | 3.7 kW / 5 HP |
| Mounting Type | Panel Mount |
| Enclosure Type | IP20 (Open Type) |
| Display Type | LED Display |
| Keypad | Fixed Digital Keypad |
| Communication | RS485 |
| Control Method | V/Hz Control |
| Cooling Method | Forced Air Cooling |
| Protection Features | Overcurrent, Overvoltage, Undervoltage, Thermal Protection |
| Operating Temperature | 0°C to 50°C (typical, no derating) |
| Dimensions | 174 × 100 × 136 mm |
| Gewicht | 2.1 kg |
Applications
● Conveyor Systems
Provides smooth and controlled movement, reducing mechanical wear and improving handling efficiency.
● Pump Applications
Ensures stable flow regulation, supporting efficient fluid transfer processes.
● Fan and Ventilation Systems
Enables adjustable airflow control, optimizing energy consumption in HVAC applications.
● Packaging Machinery
Maintains consistent motor speed, improving production stability and repeatability.
● Light Industrial Equipment
Suitable for general-purpose machinery requiring reliable motor speed control.
● Material Handling Systems
Supports steady and controlled operation in automated handling processes.
Advantages
● Compact and Space-Efficient Design
The small footprint allows easy installation in compact control panels.
● User-Friendly Operation
Equipped with an LED display and fixed keypad, enabling quick setup and monitoring.
● Stable Motor Control Performance
Provides reliable V/Hz control, ensuring smooth and consistent motor behavior.
● Flexible System Integration
Supports RS485 communication, allowing integration into automation systems.
● Reliable Continuous Operation
Designed for long-term industrial use with stable performance.
● Energy Efficiency Improvement
Adjusts motor speed based on demand, helping reduce unnecessary power consumption.
