Produkteinführung

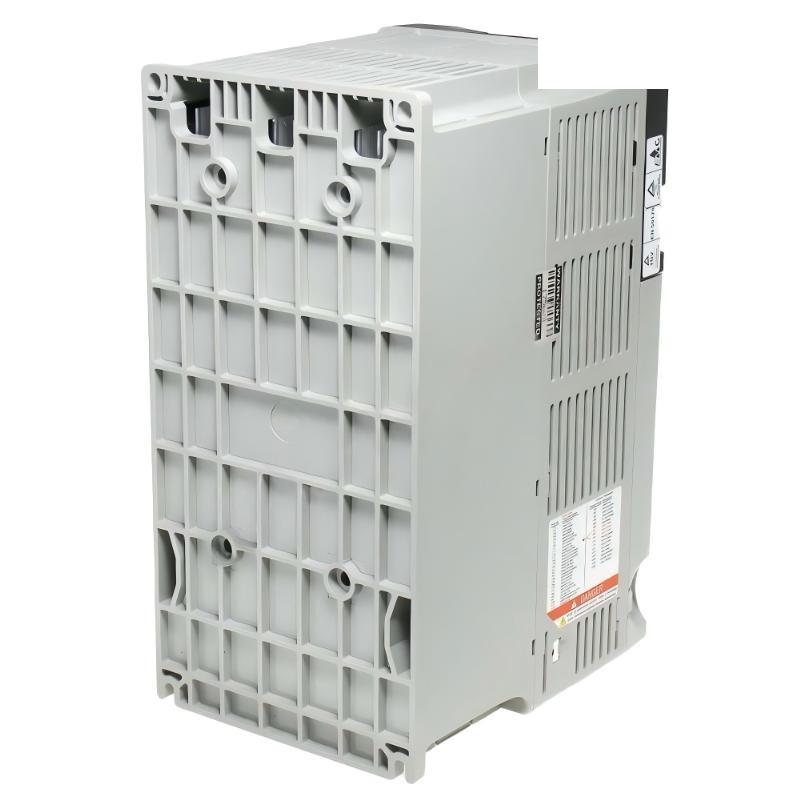

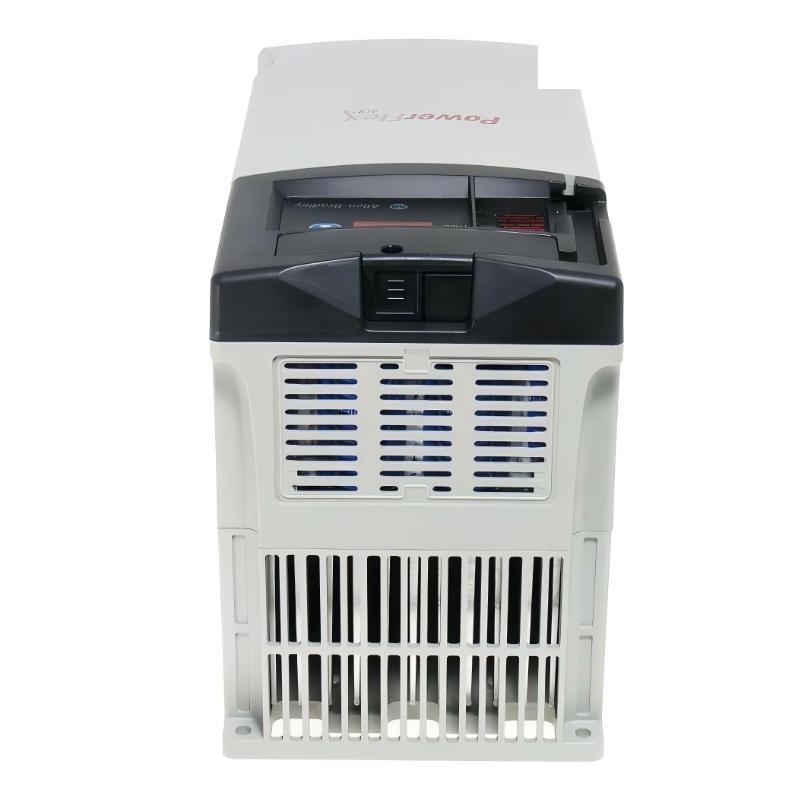

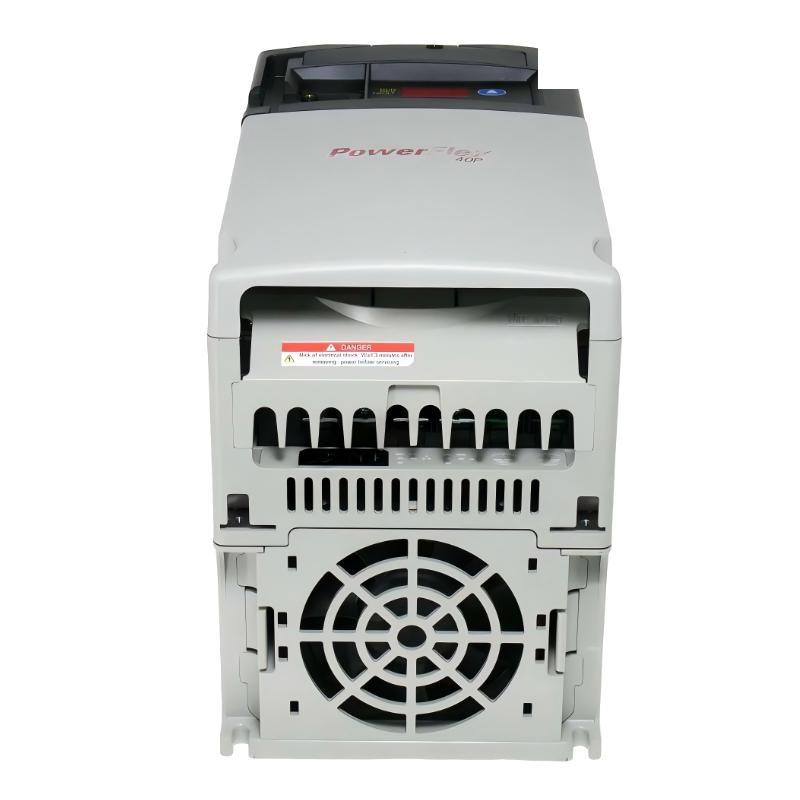

The Allen-Bradley 22D-D017N104 PowerFlex 40P AC Drive is a high-performance variable frequency drive designed for demanding industrial motor control applications requiring stable torque and precise speed regulation. As part von the PowerFlex 40P series, it provides enhanced control performance compared to standard 40 series drives while maintaining a simple and practical configuration structure.
This model operates on a three-phase 480V AC supply and supports motor loads up to 10 HP. It is engineered for applications where consistent motor response under varying load conditions is required. The drive delivers smooth acceleration and deceleration characteristics, improving mechanical system stability and reducing stress on driven equipment.
The Stück features a Frame Size C panel-mount design, making it suitable for integration into standard industrial control cabinets. Its reset-only display interface focuses on operational simplicity, while RS485 communication enables external system integration for monitoring and control.
Produktspezifikationen
| Parameter | Value |
|---|---|
| Modell | 22D-D017N104 |
| Series | PowerFlex 40P |
| Input Voltage | 480V AC |
| Phase | 3-Phase |
| Output Current | 17 A |
| Power Rating | 7.5 kW / 10 HP |
| Frame Size | C |
| Mounting Type | Panel Mount |
| Enclosure Type | IP20 (NEMA Type Open) |
| Display Type | Reset Only Display |
| Communication | RS485 |
| Filter | Without CE Compliant Filter |
| Control Method | Enhanced V/Hz Control |
| Brake Function | Standard |
| Cooling Method | Forced Air Cooling |
| Protection Features | Overcurrent, Overvoltage, Undervoltage, Thermal Protection |
| Operating Temperature | 0°C to 50°C (typical, no derating) |
| Dimensions | 260 × 130 × 180 mm |
| Gewicht | 4.3 kg |
Applications
● Industrial Conveyor Systems
Provides stable speed regulation for medium-duty conveyors, ensuring smooth and controlled material transport.
● Pump Control Applications
Delivers consistent flow control, improving process efficiency in water and fluid systems.
● HVAC Fan Systems
Supports variable airflow adjustment, optimizing energy usage in ventilation systems.
● Mixing and Processing Equipment
Ensures stable torque output, maintaining uniform process quality in blending operations.
● General Industrial Machinery
Suitable for standard automation systems requiring reliable motor speed control.
● Material Handling Systems
Improves operational stability in lifting and conveying processes with variable load conditions.
Advantages
● Enhanced Control Performance (40P Series)
Provides improved torque stability and dynamic response compared to standard PowerFlex 40 models.
● Medium-Power Capability
Designed for 10 HP applications, suitable for a wide range von industrial equipment.
● Simple Operational Structure
The reset-only display interface reduces complexity while maintaining essential functionality.
● Flexible System Integration
Built-in RS485 communication supports integration with PLCs and industrial networks.
● Stable Motor Operation
Ensures smooth acceleration and deceleration, reducing mechanical stress on equipment.
● Compact Cabinet Installation
The Frame Size C design allows efficient installation in standard control panels.
