Produkteinführung

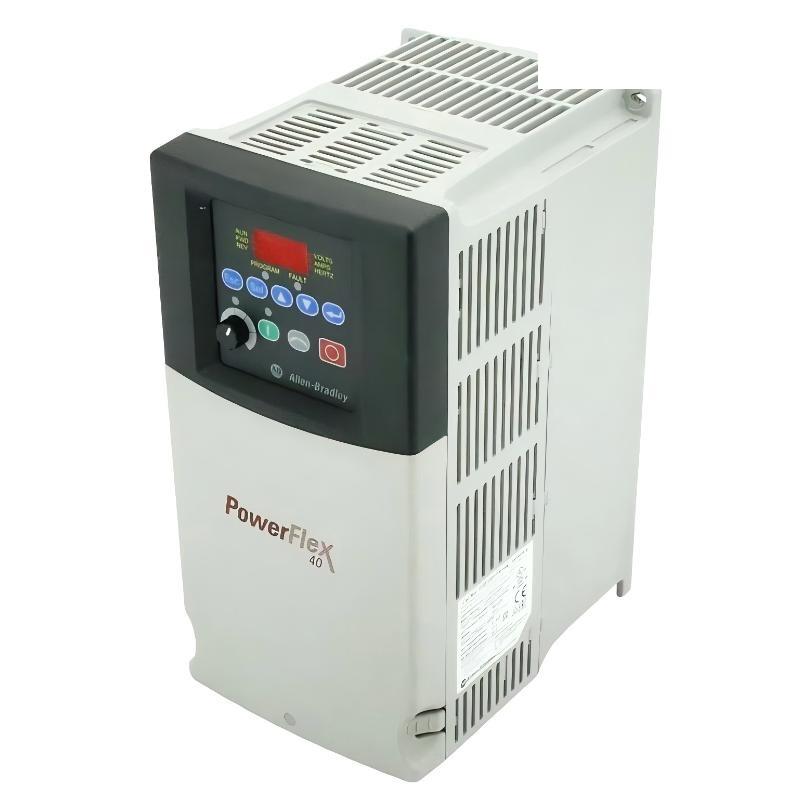

The Allen-Bradley 22B-D017N104 PowerFlex 40 AC Drive is a robust and versatile variable frequency drive designed for industrial motor control in medium to higher load applications. As part von the widely used PowerFlex 40 series, it combines reliable performance with a straightforward configuration approach, making it suitable for both standalone machinery and integrated automation systems.
This model operates on a three-phase 480VAC supply and is capable von driving motors up to 10 HP. It delivers stable speed regulation and consistent torque output, ensuring smooth operation across varying load conditions. The integrated LED display and digital keypad provide direct access to parameters, allowing operators to configure and monitor the drive efficiently without additional tools.

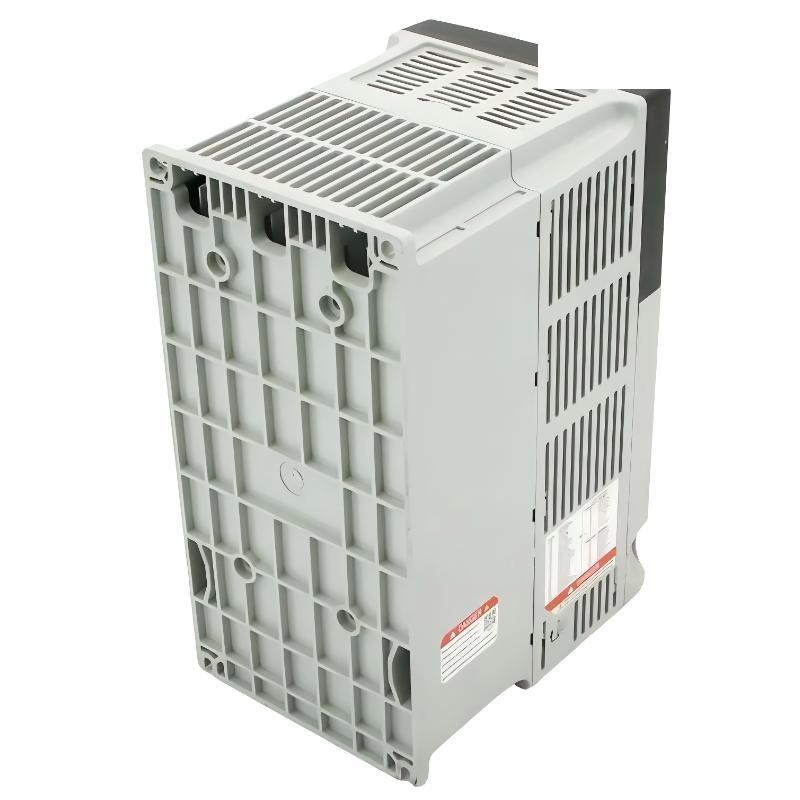

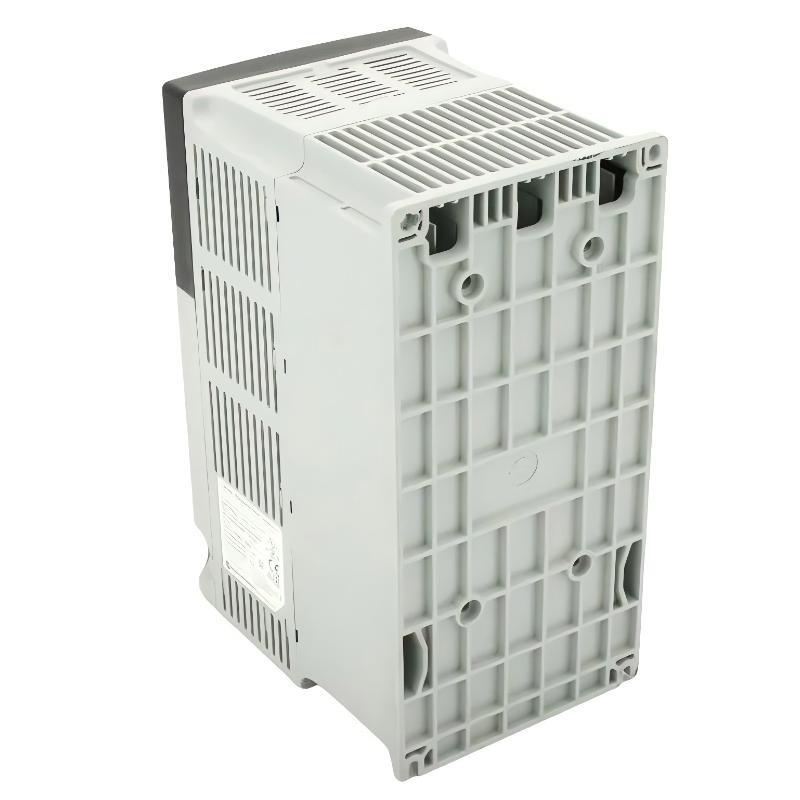

With a Frame Size C structure, the drive is designed for panel mounting in industrial control cabinets. The inclusion von RS485 communication enables seamless integration into control networks, while the open IP20 enclosure allows flexible installation with appropriate cabinet protection. The non-filtered configuration provides adaptability for systems requiring customized EMC solutions.
Produktspezifikationen
| Parameter | Value |
|---|---|
| Modell | 22B-D017N104 |
| Series | PowerFlex 40 |
| Input Voltage | 480 VAC |
| Phase | 3-Phase |
| Output Current | 17 A |
| Power Rating | 7.5 kW / 10 HP |
| Frame Size | C |
| Enclosure Type | IP20 (Open) |
| Display Type | LED Display |
| Keypad | Digital Keypad |
| Communication | RS485 |
| Filter | No CE Compliant Filter |
| Control Method | V/Hz Control |
| Cooling Method | Forced Air Cooling |
| Mounting Type | Panel Mount |
| Protection Features | Overcurrent, Overvoltage, Undervoltage, Thermal Protection |
| Operating Temperature | 0°C to 50°C (typical, no derating) |
| Dimensions | 260 × 130 × 180 mm |
| Gewicht | 4.3 kg |
Applications
● Heavy-Duty Conveyor Systems
Provides stable and controlled movement von materials, minimizing mechanical wear during operation.
● Industrial Pumping Systems
Ensures accurate flow regulation, improving process efficiency and consistency.
● Ventilation and Air Handling Einheits
Supports precise airflow control, contributing to energy savings in large facilities.
● Processing and Manufacturing Equipment
Maintains consistent motor speed, enhancing production quality and reliability.
● Mixers and Agitators
Allows adjustable speed control for optimized mixing processes.
● General Industrial Automation
Suitable for integrated control systems requiring dependable and flexible motor management.
Advantages
● High Power Capability
Designed to support up to 10 HP motors, making it suitable for more demanding applications.
● Flexible System Integration
Built-in RS485 communication enables easy connection with PLCs and industrial networks.
● User-Friendly Operation
The LED display and digital keypad allow quick configuration and real-time monitoring.
● Customizable EMC Setup
The non-filtered design provides flexibility for external filtering based on installation needs.
● Reliable Control Performance
The V/Hz control method ensures smooth acceleration and consistent torque delivery.
● Efficient Panel Installation
The Frame Size C design supports structured and organized cabinet integration.
