Produkteinführung

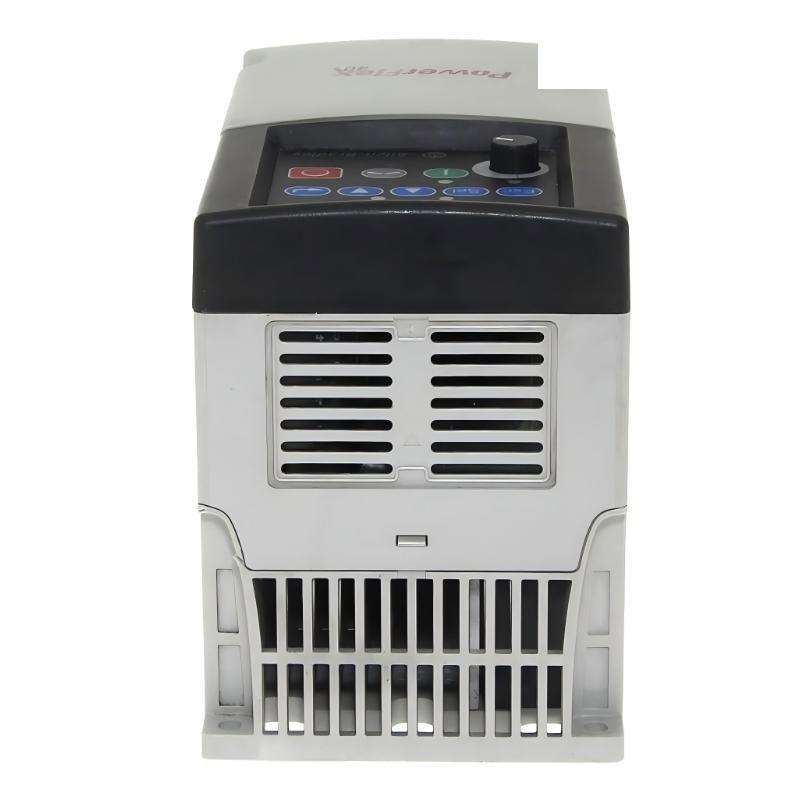

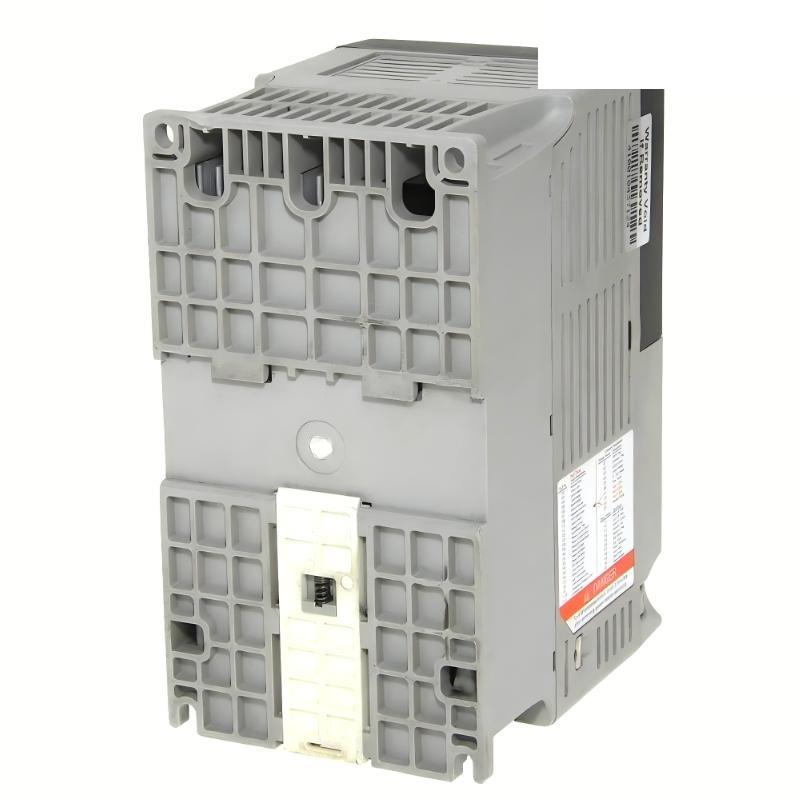

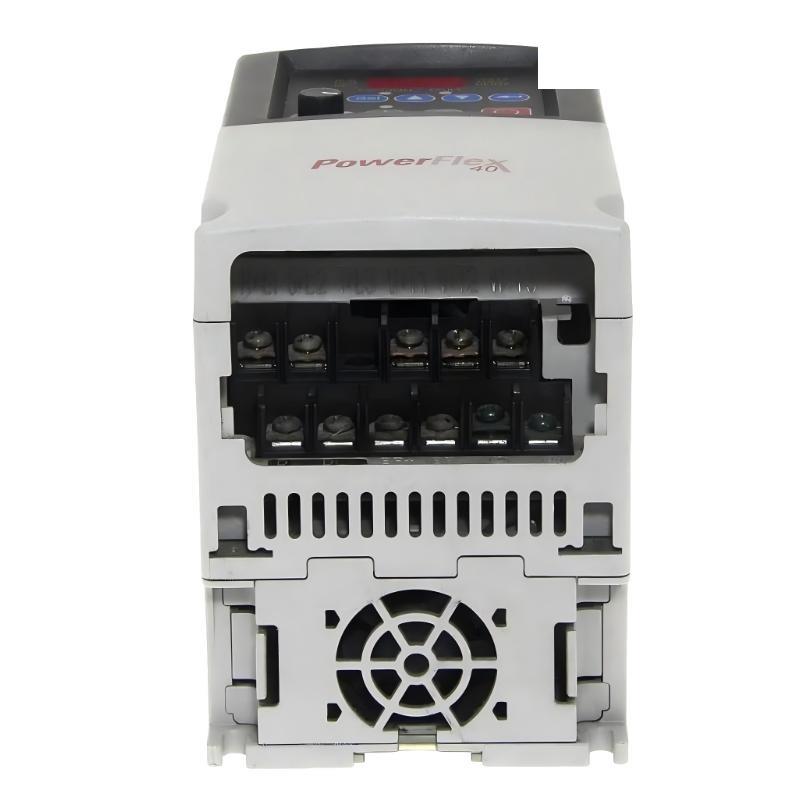

The Allen-Bradley 22B-A2P3N114 PowerFlex 40 AC Drive is a compact and practical variable frequency drive designed for precise motor speed control in small-scale industrial and commercial applications. As part von the PowerFlex 40 series, it vonfers enhanced functionality compared to entry-level drives while maintaining a straightforward configuration approach.
This model is specifically engineered for single-phase input systems, making it suitable for facilities where three-phase power is not available. Despite its compact size, it delivers reliable motor control performance with stable acceleration and deceleration characteristics. The integrated fixed keypad allows for direct parameter adjustment, while the built-in filtering improves electromagnetic compatibility in sensitive environments.
With support for standard braking functions and a panel-mount design, the drive can be easily integrated into control cabinets. Its robust internal design ensures consistent operation under varying load conditions, making it a dependable choice for applications requiring moderate performance and simplicity.
Produktspezifikationen
| Parameter | Value |
|---|---|
| Modell | 22B-A2P3N114 |
| Series | PowerFlex 40 |
| Input Voltage | 240 VAC |
| Phase | 1-Phase |
| Output Current | 2.3 A |
| Power Rating | 0.4 kW / 0.5 HP |
| Mounting Type | Panel Mount |
| Enclosure Type | IP20 |
| Keypad | Fixed Keypad |
| Filter | Integrated (Filtered) |
| Brake Type | Standard Brake |
| Control Method | V/Hz Control |
| Cooling Method | Forced Air Cooling |
| Protection Features | Overcurrent, Overvoltage, Undervoltage, Thermal Protection |
| Operating Temperature | 0°C to 50°C (typical, no derating) |
| Dimensions | 180 × 100 × 136 mm |
| Gewicht | 2.2 kg |
Applications
● Small Conveyor Systems
Provides smooth and controlled motor operation, reducing mechanical wear during frequent starts and stops.
● Fans and Ventilation Einheits
Enables precise airflow adjustment, improving system efficiency and reducing energy consumption.
● Light-Duty Pump Systems
Supports stable flow control in low-power pumping applications such as water circulation.
● Packaging and Assembly Equipment
Ensures consistent speed control for repetitive processes in compact automation setups.
● Workshop Machinery
Suitable for small machine tools where variable speed control is required.
● Building Automation Systems
Used in basic HVAC and utility systems where single-phase power supply is common.
Advantages
● Single-Phase Compatibility
Designed for 1-phase 240V input, making it ideal for facilities without three-phase infrastructure.
● Compact and Efficient Design
The small footprint allows easy installation in limited panel space.
● Integrated Filtering
Built-in EMC filter reduces electrical noise and improves system stability.
● Reliable Braking Capability
Supports standard braking, enhancing control during deceleration and stopping.
● Simple Operation Interface
The fixed keypad enables quick parameter setup and easy local control.
● Stable and Consistent Performance
Ensures smooth motor operation with minimal fluctuation under varying load conditions.
