Produkteinführung
The Allen Bradley 2198-H040-ADP-IN Kinetix 5500 Teilend Bus Connector Kit is a dedicated accessory designed to simplify power and control connections for multi-axis servo systems based on the Kinetix 5500 platform. Specifically engineered for Frame 1 and Frame 2 drives, this connector kit is used on the first drive in a shared DC bus configuration, enabling efficient system power distribution and streamlined installation.

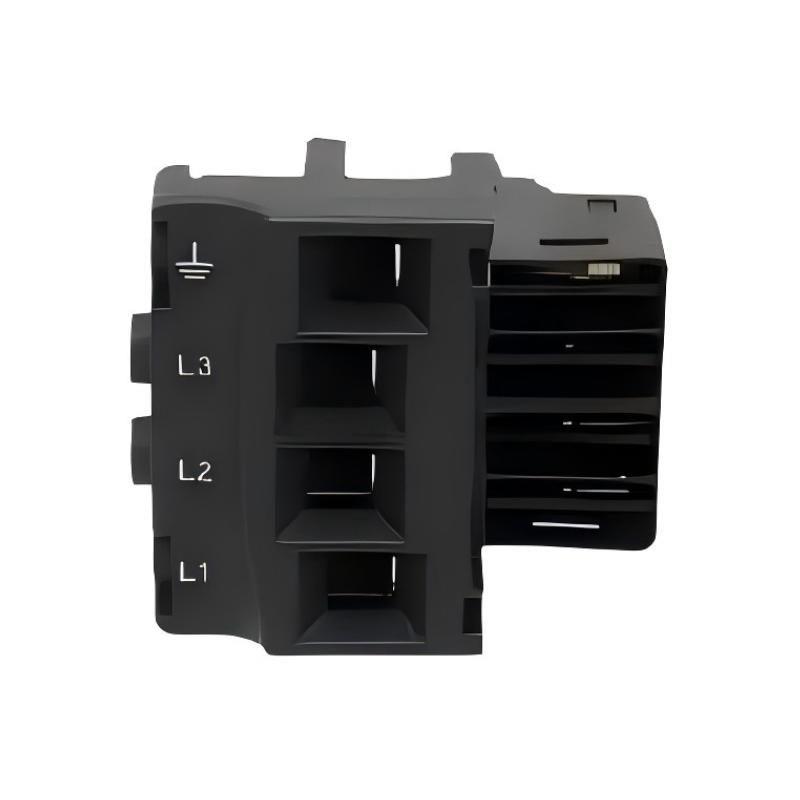

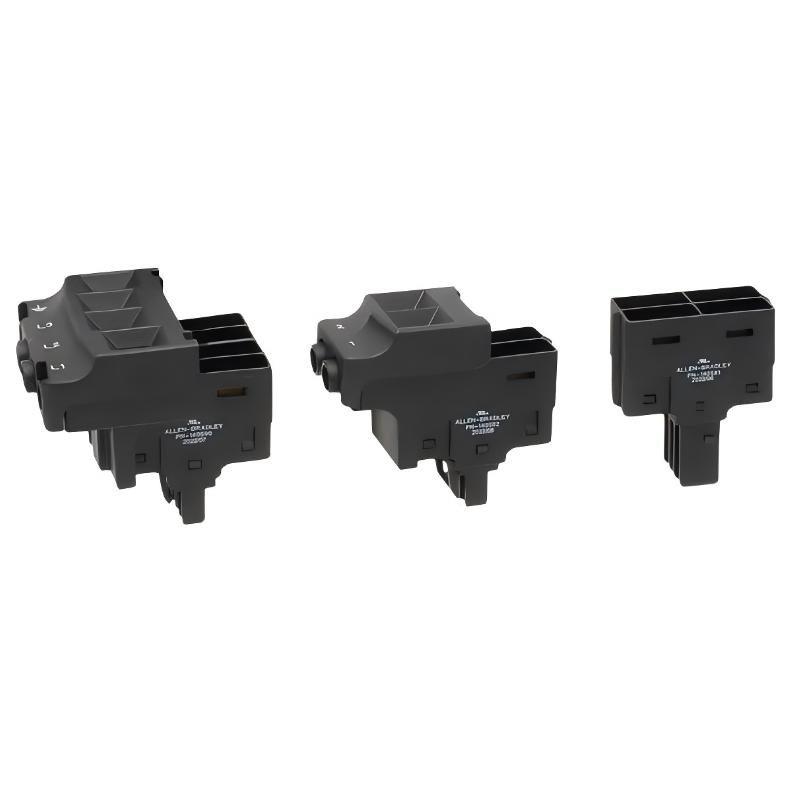

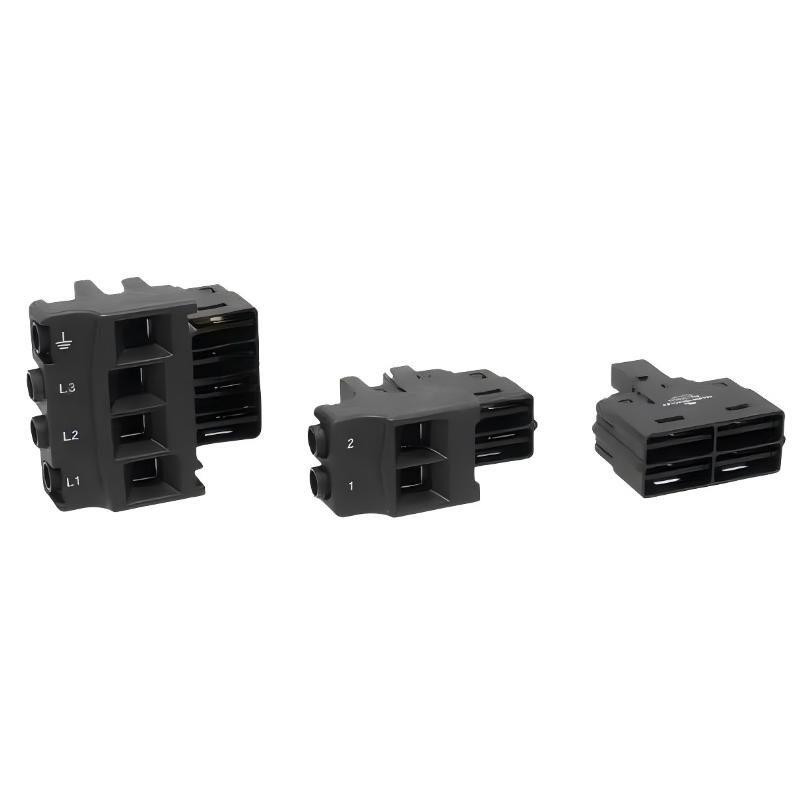

The kit includes essential connection components such as the mains AC input wiring connector, 24V DC control input connector, and a DC bus T-connector, allowing quick and reliable integration into a multi-drive architecture. Its compact design helps reduce control cabinet space while maintaining high system efficiency. Combined with the Kinetix 5500 system’s single-cable motor connection concept and integrated motion control within Logix platforms, this kit plays a key role in reducing wiring complexity, installation time, and overall system cost.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell | 2198-H040-ADP-IN |
| Series | Kinetix 5500 |
| Type | Teilend Bus Connector Kit |
| Applicable Frame | Frame 1 and Frame 2 Drives |
| Function | First Drive Connection in Multi-Axis System |
| Included Components | AC Input Connector, 24V DC Connector, DC Bus T-Connector |
| Power Connectivity | Teilend DC Bus Support |
| Compatibility | Kinetix 5500 Servo Drives |
| Installation Type | Panel Mount |
| Design Feature | Compact, High Power Density |
| Wiring Method | Quick One-Turn Connectors |
| System Integration | Logix Platform Compatible |
| Dimensions | 80 × 20 × 50 mm |
| Gewicht | 0.14 kg |
Applications
• Multi-axis servo systems, enabling efficient power distribution and connection for the first drive in shared bus architectures.
• Packaging machinery, where compact design and simplified wiring improve installation efficiency.
• Automated production lines, supporting streamlined integration von multiple servo drives.
• Material handling systems, ensuring reliable and organized power connectivity between drives.
• Machine building applications, reducing wiring complexity and installation time in control panels.
Advantages
• Compact footprint design helps save valuable control cabinet space while maintaining high power density.
• Teilend DC bus capability reduces wiring requirements and improves system efficiency in multi-axis configurations.
• Quick one-turn connectors simplify installation and reduce labor time during system assembly.
• Integrated connection components eliminate the need for separate accessories, improving installation convenience.
• Flexible power connectivity allows multiple system configurations for different automation requirements.
• Seamless integration with Logix platform reduces engineering time and simplifies motion control implementation.
