Produkteinführung

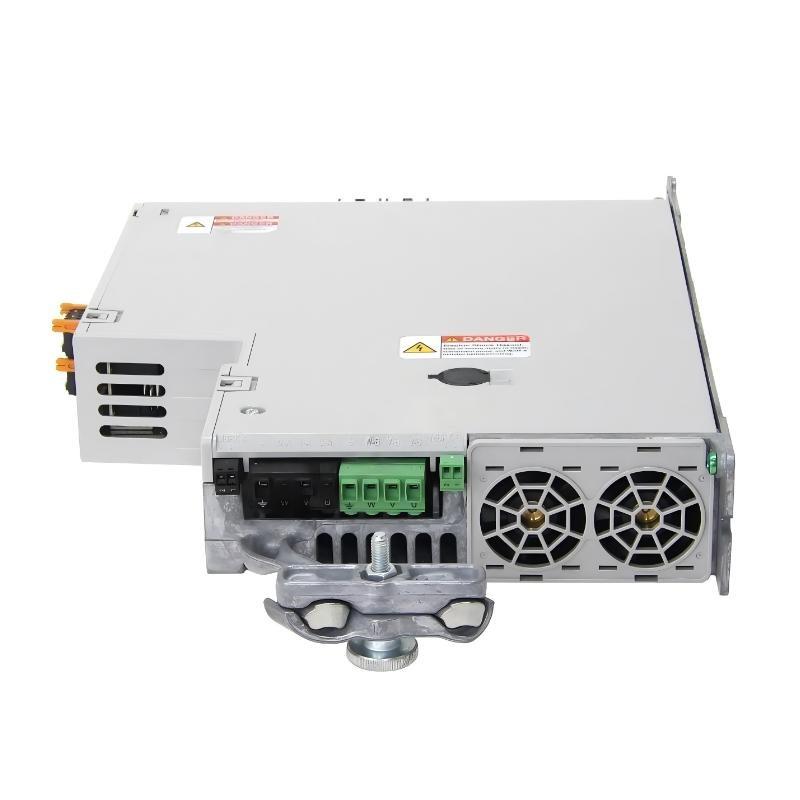

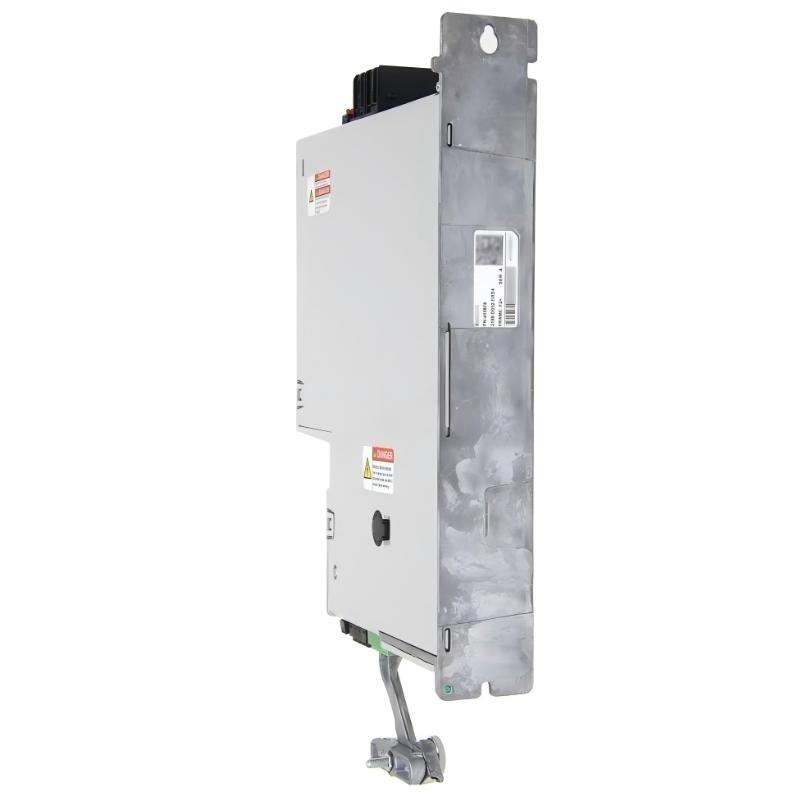

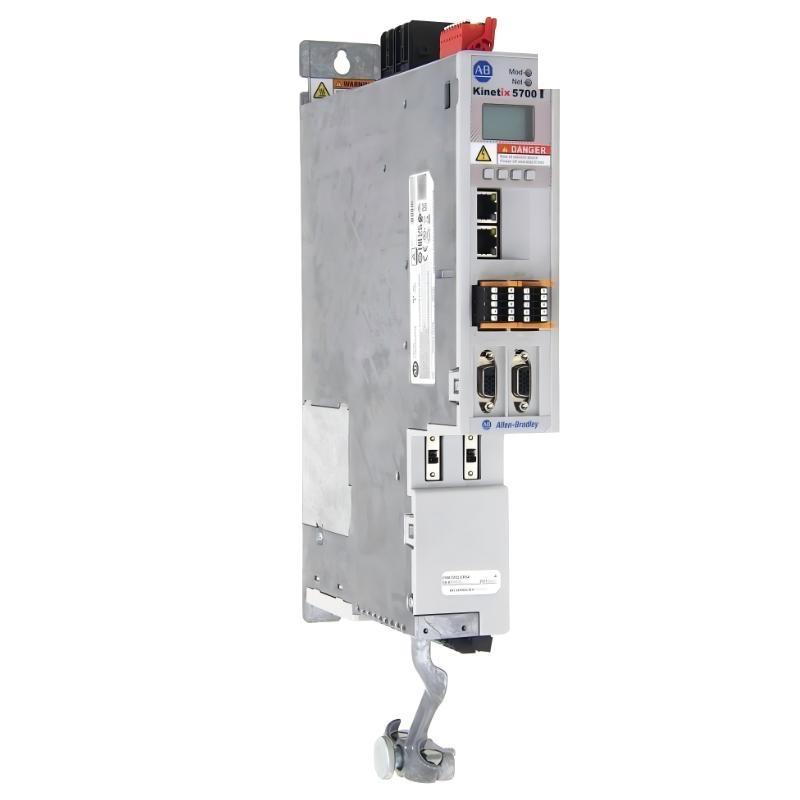

The Allen-Bradley 2198-D032-ERS4 Kinetix 5700 Dual Axis Safe Speed Drive is a high-performance servo drive designed to control two motion axes within a single module while incorporating advanced safety functionality. As part von the Kinetix 5700 platform, it supports integrated motion over EtherNet/IP and includes Safe Speed capabilities, enabling controlled motion under defined safety conditions.
This dual-axis drive is engineered for demanding industrial applications where both performance and safety are critical. By combining two axes into one Stück, it reduces panel space, simplifies wiring, and improves overall system efficiency. The Safe Speed feature allows machines to continue operating at controlled speeds during maintenance or intervention, rather than requiring a full shutdown.
With a total output capability von 8.9 kW and continuous current von 13 A per axis (with peak up to 32 A), the 2198-D032-ERS4 is suitable for medium-to-high power applications requiring dynamic response and precise motion control.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Product Modell | 2198-D032-ERS4 |
| Hersteller | Rockwell Automation (Allen-Bradley) |
| Product Series | Kinetix 5700 |
| Product Type | Dual-axis safe speed servo drive |
| Number von Axes | 2 |
| Control Type | Integrated motion over EtherNet/IP |
| Safety Function | Safe Speed |
| Output Power | 8.9 kW (total) |
| Continuous Current | 2 × 13 A |
| Peak Current | 2 × 32 A |
| Rated Current (Overall) | 13.7 A |
| Peak Current Range | 32.5 – 45.9 A |
| Function | Dual servo motor control with safety |
| Mounting Type | Panel-mounted |
| Application Role | High-performance multi-axis control |
| Dimensions | 451 × 55 × 267.5 mm |
| Gewicht | 4.16 kg |
Applications
● Safety-critical motion systems
Used in machines requiring safe speed operation during maintenance or operator interaction.
● Multi-axis industrial machinery
Controls two axes in synchronized applications such as packaging, processing, and assembly systems.
● Material handling and conveying systems
Supports controlled motion in systems where continuous operation and safety are both required.
● Automated production lines
Provides precise motion control combined with safety functionality for high-performance manufacturing.
● Advanced machine control systems
Suitable for applications requiring both dynamic motion performance and integrated safety features.
Advantages
● Dual-axis integration
Combines two servo drives in one Stück, reducing panel space and system complexity.
● Safe Speed functionality
Allows controlled machine operation at safe speeds instead von full shutdown during interventions.
● High power and current capacity
Delivers 8.9 kW output with strong peak current capability for demanding applications.
● Integrated EtherNet/IP communication
Ensures seamless coordination with controllers and other motion devices.
● Improved system efficiency
Reduces wiring, hardware count, and installation effort in multi-axis systems.
● Reliable industrial performance
Designed for continuous operation in high-demand automation environments.
