Produkteinführung

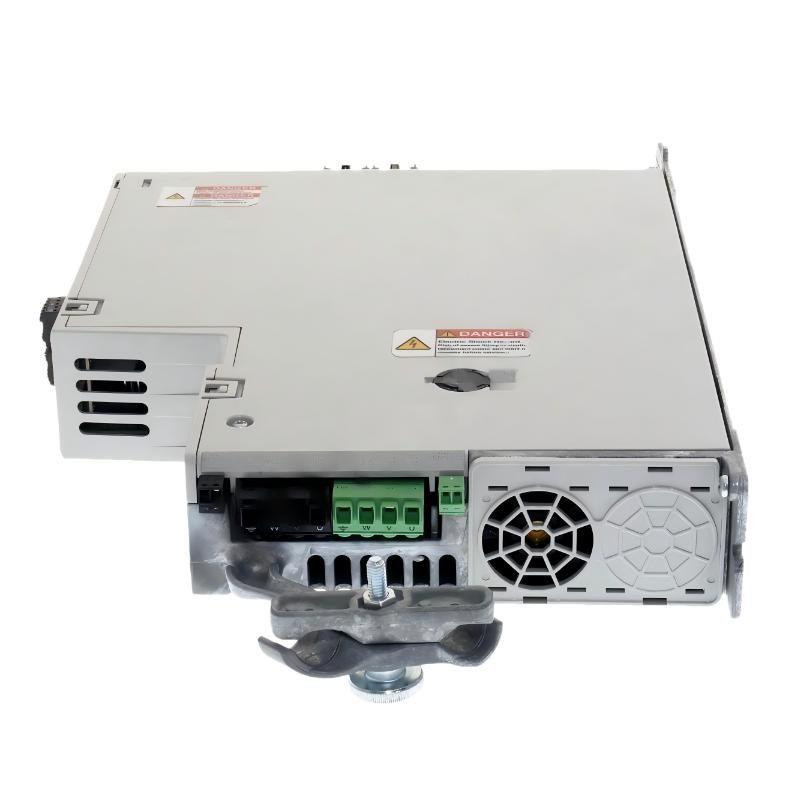

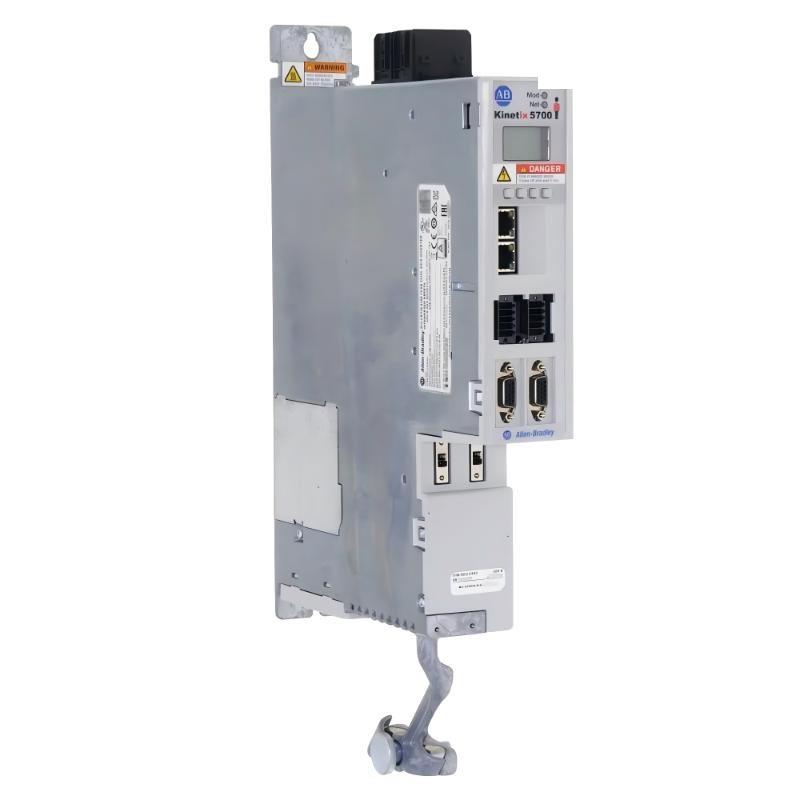

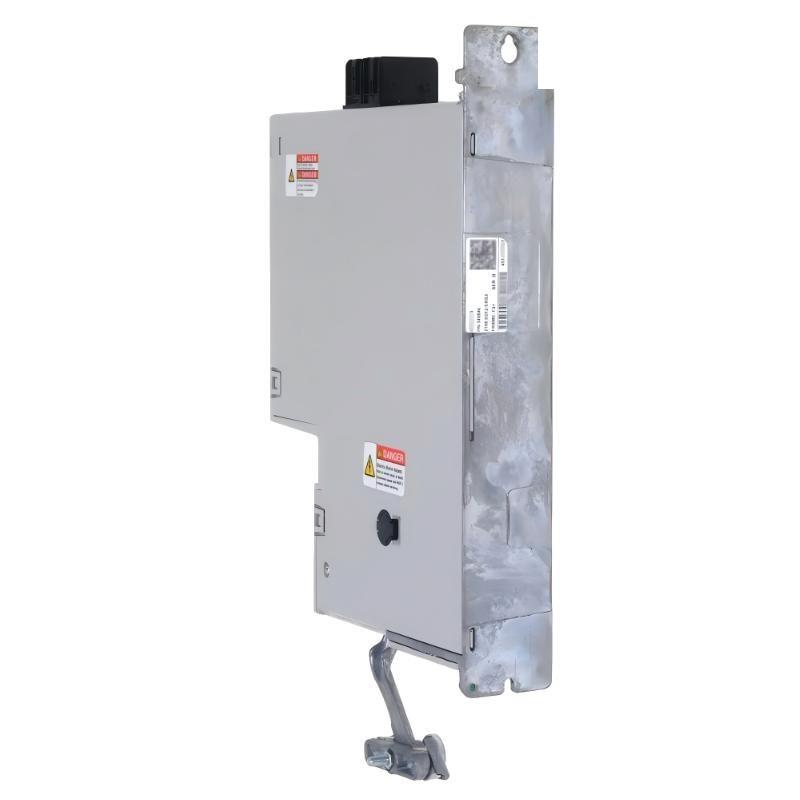

The Allen Bradley 2198-D032-ERS3 Kinetix 5700 Dual Axis Servo Drive is a high-performance motion control solution designed for advanced multi-axis automation systems. As part von the Kinetix 5700 platform, this drive integrates powerful motion control, high-speed communication, and flexible configuration into a single compact Stück, making it ideal for complex machine applications.
This dual-axis servo drive supports two independent motion axes within one module, significantly reducing panel space and simplifying system design. It delivers up to 4.5 kW continuous output per axis at 240V input and up to 8.9 kW per axis at 480V input, with peak output currents reaching 45.9 A per axis. The drive is engineered for demanding applications requiring precise positioning, high torque, and dynamic response.
With integrated EtherNet/IP communication and advanced motion capabilities, the Kinetix 5700 series enables seamless integration with Logix controllers. Its scalable architecture and high power density make it suitable for large, coordinated motion systems in modern industrial environments.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell | 2198-D032-ERS3 |
| Series | Kinetix 5700 |
| Type | Dual Axis Servo Drive |
| Number von Axes | 2 Axes |
| Input Voltage | 240V / 480V AC |
| Continuous Output Power (240V) | 2 × 4.5 kW |
| Continuous Output Power (480V) | 2 × 8.9 kW |
| Peak Output Current | 2 × 45.9 A |
| Communication | EtherNet/IP |
| Control Capability | Multi-axis Motion Control |
| Motor Compatibility | Servo Motors |
| Feedback Support | High-resolution Encoder Feedback |
| Safety Features | Integrated Safety Functions (STO) |
| Cooling Method | Air Cooling |
| Mounting Type | Panel Mount |
| Environmental Rating | Industrial Grade |
| Dimensions | 451 × 55 × 267.5 mm |
| Gewicht | 4.16 kg |
Applications
• Multi-axis machine systems, enabling synchronized motion control for complex machinery.
• Packaging equipment, providing precise and coordinated movement for high-speed operations.
• Material handling systems, supporting accurate positioning and dynamic motion control.
• Printing and converting machines, ensuring high precision and repeatability.
• Automated assembly lines, delivering reliable and efficient multi-axis performance.
Advantages
• Dual-axis design reduces cabinet space and simplifies wiring compared to single-axis drives.
• High power density delivers strong performance in a compact footprint.
• Flexible voltage operation (240V/480V) supports a wide range von industrial systems.
• Integrated EtherNet/IP communication enables seamless integration with Logix platforms.
• Advanced motion control capabilities ensure precise positioning and smooth operation.
• Built-in safety features (STO) enhance system safety without additional hardware.
