Produkteinführung

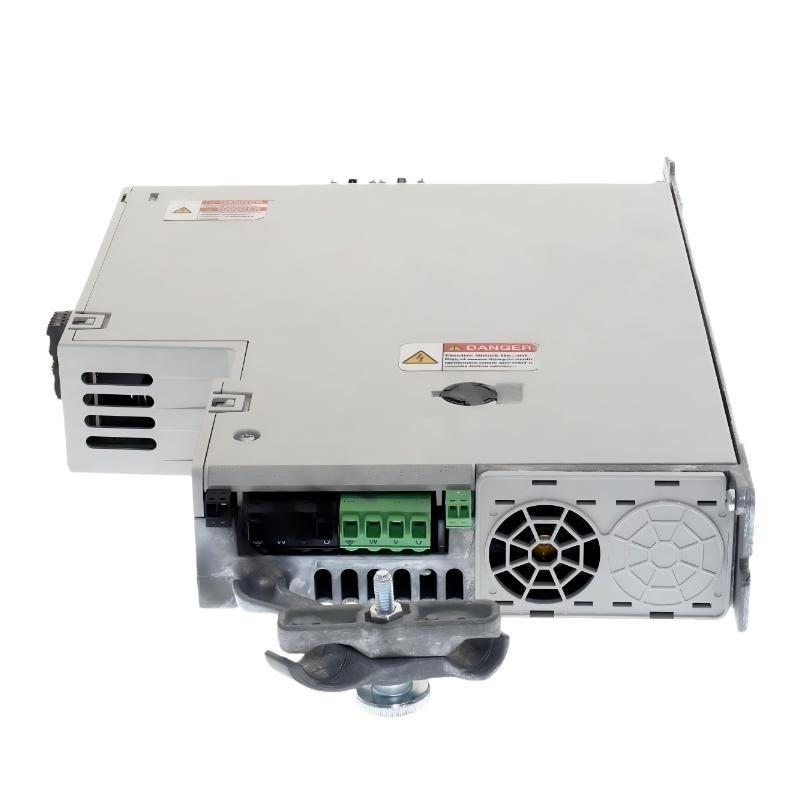

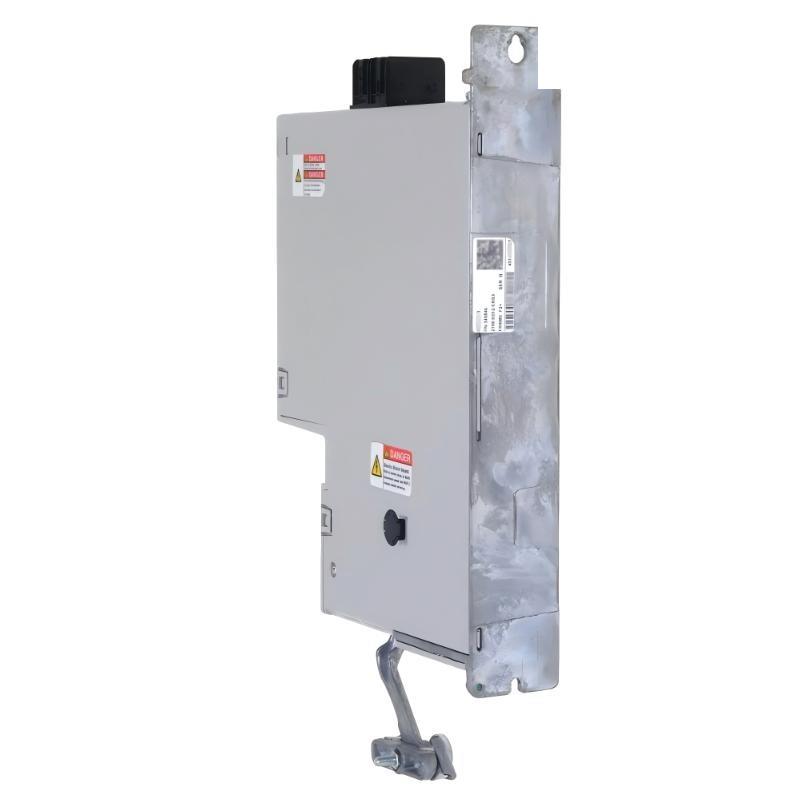

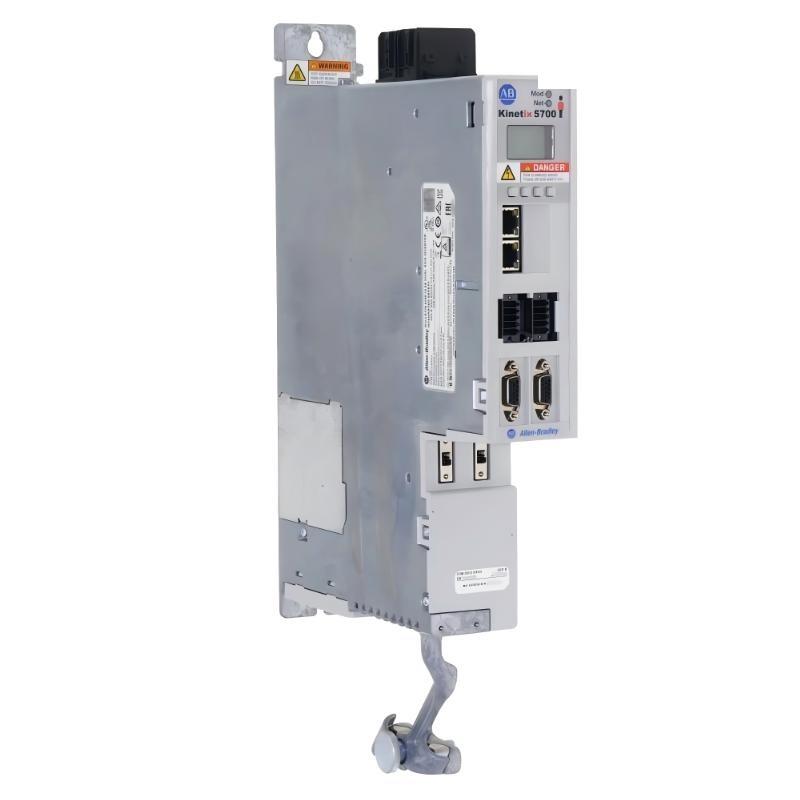

The Allen-Bradley 2198-D012-ERS3 Kinetix 5700 Dual Axis Servo Drive is a high-performance motion control solution designed to control two servo axes within a single compact Stück. As part von the Kinetix 5700 platform, it supports integrated motion over EtherNet/IP, enabling precise coordination between multiple axes in advanced automation systems.
This dual-axis drive is engineered to reduce panel space and simplify wiring by combining two independent servo channels into one module. It is particularly well-suited for machines requiring synchronized motion, such as packaging equipment, material handling systems, and multi-axis production machinery.
With each axis delivering up to 3.2 kW von output power and continuous current von 5.0 ARMS (with peak current up to 12.5 ARMS), the 2198-D012-ERS3 provides a balanced combination von performance and efficiency. It is designed for high-speed, high-precision motion control applications where compactness and reliability are critical.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Product Modell | 2198-D012-ERS3 |
| Hersteller | Rockwell Automation (Allen-Bradley) |
| Product Series | Kinetix 5700 |
| Product Type | Dual-axis servo drive |
| Number von Axes | 2 |
| Control Type | Integrated motion over EtherNet/IP |
| Output Power | 2 × 3.2 kW |
| Continuous Current | 2 × 5.0 ARMS |
| Peak Current | 2 × 12.5 ARMS |
| Function | Dual servo motor control (speed, torque, position) |
| Mounting Type | Panel-mounted |
| Application Role | Multi-axis motion control |
| Dimensions | 451 x 55 x 267.5 mm |
| Gewicht | 4.16 kg |
Applications
● Multi-axis automation systems
Controls two servo axes in synchronized motion applications such as coordinated machinery.
● Packaging and processing equipment
Used in systems requiring precise timing between multiple moving components.
● Material handling systems
Supports conveyors, indexing systems, and pick-and-place applications with dual-axis control.
● Machine tool and assembly systems
Provides accurate motion control for positioning and repetitive operations.
● Space-constrained control panels
Ideal for installations where reducing cabinet space and wiring is important.
Advantages
● Dual-axis integration
Combines two servo drives in one Stück, reducing panel space and wiring complexity.
● High-performance motion control
Delivers 3.2 kW per axis with stable current output for demanding applications.
● Integrated EtherNet/IP communication
Supports seamless motion coordination within modern automation systems.
● Efficient system design
Reduces the number von components required in multi-axis systems.
● High peak current capability
Supports 12.5 ARMS peak current, enabling strong acceleration and dynamic response.
● Reliable industrial operation
Designed for continuous use in demanding automation environments.
