Produkteinführung

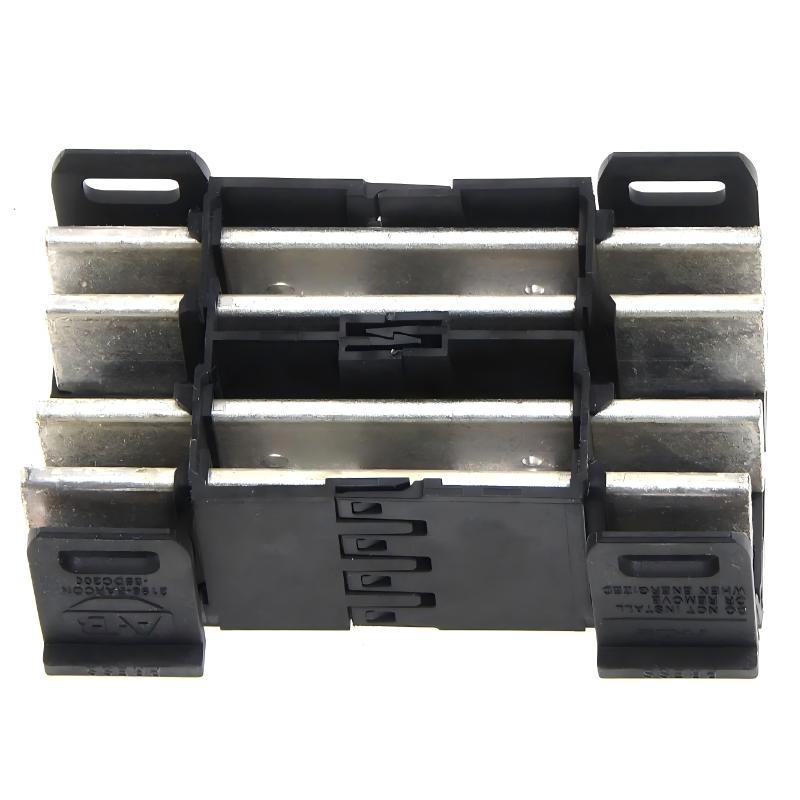

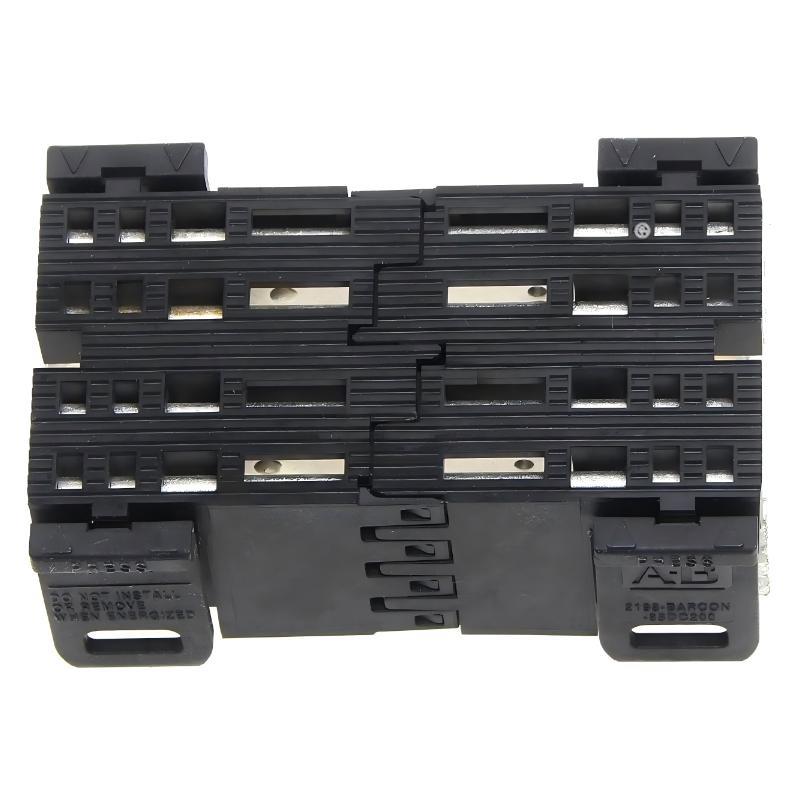

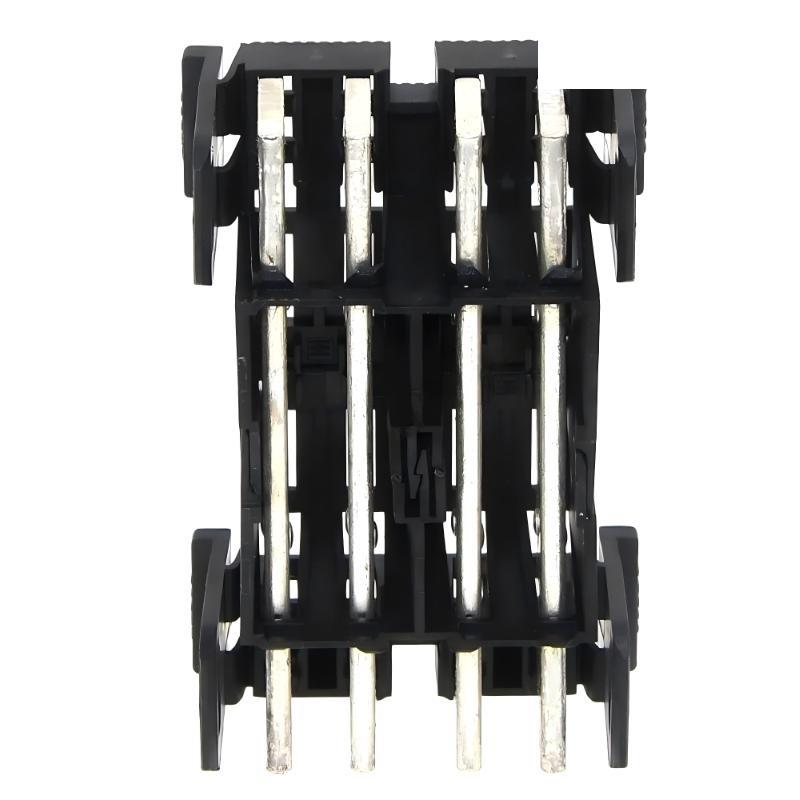

The Allen-Bradley 2198-BARCON-85DC200 is a DC bus link component designed for the Kinetix 5700 motion control platform. It provides a reliable and efficient method for distributing DC bus power between multiple drive modules, enabling energy sharing and reducing overall system power consumption.
With an 85 mm diameter and a 200A current rating, this bus connector is engineered for high-current applications where stable and low-loss power transmission is critical. Its open-style, mountable design allows for flexible installation within control cabinets, making it suitable for compact and modular drive architectures.
The 2198-BARCON-85DC200 plays a key role in multi-axis systems by enabling common DC bus configurations, improving system efficiency, and reducing the need for multiple power supplies. It is particularly useful in regenerative systems where excess energy from one axis can be reused by others.
Produktspezifikationen
| Parameter | Value |
|---|---|
| Product Name | DC Bus Link Connector |
| Modell Number | 2198-BARCON-85DC200 |
| Hersteller | Allen-Bradley |
| Series | Kinetix 5700 |
| Type | DC Bus Link |
| Design Style | Open-style |
| Mounting Type | Panel-mountable |
| Current Rating | 200 A |
| Application Type | Multi-axis DC bus connection |
| System Compatibility | Kinetix 5700 drive systems |
| Function | DC power distribution and sharing |
| Cooling Requirement | Passive (dependent on cabinet design) |
| Installation Position | Between drive modules |
| Diameter | 85 mm |
| Gewicht | 0.25 kg |
Applications
• Multi-axis servo systems requiring shared DC bus architecture
• Kinetix 5700 drive installations, enabling efficient power distribution
• Energy regeneration systems, allowing power reuse between axes
• High-current motion control setups, ensuring stable DC bus connectivity
• Compact control cabinets, optimizing wiring and layout
• Advanced automation systems, improving overall energy efficiency
Advantages
• High 200A current capacity supports demanding multi-axis systems
• Efficient DC bus sharing reduces total energy consumption
• Open-style design allows flexible installation and easy integration
• Compact 85 mm structure fits well in space-limited cabinets
• Improves system efficiency by enabling regenerative energy reuse
• Reduces wiring complexity compared to separate power supplies
• Reliable and robust construction for industrial environments
